COOLANT PUMP, REMOVING AND INSTALLING

Special tools, equipment, testers, measuring instruments and auxiliary items required

z

T10007 Refractometer

z

V.A.G 1306 Drip tray

z

V.A.G 1331 Torque wrench (5...50 N.m)

z

VAS 5024 Assembly tool for spring-type clamps



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



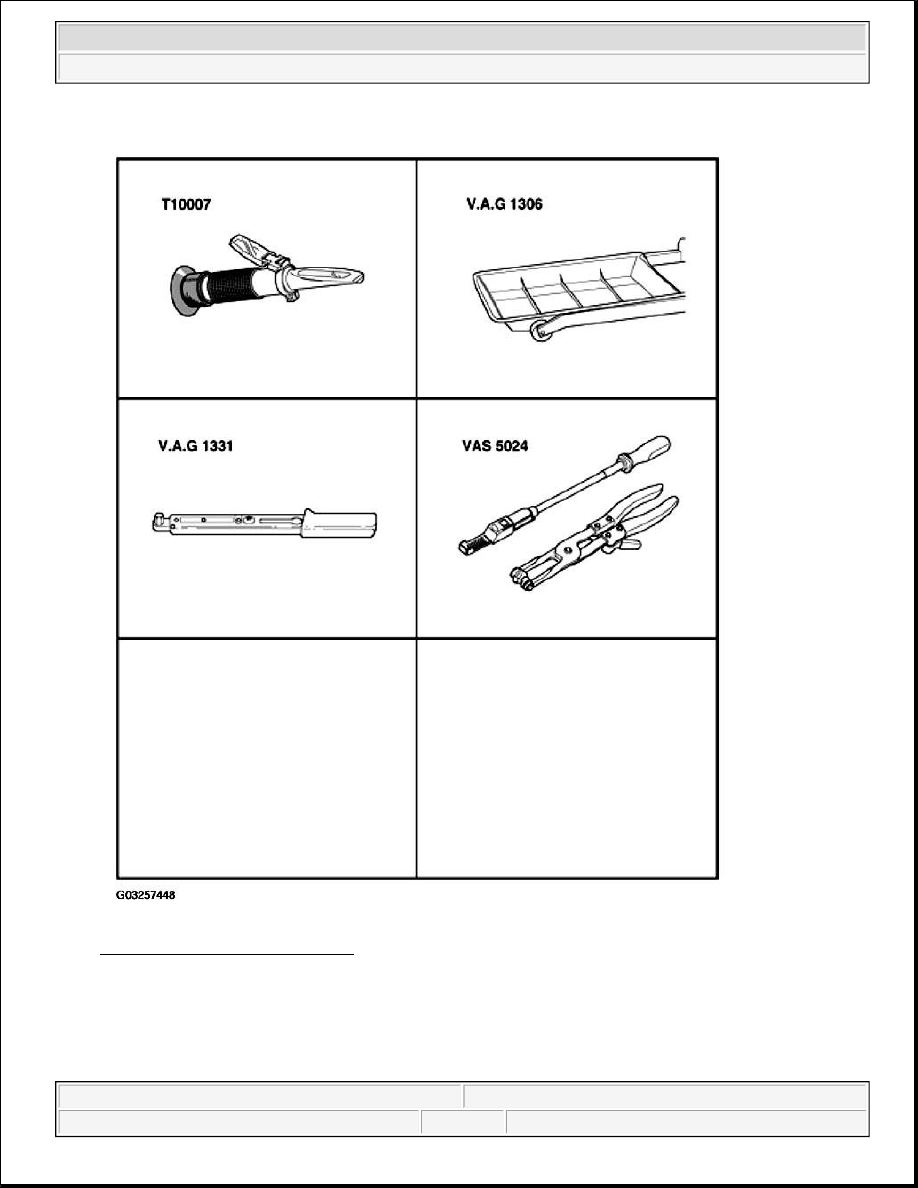

Fig. 22: Identifying Special Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing

NOTE:

z

Always replace seals and gaskets.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



z

Drain coolant, See COOLING SYSTEM, DRAINING AND FILLING .

z

Remove ribbed belt, See RIBBED BELT, REMOVING AND INSTALLING .

z

Remove tensioning element for ribbed belt.

z

Remove upper and center sections of toothed belt guard.

z

Take toothed (timing) belt off coolant pump toothed belt pulley. See TOOTHED BELTS,
REMOVING, INSTALLING AND TENSIONING
 .

z

Unscrew securing bolt -1- for rear toothed belt guard -2-. See Fig. 23 .

z

Unscrew securing bolts -5- for coolant pump and remove coolant pump -4-.

z

The lower section of the toothed belt guard need not be removed.

z

The toothed belt should be left in position on the crankshaft pulley.

z

Cover the toothed belt with a cloth to protect it from coolant before
removing the coolant pump.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



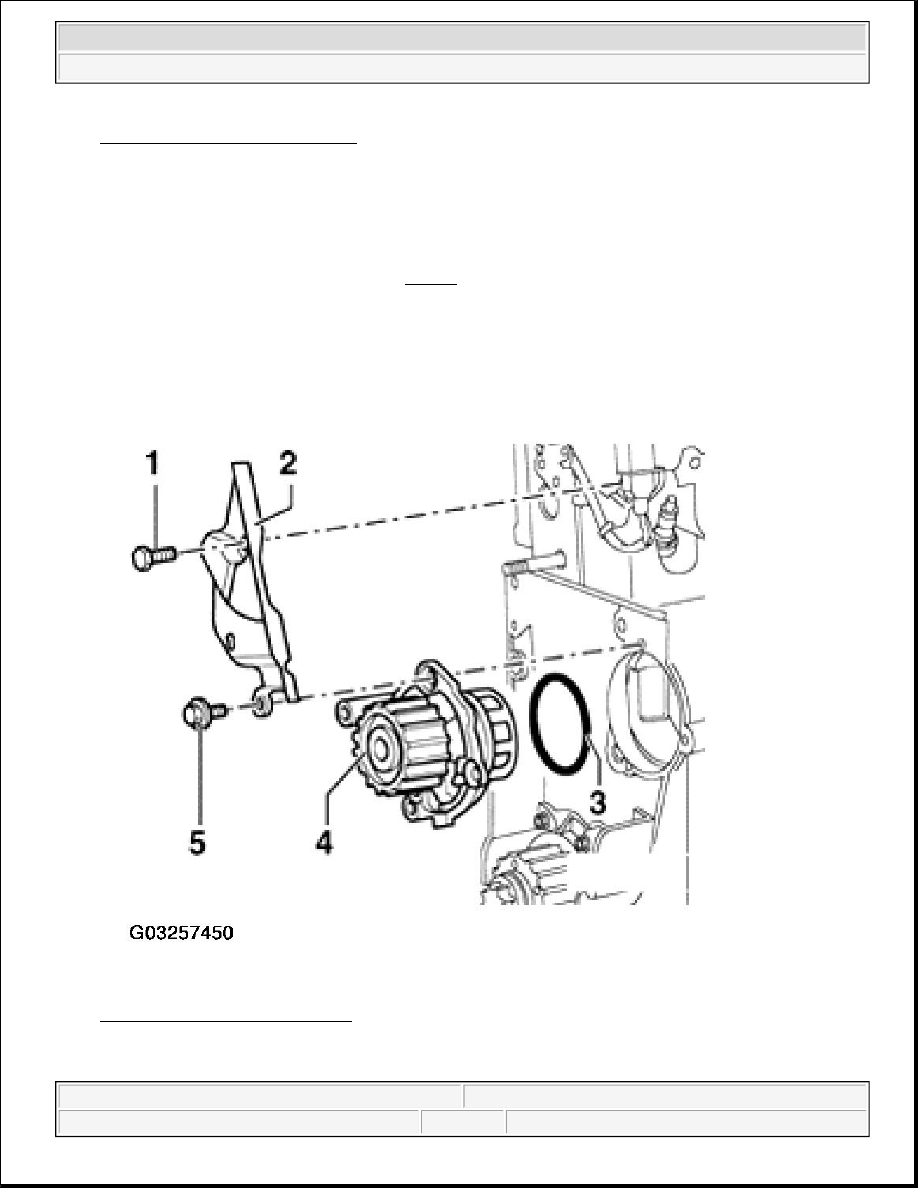

Fig. 23: Removing Coolant Pump
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

Installation is performed in the reverse sequence. Note the following:

z

Moisten new O-ring -3- with coolant. See Fig. 24 .

z

Install coolant pump -4-. Installation position: Coolant pump sealing plug faces downward.

z

Tighten securing bolts -5- to 15 N.m.

z

Tighten securing bolt -1- for rear toothed belt guard -2- on cylinder head to 20 N.m

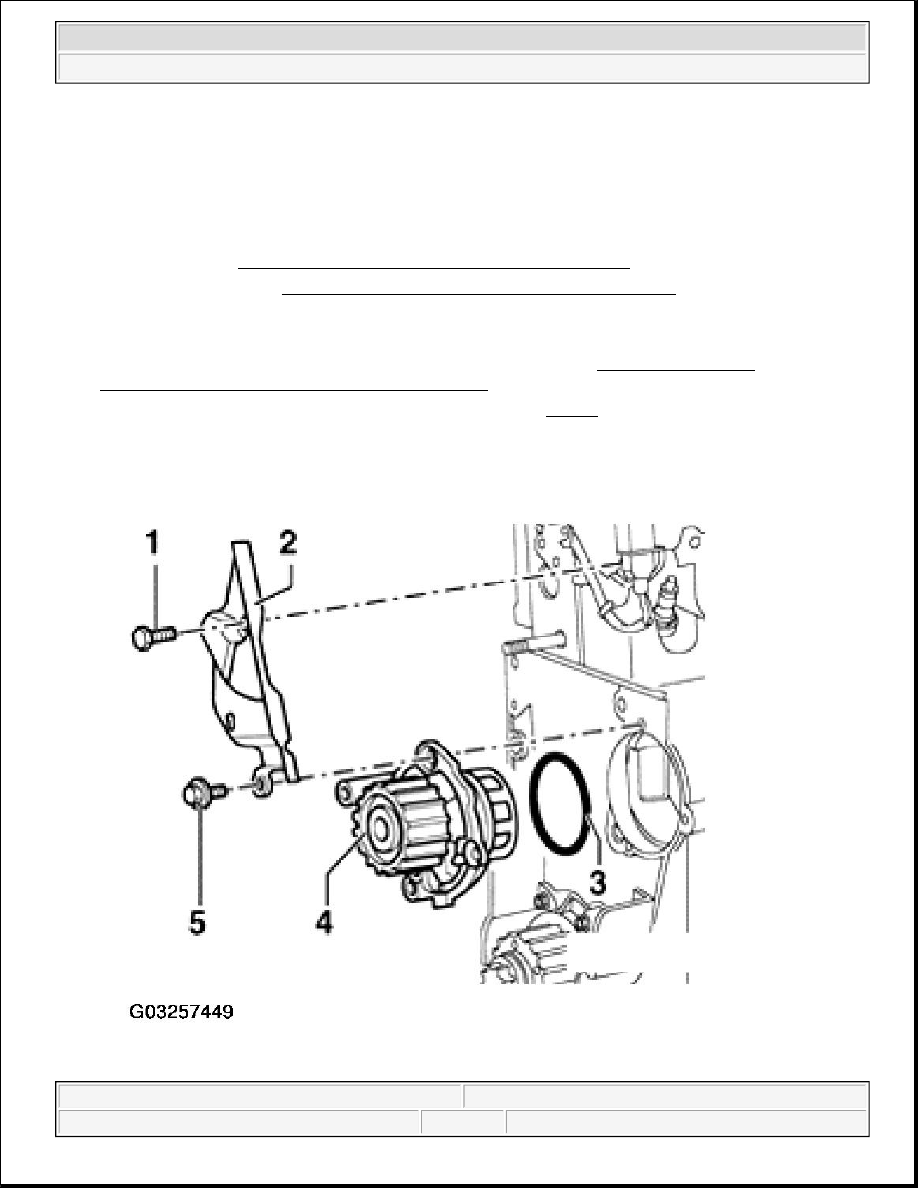

Fig. 24: Installing Coolant Pump
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing toothed belt and adjusting timing. See TOOTHED BELTS, REMOVING, INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)
