Volkswagen New Beetle. Manual - part 975





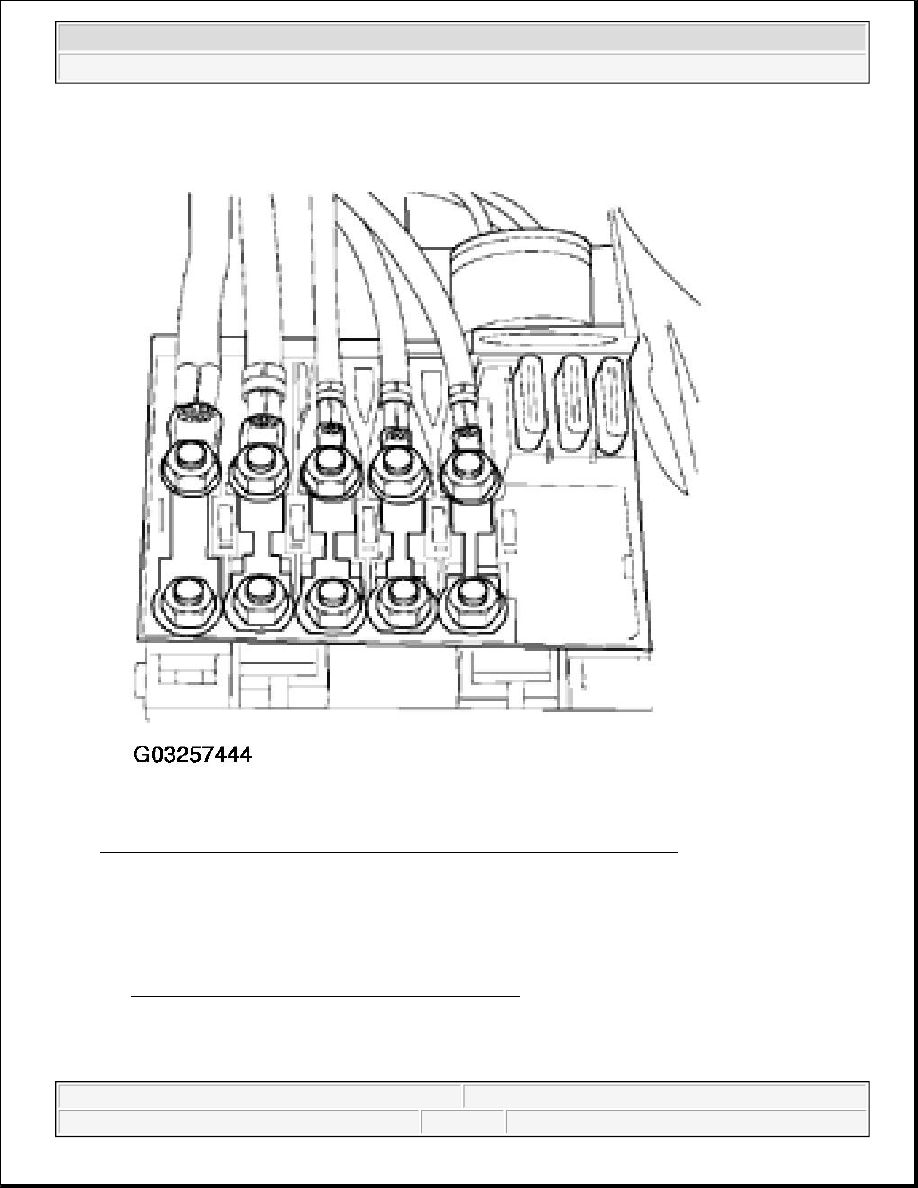

Fig. 18: Locating Main Fuses (Left Front Corner Of Engine Compartment)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Work sequence

z

Remove left side sound insulation:

See NOISE INSULATION, ASSEMBLY OVERVIEW .

z

Disconnect 3-pin connector from Coolant Fan Control (FC) thermal switch -F18-.

z

Bridge contact -1- and contact -2- of connector with auxiliary cables from V.A.G 1594 A.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



Connector type A

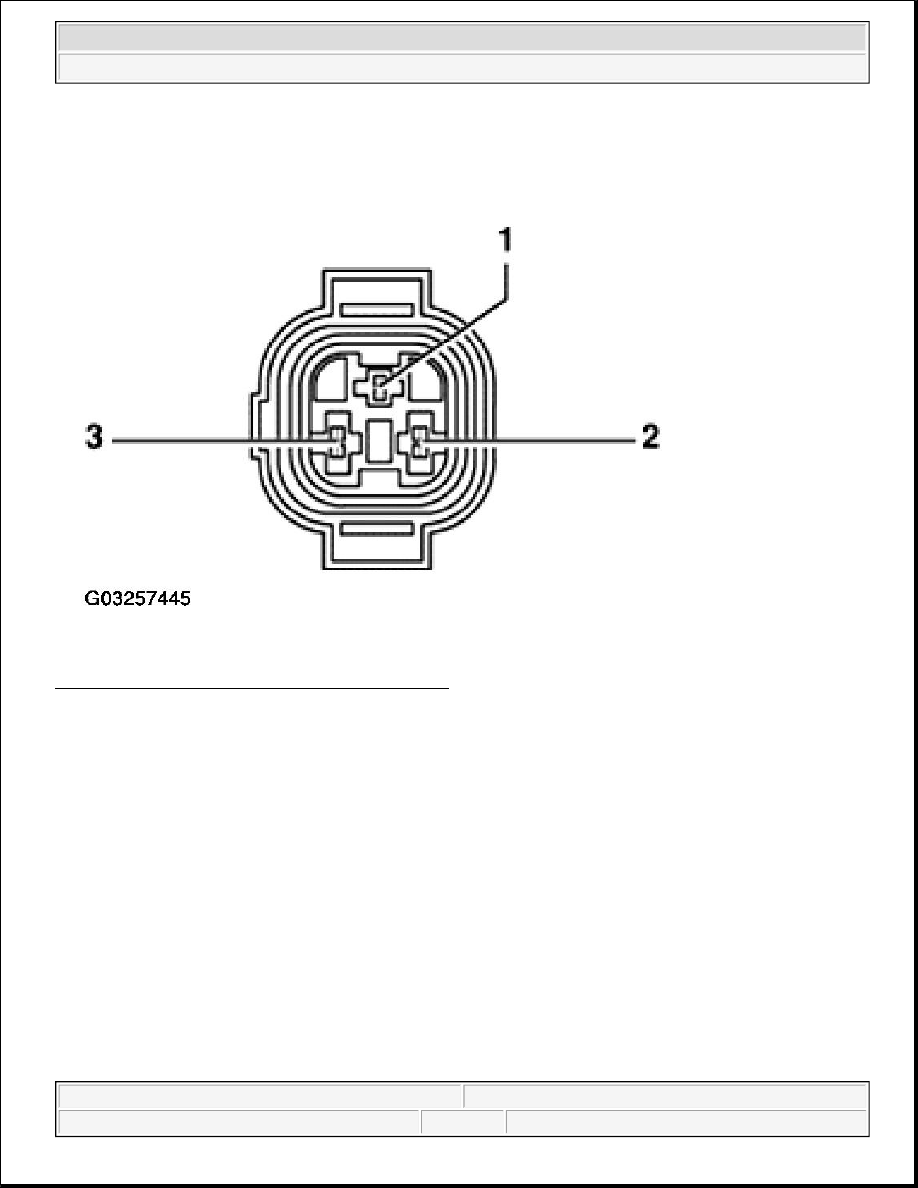

Fig. 19: Identifying Coolant Fan Connector Type A
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Connector type B



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



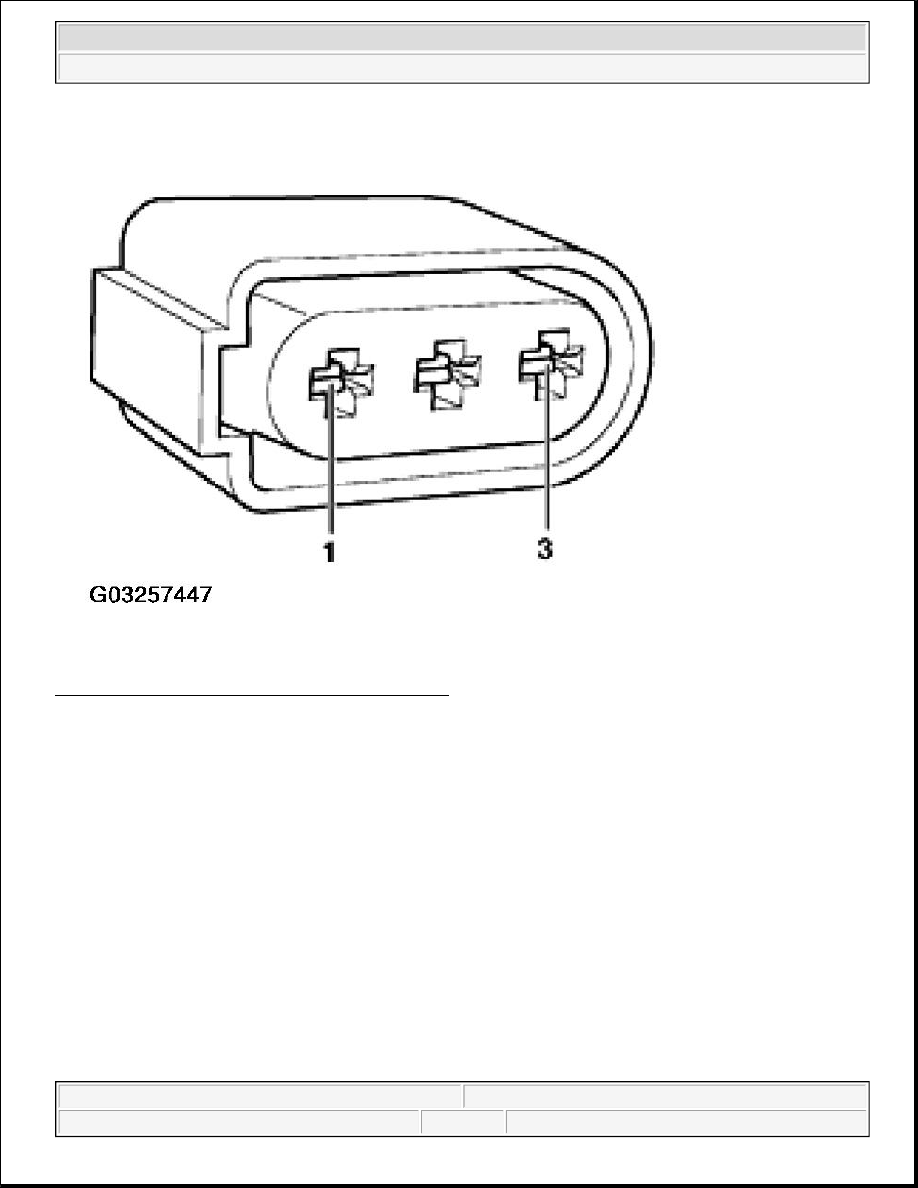

Fig. 20: Identifying Coolant Fan Connector Type B
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Connector type C



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



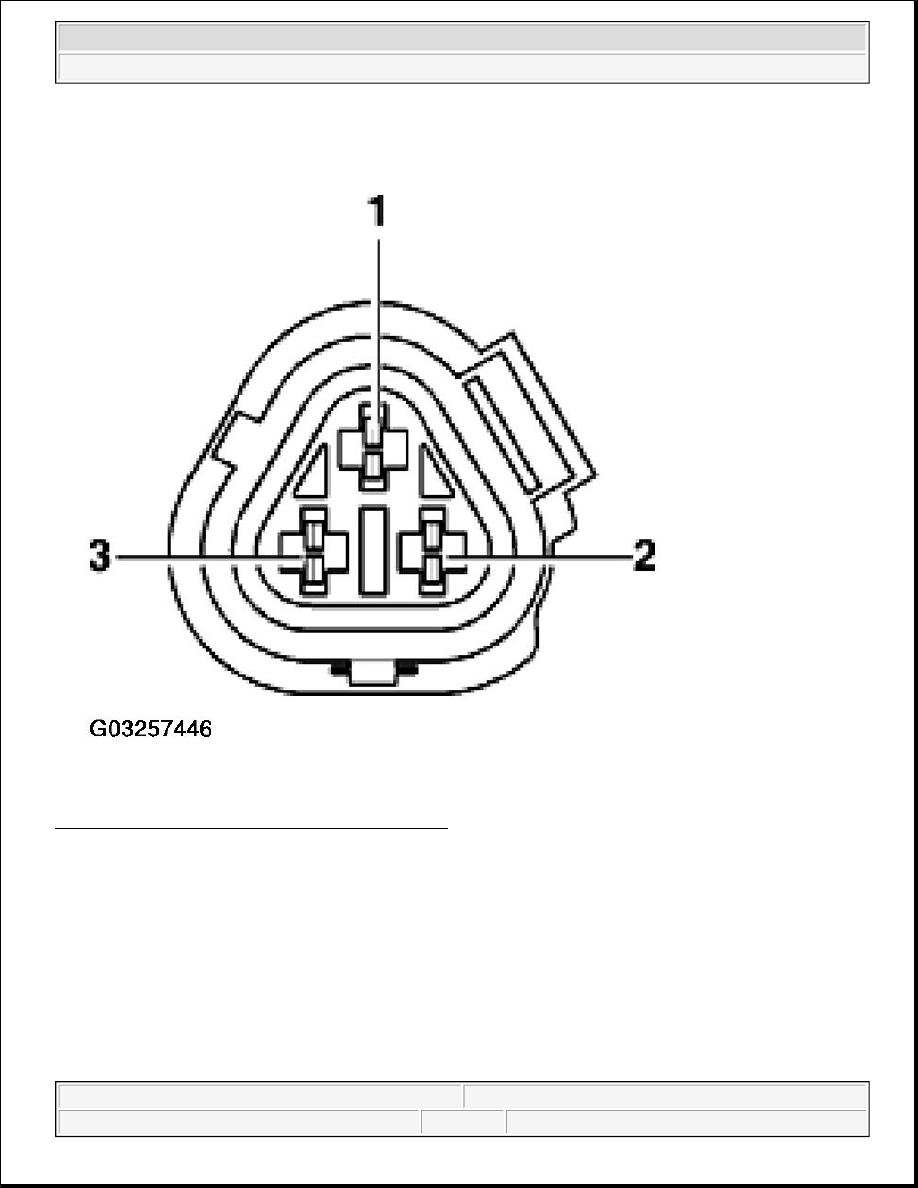

Fig. 21: Identifying Coolant Fan Connector Type C
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1st speed for Coolant fan -V7- and Right coolant fan -V35- must start

z

Switch on ignition.

z

Bridge contact -2- and contact -3- of connector with auxiliary cables from V.A.G 1594 A.

2nd speed for Coolant fan -V7- and Right coolant fan -V35- must start.

If 1st or 2nd speeds of fans do not run:

z

Locate and eliminate open circuit using wiring diagram:

See appropriate SYSTEM WIRING DIAGRAMS article.

If no wiring fault is detected:

z

Replace Coolant fan -V7- or Right coolant fan -V35-.
