Volkswagen New Beetle. Manual - part 974

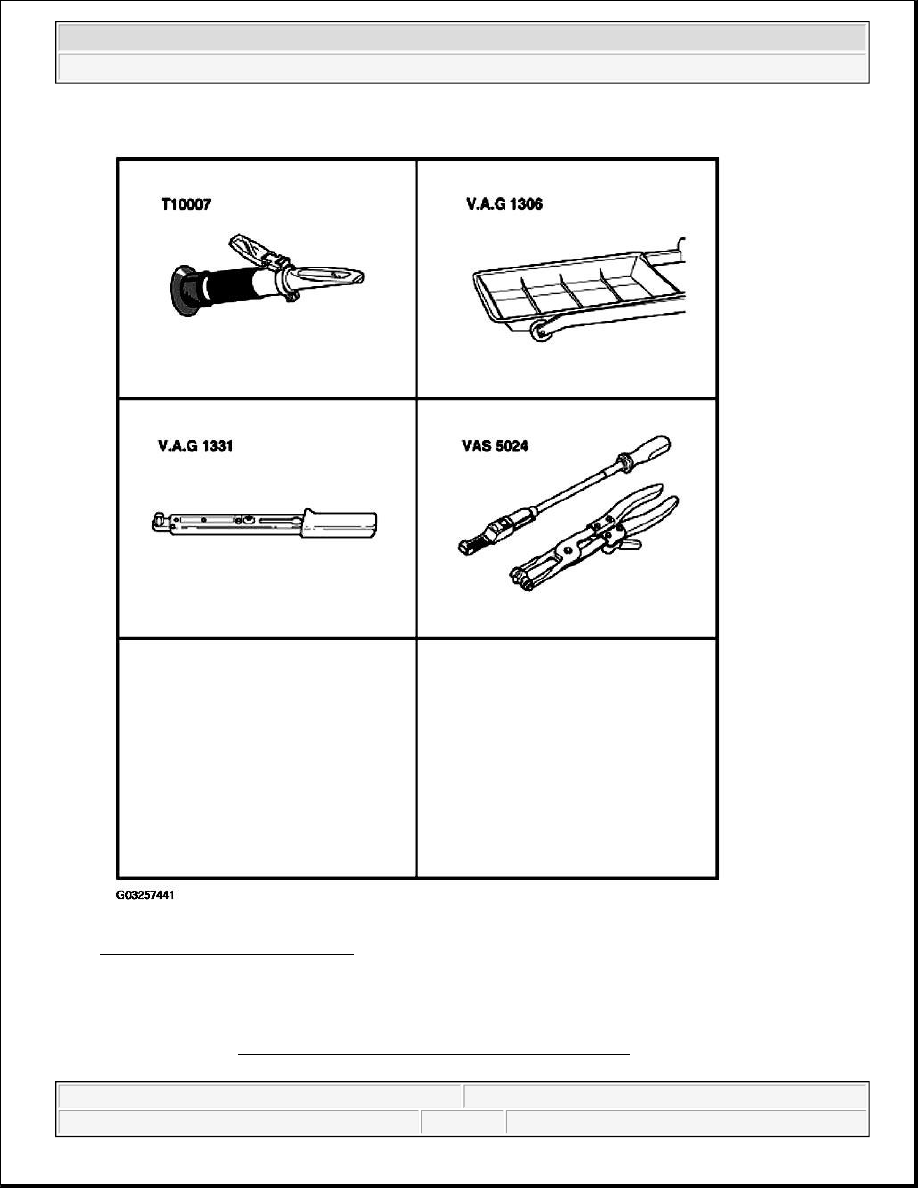

Fig. 15: Identifying Special Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing

z

Drain coolant, See COOLING SYSTEM, DRAINING AND FILLING

z

Pull connectors off thermal switch -1- and coolant fan -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



z

Remove front end:

See FRONT END, ASSEMBLY OVERVIEW .

z

Remove lock carrier:

See LOCK CARRIER, ASSEMBLY OVERVIEW .

z

Pull coolant hoses quick release couplings off radiator.

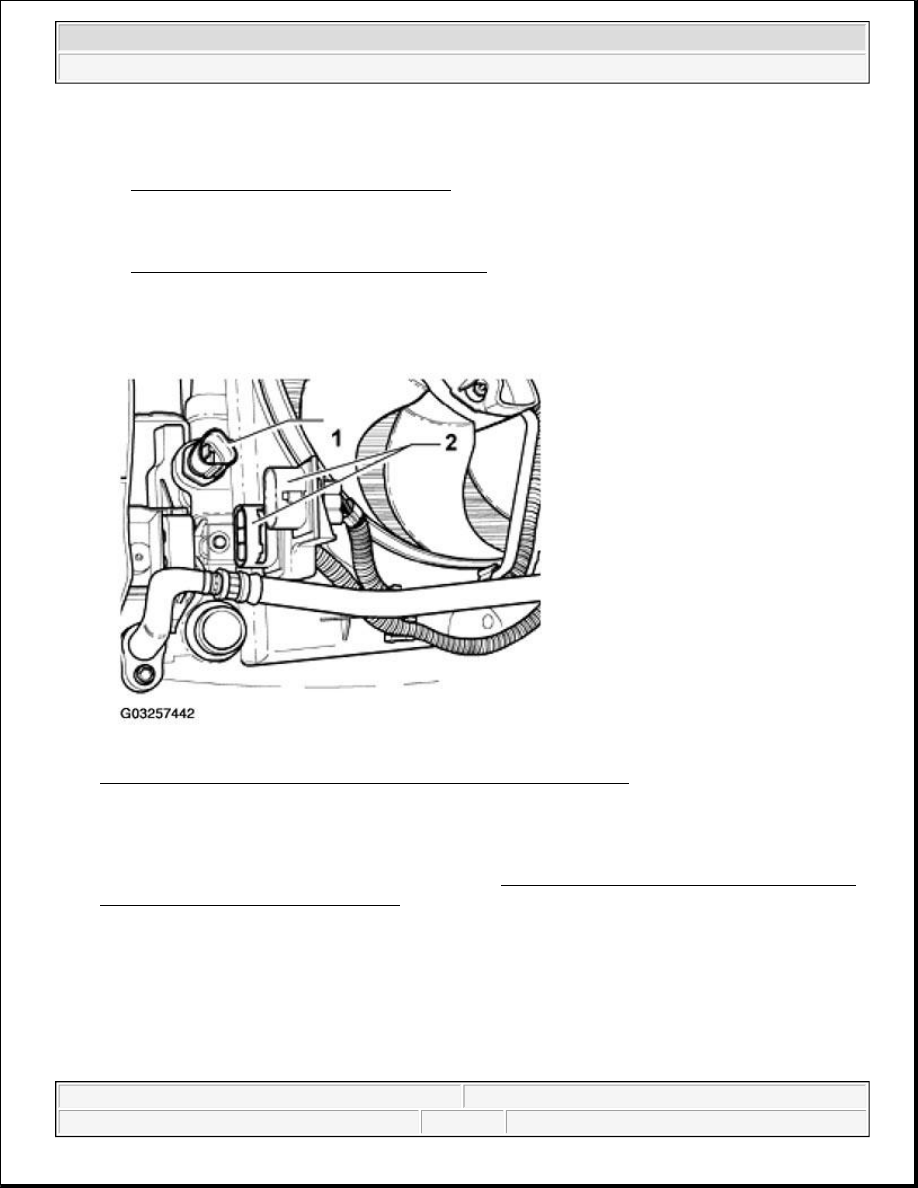

Fig. 16: Disconnecting Thermal Switch And Coolant Fan Connectors
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Models with air conditioning

z

Observe additional information and removal work, See Additional information and assembly work on
models with an air conditioning system
 .

Continuation for all models

z

Remove radiator securing bolts and take out radiator.

Installing

Install in reverse sequence. Note the following points:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



z

Check electrical connections and routing:

See appropriate SYSTEM WIRING DIAGRAMS article

z

Refill with coolant, See COOLING SYSTEM, DRAINING AND FILLING .

Additional information and assembly work on models with an air conditioning system

z

Remove retaining clamp(s) from refrigerant lines.

z

Secure radiator to body before removing lock carrier.

z

Remove condenser from radiator and secure to lock carrier.

COOLANT FAN, CHECKING

Engine codes AEG, AVH, AZG

Special tools, equipment, testers, measuring instruments and auxiliary items required

z

V.A.G 1594 Adapter set

z

Wiring diagram

CAUTION: The air conditioning refrigerant circuit must not be opened.

NOTE:

To prevent damage to the condenser as well as to the refrigerant lines/hoses,
ensure that the lines and hoses are not stretched, kinked or bent.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

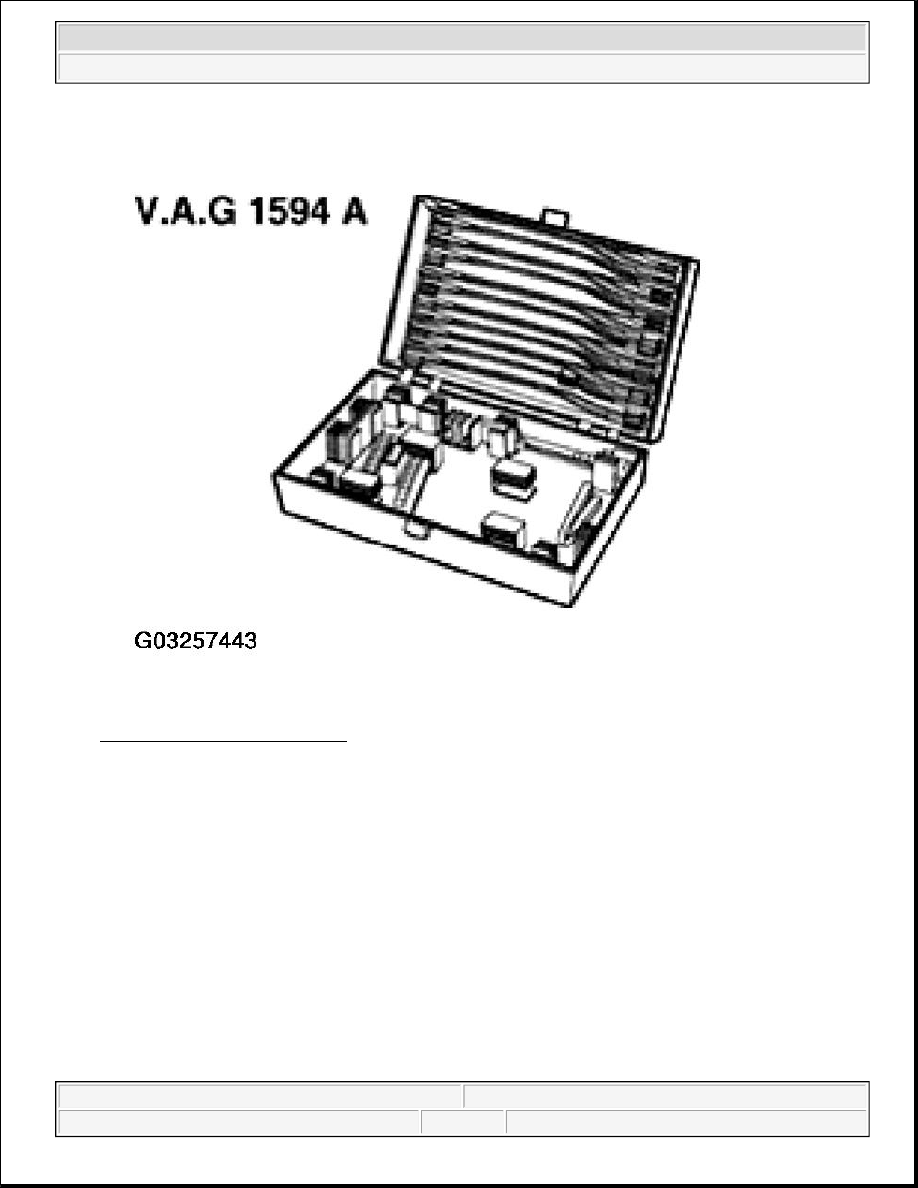

Fig. 17: Identifying Special Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Requirements

z

Main fuses must be OK

z

Coolant Fan Control (FC) thermal switch -F18- OK



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)
