AND TENSIONING .

z

Install ribbed belt tensioning element and torque to 25 N.m.

z

Install ribbed belt. See RIBBED BELT, REMOVING AND INSTALLING .

z

Fill with coolant, See COOLING SYSTEM, DRAINING AND FILLING .

THERMOSTAT, REMOVING AND INSTALLING

Special tools, equipment, testers, measuring instruments and auxiliary items required

z

T10007 Refractometer

z

V.A.G 1306 Drip tray

z

V.A.G 1331 Torque wrench (5-50 N.m)

z

VAS 5024 Assembly tool for spring-type clamps



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

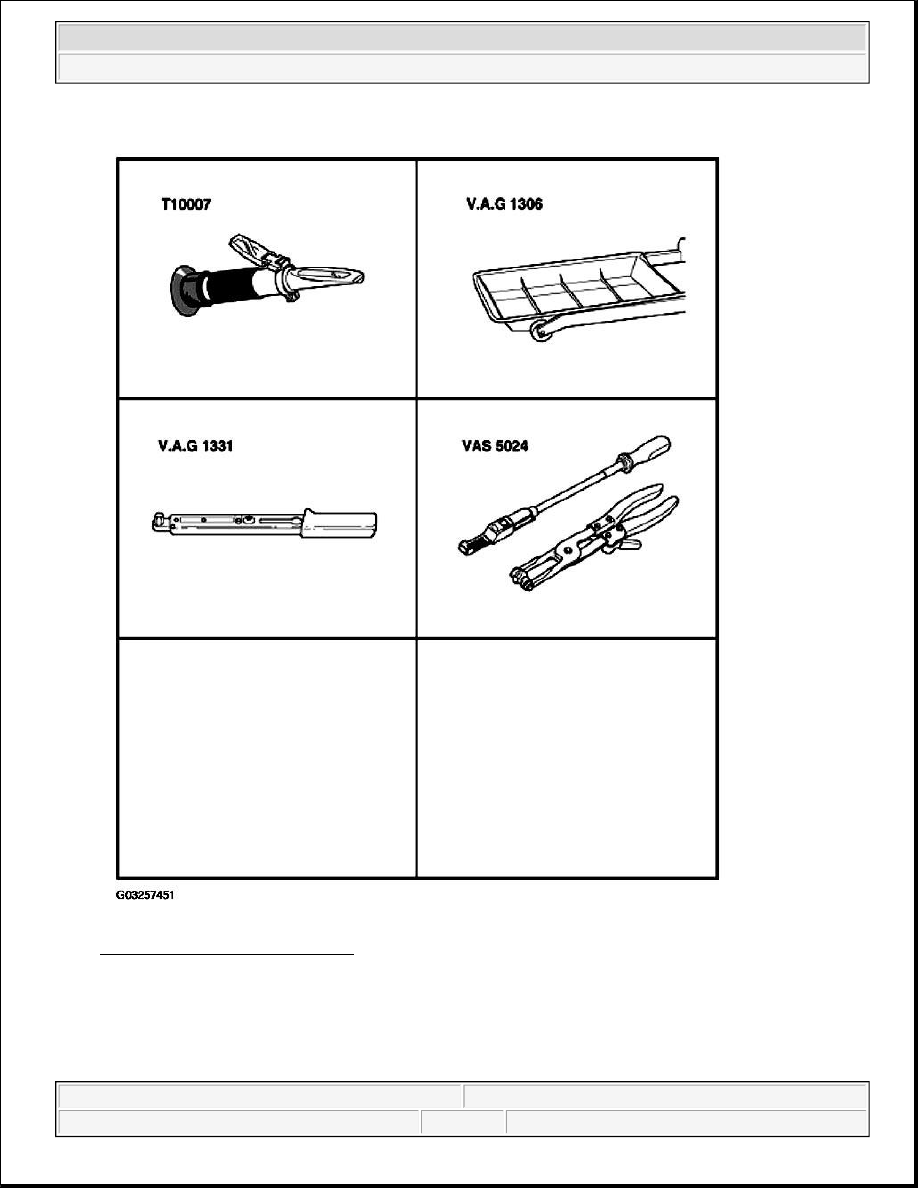

Fig. 25: Identifying Special Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing

NOTE:

Always replace seals and gaskets.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



z

Drain coolant, See COOLING SYSTEM, DRAINING AND FILLING .

z

Pull coolant hose off union -3-. See Fig. 26 .

z

Remove securing bolts -4- of union -3- and remove union -3- with thermostat -1-.

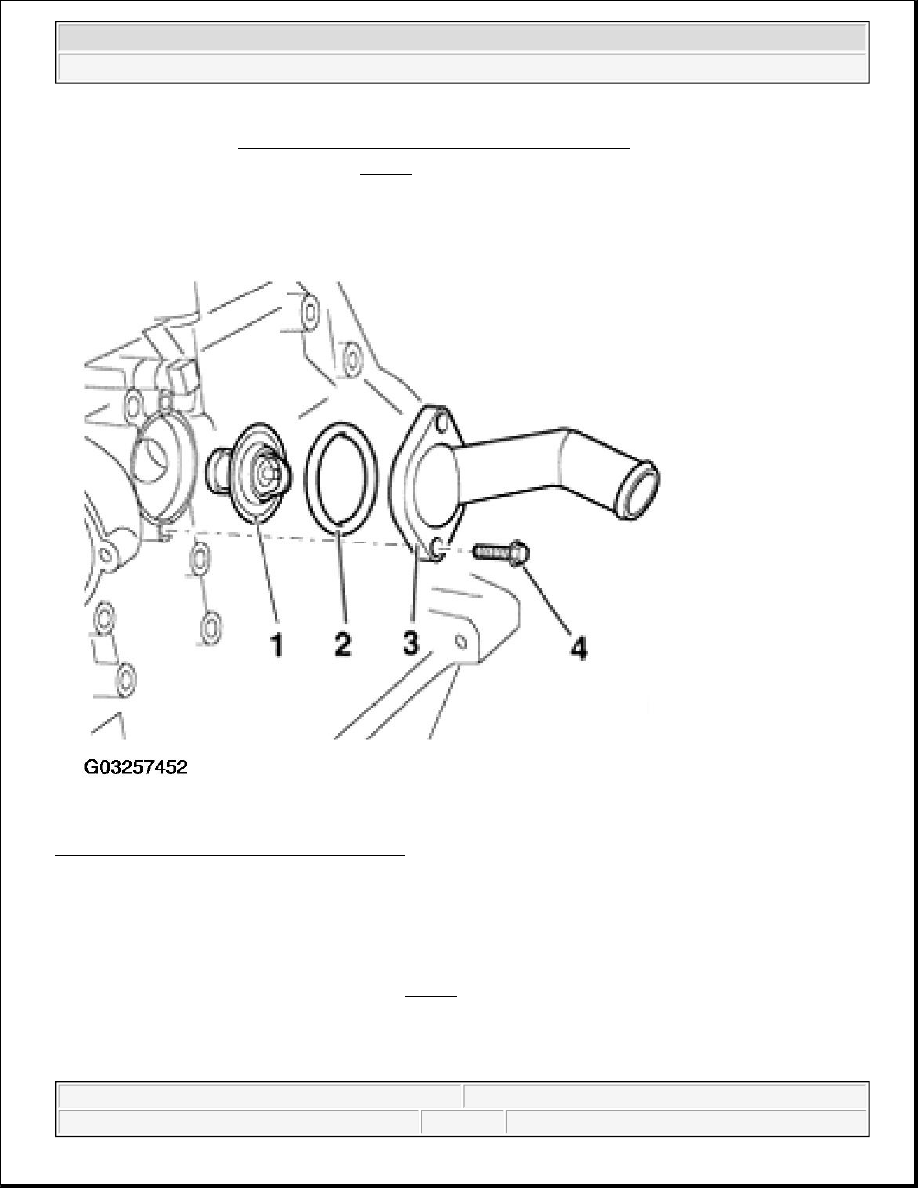

Fig. 26: Removing And Installing Thermostat
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

Installation is performed in the reverse sequence. Note the following:

z

Moisten new O-ring -2- with coolant. See Fig. 26 .

z

Fit union -3- with thermostat -1- onto engine block.

NOTE:

The brace on the thermostat must be almost vertical.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



z

Tighten securing bolts -4- to 15 N.m.

z

Fill with coolant, See COOLING SYSTEM, DRAINING AND FILLING .
