z

Tighten securing bolts -4- to 15 N.m.

z

Fill with coolant, See COOLING SYSTEM, DRAINING AND FILLING .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



1998-2004 ENGINE

Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

COOLING SYSTEM, SERVICING

COOLING SYSTEM, GENERAL INFORMATION

WARNING:

When performing repair work, especially due to the confined conditions
in the engine compartment, pay attention to the following:

z

Route all types of lines (e.g. for fuel, hydraulics, EVAP system,
coolant, refrigerant, brake fluid and vacuum) as well as electrical
wiring so that the original positions are restored.

z

Ensure sufficient clearance to all moving or hot components.

NOTE:

z

When the engine is warm the cooling system is under pressure. If
necessary release the pressure before beginning repair work.

z

Hoses are secured with spring-type clamps. In cases of repair only use
spring-type clamps.

z

Assembly tool VAS 5024 or hose clip pliers V.A.G 1921 are recommended
for installing spring-type clamps.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



Perform cooling system leakage test with cooling system tester V.A.G 1274 and adapters V.A.G 1274/8 and
V.A.G 1274/9.

Components of cooling system body side, See COOLING SYSTEM COMPONENTS - BODY SIDE,
REMOVING AND INSTALLING
 .

Components of cooling system engine side, See COOLING SYSTEM COMPONENTS - ENGINE SIDE,
REMOVING AND INSTALLING
 .

Coolant hose connection diagram, See COOLANT HOSE CONNECTION DIAGRAM

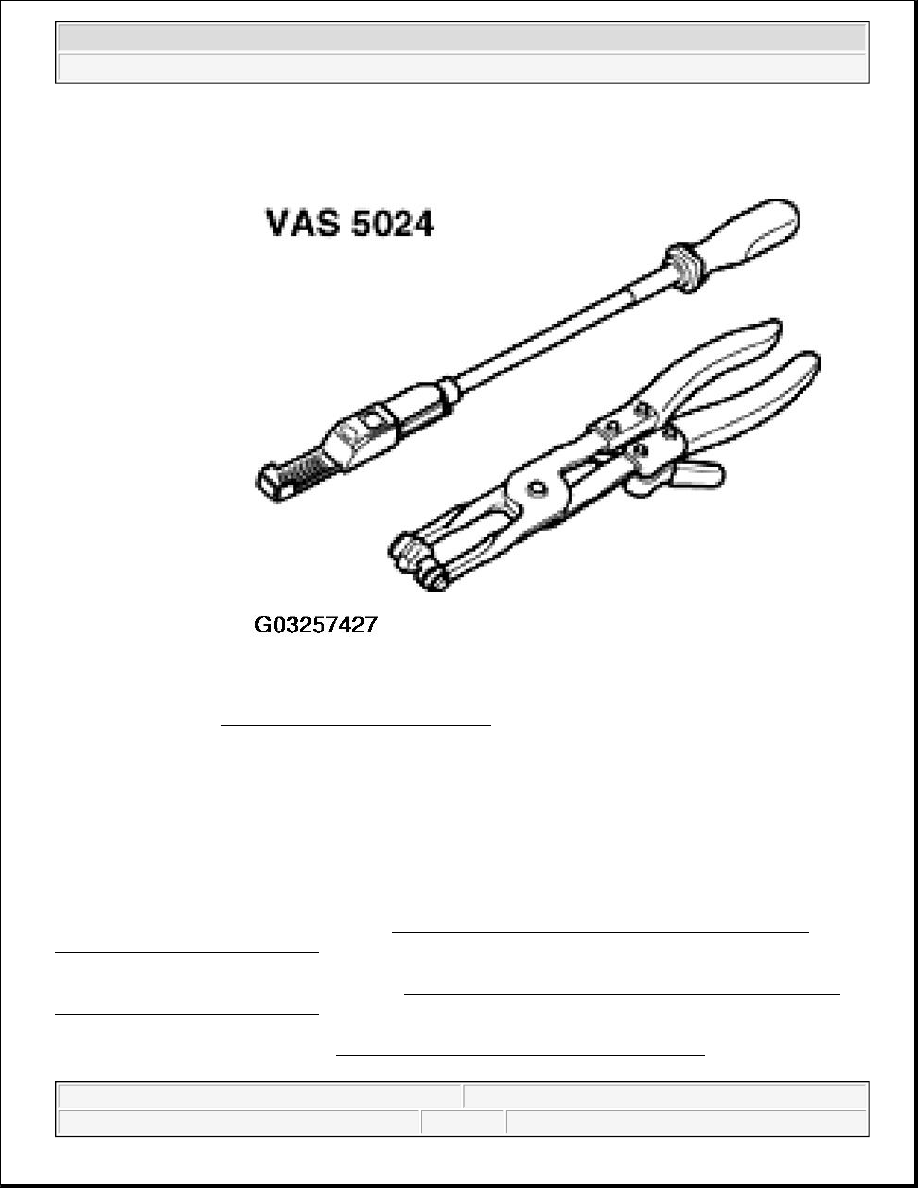

Fig. 1: Identifying Special Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

When installing coolant hoses route stress-free so that they do not come
into contact with other components (observe markings on coolant
connection and hose).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



Draining and filling with coolant, See COOLING SYSTEM, DRAINING AND FILLING .

Coolant mixing ratios, See COOLING SYSTEM, DRAINING AND FILLING

COOLING SYSTEM COMPONENTS - BODY SIDE, REMOVING AND INSTALLING

1. Radiator

z

Removing and installing, See RADIATOR, REMOVING AND INSTALLING

z

After replacement replace entire coolant amount

2. O-ring

z

Replace

3. Upper coolant hose

z

Secured to radiator with retaining clip

z

Coolant hose connection diagram, See COOLANT HOSE CONNECTION DIAGRAM

4. 4 N.m

5. Cover

z

Check with cooling system tester V.A.G1274 and adapter V.A.G 1274/9

z

Pressure relief valve must open at a pressure of 1.4...1.6 bar

6. 2 N.m

7. Expansion tank

z

Perform leak test on cooling system with cooling system tester V.A.G 1274 and adapter
V.A.G1274/8

z

Test pressure 1.4...1.6 bar

z

Observe markings, See COOLING SYSTEM, DRAINING AND FILLING

8. Connector

9. To coolant pipe

z

Coolant hose connection diagram, See COOLANT HOSE CONNECTION DIAGRAM

10. Air ducting

11. 10 N.m

12. Right coolant fan -V35-

z

Only models with optional equipment

z

Checking, See COOLANT FAN, CHECKING

z

Removing and installing, See RADIATOR, REMOVING AND INSTALLING

13. Fan ring

NOTE:

Coolant hose connection diagram, See COOLANT HOSE CONNECTION
DIAGRAM

NOTE:

The following list refers to items in Fig. 2 .
