Volkswagen New Beetle. Manual - part 966





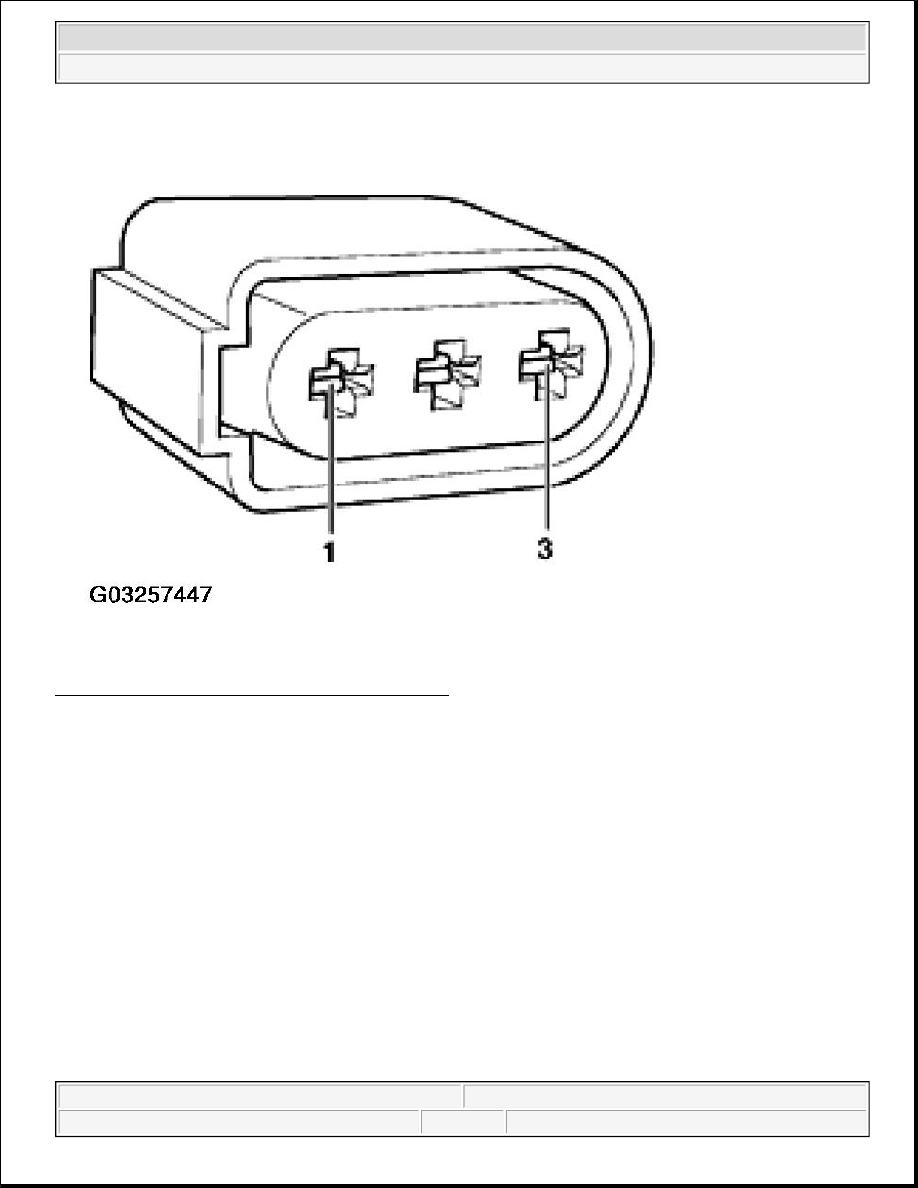

Fig. 21: Identifying Coolant Fan Connector Type C
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1st speed for Coolant fan -V7- and Right coolant fan -V35- must start

z

Switch on ignition.

z

Bridge contact -2- and contact -3- of connector with auxiliary cables from V.A.G 1594 A.

2nd speed for Coolant fan -V7- and Right coolant fan -V35- must start.

If 1st or 2nd speeds of fans do not run:

z

Locate and eliminate open circuit using wiring diagram:

See appropriate SYSTEM WIRING DIAGRAMS article.

If no wiring fault is detected:

z

Replace Coolant fan -V7- or Right coolant fan -V35-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



COOLANT PUMP, REMOVING AND INSTALLING

Special tools, equipment, testers, measuring instruments and auxiliary items required

z

T10007 Refractometer

z

V.A.G 1306 Drip tray

z

V.A.G 1331 Torque wrench (5...50 N.m)

z

VAS 5024 Assembly tool for spring-type clamps



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

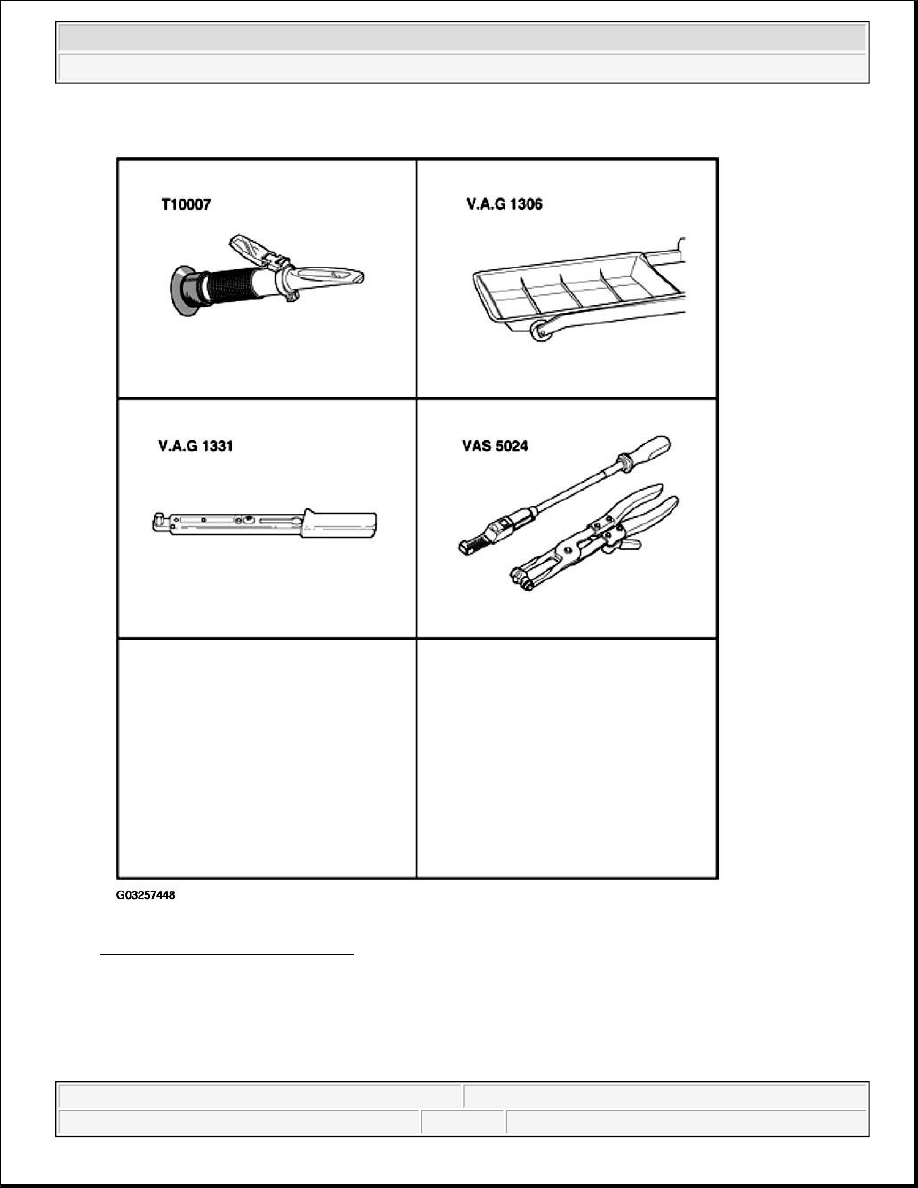

Fig. 22: Identifying Special Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing

NOTE:

z

Always replace seals and gaskets.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



z

Drain coolant, See COOLING SYSTEM, DRAINING AND FILLING .

z

Remove ribbed belt, See RIBBED BELT, REMOVING AND INSTALLING .

z

Remove tensioning element for ribbed belt.

z

Remove upper and center sections of toothed belt guard.

z

Take toothed (timing) belt off coolant pump toothed belt pulley. See TOOTHED BELTS,
REMOVING, INSTALLING AND TENSIONING
 .

z

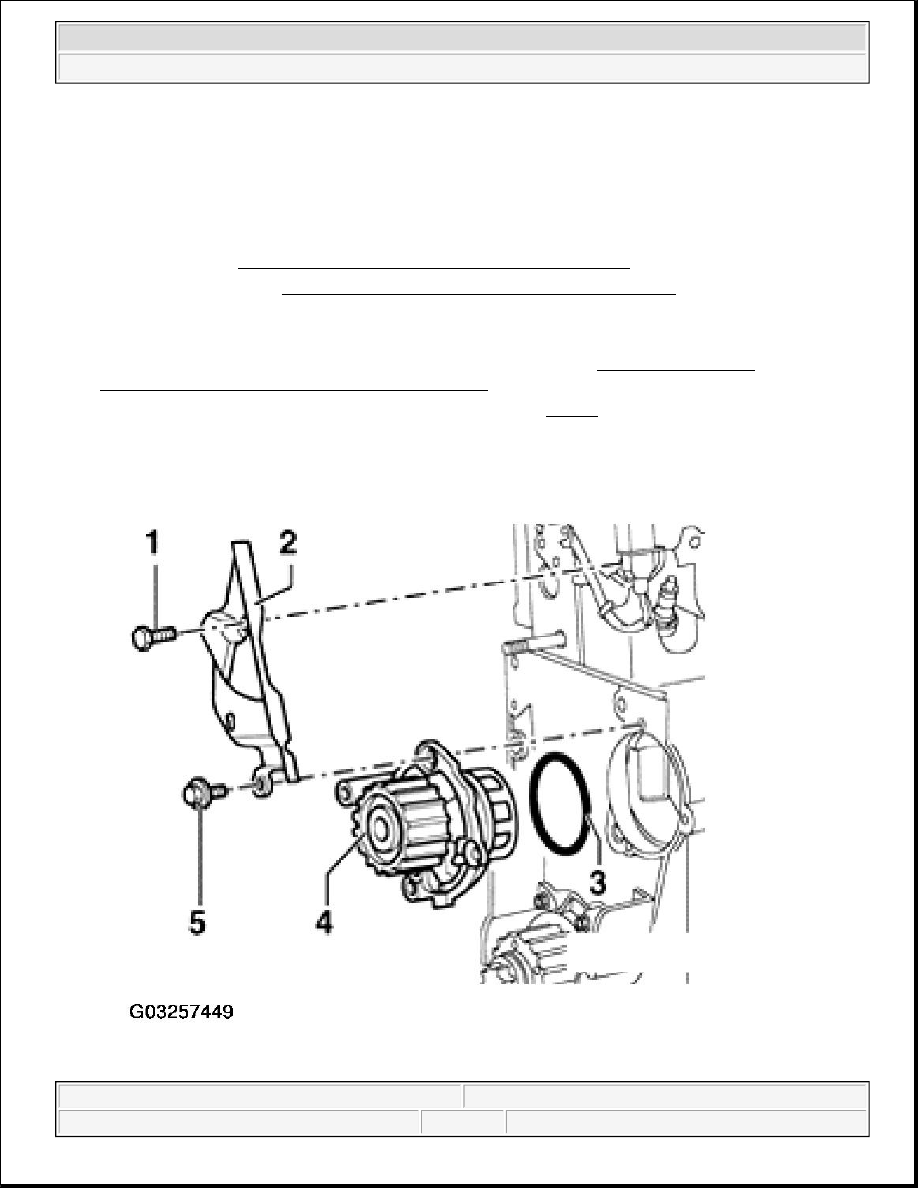

Unscrew securing bolt -1- for rear toothed belt guard -2-. See Fig. 23 .

z

Unscrew securing bolts -5- for coolant pump and remove coolant pump -4-.

z

The lower section of the toothed belt guard need not be removed.

z

The toothed belt should be left in position on the crankshaft pulley.

z

Cover the toothed belt with a cloth to protect it from coolant before
removing the coolant pump.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)
