Volkswagen New Beetle. Manual - part 955





Coolant Capacity

(1)

 5.3 Qts. (5.0L)

Coolant Replacement Interval

(2)

Recommended Coolant

Golf & Jetta

(3)

 ,

(5)

(4)

 Red G 012 A8 D

New Beetle

(5)

 Lilac (Purple) G 012 A8 F

Cooling Fan Thermal Switch

First Stage

On

198-207° F (92-97° C)

Off

183-196°F (84-91°C)

Second Stage

On

210-221°F (99-105°C)

Off

196-208°F (91-98°C)

Thermostat

Starts To Open

186°F (87°C)

Fully Open

216°F (102°C)

Opening Stroke

.28" (7 mm)

(1)

Total coolant quantity may vary depending on vehicle equipment.

(2)

Manufacturer does not require routine coolant replacement. Replace coolant only if major repair is
necessary.

(3)

On model year 2004 Golf and Jetta, engine code BEV, uses G12 coolant that is Lilac (Purple) in
color. Refer to TSB Group 19 No. 02-01, dated Dec. 20, 2002. See COOLANT (ANTIFREEZE),
MIXING PRECAUTIONS
 .

(4)

G12 coolant is Red in color. DO NOT mix Green and Red coolant. Mixing these coolant types will
cause severe engine damage.

(5)

G12 coolant is Lilac (Purple) in color. DO NOT mix Green with Lilac coolant. Mixing these coolant
types will cause severe engine damage.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



1998-04 ENGINE COOLING

Electric Cooling Fans - Beetle

DESCRIPTION & OPERATION

ELECTRIC COOLING FAN

1.8L Turbo

Electric cooling fan operation is controlled through input from the following devices:

z

Coolant fan control thermo switch

z

Coolant fan control module

z

Ambient temperature switch

z

A/C high pressure sensor

z

Third speed coolant fan control relay

1.9L TDI & 2.0L

Electric cooling fan operation is controlled through input from a coolant fan control thermo switch, coolant fan
control module, and the A/C high pressure sensor or switch.

A/C CUT-OUT THERMAL SWITCH

1.8L Turbo

The A/C cut-out thermal switch turns A/C clutch off when coolant temperature is excessively high. A/C cutout
thermal switch turns A/C clutch off at 246°F (119°C) and turns A/C clutch back on at 234°F (112°C). This
switch also controls the operation of the third speed coolant fan control relay with 1.8L engine.

A/C HIGH PRESSURE SENSOR

The A/C high pressure sensor supplies a refrigerant system pressure signal to the coolant fan control module.
Depending on year and engine application, this signal may also monitored by the ECM.

The A/C high pressure sensor transmits a square wave signal to coolant fan control module at a rate which
varies according to the refrigerant system pressure. If the refrigerant system pressure rises, the sensor switches
the radiator fan(s) to the second (high) speed. This sensor is also used to control A/C clutch engagement.

A/C HIGH PRESSURE SWITCH

NOTE:

The vehicle may be equipped with either a A/C high pressure sensor or a A/C
high pressure switch.



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle





2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:35 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Some models may be equipped with an A/C pressure switch. This is a 4-wire switch located in the A/C high
pressure line. This switch has 2 functions. It switches off the A/C compressor clutch when A/C high side
pressure is excessive or too low. It also switches the coolant fan to the next higher speed when pressure
increases in the refrigerant circuit.

COOLANT FAN CONTROL THERMO SWITCH

The coolant fan control thermo switch is mounted in the radiator. It controls coolant fan operation based on
coolant temperature.

COMPONENT LOCATIONS

COMPONENT LOCATIONS

NOTE:

The vehicle may be equipped with either a A/C high pressure sensor or a A/C
high pressure switch.

Component

(1)

Location

A/C High Pressure Sensor

Right Rear Corner Of Engine Compartment

A/C High Pressure Switch

Right Rear Corner Of Engine Compartment

A/C Thermal Cut-Out Switch (1.8L
Turbo)

In Coolant Flange, Rear Of Cylinder Head

Ambient Temperature Switch

Right Side Fresh Air Intake, Below Water

Deflector

Coolant Fan Control Module

Left Front Corner Of Engine Compartment

Coolant Fan Control Thermo Switch

In Lower Left Corner Of Radiator

Coolant Fan Ground Point

Left Front Of Engine Compartment

Third Speed Coolant Fan Control
Relay (1.8L Turbo)

Thirteen-Way Relay Panel, Under Driver's Side

Of Dash (Position No. 10)

(1)

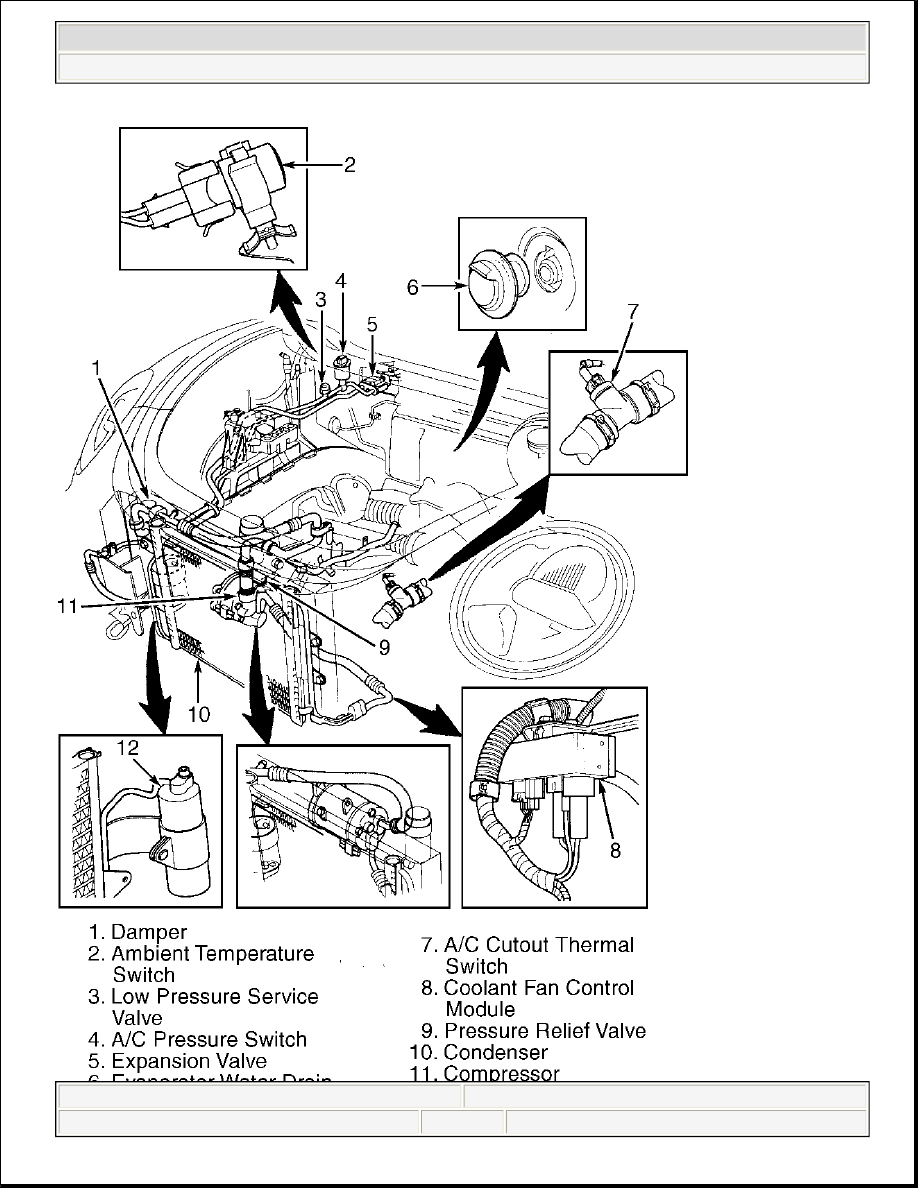

See Fig. 1 -Fig. 3 for component locations.



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.
