New Beetle

1. Turn engine off, and allow to cool. Open cap on coolant expansion tank. Raise and support vehicle.

Remove noise insulation panel from below engine compartment. See Fig. 9 or Fig. 10 . Place appropriate
drain pan underneath vehicle.

WARNING:

Cooling system is pressurized, when engine is at operating temperature.
Use caution and use other appropriate protective gear (safety glasses and
gloves) when servicing cooling system. Slowly and carefully release
system pressure, before performing any repairs.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



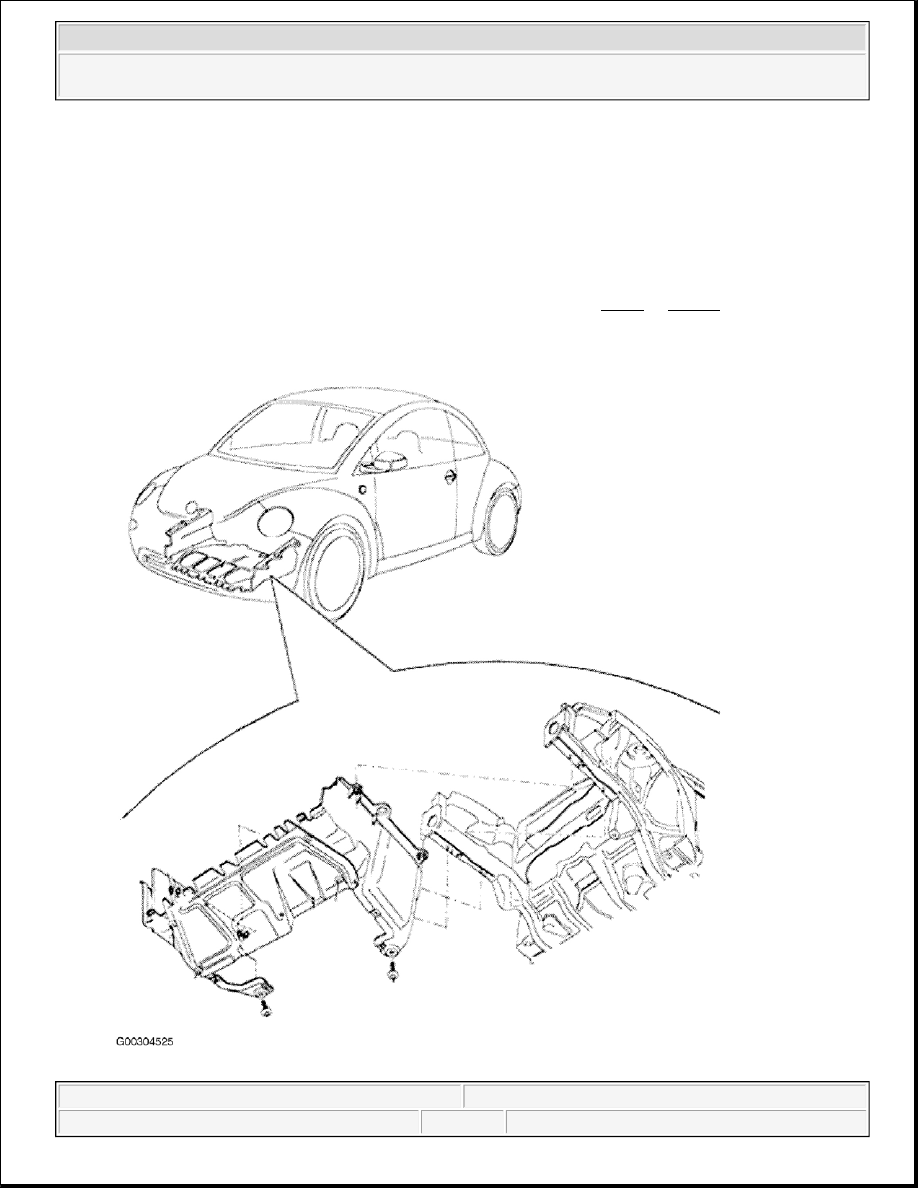

Fig. 9: Identifying Noise Insulation Mounting Points (New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.


Fig. 10: Identifying Noise Insulation Mounting Points (New Beetle Convertible)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Unscrew drain plug (arrow), and drain coolant from radiator. See Fig. 6 .

3. Remove coolant hose from oil cooler, and drain coolant from engine. See Fig. 7 .

4. On vehicles with expansion tank MAX/MIN markings, close drain plug at radiator. Connect oil cooler

hoses. Fill cooling system with recommended coolant mixture. See COOLING SYSTEM
SPECIFICATIONS
 . Install expansion tank cap. Turn off A/C and heater controls. Start engine, and
raise engine speed to 2000 RPM for approximately 3 minutes. Allow engine to idle, until coolant fan

CAUTION: DO NOT mix Green with Lilac coolant. Mixing these coolant types will

cause severe engine damage. Use ONLY G 012 A8 F Lilac coolant.
See COOLING SYSTEM SPECIFICATIONS .

NOTE:

If filling cooling system, using VAG 6096 Charging Unit, go to step 9 .



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



turns on. Turn ignition off.

5. Check coolant level, and top off as necessary. When engine is at normal operating temperature, coolant

level must be on MAX mark, on expansion tank. See Fig. 11 . When engine is cold, coolant level must be
between MIN and MAX marks, on expansion tank.

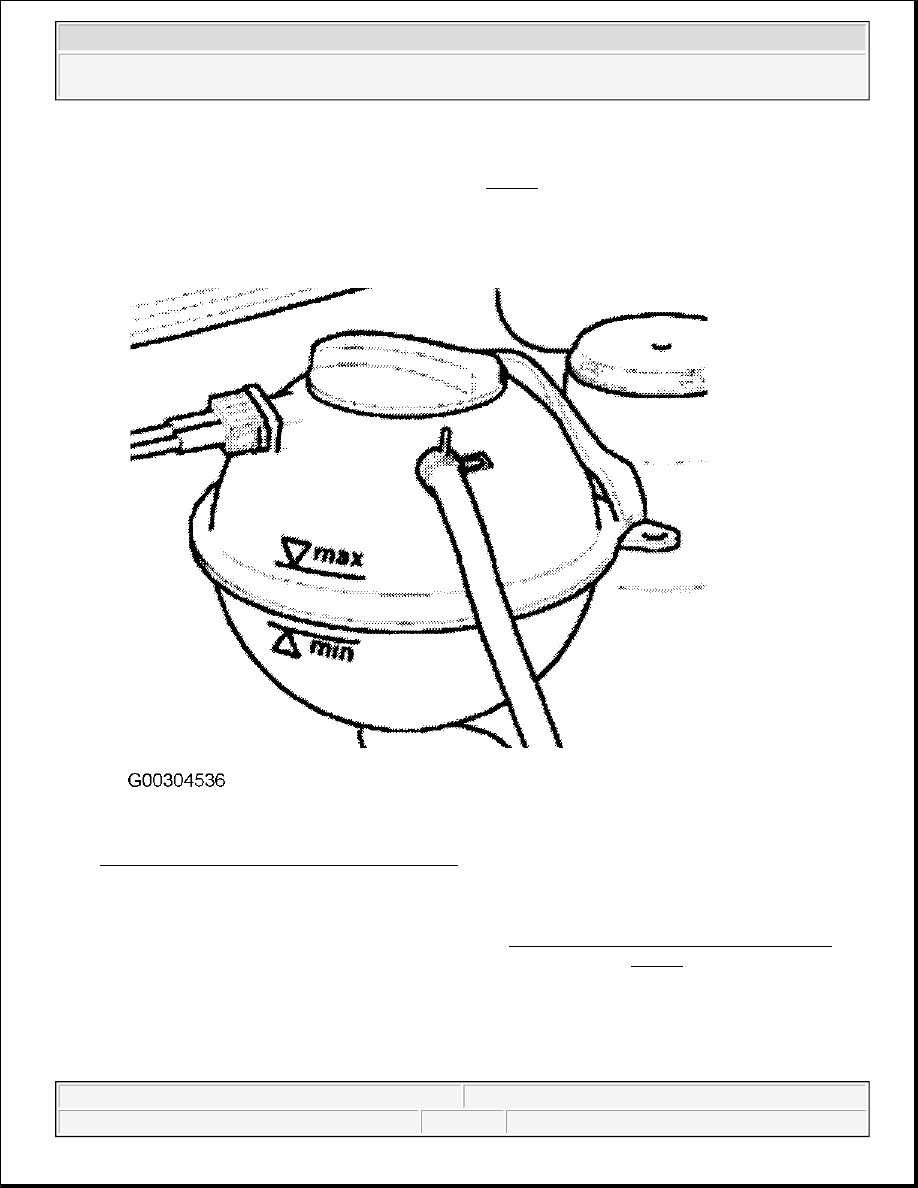

Fig. 11: Identifying Expansion Tank Markings
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. On vehicles without expansion tank markings, close drain plug at radiator. Connect oil cooler hoses. Fill

cooling system with recommended coolant mixture. See COOLING SYSTEM SPECIFICATIONS .
Slowly fill expansion tank with coolant to upper hatch mark (arrow). See Fig. 12 . Install expansion tank
cap.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



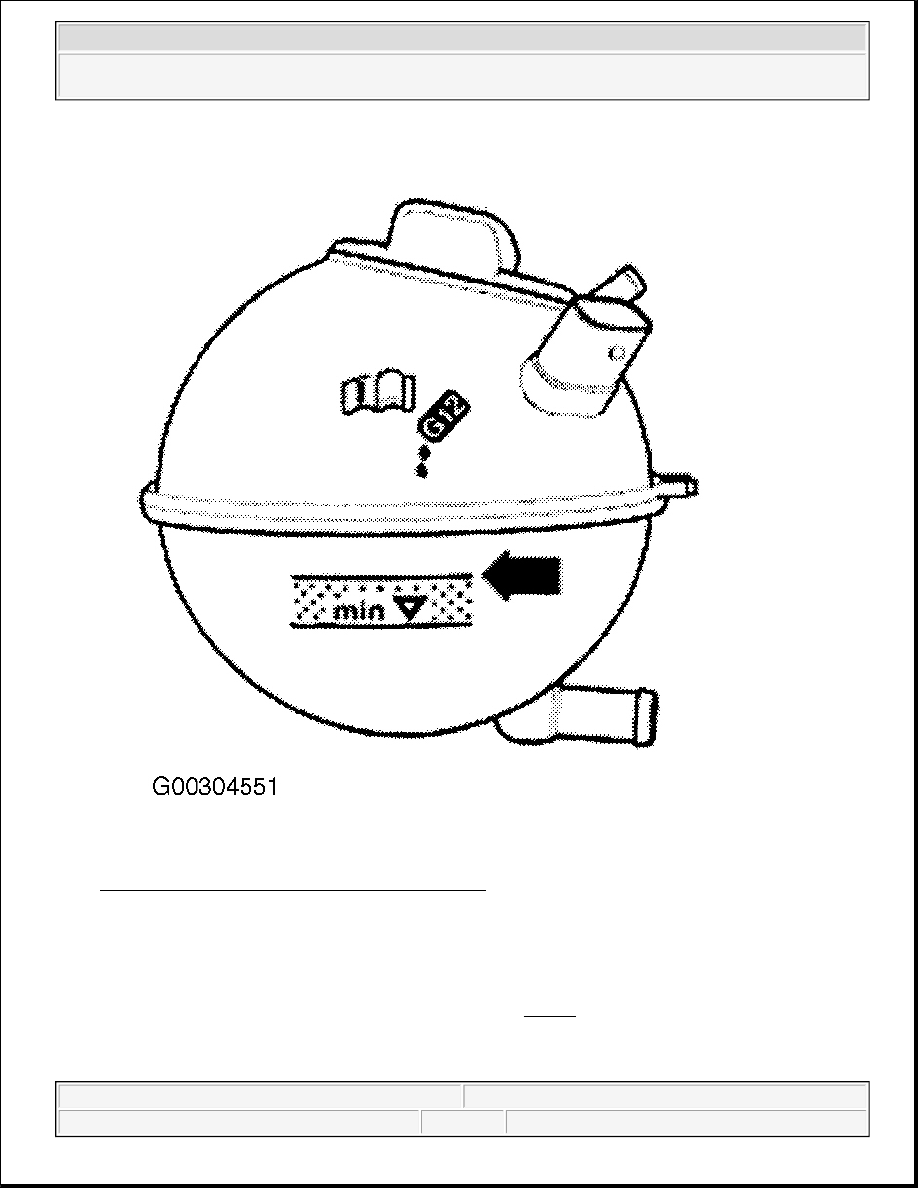

Fig. 12: Identifying Expansion Tank Hatch Marks
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. Turn off A/C and heater controls. Start engine, and raise engine speed to 2000 RPM for approximately 3

minutes. Allow engine to idle, until coolant fan turns on. Turn ignition off.

8. Check coolant level, and top off as necessary. When engine is at normal operating temperature, coolant

level must be at upper hatch mark, on expansion tank. See Fig. 12 . When engine is cold, coolant level
should be around middle of hatch mark, on expansion tank.

9. If VAS 6096 Charging Unit is available, close drain plug at radiator. Connect oil cooler hoses. Fill

cooling system according to VAS 6096 Charging Unit instruction manual. Fill cooling system with



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)
