1. Turn engine off, and allow to cool. Open cap on coolant expansion tank. Raise and support vehicle.

Remove noise insulation panel from below engine compartment. See Fig. 5 .

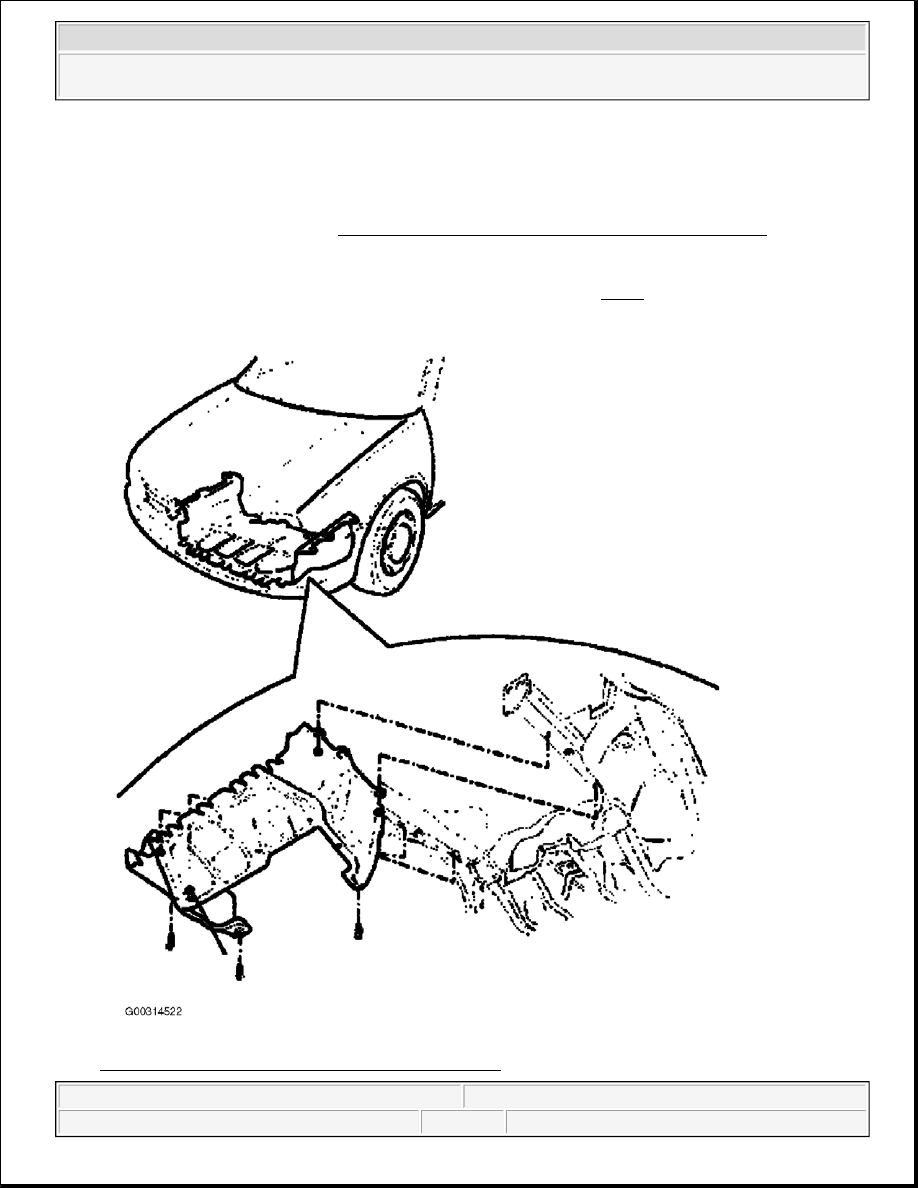

Fig. 5: Identifying Noise Insulation Mounting Points

system pressure, before performing any repairs.

CAUTION: On model year 2004 Golf and Jetta, engine code BEV, uses G12 coolant

that is Lilac (Purple) in color. Refer to TSB Group 19 No. 02-01, dated Dec.
20, 2002. See COOLANT (ANTIFREEZE), MIXING PRECAUTIONS .



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Unscrew drain plug (arrow), and drain coolant from radiator. See Fig. 6 . Remove coolant hose from oil

cooler (arrow). See Fig. 7 . Drain coolant from engine.

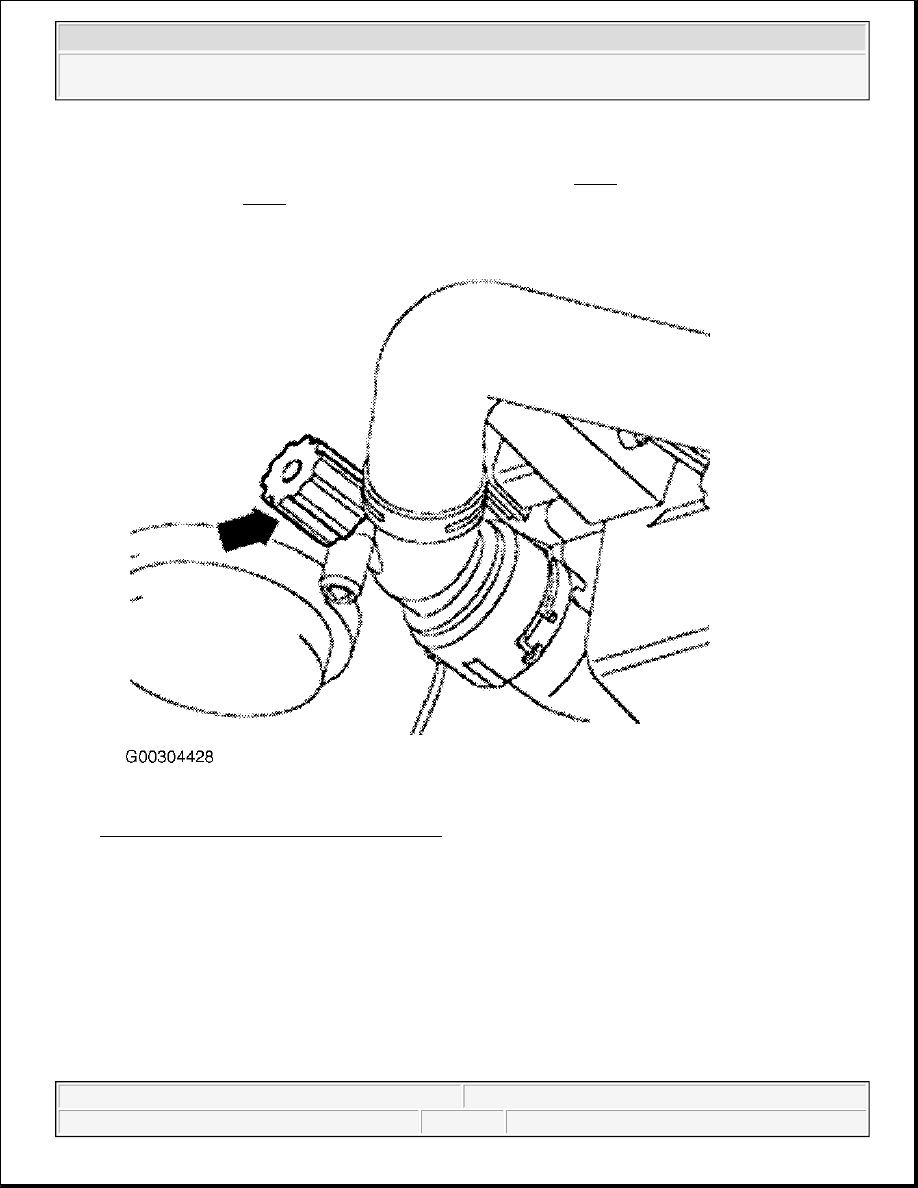

Fig. 6: Identifying Drain Screw On Radiator
Courtesy of AUDI OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)

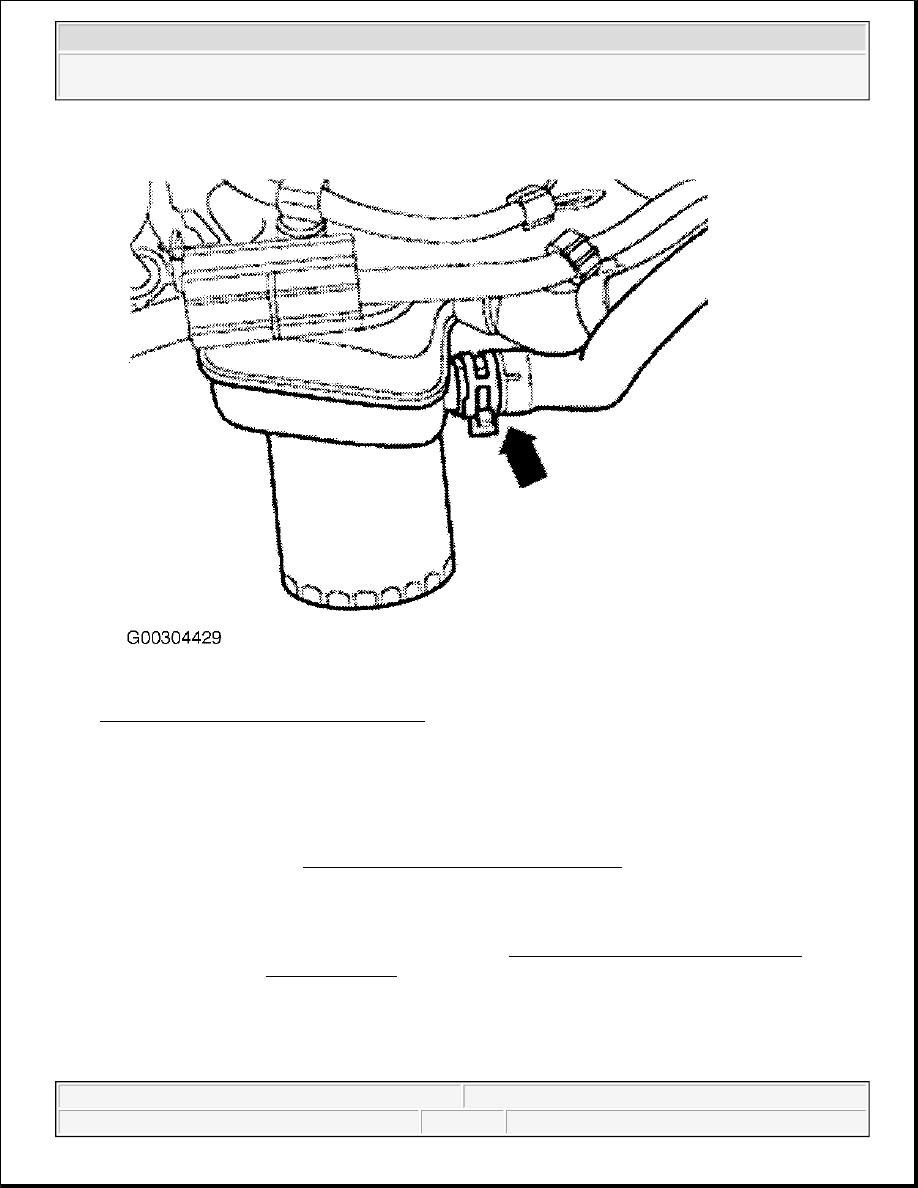

Fig. 7: Removing Oil Cooler Coolant Hose
Courtesy of AUDI OF AMERICA, INC.

3. Turn radiator drain screw closed, and tighten. Push coolant hose onto oil cooler, and tighten hose clamp.

CAUTION: DO NOT mix Green and Red coolant. Mixing these two coolant types

will cause severe engine damage. Use ONLY G 012 A8 D Red coolant.
See COOLING SYSTEM SPECIFICATIONS .

CAUTION: On model year 2004 Golf and Jetta, engine code BEV, uses G12

coolant that is Lilac (Purple) in color. Refer to TSB Group 19 No. 02-
01, dated Dec. 20, 2002. See COOLANT (ANTIFREEZE), MIXING
PRECAUTIONS .



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)

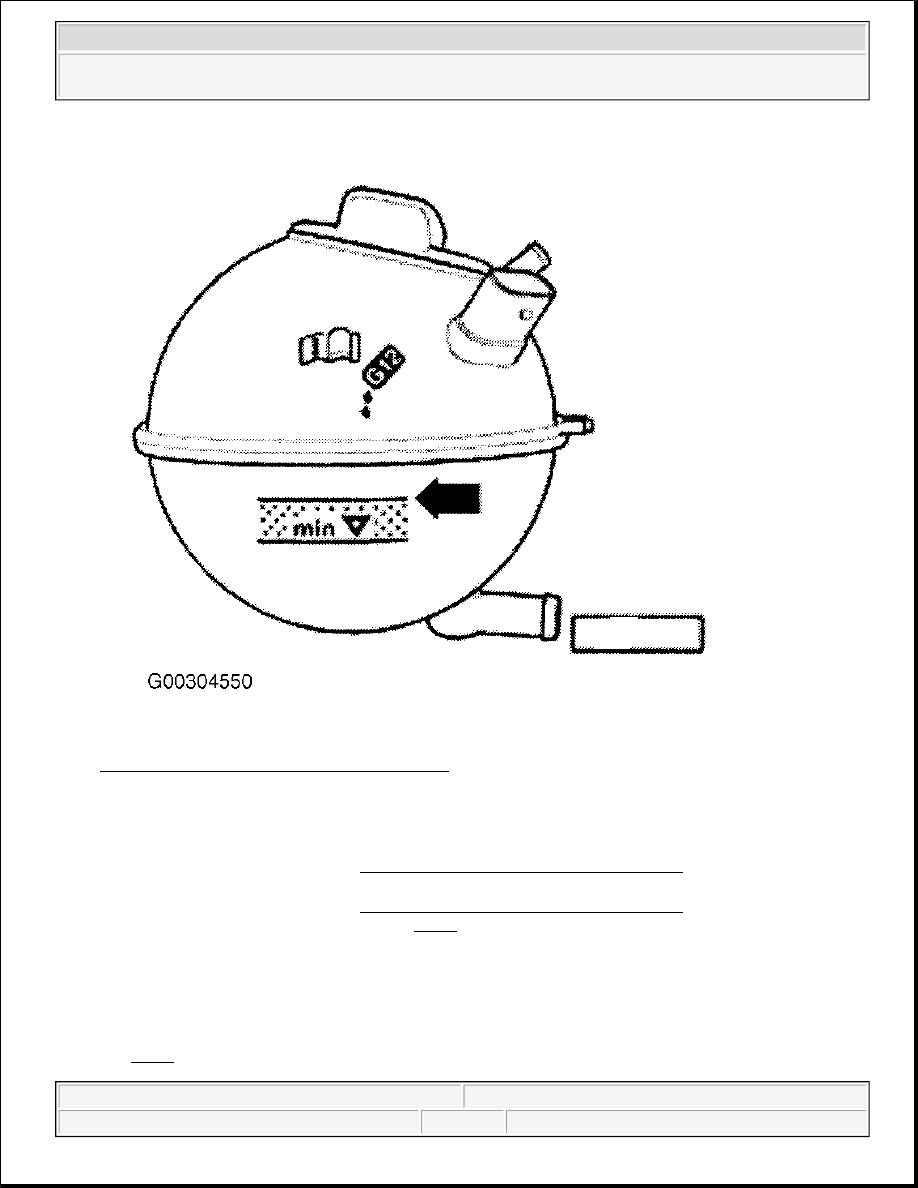

Fig. 8: Identifying Expansion Tank Markings
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. If VAS 6096 Charging Unit is available, close drain plug at radiator. Connect oil cooler hoses. Fill

cooling system according to VAS 6096 Charging Unit instruction manual. Fill cooling system with
recommended coolant mixture. See COOLING SYSTEM SPECIFICATIONS . If VAS 6096 Charging
Unit is not available, close drain plug at radiator. Connect oil cooler hoses. Fill cooling system with
recommended coolant mixture. See COOLING SYSTEM SPECIFICATIONS . Slowly fill expansion
tank with coolant to upper hatch mark. See Fig. 8 . Install expansion tank cap.

5. Turn off A/C and heat controls. Start engine, and raise engine speed to 2000 RPM for approximately 3

minutes. Allow engine to idle, until coolant fan turns on. Check coolant level, and top off as necessary.
Turn ignition off.

6. When engine is at normal operating temperature, coolant level must be at upper marking of shaded area,

on expansion tank. When engine is cold, coolant level should be at approximately middle of shaded area.
See Fig. 8 .
