recommended coolant mixture. See COOLING SYSTEM SPECIFICATIONS .

SERVICING

Coolant does not usually need replacing. In case of larger repairs when coolant needs to be drained, new coolant
must be used because, old has been exposed to oxidation and dirt. Flush cooling system when replacing coolant.
To flush, fill system with clear water, and run engine for approximately 2 minutes. Drain cooling system. See
DRAINING, FILLING & BLEEDING . Flushing system should remove most coolant residue.

Coolant to water ratio must not exceed 60%. Frost protection and cooling efficiency will decrease if the
percentage of coolant is too high. For coolant to water ratio, see COOLANT MIXTURE
RECOMMENDATIONS
 table under COOLING SYSTEM SPECIFICATIONS.

ADJUSTMENTS

If belt is to be reused, mark direction of rotation prior to removing drive belt. Serpentine belt is self-adjusting.
For proper belt routing, see DRIVE BELT ROUTING .

DRIVE BELT ROUTING

WARNING:

Cooling system is pressurized, when engine is at operating temperature.
Wear gloves, and other appropriate protection. Slowly and carefully
release system pressure, before performing any repairs.

NOTE:

Serpentine belt is self-adjusting. See Fig. 13 or Fig. 14 .



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



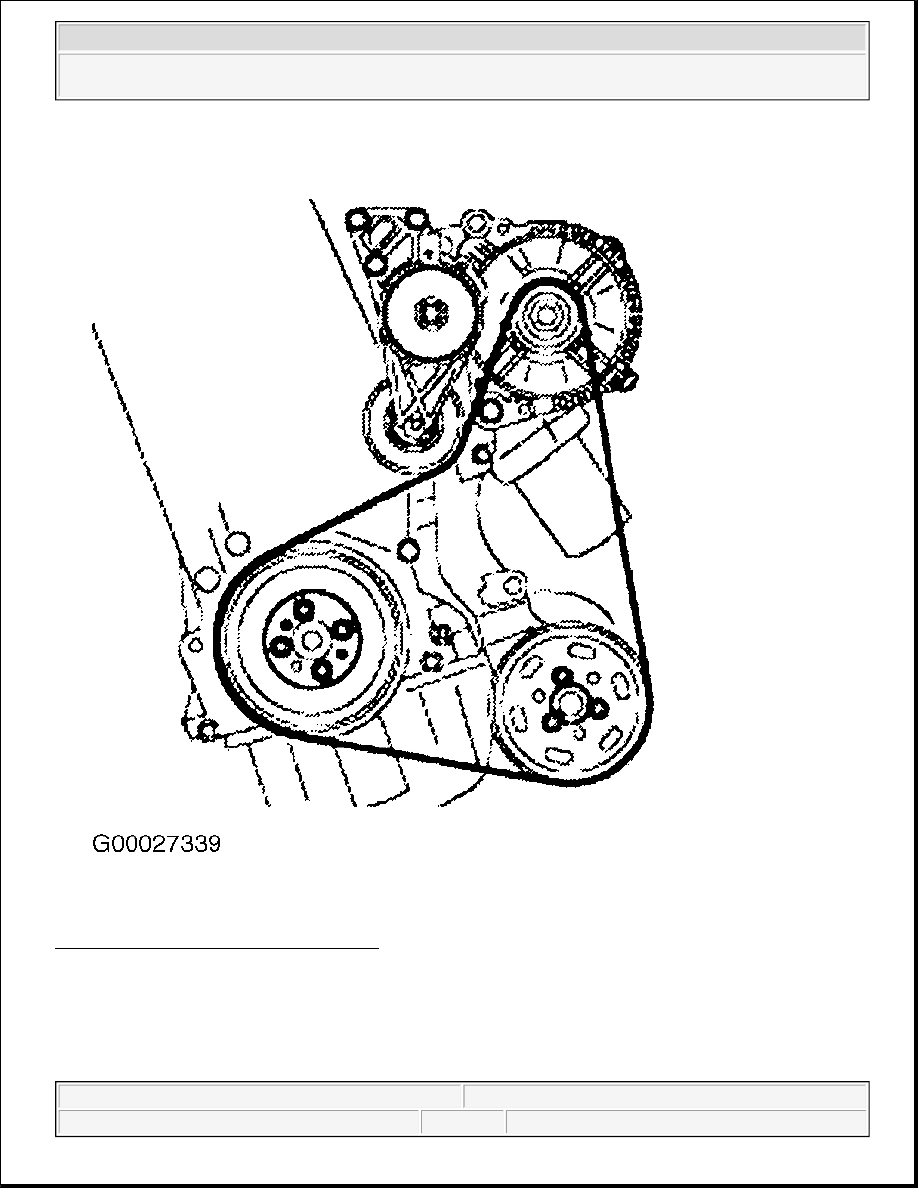

Fig. 13: Drive Belt Routing (Without A/C)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



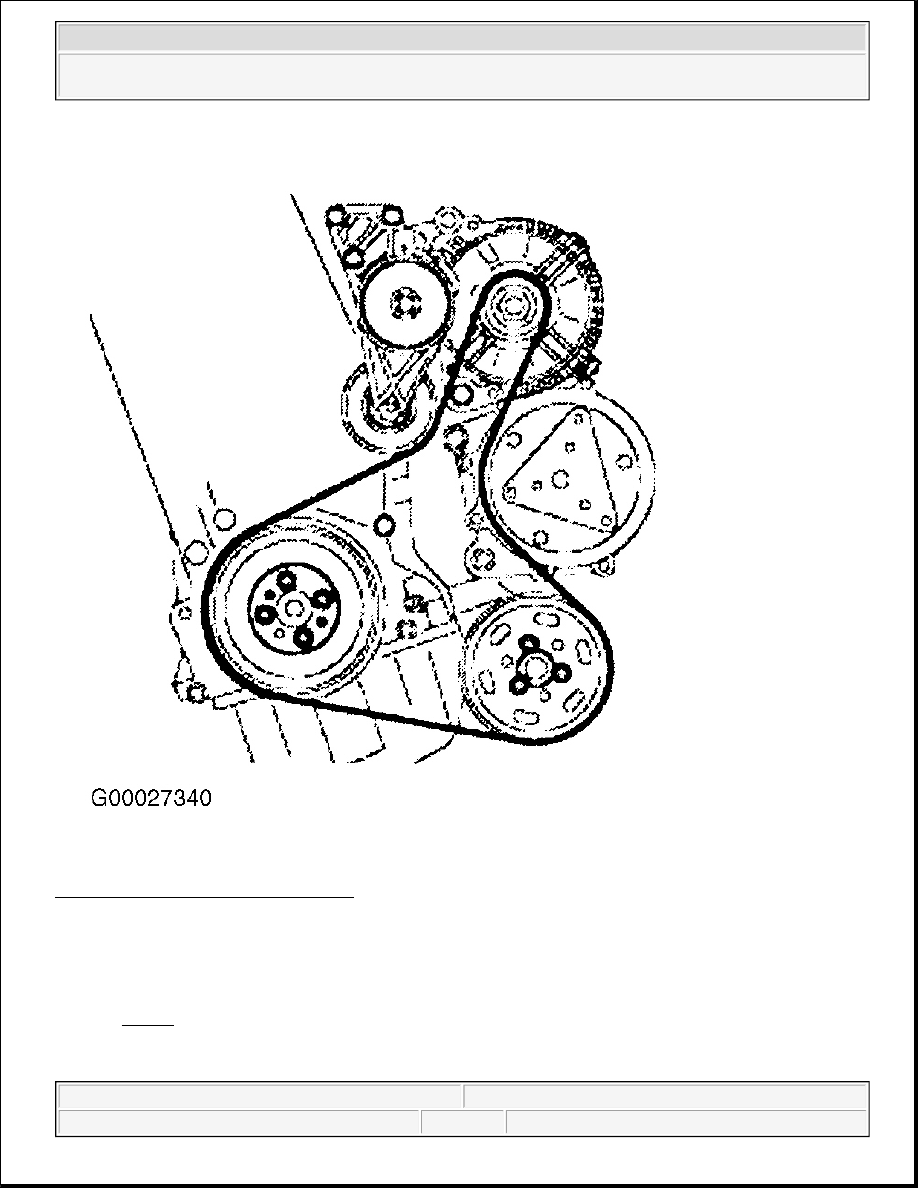

Fig. 14: Drive Belt Routing (With A/C)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DRIVE BELT, REMOVING & INSTALLING

Remove engine cover. Rotate serpentine belt tensioner clockwise to relieve belt tension. Remove serpentine
belt. See Fig. 15 . Lock in place using Mandrel (T10060) or a drift.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)



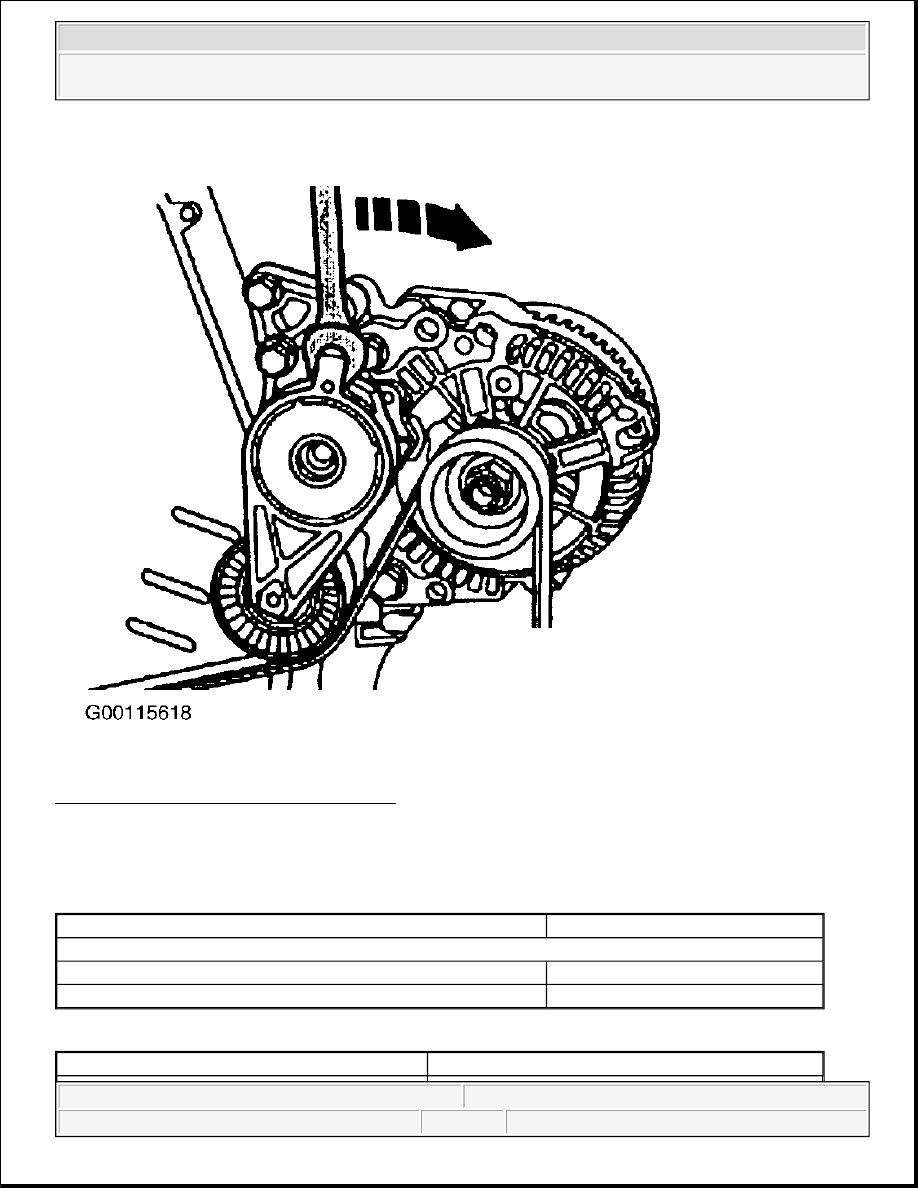

Fig. 15: Releasing Serpentine Belt Tensioner
Courtesy of VOLKSWAGEN UNITED STATES, INC.

COOLING SYSTEM SPECIFICATIONS

COOLANT MIXTURE RECOMMENDATIONS

COOLING SYSTEM SPECIFICATIONS

Application

Specification

Freeze Point

Down To -13° F (- 25° C)

40% Coolant

Down To -31° F (- 35° C)

50% Coolant

Application

Specification



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 2.0L (AEG, AVH, AZG, BBW, BDC, BEV & BGD

Engine Code)
