Volkswagen New Beetle. Manual - part 956





Fig. 1: Identifying A/C-Heater System Components In Engine Compartment
Courtesy of VOLKSWAGEN UNITED STATES, INC.

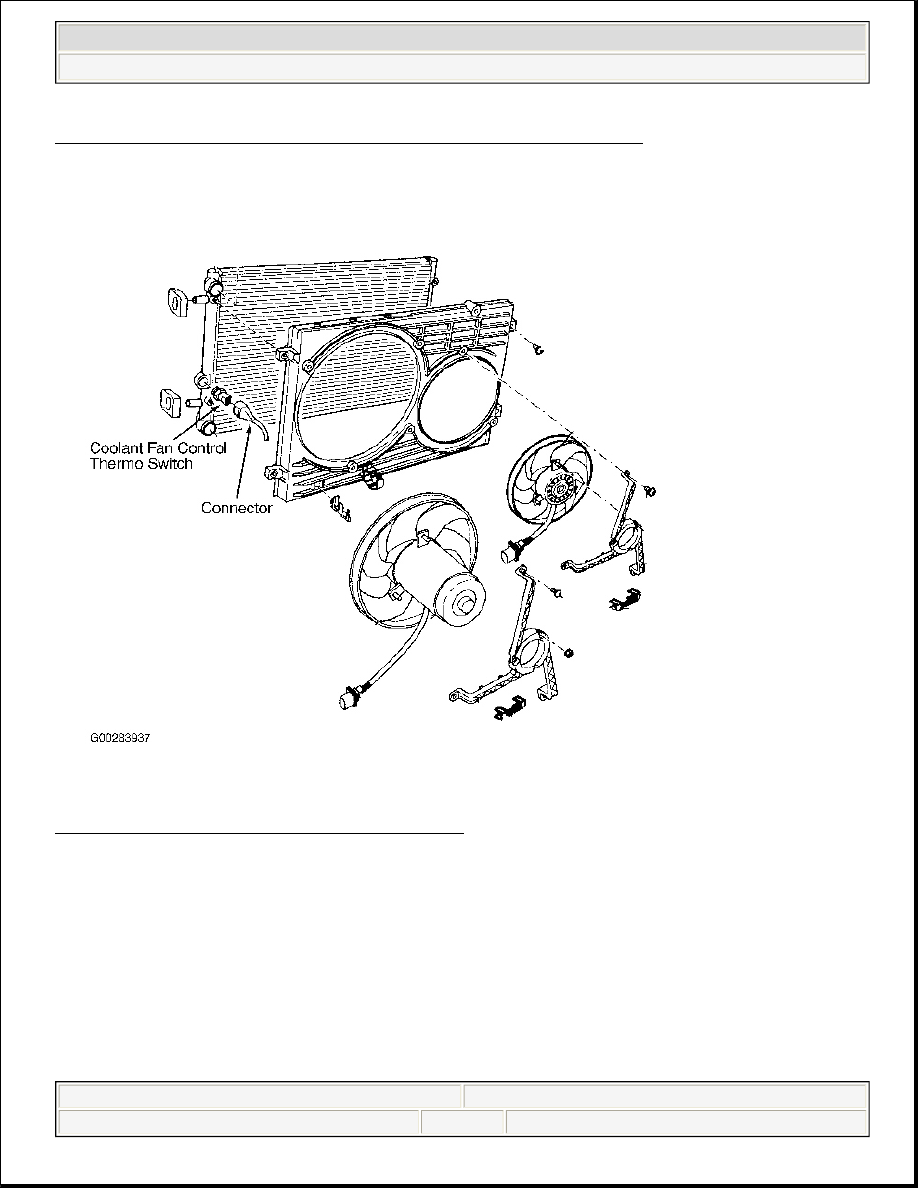

Fig. 2: Locating Coolant Fan Control Thermo Switch
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

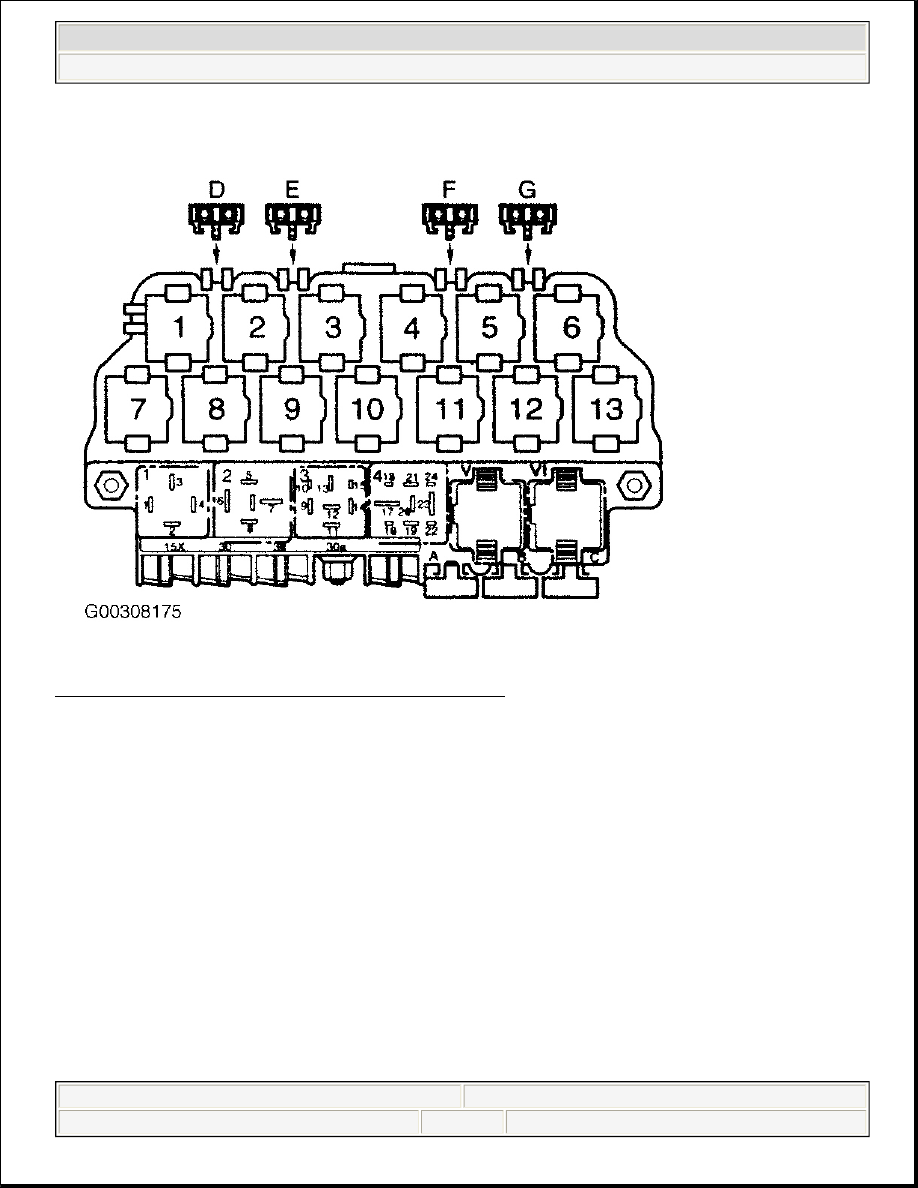

Fig. 3: Identifying Thirteen-Way Relay Panel Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

COMPONENT TESTS

A/C HIGH PRESSURE SENSOR

The 3-wire sensor pin values are as follows:

z

Pin 1: Ground

z

Pin 2: Duty Cycle (square wave) signal to coolant fan control module and ECM (some models)

z

Pin 3: Battery power



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

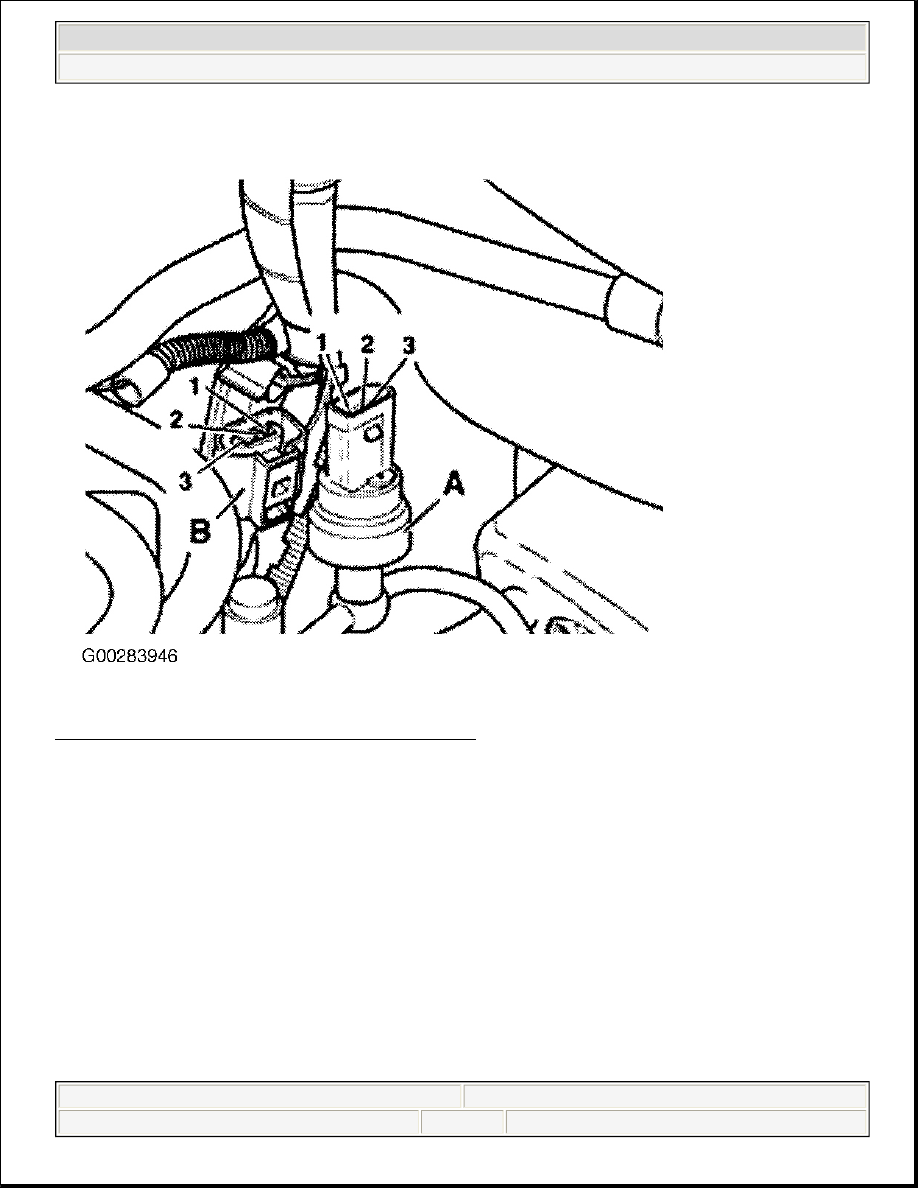

Fig. 4: Identifying A/C High Pressure Sensor Terminal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Duty cycle reading can be used to diagnose A/C high pressure sensor. Turn ignition on, with engine off. No
other testing is available from manufacturer.

A/C HIGH PRESSURE SWITCH

1999

Switch terminal Nos. 3 and 4 control coolant fan operation via the coolant fan control module. Fan speed
increases to the next higher speed when system pressure increases. The switch closes above 232 psi (16 bar),
and opens again below 181 psi (12.5 bar).



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

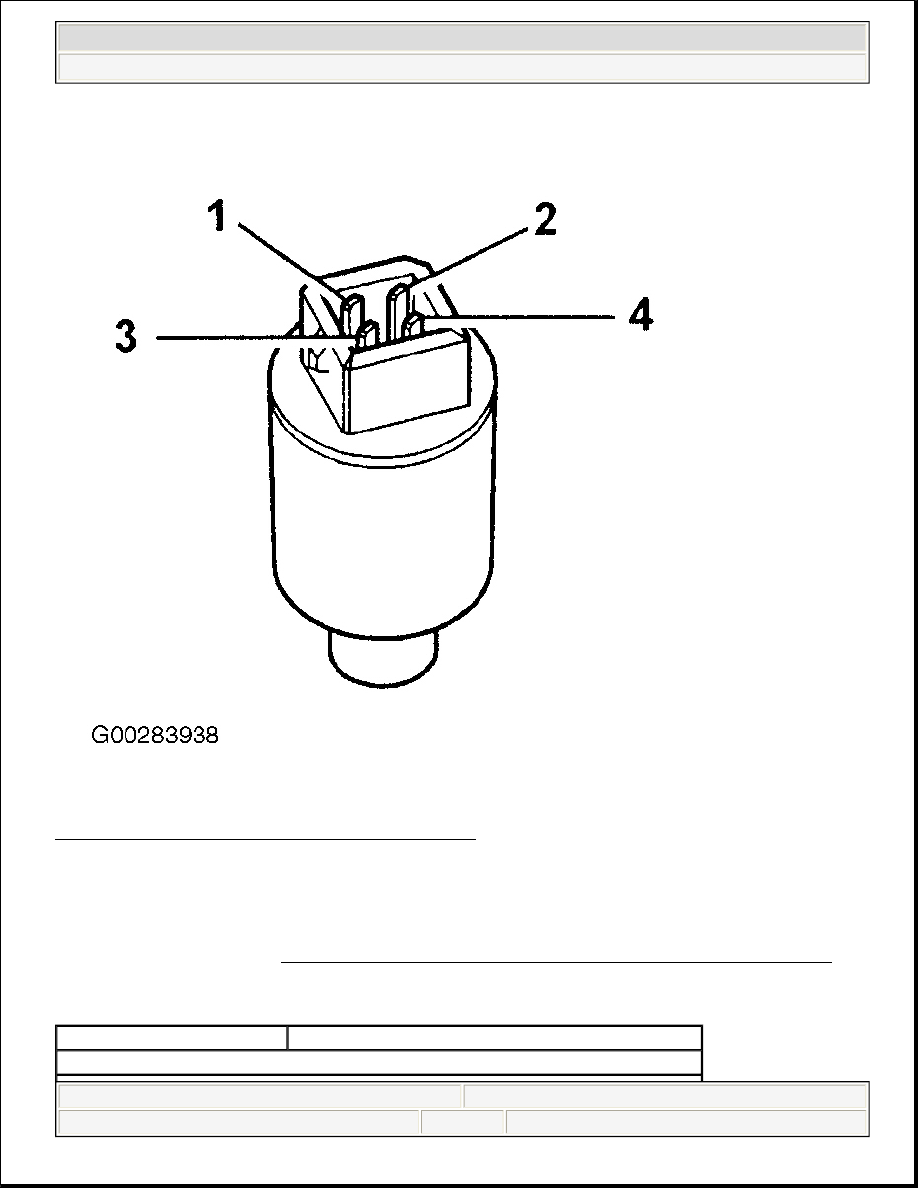

Fig. 5: Identifying A/C High Pressure Switch Terminal
Courtesy of VOLKSWAGEN UNITED STATES, INC.

COOLANT FAN CONTROL THERMO SWITCH

The coolant fan control thermo switch turns on and off based on coolant temperature. For thermo switch on/off
temperature specifications, see COOLANT FAN CONTROL THERMO SWITCH SPECIFICATIONS
table.

COOLANT FAN CONTROL THERMO SWITCH SPECIFICATIONS

Application

Specification

1.8L Turbo, 1.9L TDI & 2.0L



2003 Volkswagen New Beetle GLS

1998-04 ENGINE COOLING Electric Cooling Fans - Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:37:31 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.
