Fig. 248: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (9 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with Q key

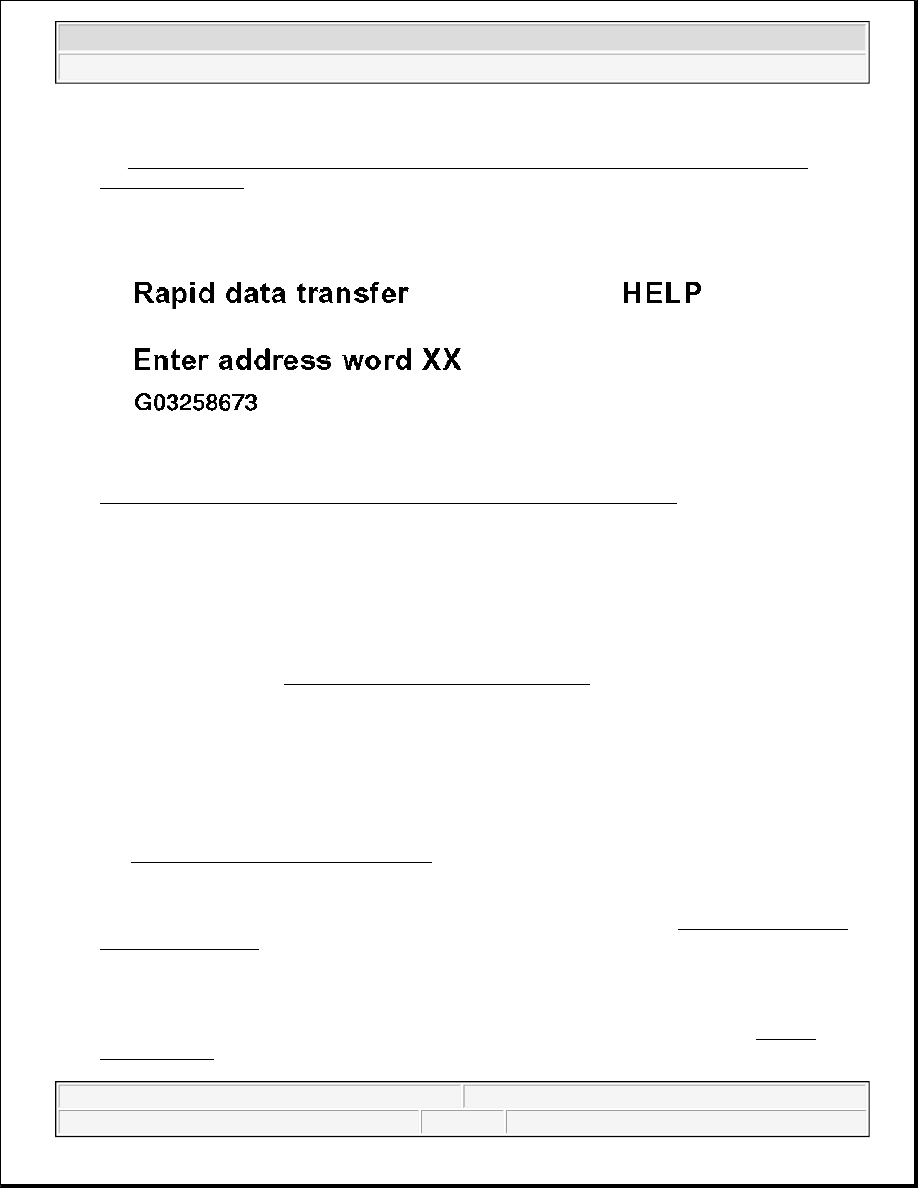

Fig. 249: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (10 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press C key

z

Switch off ignition.

z

Disconnect connection to V.A.G 1551 scan tool.

Bleed brake system.

See BLEEDING BRAKE SYSTEM



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Vehicles with ABS/EDL/ASR/ESP: Perform a zero compensation for sender 1 for brake booster -G201-,
see DISPLAY GROUP NUMBER 66: ZERO COMPENSATION FOR BRAKE PRESSURE
SENDER 1 -G201-
 .

Fig. 250: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (11 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display group number 60: zero compensation of steering angle sensor -G85-

All functions which could previously be performed with V.A.G 1551 can now also be carried out with the tester
VAS 5051.

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS .

z

Start engine.

z

Carry out a short test drive over a flat and level surface. Drive straight-ahead and not faster then 20 km/h
(12.5 mph) and observe the following points:

z

If the steering wheel is not in the straight-ahead position when driving during a test drive, then correct the
steering wheel position within the frame work of an alignment test and make sure the steering wheel is in
the straight-ahead position.

See SPECIFICATIONS & PROCEDURES .

z

Steering wheel straight during test drive, but vehicle moves off-line when moving straight-ahead.

z

Check specifications with help of function 08 "Read measured value block" see MEASURED VALUE
BLOCK, READING
 , Display group number 004.

z

First perform function 11 "Login procedure" successfully using V.A.G 1551 scan tool, see LOGIN
PROCEDURE
 .

NOTE:

Make sure steering wheel does not moved. Do not turn ignition switch off!



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display:

z

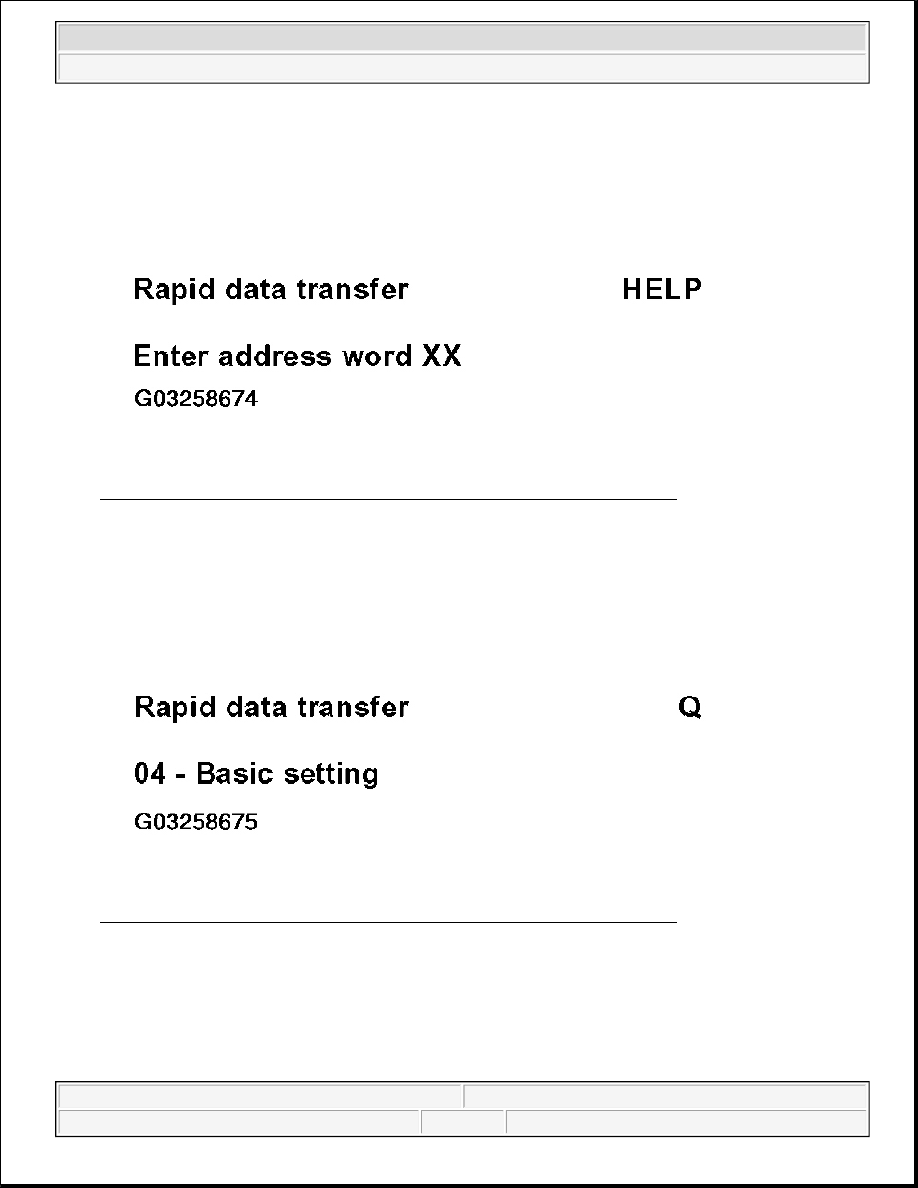

Press keys 0 and 4. (The function "Initiating basic setting" is selected with 04).

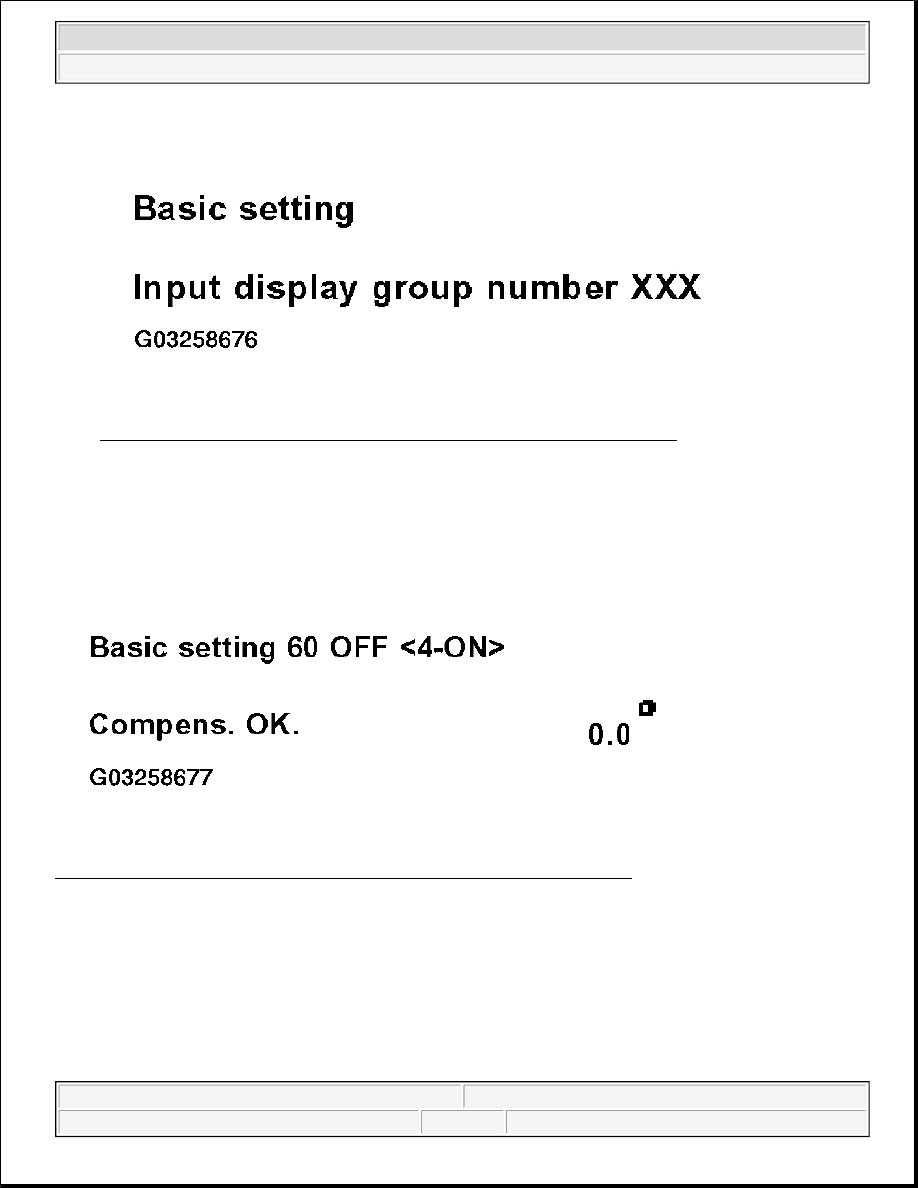

Fig. 251: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (12 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.

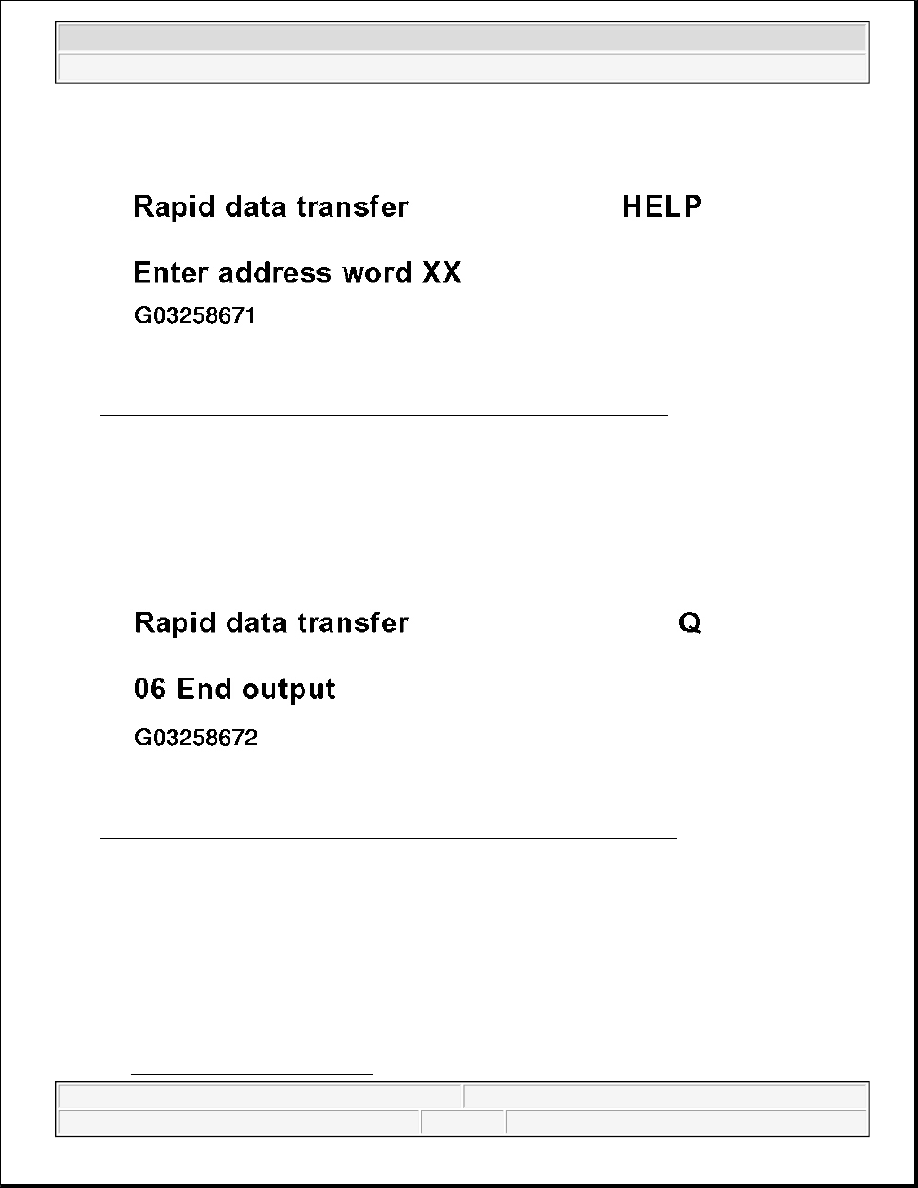

Fig. 252: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (13 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press keys 0, 6 and 0

z

Confirm entry with key Q.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 253: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (14 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

ABS warning light flashes.

And then the display shows e.g.:

Fig. 254: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (15 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If this display appears the login procedure has not been performed successfully.

z

or:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
