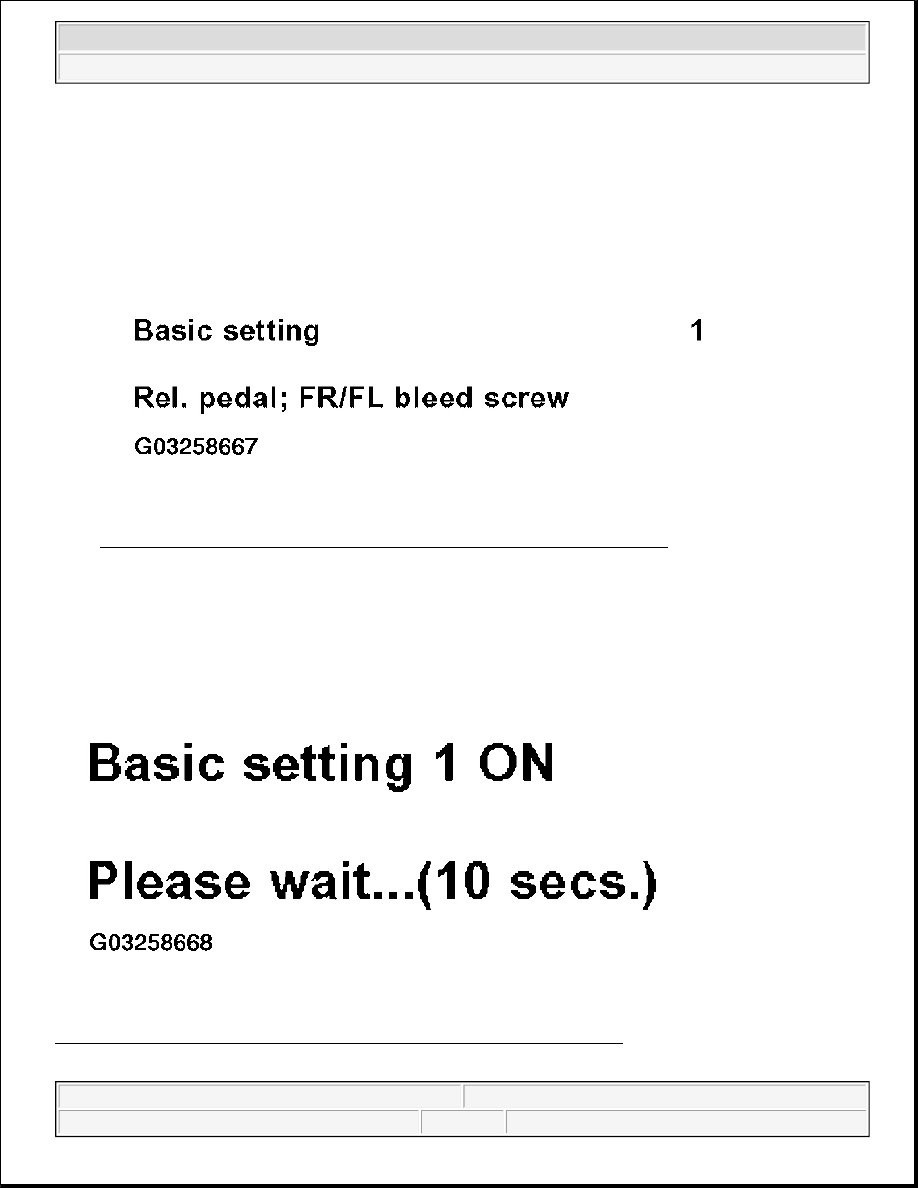

Fig. 240: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (1 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.

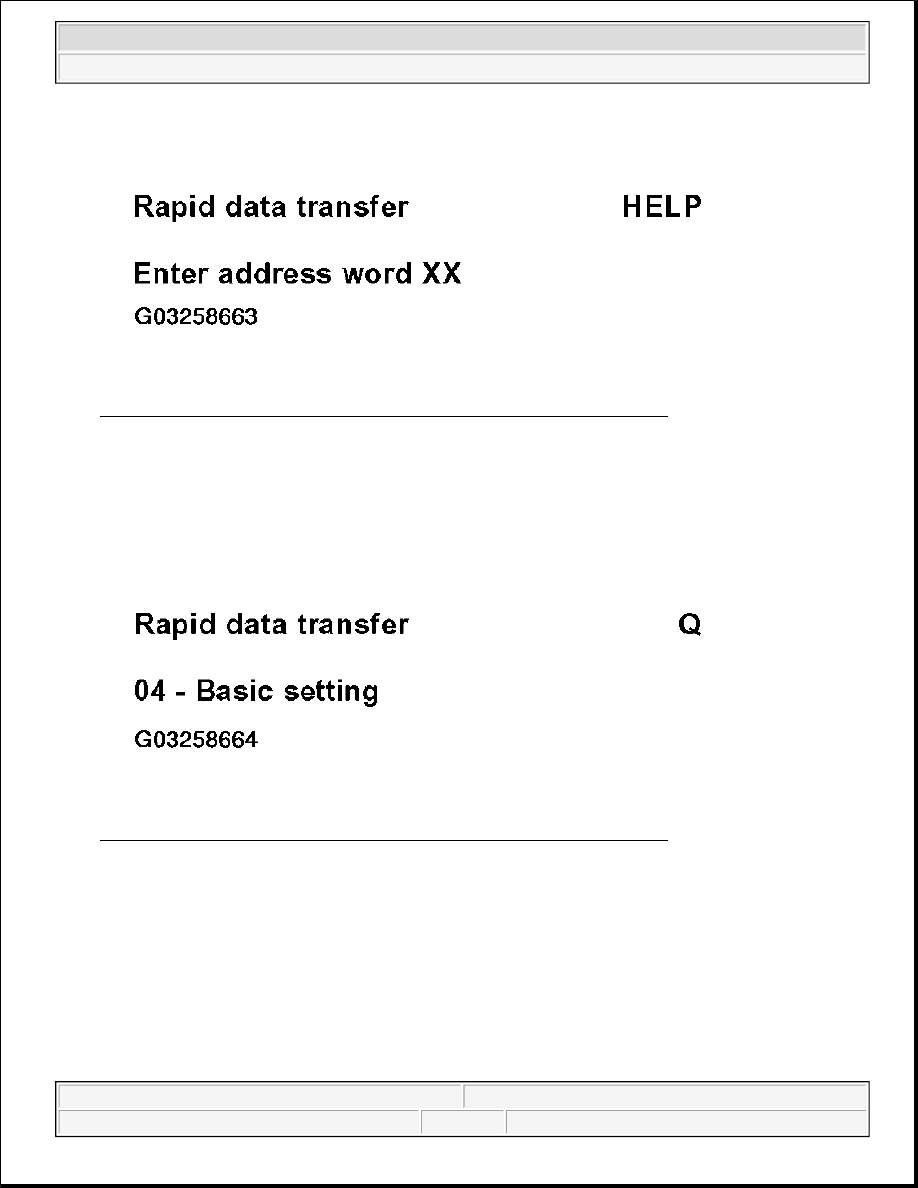

Fig. 241: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (2 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press keys 0, 0 and 1

z

Confirm entry with key Q.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

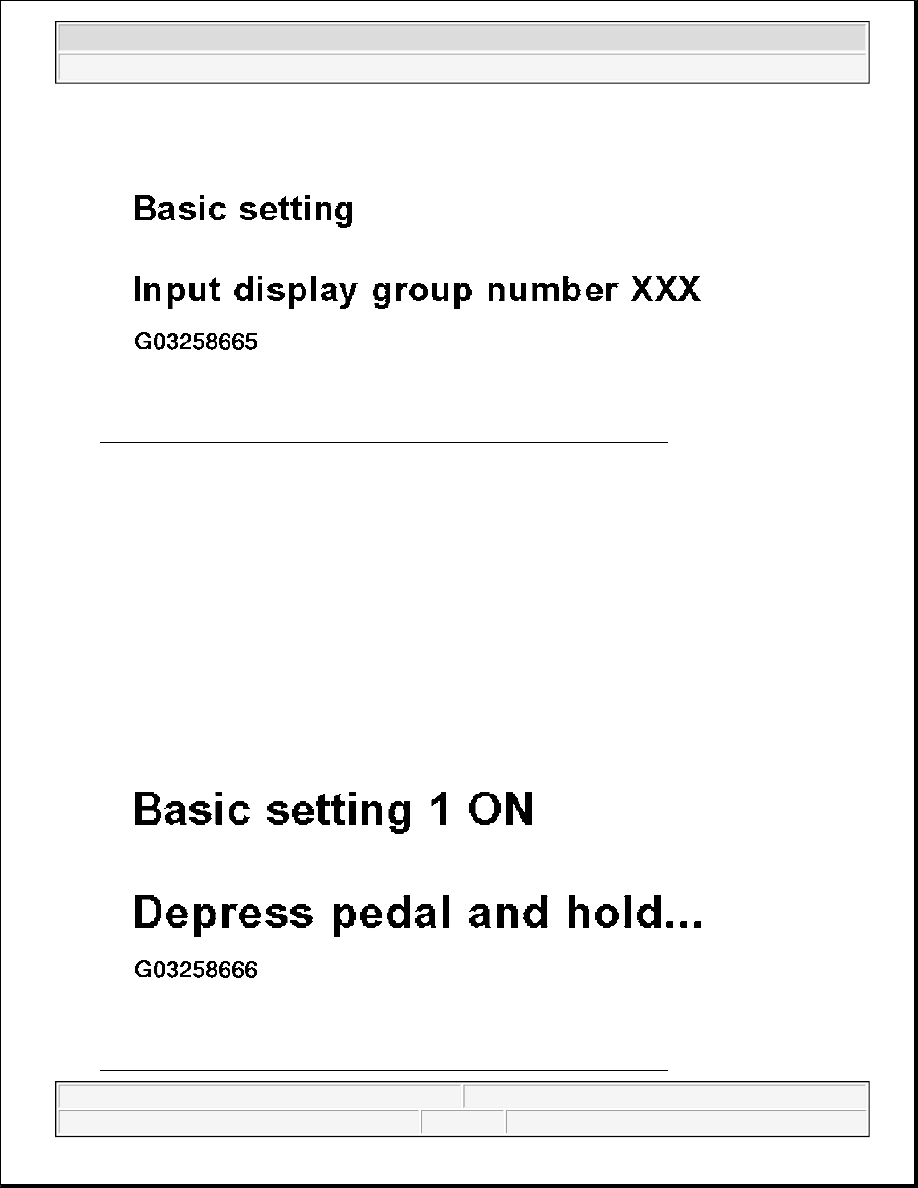

Fig. 242: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (3 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The following cycle of steps must be repeated 8 times according to the basic setting prescribed by V.A.G
1551 or tester VAS 5051.


Indicated on display:

Operate pedal with substantial foot pressure and hold.

z

Pedal moves down

z

Hydraulic pump runs

z

Pedal comes back

Fig. 243: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (4 Of 40)



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press key 8

Fig. 244: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (5 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Hydraulic pump runs

Fig. 245: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (6 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display:

z

Press key 8

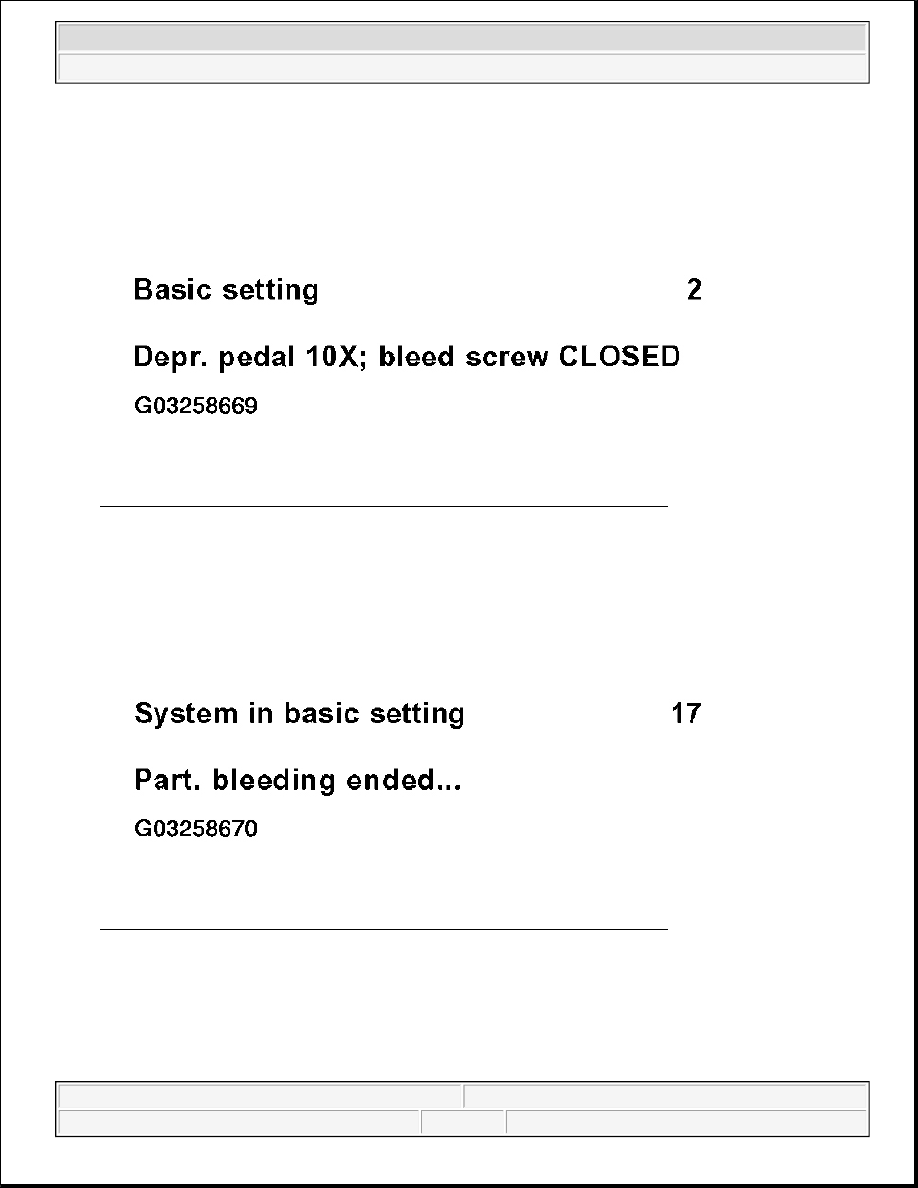

Fig. 246: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (7 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

When all 8 cycles have been performed, this message appears on the display:

z

Press --> key.

Fig. 247: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (8 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press keys -0- and -6-, this ends the output.
