Volkswagen New Beetle. Manual - part 801

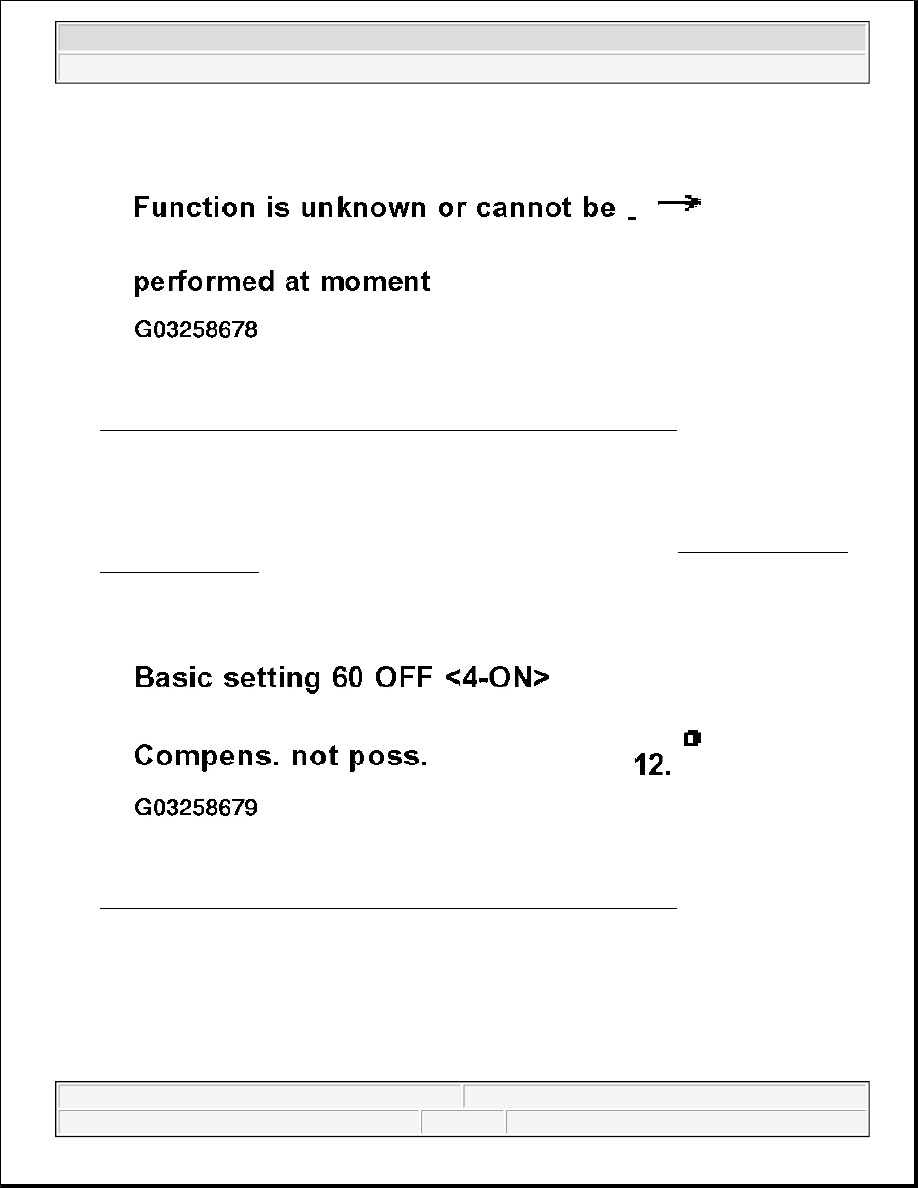

Fig. 255: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (16 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If this appears in the display, the measured values for the zero compensation are not within the allowed
tolerance.

z

Check specifications with help of function 08 "Read measured value block" see MEASURED VALUE
BLOCK, READING
 , Display group number 004.

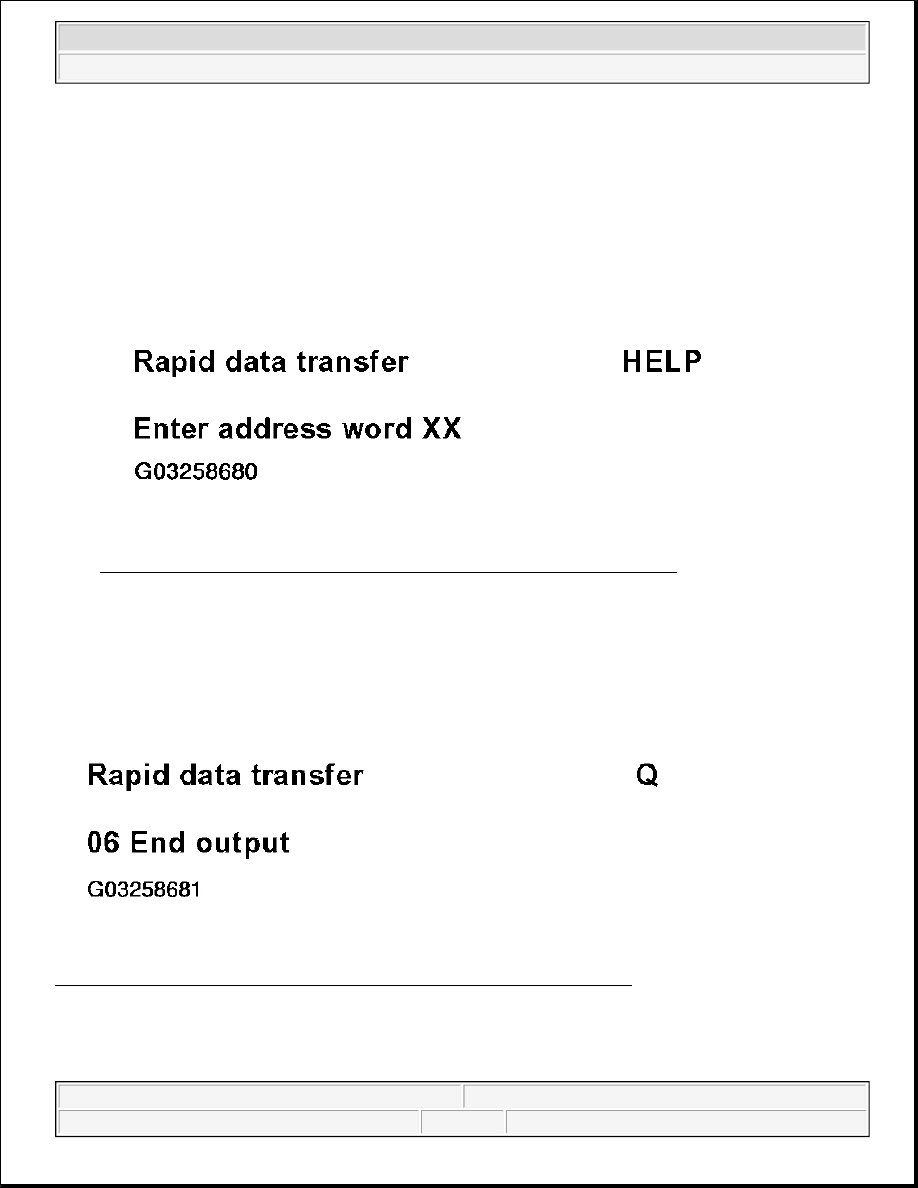

Fig. 256: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (17 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Check DTC memory (Function 02)

2. Erase DTC memory (Function 05)

3. End output (Function 06)

4. Switch off ignition.

5. Switch on ignition.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



6. Perform zero compensation again.

z

Press --> key.

Indicated on display:

z

Press keys 0 and 6, this ends the output.

Fig. 257: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (18 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

ABS and ESP warning lamps light up for approx. 2 seconds.

Fig. 258: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (19 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display group number 063: Zero compensation of sensor for transverse acceleration -G200-



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Position the vehicle on a flat level surface.

z

Connect V.A.G 1551 scan tool and select brake electronics control module with ignition switched on
(address word 03); see LIST OF SELECTABLE FUNCTIONS .

z

Check specifications with help of function 08 "Read measured value block" see MEASURED VALUE
BLOCK, READING
 , Display group number 004.

z

First perform function 11 "Login procedure" successfully using V.A.G 1551 scan tool, see LOGIN
PROCEDURE
 .

Indicated on display:

z

Press keys 0 and 4. (The function "Initiating basic setting" is selected with 04).

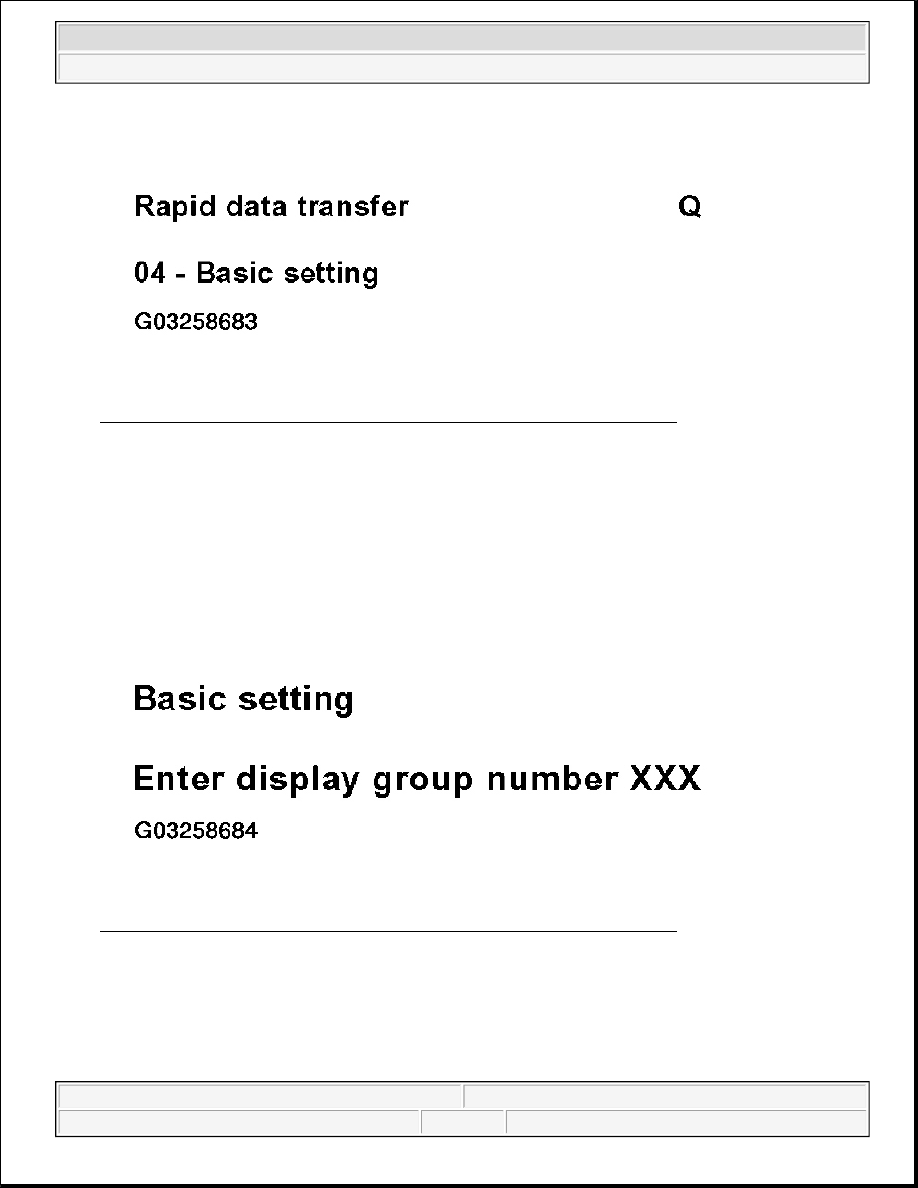

Fig. 259: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (20 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.

NOTE:

z

All functions which could previously be performed with V.A.G 1551 can
now also be carried out with the tester VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

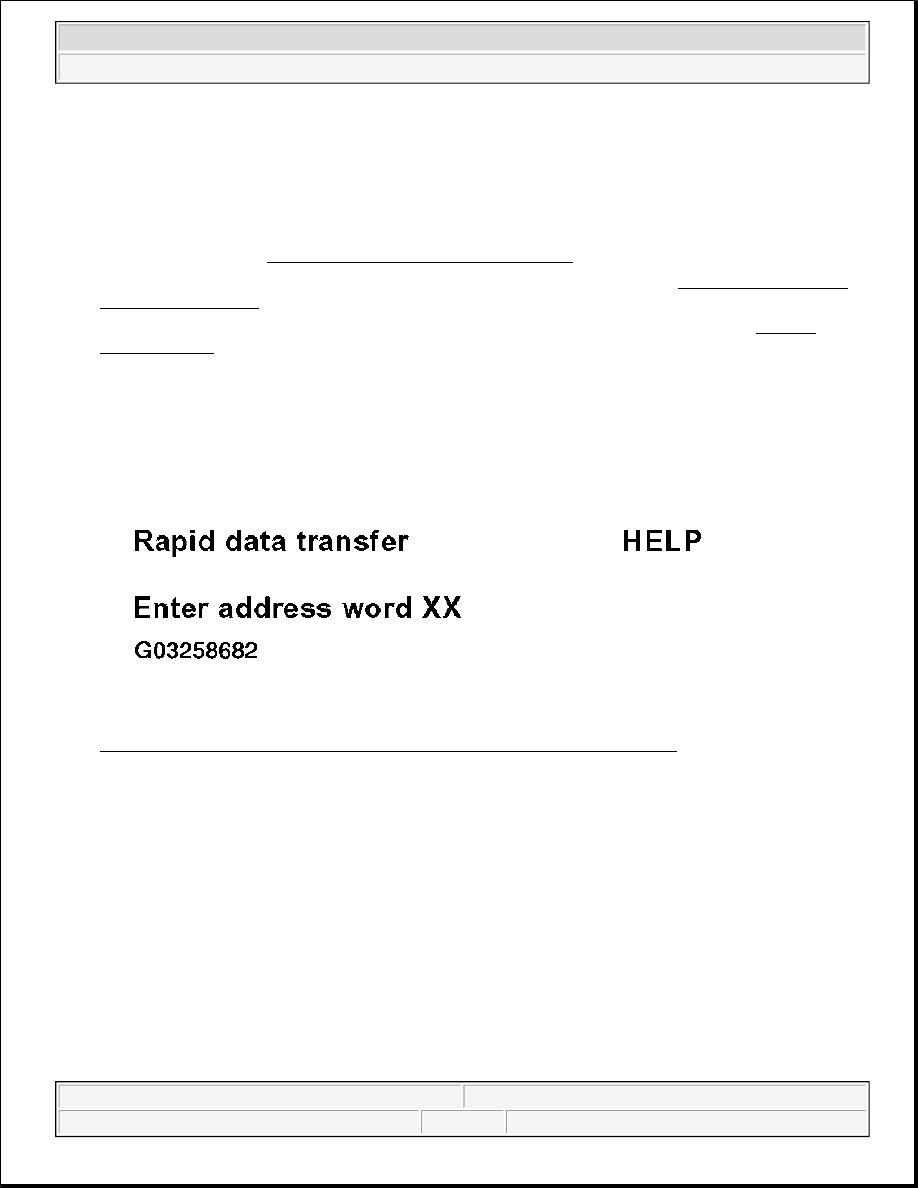

Fig. 260: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (21 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press keys 0, 6 and 3

z

Confirm entry with key Q.

ABS warning light flashes.

Fig. 261: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (22 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

And then the display shows e.g.:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
