Volkswagen New Beetle. Manual - part 751





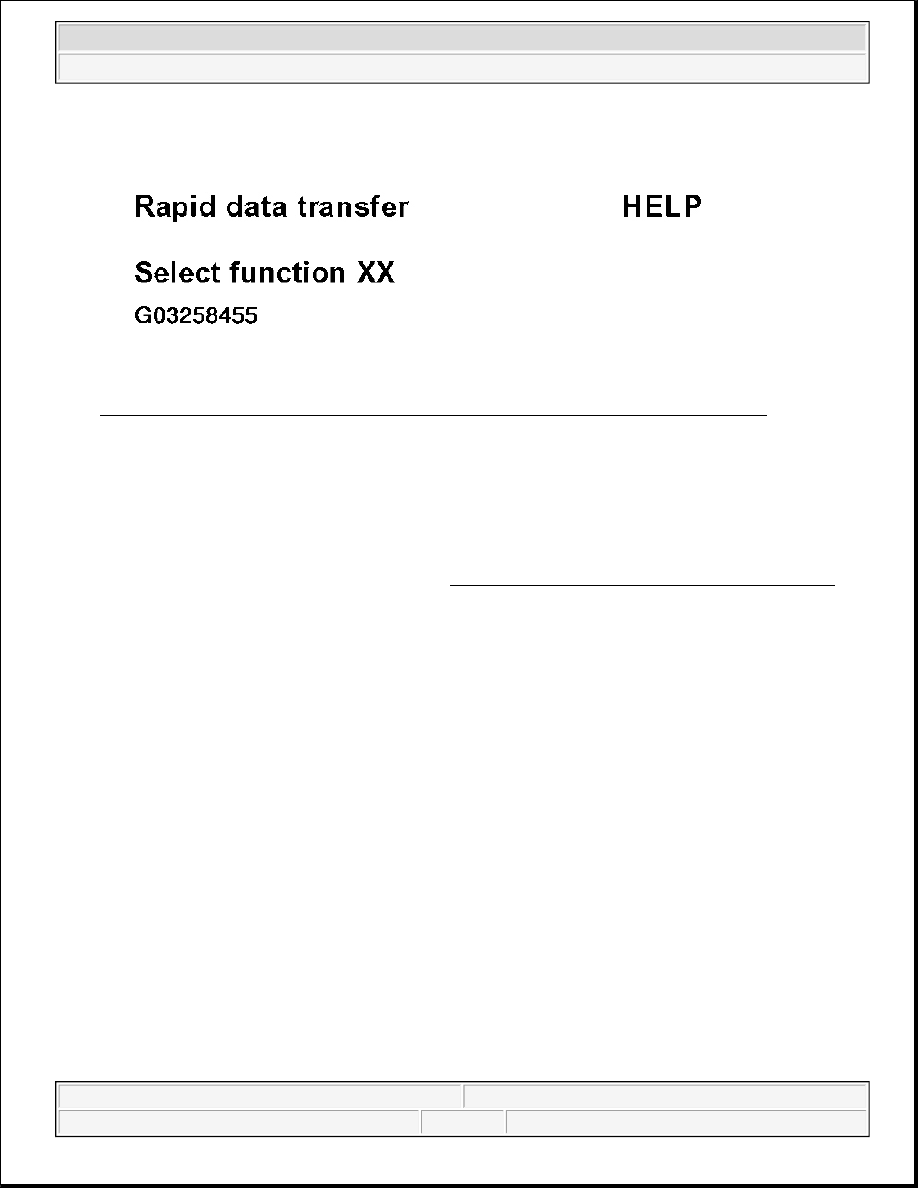

Fig. 32: V.A.G 1551 Scan Tool Display - Checking DTC Memory - Function 02 (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch ignition off.

z

Disconnect VAG1551 scan tool from Data Link Connector (DLC).

If a malfunction has been detected:

z

Repair malfunction according to DTC table, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

z

Check DTC Memory (scan tool function 02).

z

Erase DTC Memory (scan tool function 05).

z

End Output (scan tool function 06).

z

Road test.

z

Check DTC memory again.

VEHICLE DIAGNOSIS, TESTING AND INFORMATION SYSTEM VAS 5051, CONNECTING AND
SELECTING ABS CONTROL MODULE

All functions which could previously be performed with V.A.G 1551 can also be performed with the new tester
VAS 5051 in the operating mode "Vehicle On Board Diagnostic".

See .

Special tools and equipment

z

VAS 5051 Vehicle Diagnosis, Testing and Information System



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 33: Identifying VAS 5051 Vehicle Diagnosis, Testing And Information System
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

With ignition switched off, connect tester VAS 5051 to diagnosis connection using diagnosis cable VAS
5051/1 or VAS 5051/3.

Indicated on display

Select operating mode:

NOTE:

z

The ABS function is switched off in the control module during the On
Board Diagnostic.

z

The DTC memory can be erased after successful checking and repair.

NOTE:

z

In the functions 04 - Basic setting/08 - Read Measured value block,
the display zones will be listed from top to bottom.

z

If the display does not indicate as described in the work sequence,
operating instructions for Vehicle Diagnosis, Testing and Information
System VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Press button on display for "Vehicle On Board Diagnostic" -arrow-.

Fig. 34: Pressing Button On Display For "Vehicle On Board Diagnostic"
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Select vehicle system:

z

Press "03 - Brake electronics" on display -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 35: Pressing "03 - Brake Electronics" On Display
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Displayed is

z

The control module identification number.

e.g. (1J0 907 379 D)

Application of control module: See Parts catalog



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
