Volkswagen New Beetle. Manual - part 749





z

Coding: 03604 (coding control module, see CODE CONTROL MODULE (FUNCTION 07) )

z

Dealership code, see VAG1551 scan tool operating instructions

If the control module identification number does not appear summary of functions, see LIST OF
SELECTABLE FUNCTIONS
 .

z

Press --> button.

Indicated on display

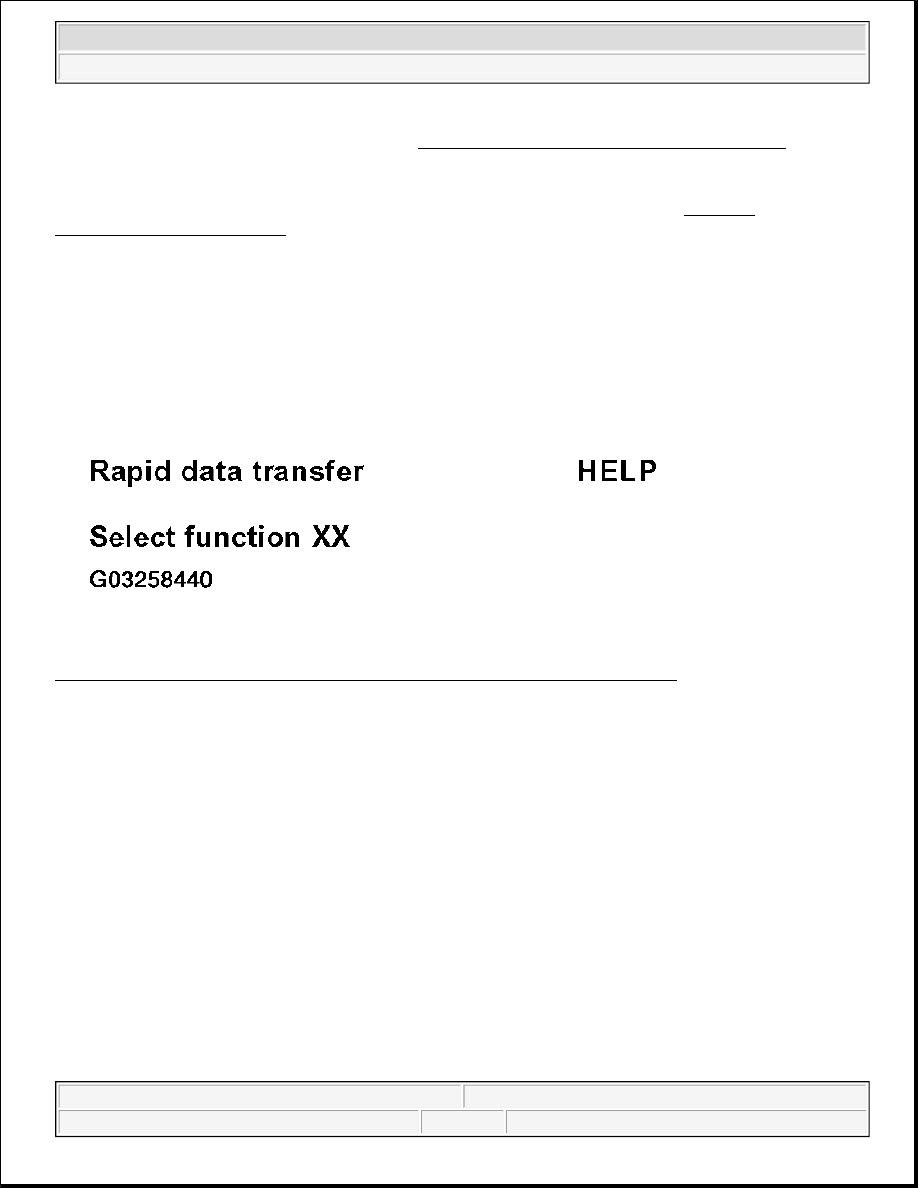

Fig. 17: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (5 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (function selection, e.g. "02 - Check DTC Memory")

NOTE:

A list of the possible functions is printed out after pressing the "HELP" button.

NOTE:

If the following malfunction information appears in the display, the possible
causes of the malfunction can be printed out by pressing the "HELP" button.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

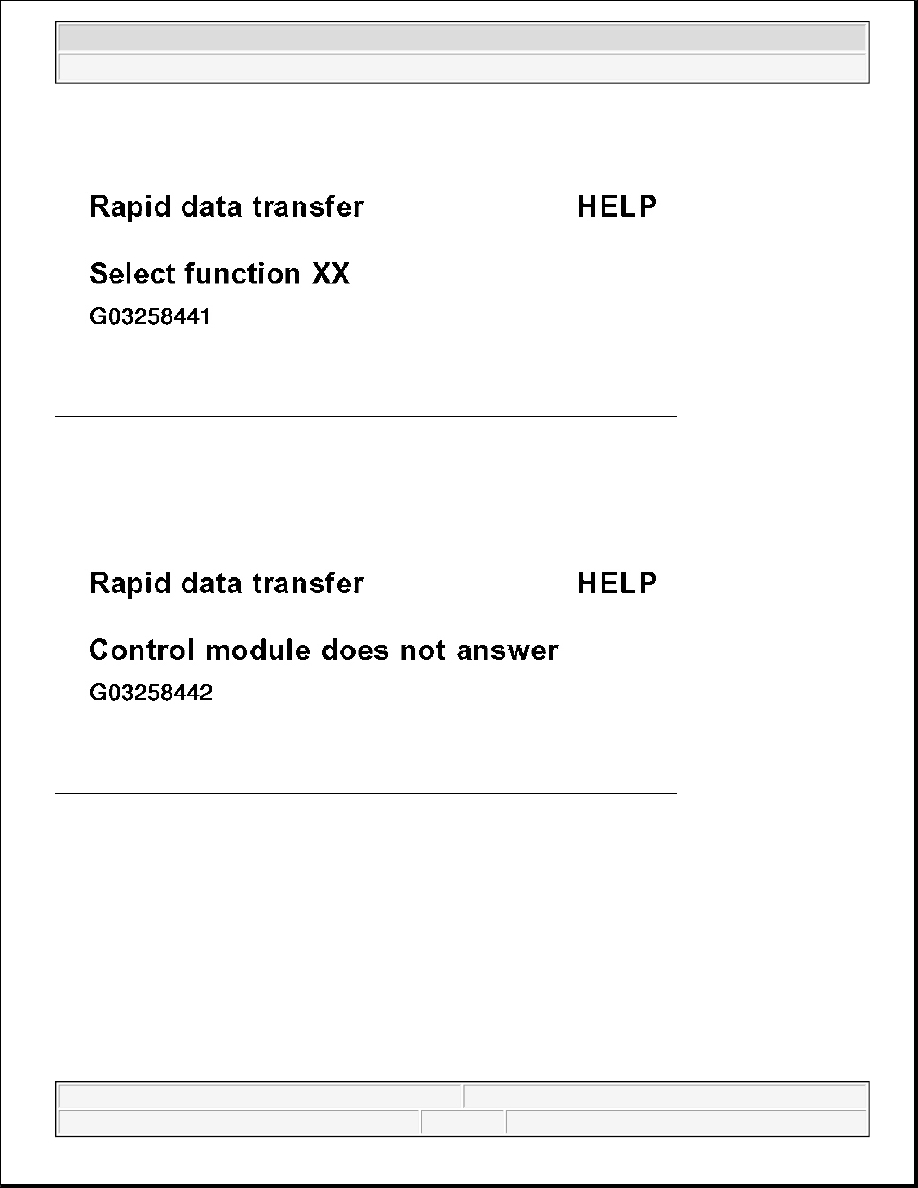

Fig. 18: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (6 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A possible cause of malfunction is the inlet and outlet valves -S9-.

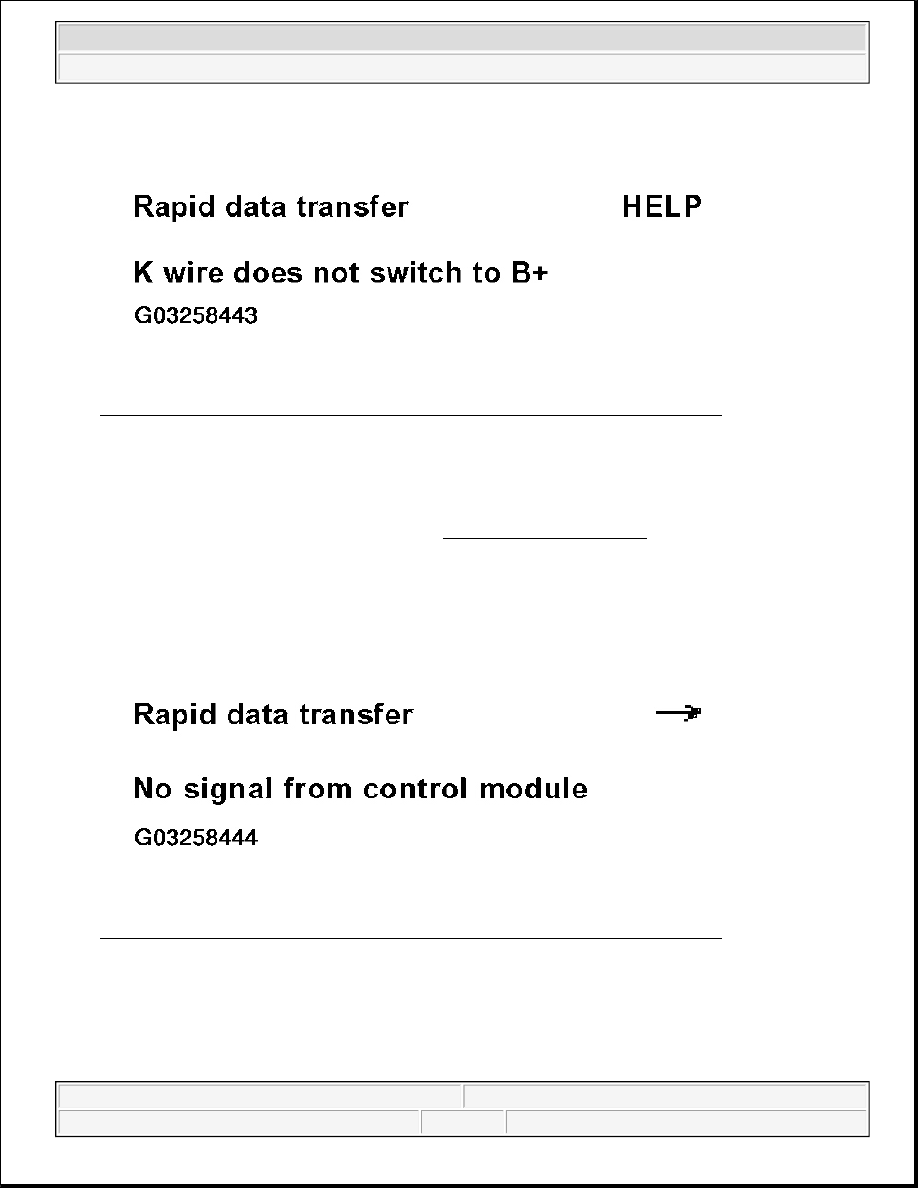

Fig. 19: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (7 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check if ignition switch is in the on position.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 20: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (8 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module identification influenced during checking (possibly influenced from external

z

Check DLC connection as well as voltage supply and Ground (GND) connection for ABS Control
Module (w/EDL) -J104-, Electrical testing, see ELECTRICAL TESTING .

z

After repairing the possible causes of the malfunction, again press buttons -0- and -3- to insert "Brake
Electronics" address word 03.

z

Press -Q- button to confirm input.

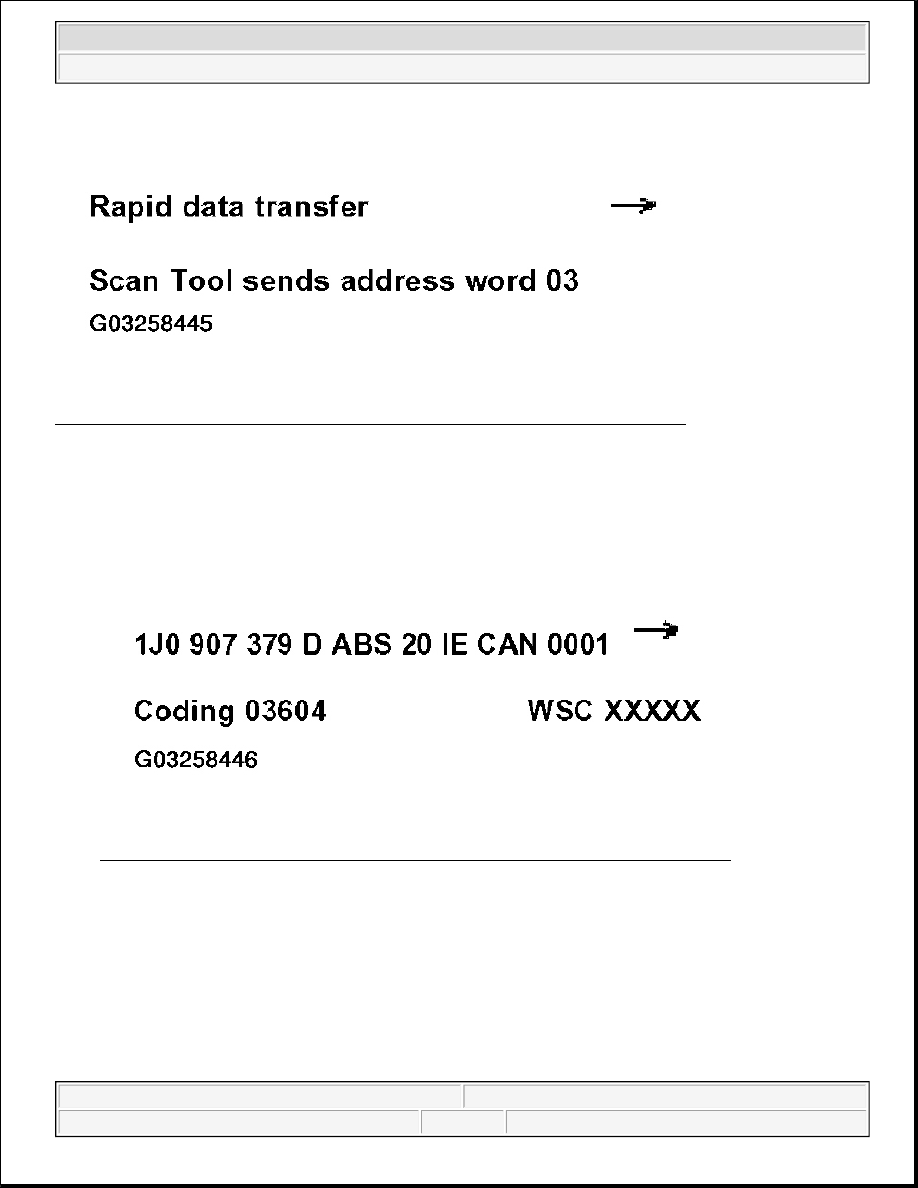

Fig. 21: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (9 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 22: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (10 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press --> button.

Fig. 23: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (11 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
