z

Terminals of ABS components checked for damage and correct seating.

z

All fuses OK and check to wiring diagram (remove fuse from fuse holder to check).

z

Supply voltage at least 10.0 volts.

LIST OF SELECTABLE FUNCTIONS

SELECTABLE FUNCTIONS CHART

VAG1551 SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTION

z

Connect VAG1551 scan tool with VAG1551/3 adapter cable.

NOTE:

Also, check fuses and fuse connections for corrosion. If corrosion is
present

No.

Function

Test

00
-

Automatic test sequence

See AUTOMATIC TEST SEQUENCE

01
-

Check Control Module

Versions

See VAG1551 SCAN TOOL (ST), CONNECTING AND

SELECTING FUNCTION

02
-

Check DTC Memory

See CHECK DTC MEMORY (FUNCTION 02)

03
-

Output Diagnostic Test

Mode

See OUTPUT DIAGNOSTIC TEST MODE (FUNCTION 03)

04
-

Basic Setting

(1)

See BASIC SETTING (FUNCTION 04)

05
-

Erase DTC Memory

See ERASE DTC MEMORY (FUNCTION 05)

06
-

End Output

See END OUTPUT (FUNCTION 06)

07
-

Code Control Module

See CODE CONTROL MODULE (FUNCTION 07)

08
-

Read Measuring Value

Block

See READ MEASURING VALUE BLOCK (FUNCTION 08)

(1)

Only required for vehicles with EDL

NOTE:

z

All functions which could previously be performed with V.A.G 1551 can
also be performed with the new tester VAS 5051.

z

ABS function is switched off in the control module during On Board
Diagnostic (OBD).

z

DTC memory can be erased after it is successfully checked and repaired.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 12: Connecting VAG1551 Scan Tool With VAG1551/3 Adapter Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Connecting VAS 5051, see VEHICLE DIAGNOSIS, TESTING AND INFORMATION SYSTEM VAS
5051, CONNECTING AND SELECTING ABS CONTROL MODULE
 .

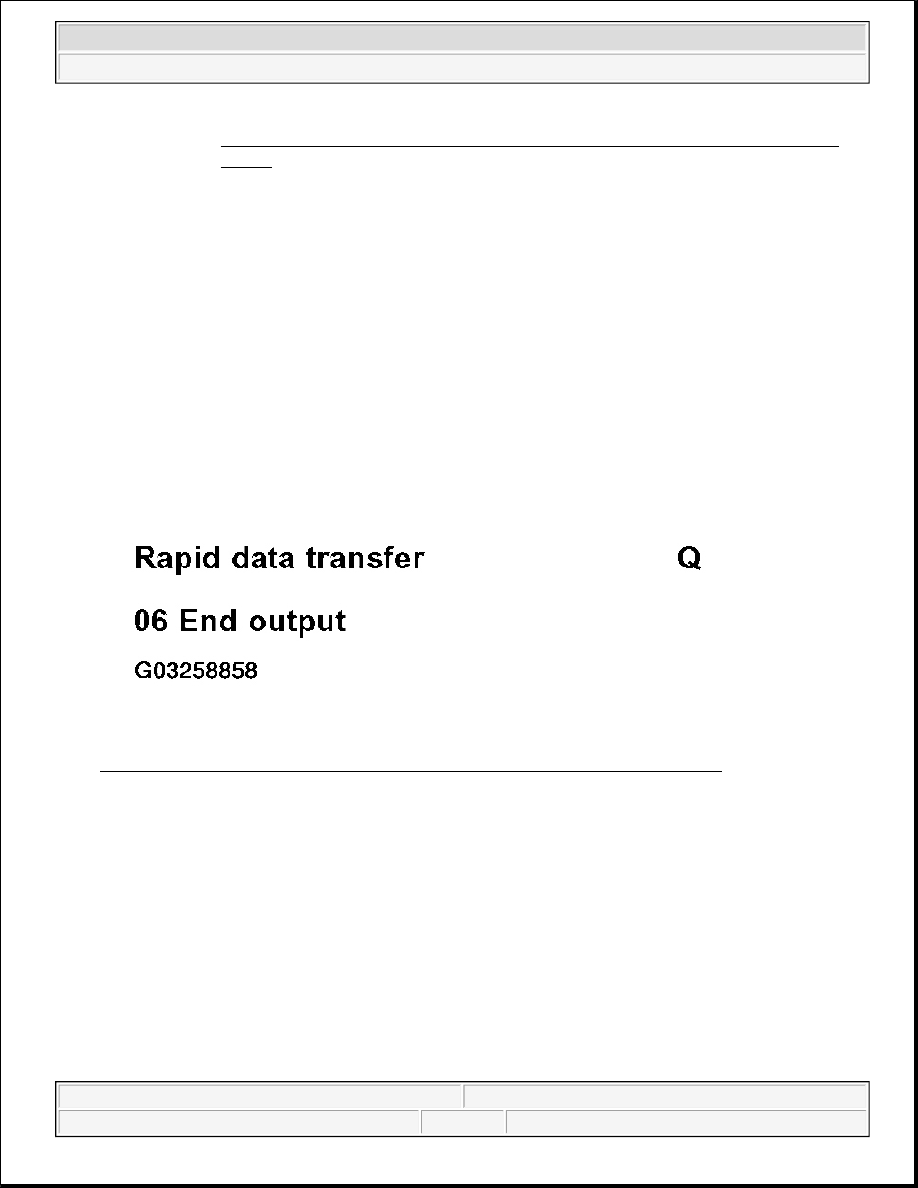

Indicated on display

NOTE:

Only early production cars have the DLC connection at the center console

NOTE:

Operating modes 1 and 2 are displayed alternately

NOTE:

z

If the display remains blank, check On Board Diagnostic (OBD) harness
connector, Electrical testing, see ELECTRICAL TESTING , test steps 14
and 15.

z

Additional operating instructions can be obtained by pressing the
VAG1551 Scan Tool (ST) "HELP" button.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Switch ignition on.

z

Switch printer on with the "PRINT" button (indicator lamp in button lights up).

z

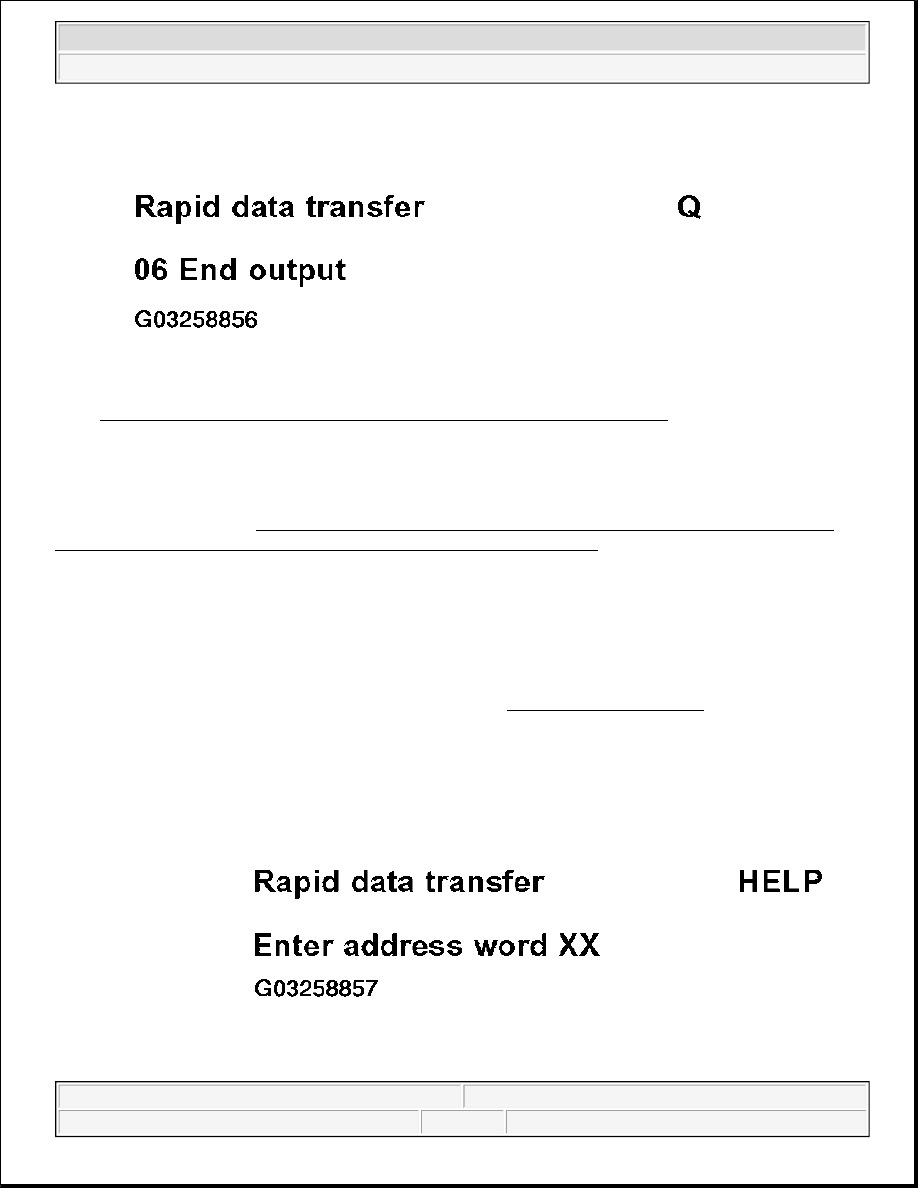

Press button -1- to select "Rapid data transfer" operating mode 1.

Indicated on display

z

Press buttons -0- and -3- to insert "Brake Electronics" address word 03.

Fig. 14: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (2 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 13: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (1
Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

The --> button is used to advance through the program sequence.

z

The "PRINT" button is used for switching on the printer (warning lamp in
button comes on).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

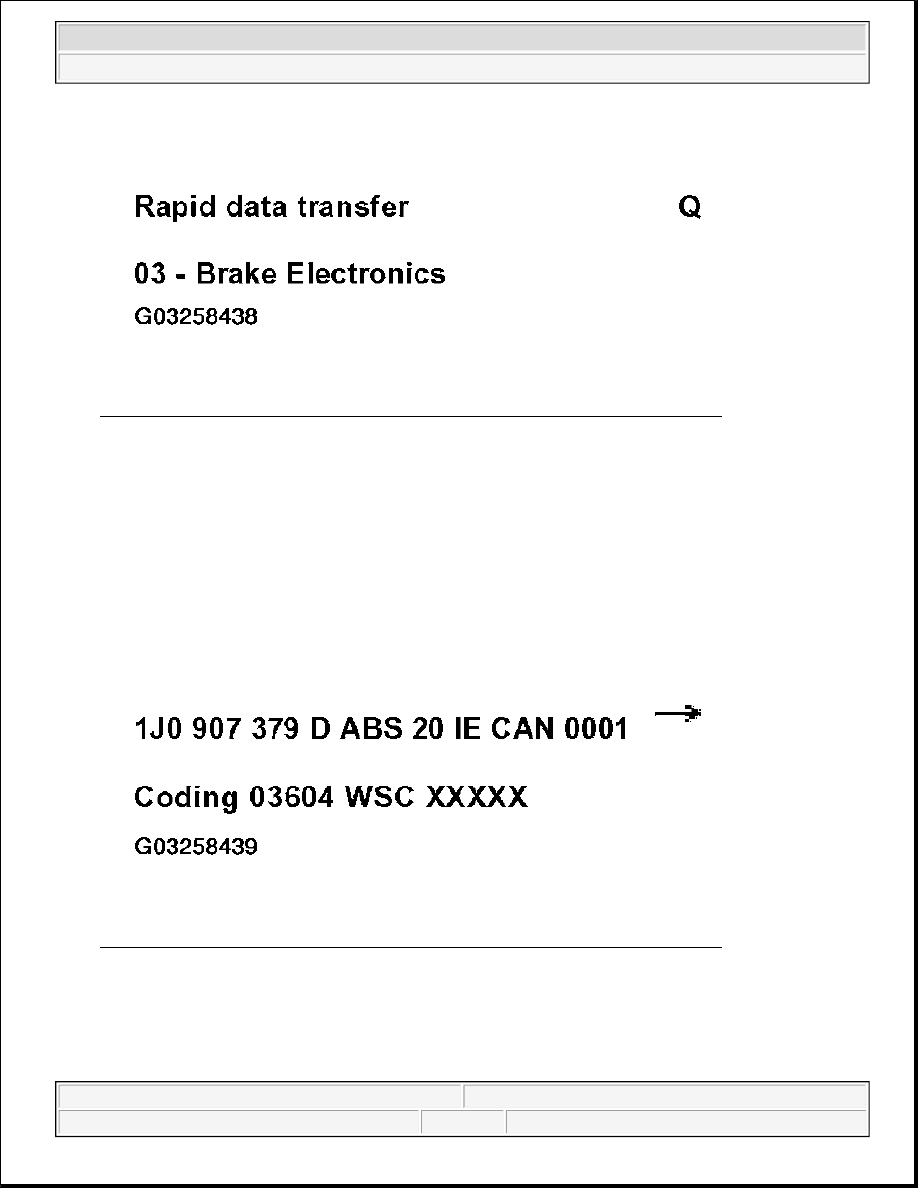

Fig. 15: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (3 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Breakdown of the display

z

Control module identification number (e.g. 1J0907379D)

z

Control module applications, see parts catalog

z

System designation (ABS 20 IE)

Fig. 16: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (4 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

CAN-bus present

See



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
