Fig. 6: Identifying Electrical/Electronic Components And Installation Locations (ITT Mark 20 IE)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODES (DTC) DISPLAYED BY WARNING LIGHTS -K14-, -K47- AND -
K118-

Warning lights

WARNING LIGHTS CHART

For vehicles with ABS/EDL/ASR and/or a radio/navigation system, the warning light for brake system -K118-
is at position -3-. See Fig. 7 . The function of the parking brake warning light -K14- is then taken on by the
warning light for brake system -K118-.

Fig. 7: Identifying Warning Light For K14, K47 And K118

Item

Designation

1

Warning light for brake system -K118-

2

ABS warning light -K47-

3

Parking brake indicator light -K14-



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

WARNING LIGHTS

ABS warning light -K47-

If ABS warning light -K47- (-2-) does not go out after switching the ignition on and completion of test
sequence, the malfunction may be:

a. Voltage supply is below 10 volts

b. ABS malfunction

The anti-locking brake system remains switched off with an ABS malfunction (b), but the brake system
remains fully operational.

c. Sensor malfunction after last starting the vehicle (sporadic)

In the case of sensor malfunction (c) ABS warning lamp will go out after restarting the engine and at a
road speed of above 20 km/h (approx. 13 mph).

Fig. 8: Identifying ABS Warning Light -K47-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

d. Open circuit between instrument cluster connector T32 (blue) pin 19 to control module pin 16

e. Instrument cluster malfunction

Parking brake indicator light -K14-/Warning light for brake system -K118-

If the parking brake indicator light -K14- (-3-/-1-), or on vehicles with the navigation system the warning light
for brake system -K118-, does not go out after switching the ignition on, the malfunction may be:

a. Parking brake is applied



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



b. Switch for the parking brake indicator light -K14- is malfunctioning or incorrectly adjusted

c. There is a wiring malfunction

Fig. 9: Identifying Parking Brake Indicator Light -K14-/Warning Light For Brake System -K118-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Vehicles with ABS/EDL

Complaint: "Vehicle has no EDL function"

For this complaint a possible cause of the malfunction may be that the brake light switch is incorrectly adjusted,
see BRAKE LIGHT SWITCH, ADJUSTING .

A further possible cause of the malfunction may be that the brake light switch is not functioning. See READ
MEASURING VALUE BLOCK (FUNCTION 08)
 , display group 003.

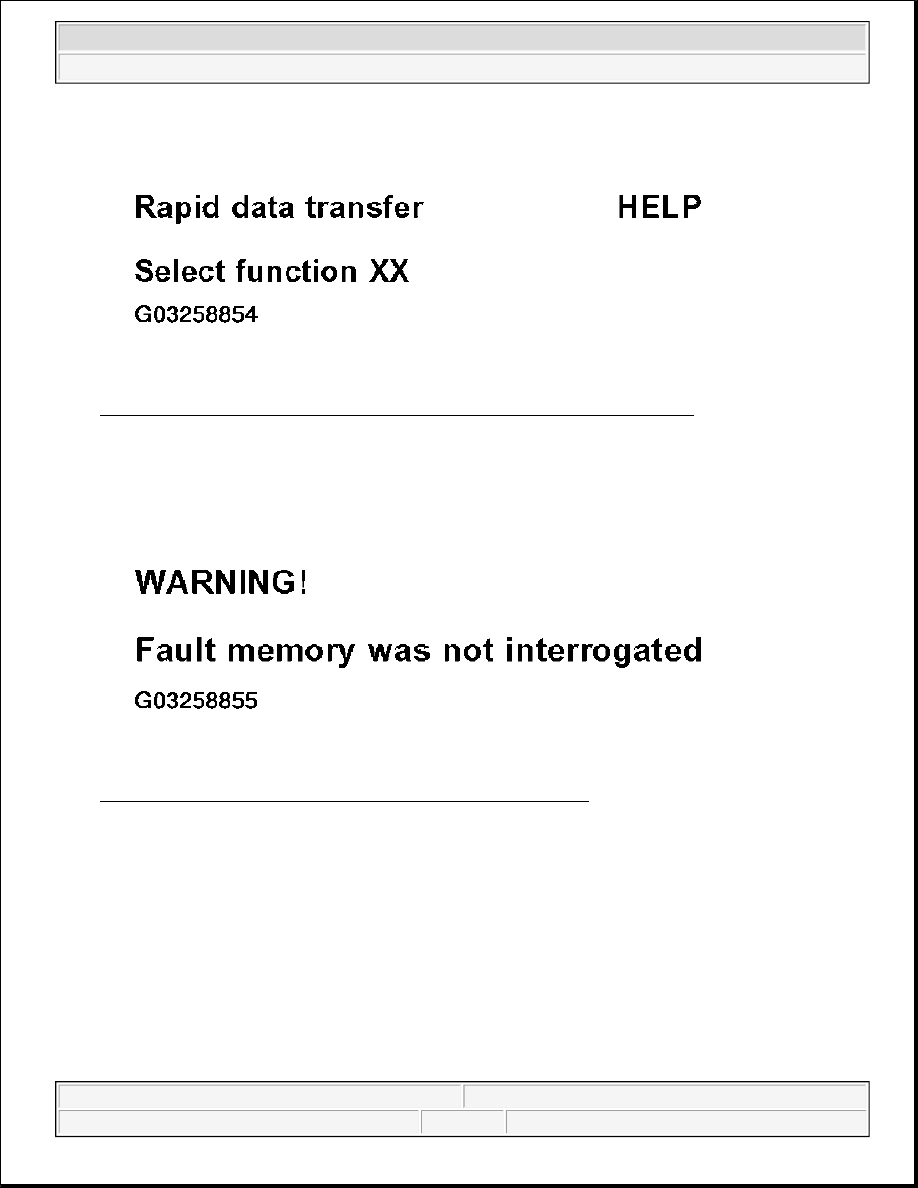

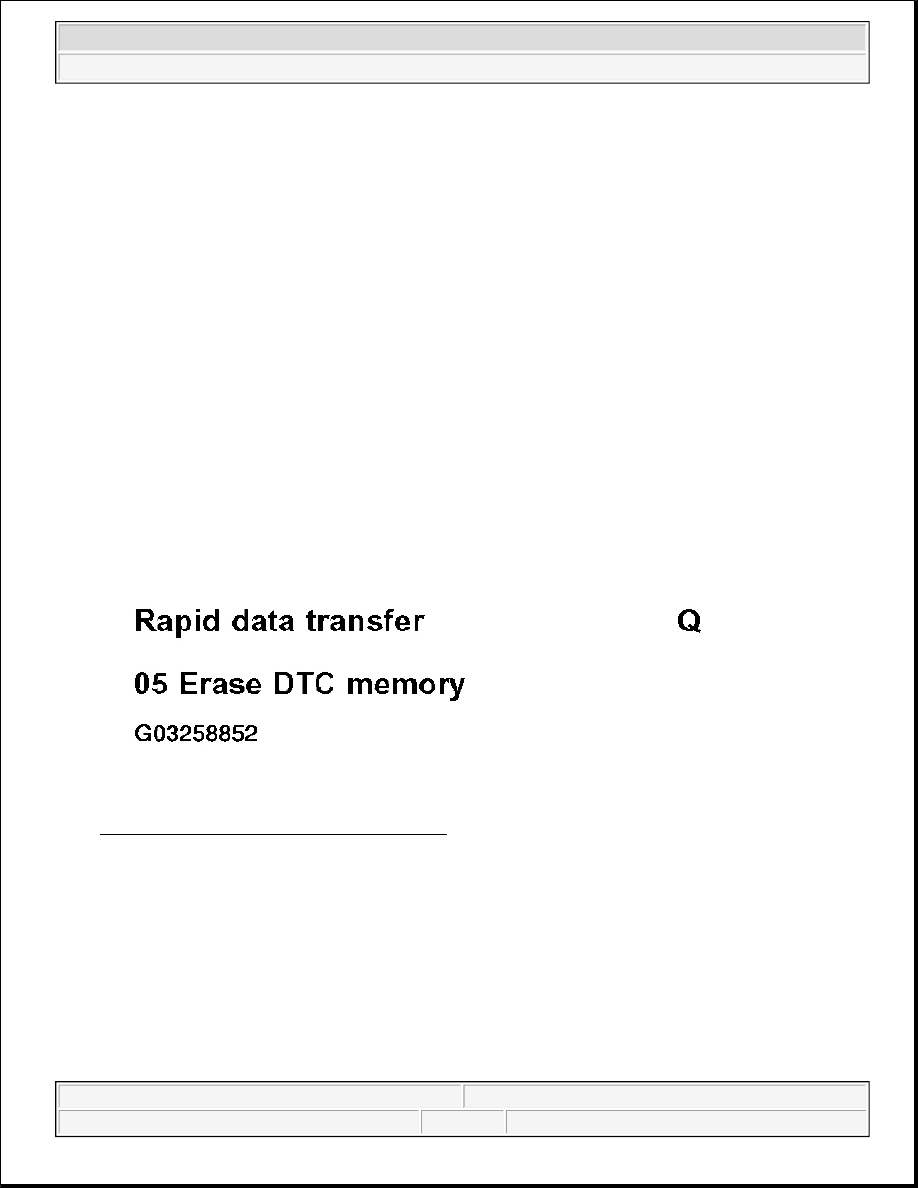

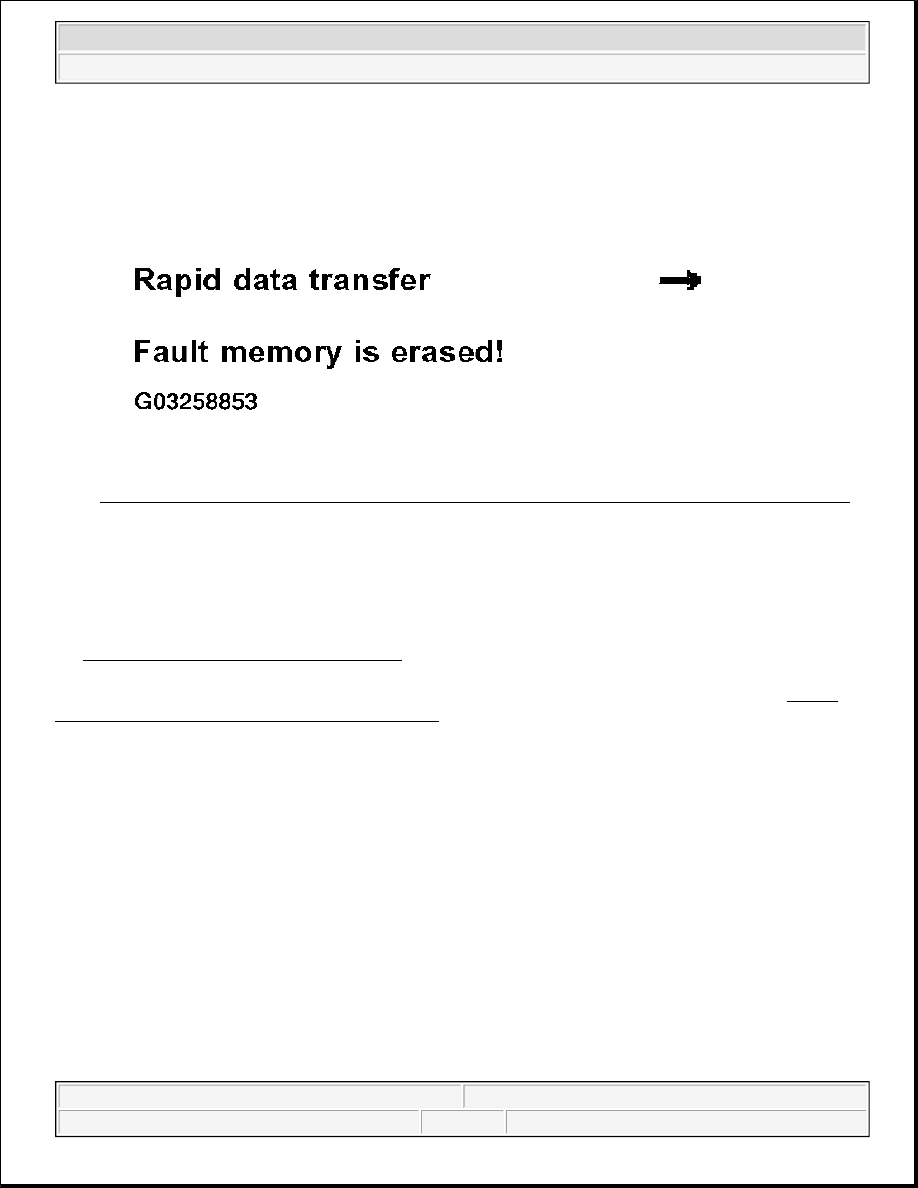

ON BOARD DIAGNOSTIC (OBD), INITIATING

All functions which could previously be performed with V.A.G 1551 can also be performed with the new tester
VAS 5051.

SPECIAL TOOLS AND EQUIPMENT

z

VAG1551 Scan Tool (ST) or VAG1552 mobile scan tool

NOTE:

This On Board Diagnostic (OBD) is for the ITT Mark 20 IE system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 10: Identifying VAG1551 Scan Tool (ST) Or VAG1552 Mobile Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VAG1551/3 or VAG1551/3A adapter cable

Fig. 11: Identifying VAG1551/3 or VAG1551/3A Adapter Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

REQUIREMENTS

z

The tires installed on the wheels must all be the same (approved) size, and inflated to the prescribed
pressure.

z

Conventional brake system, including brake light switch and brake lights, OK.

z

Hydraulic lines and connections not leaking (visual check of ABS hydraulic unit, brake calipers, tandem
master brake cylinder).

z

Wheel bearings and wheel bearing play OK.

z

ABS control module is correctly bolted to ABS hydraulic unit.

z

Harness connector on ABS Control Module (w/EDL) -J104- seated correctly (retainer is engaged).
