Fig. 12: Connecting VAG1551 Scan Tool With VAG1551/3 Adapter Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Connecting VAS 5051, see VEHICLE DIAGNOSIS, TESTING AND INFORMATION SYSTEM VAS
5051, CONNECTING AND SELECTING ABS CONTROL MODULE .

Indicated on display

NOTE:

Only early production cars have the DLC connection at the center console

NOTE:

Operating modes 1 and 2 are displayed alternately

NOTE:

z

If the display remains blank, check On Board Diagnostic (OBD) harness
connector, Electrical testing, see ELECTRICAL TESTING , test steps 14
and 15.

z

Additional operating instructions can be obtained by pressing the
VAG1551 Scan Tool (ST) "HELP" button.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Switch ignition on.

z

Switch printer on with the "PRINT" button (indicator lamp in button lights up).

z

Press button -1- to select "Rapid data transfer" operating mode 1.

Indicated on display

z

Press buttons -0- and -3- to insert "Brake Electronics" address word 03.

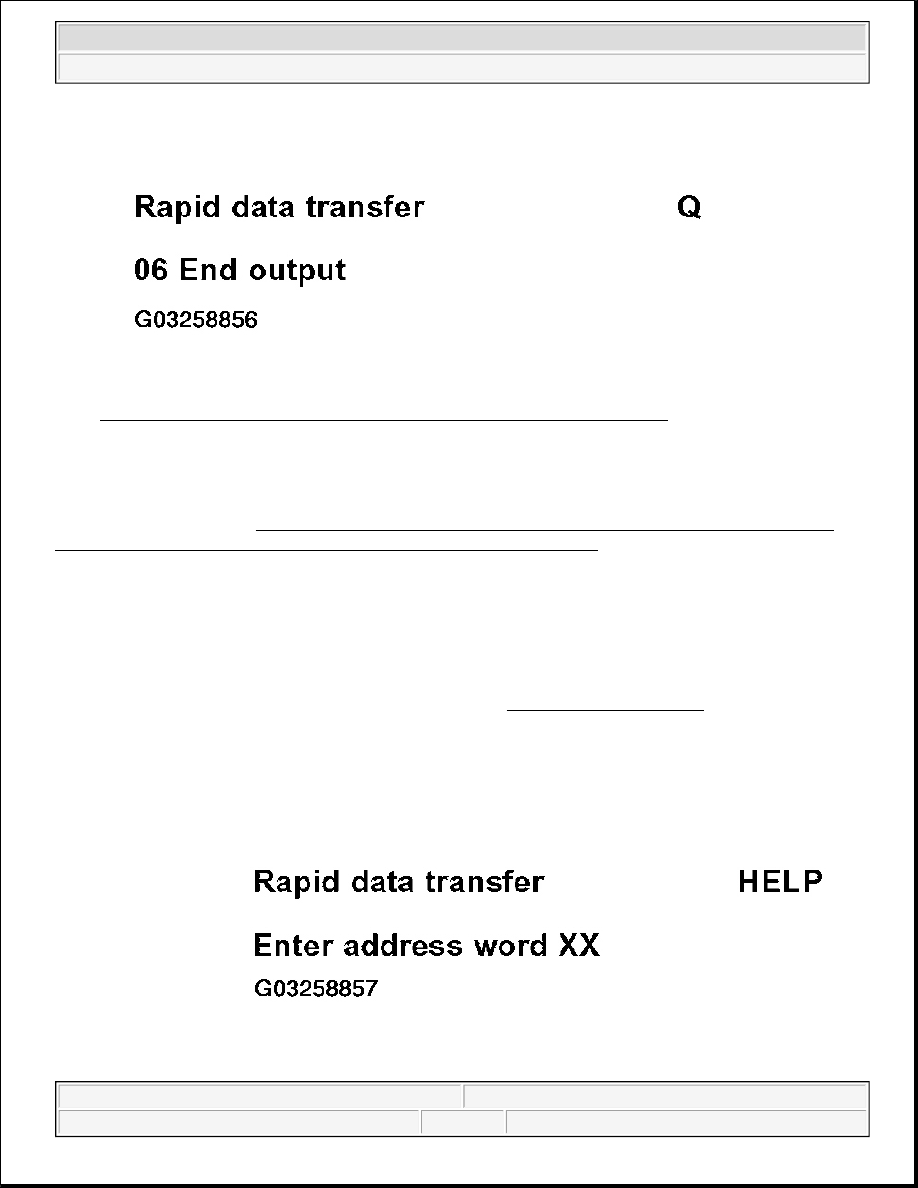

Fig. 14: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (2 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 13: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (1
Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

The --> button is used to advance through the program sequence.

z

The "PRINT" button is used for switching on the printer (warning lamp in
button comes on).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



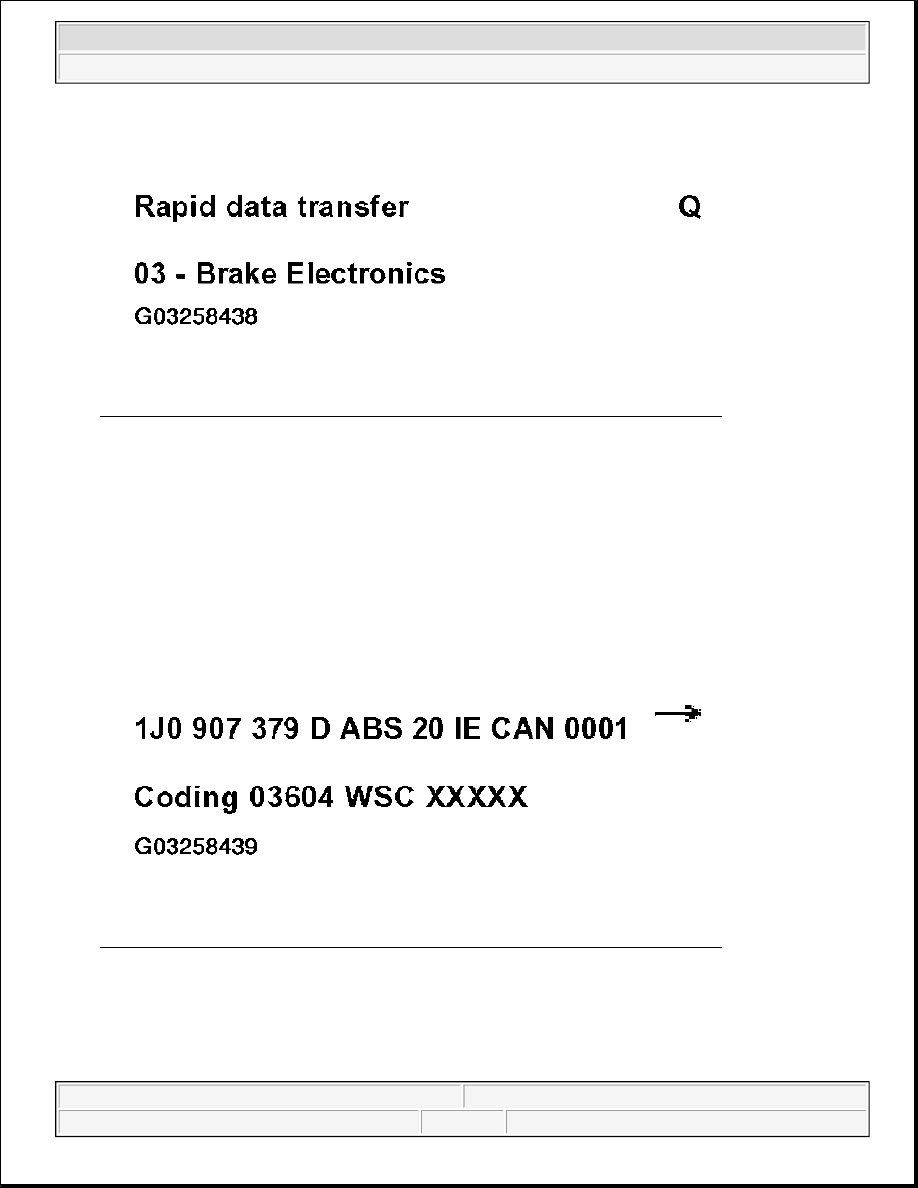

Fig. 15: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (3 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Breakdown of the display

z

Control module identification number (e.g. 1J0907379D)

z

Control module applications, see parts catalog

z

System designation (ABS 20 IE)

Fig. 16: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (4 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

CAN-bus present

See



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Coding: 03604 (coding control module, see CODE CONTROL MODULE (FUNCTION 07) )

z

Dealership code, see VAG1551 scan tool operating instructions

If the control module identification number does not appear summary of functions, see LIST OF
SELECTABLE FUNCTIONS .

z

Press --> button.

Indicated on display

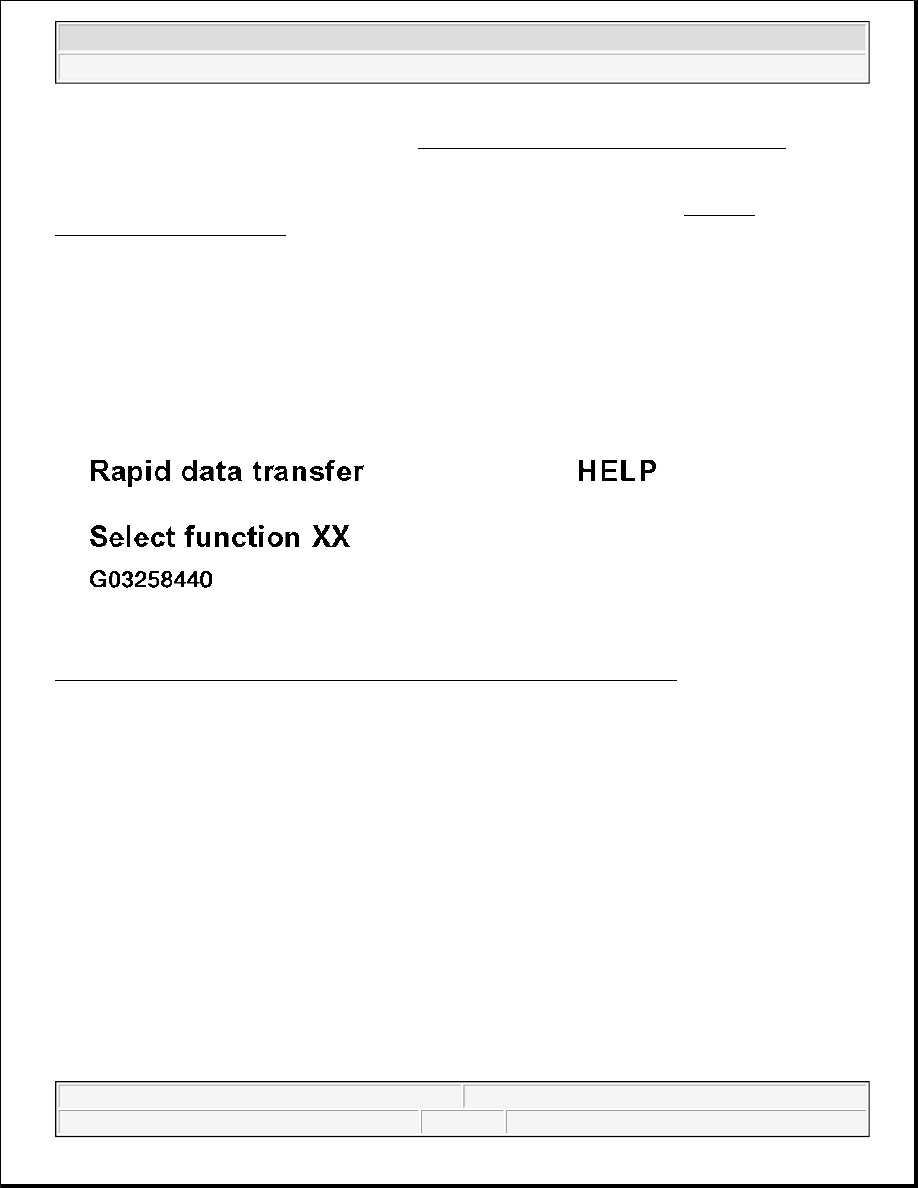

Fig. 17: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (5 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (function selection, e.g. "02 - Check DTC Memory")

NOTE:

A list of the possible functions is printed out after pressing the "HELP" button.

NOTE:

If the following malfunction information appears in the display, the possible
causes of the malfunction can be printed out by pressing the "HELP" button.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
