Volkswagen New Beetle. Manual - part 682





Courtesy of VOLKSWAGEN OF AMERICA, INC.

WARNING LIGHTS

ABS warning light -K47-

If ABS warning light -K47- (-2-) does not go out after switching the ignition on and completion of test
sequence, the malfunction may be:

a. Voltage supply is below 10 volts

b. ABS malfunction

The anti-locking brake system remains switched off with an ABS malfunction (b), but the brake system
remains fully operational.

c. Sensor malfunction after last starting the vehicle (sporadic)

In the case of sensor malfunction (c) ABS warning lamp will go out after restarting the engine and at a
road speed of above 20 km/h (approx. 13 mph).

Fig. 8: Identifying ABS Warning Light -K47-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

d. Open circuit between instrument cluster connector T32 (blue) pin 19 to control module pin 16

e. Instrument cluster malfunction

Parking brake indicator light -K14-/Warning light for brake system -K118-

If the parking brake indicator light -K14- (-3-/-1-), or on vehicles with the navigation system the warning light
for brake system -K118-, does not go out after switching the ignition on, the malfunction may be:

a. Parking brake is applied



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



b. Switch for the parking brake indicator light -K14- is malfunctioning or incorrectly adjusted

c. There is a wiring malfunction

Fig. 9: Identifying Parking Brake Indicator Light -K14-/Warning Light For Brake System -K118-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Vehicles with ABS/EDL

Complaint: "Vehicle has no EDL function"

For this complaint a possible cause of the malfunction may be that the brake light switch is incorrectly adjusted,
see BRAKE LIGHT SWITCH, ADJUSTING .

A further possible cause of the malfunction may be that the brake light switch is not functioning. See READ
MEASURING VALUE BLOCK (FUNCTION 08)
 , display group 003.

ON BOARD DIAGNOSTIC (OBD), INITIATING

All functions which could previously be performed with V.A.G 1551 can also be performed with the new tester
VAS 5051.

SPECIAL TOOLS AND EQUIPMENT

z

VAG1551 Scan Tool (ST) or VAG1552 mobile scan tool

NOTE:

This On Board Diagnostic (OBD) is for the ITT Mark 20 IE system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 10: Identifying VAG1551 Scan Tool (ST) Or VAG1552 Mobile Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VAG1551/3 or VAG1551/3A adapter cable

Fig. 11: Identifying VAG1551/3 or VAG1551/3A Adapter Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

REQUIREMENTS

z

The tires installed on the wheels must all be the same (approved) size, and inflated to the prescribed
pressure.

z

Conventional brake system, including brake light switch and brake lights, OK.

z

Hydraulic lines and connections not leaking (visual check of ABS hydraulic unit, brake calipers, tandem
master brake cylinder).

z

Wheel bearings and wheel bearing play OK.

z

ABS control module is correctly bolted to ABS hydraulic unit.

z

Harness connector on ABS Control Module (w/EDL) -J104- seated correctly (retainer is engaged).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Terminals of ABS components checked for damage and correct seating.

z

All fuses OK and check to wiring diagram (remove fuse from fuse holder to check).

z

Supply voltage at least 10.0 volts.

LIST OF SELECTABLE FUNCTIONS

SELECTABLE FUNCTIONS CHART

VAG1551 SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTION

z

Connect VAG1551 scan tool with VAG1551/3 adapter cable.

NOTE:

Also, check fuses and fuse connections for corrosion. If corrosion is
present

No.

Function

Test

00
-

Automatic test sequence

See AUTOMATIC TEST SEQUENCE

01
-

Check Control Module

Versions

See VAG1551 SCAN TOOL (ST), CONNECTING AND

SELECTING FUNCTION

02
-

Check DTC Memory

See CHECK DTC MEMORY (FUNCTION 02)

03
-

Output Diagnostic Test

Mode

See OUTPUT DIAGNOSTIC TEST MODE (FUNCTION 03)

04
-

Basic Setting

(1)

See BASIC SETTING (FUNCTION 04)

05
-

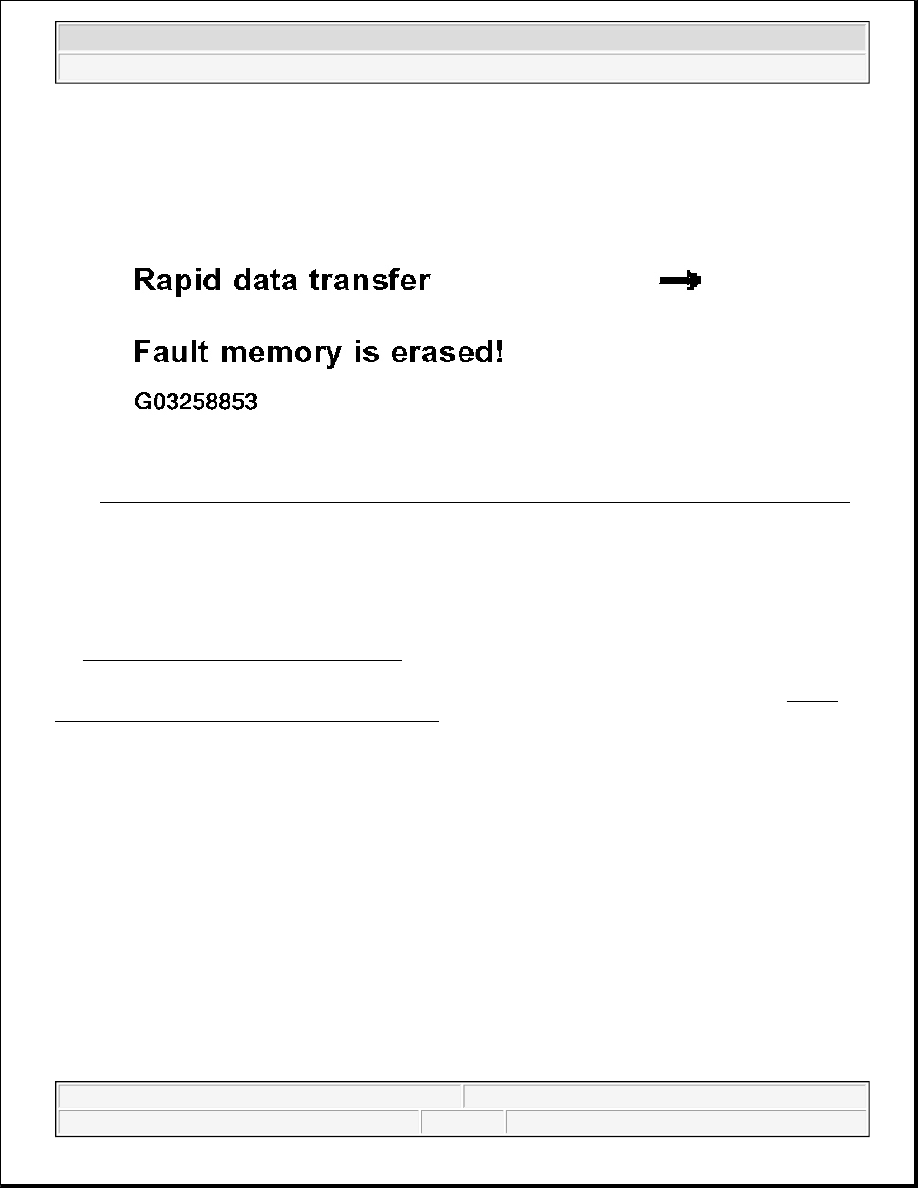

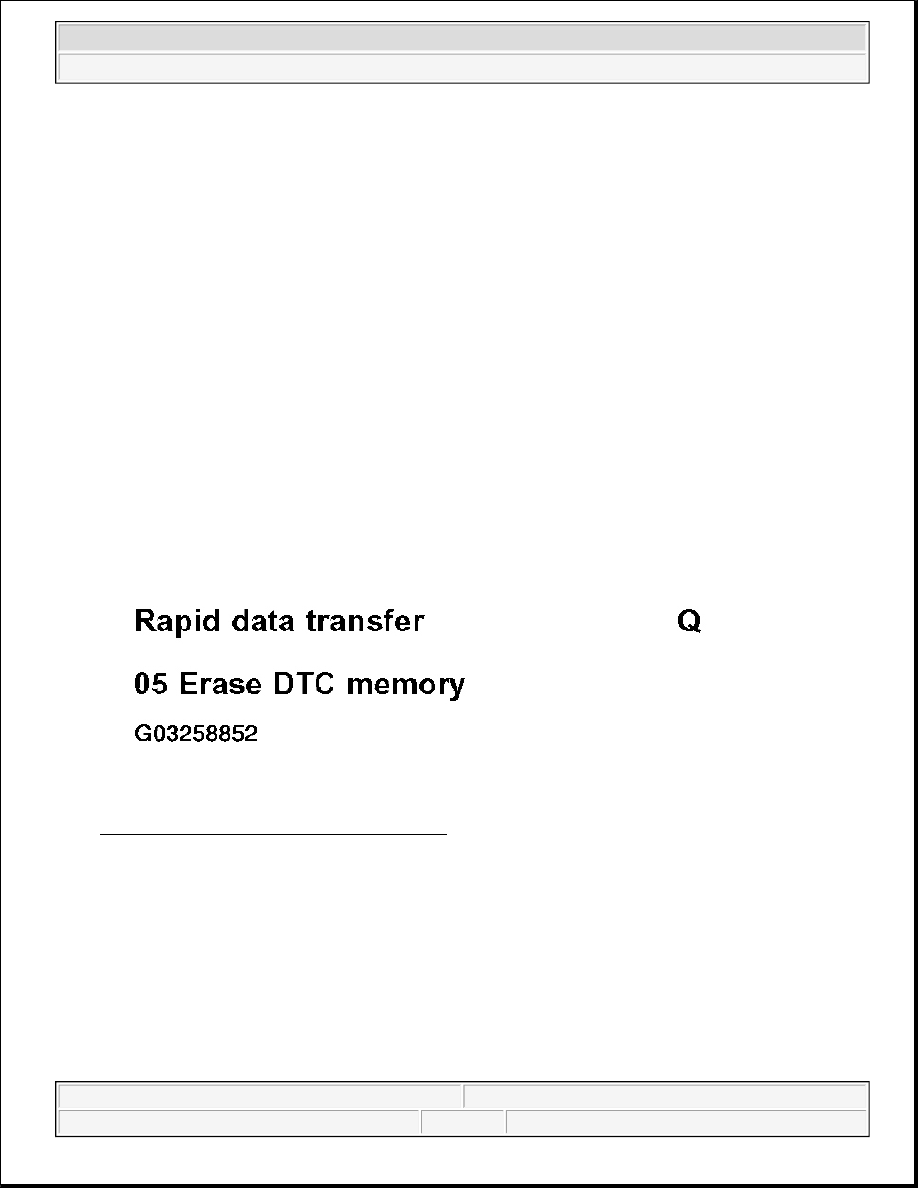

Erase DTC Memory

See ERASE DTC MEMORY (FUNCTION 05)

06
-

End Output

See END OUTPUT (FUNCTION 06)

07
-

Code Control Module

See CODE CONTROL MODULE (FUNCTION 07)

08
-

Read Measuring Value

Block

See READ MEASURING VALUE BLOCK (FUNCTION 08)

(1)

Only required for vehicles with EDL

NOTE:

z

All functions which could previously be performed with V.A.G 1551 can
also be performed with the new tester VAS 5051.

z

ABS function is switched off in the control module during On Board
Diagnostic (OBD).

z

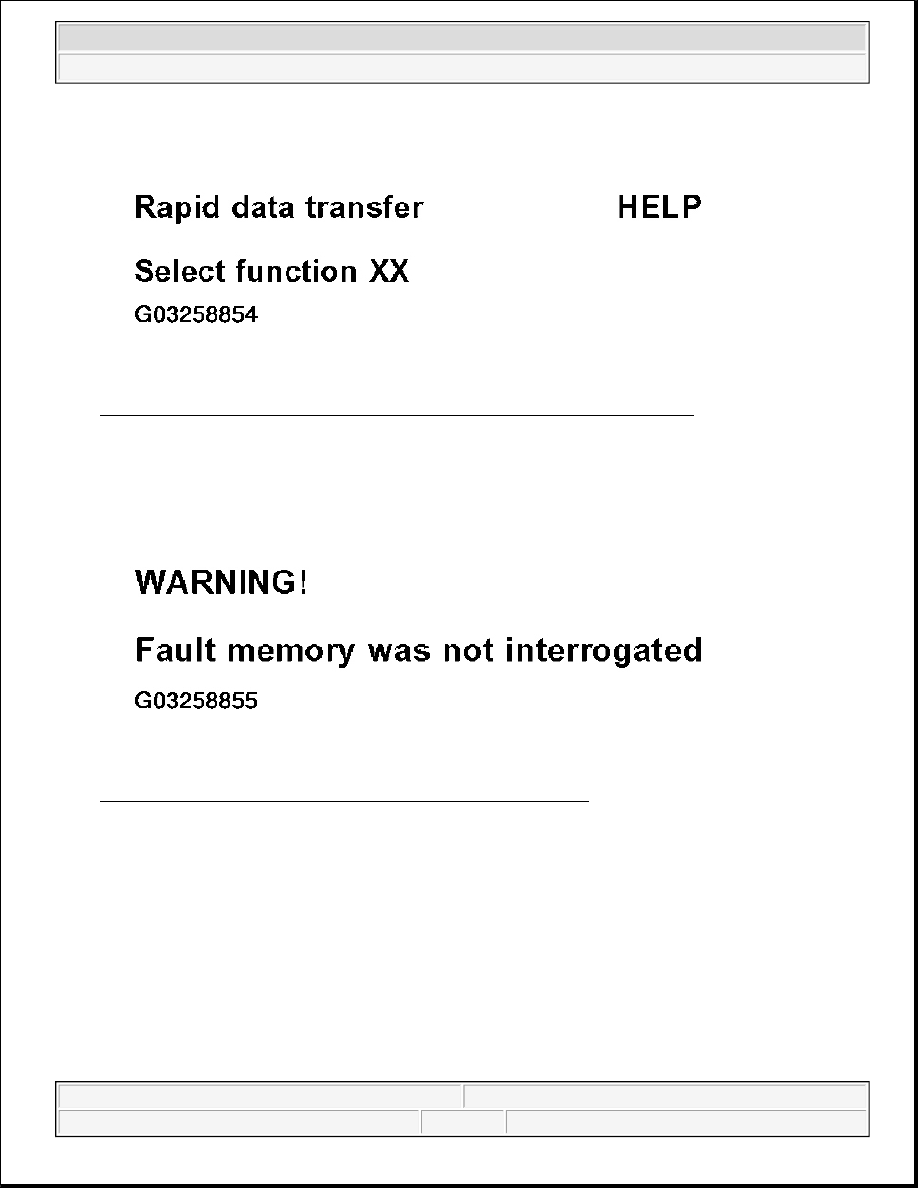

DTC memory can be erased after it is successfully checked and repaired.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
