VAG1551 Scan Tool (ST) or with the tester VAS 5051.

The following procedures refer only to the VAG1551 scan tool.

The malfunction information displayed is used in conjunction with a DTC table, which has information on the
possible cause of malfunctions and specific corrective actions.

IDENTIFICATION

Left-hand drive

The brake booster boost is produced by vacuum pressure.

Distinguishing features:

1. 10" brake booster

2. Hydraulic unit

3. Control module, 25-pin (bolted to hydraulic unit)

Fig. 1: Identifying ABS Left-Hand Drive Distinguishing Features (ITT Mark 20 IE)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Right-hand drive

The brake booster boost is produced by vacuum pressure.

Distinguishing features:

1. 7"/8" brake booster

2. Hydraulic unit

3. Control module, 25-pin (bolted to hydraulic unit)



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 2: Identifying ABS Right-Hand Drive Distinguishing Features (ITT Mark 20 IE)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Distinguishing features of ABS & ABS/EDL (ITT Mark 20 IE hydraulic unit), left and right-hand drive

z

Dimension -A-: 100 mm (vehicles with ABS)

z

Dimension -A-: 130 mm (vehicles with ABS/EDL)

z

Dimension -A: -130 mm vehicles with ABS/EDL/ASR

Fig. 3: Distinguishing Features Of ABS & ABS/EDL (ITT Mark 20 IE hydraulic unit) - Left And
Right-Hand Drive

Courtesy of VOLKSWAGEN OF AMERICA, INC.

TECHNICAL DATA

ABS Control Module (w/EDL) -J104-

When checking DTC memory, the control module identification will be displayed on the VAG1551 scan tool.

1J0 907 379D: ABS

1J0 907 379 E: ABS/EDL

NOTE:

The following list refers to items in Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



1 J0 907 379 R / J - ABS/EDL/ASR

Diagnostic Trouble Code (DTC) memory

Permanent memory (DTC memory) contents remain even without a supply voltage.

Data output

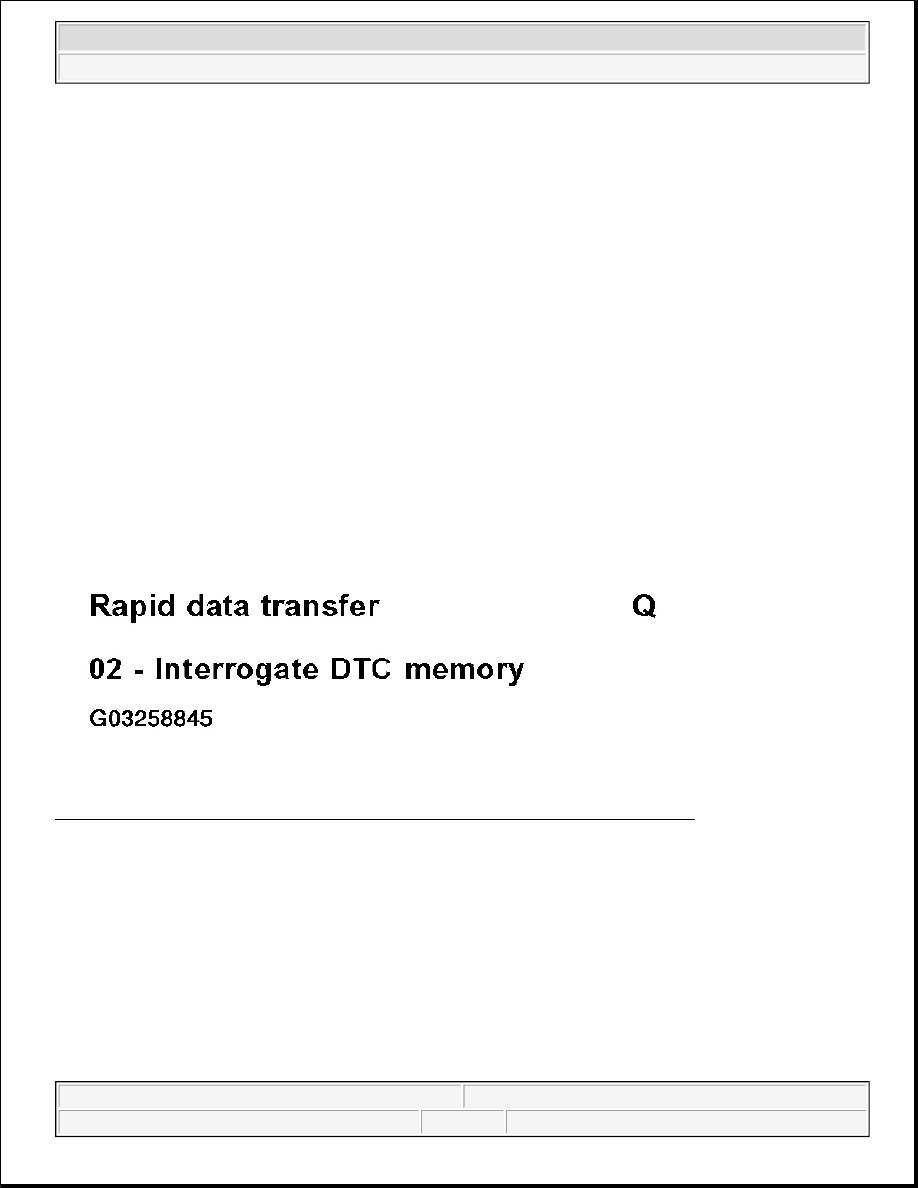

Data output is achieved using "Rapid data transfer" operating mode 1.

SAFETY PRECAUTIONS AND GENERAL TROUBLESHOOTING INFORMATION

Necessary technical information

See SYSTEM WIRING DIAGRAMS in ELECTRICAL.

See DISC and ANTI-LOCK BRAKE SYSTEM .

Road test

CAUTION:

z

ABS is a vehicle safety system; the appropriate knowledge is
necessary to work on the system.

z

In order to check complaints and to be able to carry out specific
troubleshooting, DTC memory must be checked before beginning
work on the ABS system.

z

Only disconnect harness connectors when the ignition is switched
off.

z

Observe the appropriate instructions regarding the handling of brake
fluid, see SAFETY PRECAUTIONS .

See .

z

ABS malfunctions are indicated by the ABS warning lamp lighting
up; certain malfunctions will only be recognized at speeds above 20
km/h (approx. 13 mph) (road test).

z

If the ABS Warning Light -K47- and the warning light for brake
system -K118- warning lamps do not light up, but the brake system is
not functioning correctly, check the conventional braking system.

WARNING:

z

If you drive the vehicle after a malfunction has been detected by
OBD, bear in mind that the function of the brake system is limited,
and there is a risk of accident. The brake pressure at the rear wheels
is no longer controlled by the Electronic Brake Distribution (EBD)
function. This can result in excessive braking at the rear, and the
vehicle may skid unexpectedly under braking.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



SAFETY PRECAUTIONS

Changing brake fluid: see BRAKE FLUID, CHANGING .

If one or two chambers in the brake fluid reservoir are completely empty (e.g. leaks in braking system) bleed
the hydraulic unit with the VAG 1551 or VAS 5051 Scan Tool in "basic setting" function.

See

ABS & ABS/EDL TROUBLESHOOTING FLOW CHART V.A.G 1551 SCAN TOOL / TESTER VAS
5051

z

When driving or riding in an airbag-equipped vehicle, NEVER hold
the scan tool or other test equipment in your hands or lap while in
motion. Objects between you and the airbag increase the risk of
injury in an accident.

z

During a test drive in an airbag-equipped vehicle, test equipment
must always be fastened to and operated from the rear seat by a
second technician.

WARNING:

Brake fluid is poisonous.

CAUTION:

z

Brake fluid must not contact painted parts.

z

Brake fluid absorbs moisture from the air and must therefore be
replaced every two years. Use only new, unused and approved brake
fluid that complies with MVSS 116 DOT 4.

z

Do not use silicone-based brake fluid (DOT 5). Even the smallest
traces can cause severe corrosion in the brake system.

CAUTION: Do not exceed filling pressure of 1 bar (14.5 psi) when filling brake fluid

using VAS 5234. The brake system will not be completely bled if excessive
pressure is used.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
