Volkswagen New Beetle. Manual - part 684

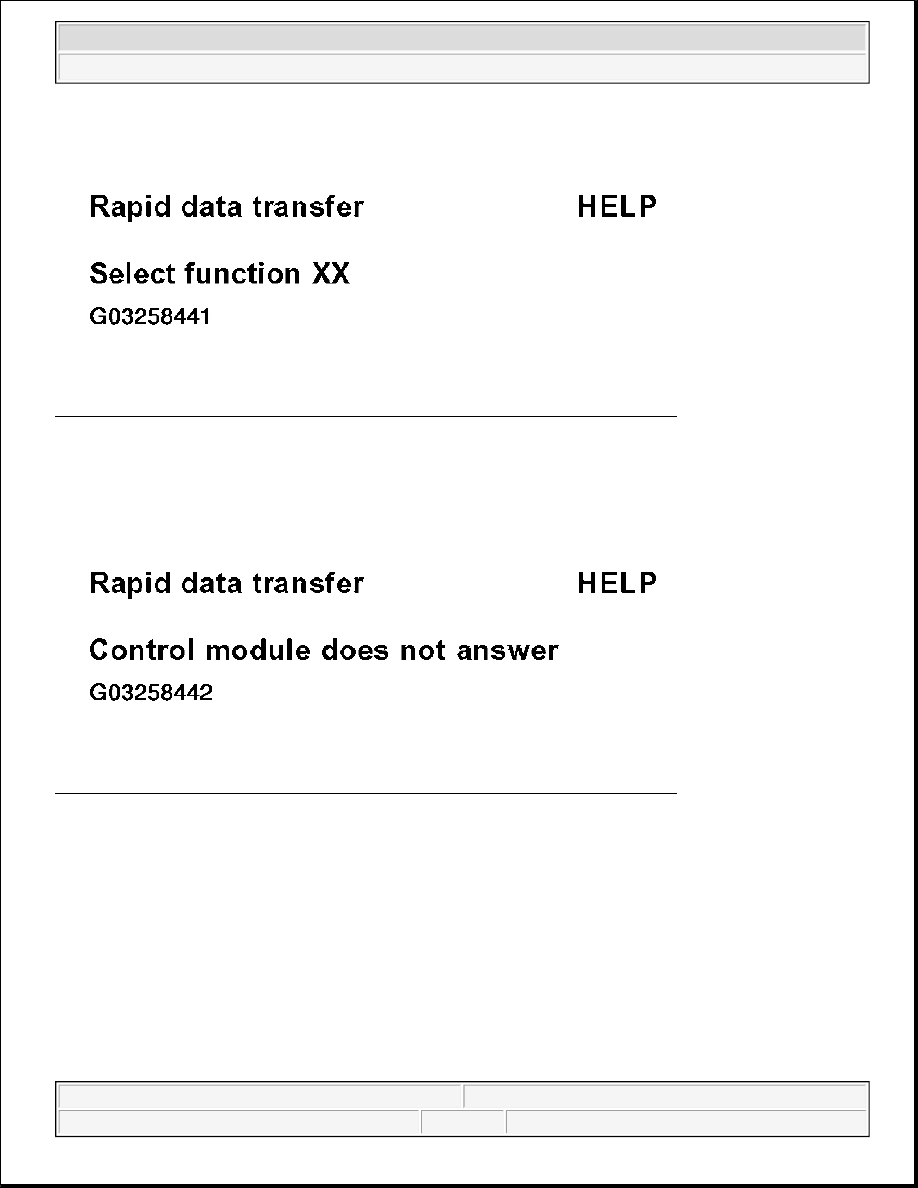

Fig. 18: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (6 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A possible cause of malfunction is the inlet and outlet valves -S9-.

Fig. 19: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (7 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check if ignition switch is in the on position.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

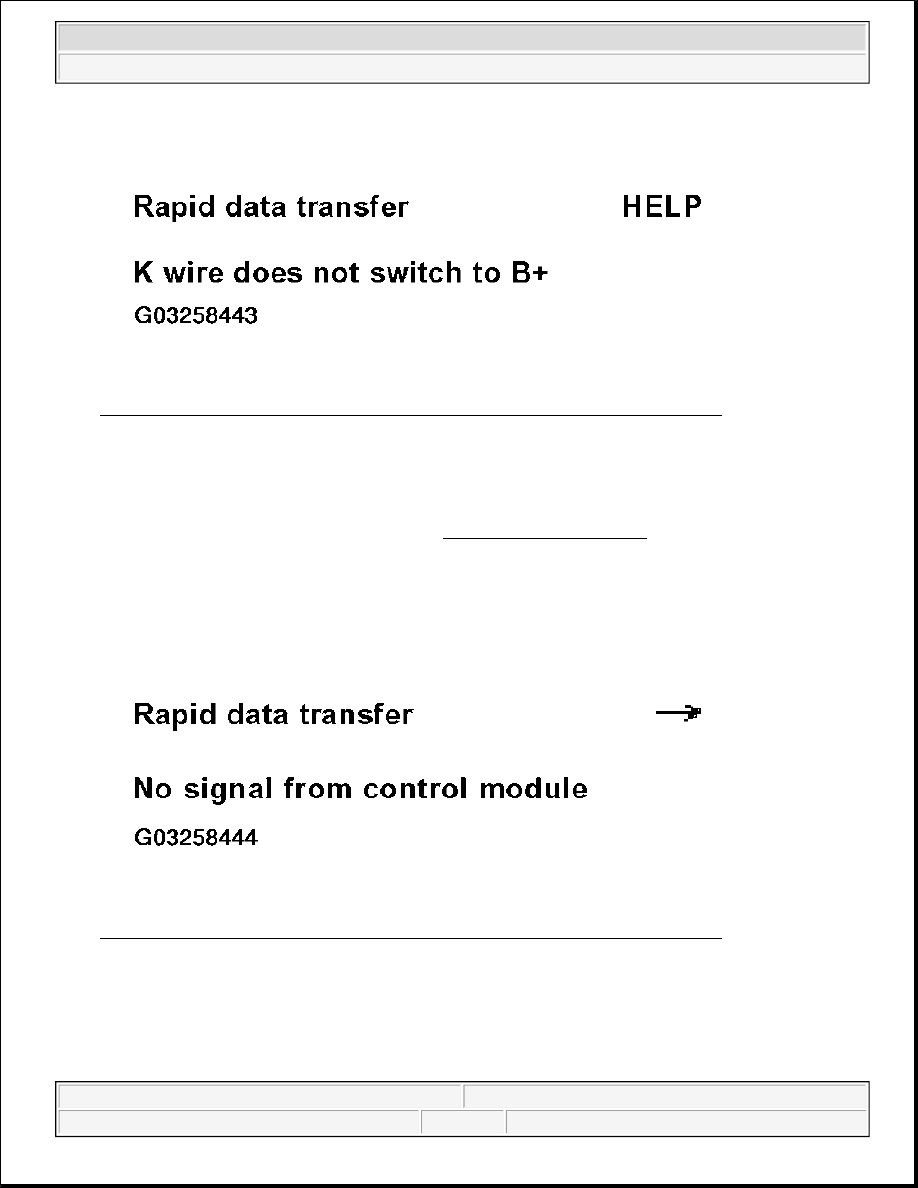

Fig. 20: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (8 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module identification influenced during checking (possibly influenced from external

z

Check DLC connection as well as voltage supply and Ground (GND) connection for ABS Control
Module (w/EDL) -J104-, Electrical testing, see ELECTRICAL TESTING .

z

After repairing the possible causes of the malfunction, again press buttons -0- and -3- to insert "Brake
Electronics" address word 03.

z

Press -Q- button to confirm input.

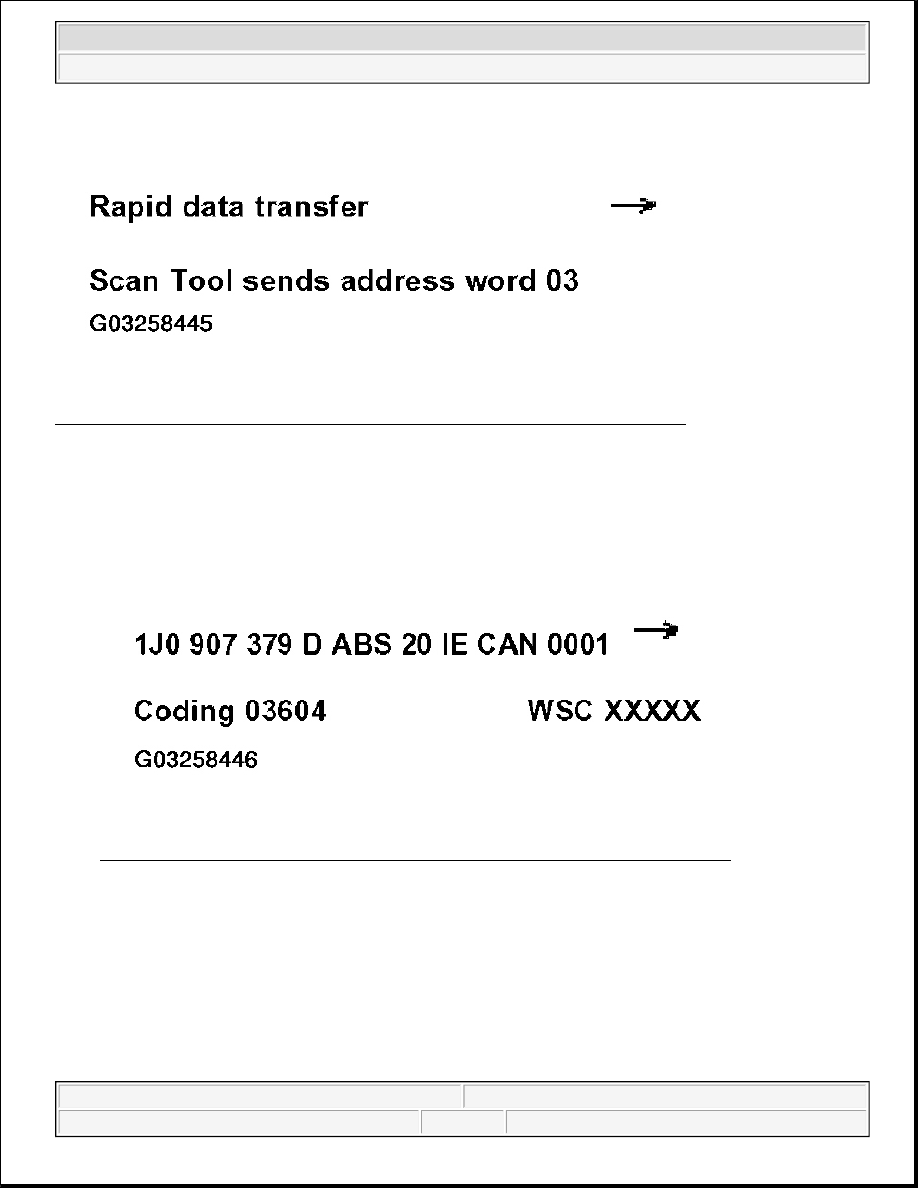

Fig. 21: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (9 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 22: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (10 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press --> button.

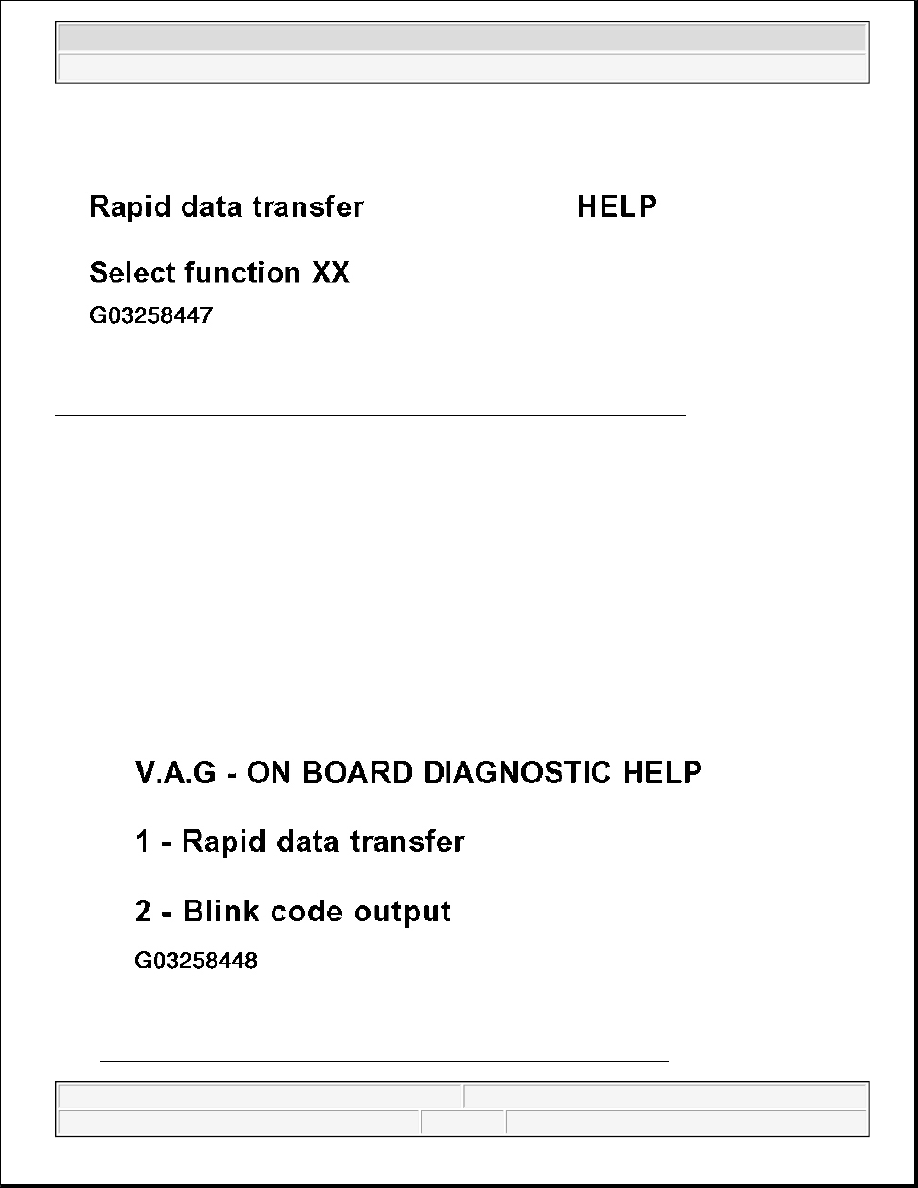

Fig. 23: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (11 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Fig. 24: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnostic (12 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

AUTOMATIC TEST SEQUENCE

The automatic test sequence checks the DTC memory of all the control modules.

z

Switch ignition on.

Indicated on display (Operating modes 1 and 2 are displayed alternately)

z

Press button -1- for "Rapid data transfer" operating mode 1.

z

Switch printer on with the "PRINT" button (indicator lamp in button lights up).

Fig. 25: V.A.G 1551 Scan Tool Display - Automatic Test Sequence (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle
