Fig. 14: Installing Assembly Carrier Onto Door
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Push door window -1- into window guide -arrow- and tighten clamps with bolts/screws -2- (10 N.m).



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



Fig. 15: Pushing Door Window Into Window Guide
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Then perform remaining installation in reverse order.

z

Then perform functional check.

FRONT DOOR WINDOW, ASSEMBLY OVERVIEW (CONVERTIBLE)

1. Door

2. Door window

z

Removing, see FRONT DOOR WINDOW, REMOVING AND INSTALLING
(CONVERTIBLE)
 .

3. Front window guide

NOTE:

The following list refers to items in Fig. 16 .



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



z

Pushed onto flange.

4. Window slot outer seal

z

Secured by spreader rivet -12-.

5. Plate with threaded holes

6. Retainer

7. Bolt/screw

z

20 N.m.

8. Bolt/screw

z

8 N.m.

9. Assembly carrier

z

Removing and installing. See ASSEMBLY CARRIER, REMOVING AND INSTALLING
(CONVERTIBLE)
 .

10. Nut

11. Bolt/screw

z

Qty. 9.

z

8 N.m.

12. Spreader rivet

13. Window slot inner seal

z

Pushed onto flange.

14. Window electric motor

z

Removing and installing, see FRONT WINDOW REGULATOR, REMOVING AND
INSTALLING (CONVERTIBLE)



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



Fig. 16: Exploded View Of Front Door Window Assembly (Convertible)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FRONT DOOR WINDOW, REMOVING AND INSTALLING (CONVERTIBLE)

Removing

z

Remove front door trim.

See FRONT DOOR TRIM (CONVERTIBLE), REMOVING AND INSTALLING .

z

Remove window slot inner seal.

z

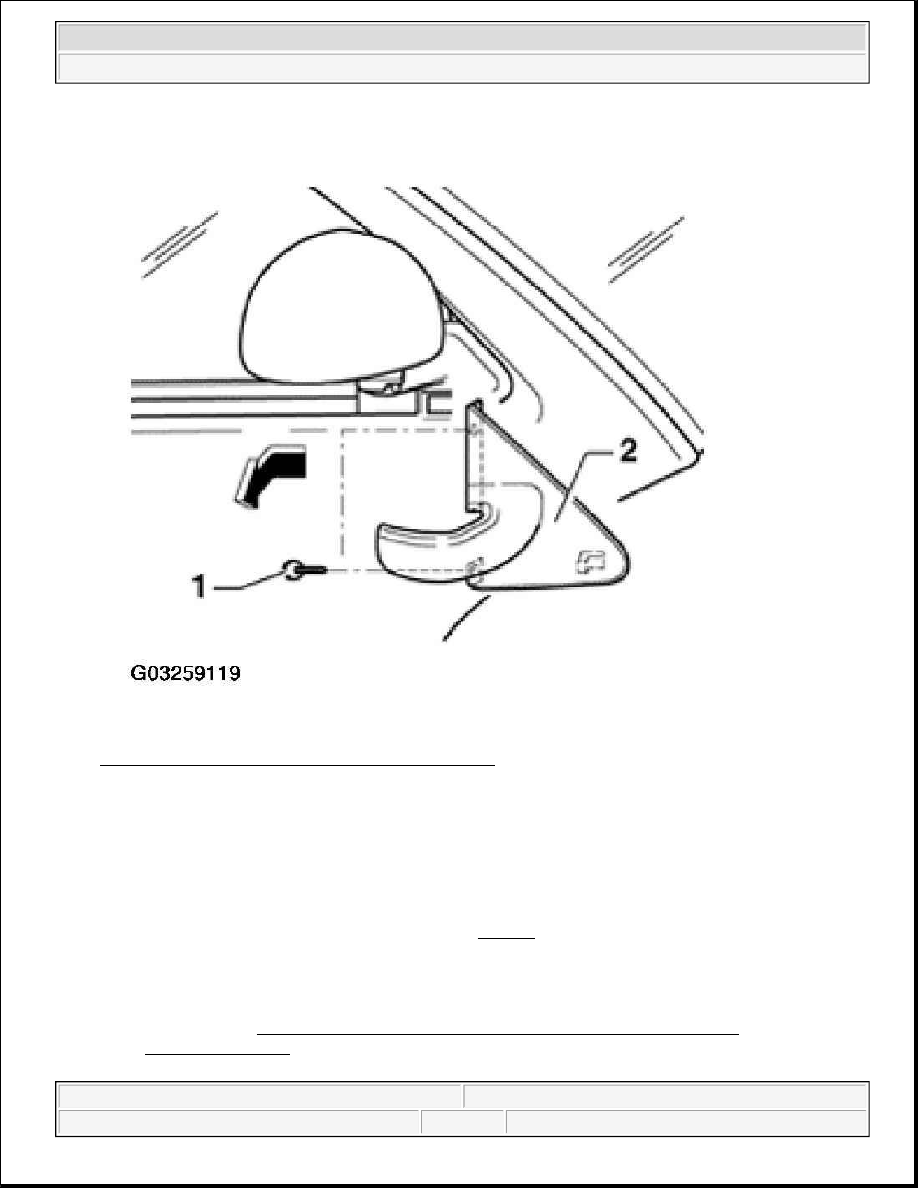

Cover caps -1-.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle
