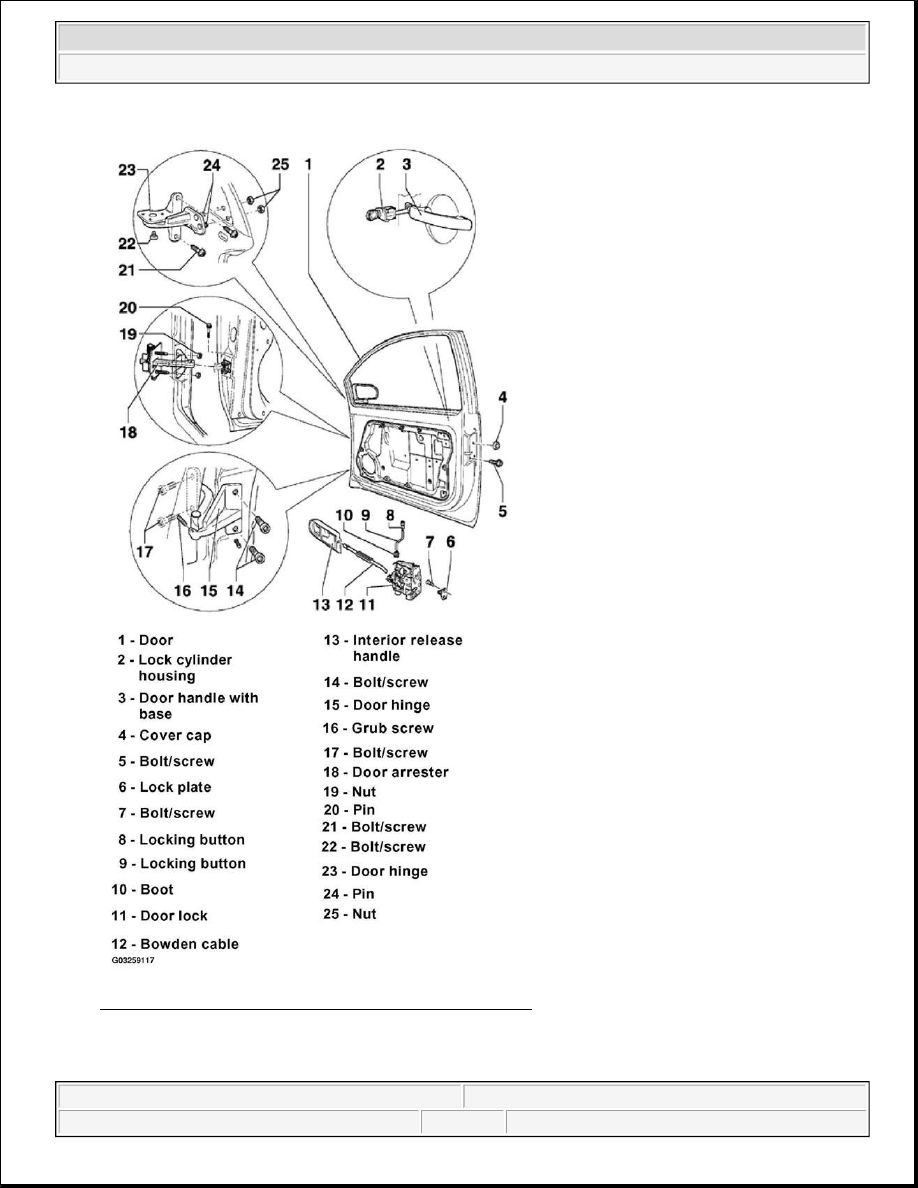

Volkswagen New Beetle. Manual - part 576

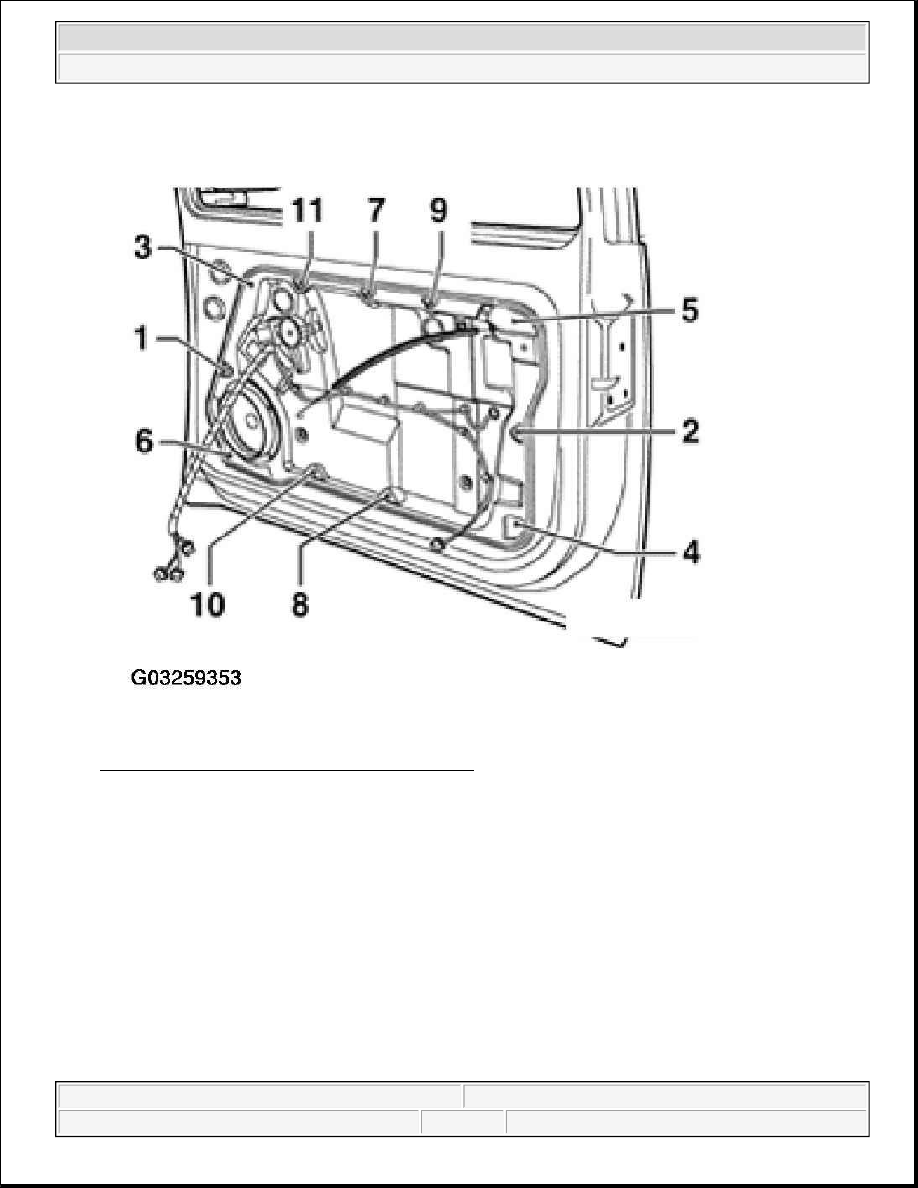

Fig. 11: Removing Bolts/Screws Of Door Lock
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove bolts/screws -1-- to -11-. Pull top of assembly carrier off door, lift and remove door toward
hinges.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



Fig. 12: Removing Assembly Carrier From Door
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Turn mounting plate and remove connector from door lock.

Installing

z

Pull lock lever -1- in direction of -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



Fig. 13: Identifying Lock Lever Pulling Direction Arrow
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Tension spring -2- which is secured on door lock, in direction of -arrow- with a screwdriver and hook



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



locking lever into spring.

z

Install mounting plate in door.

z

Install all bolts/screws -1- to -11-. Tighten the bolts/screws in the order as they are numbered. Torque
setting: 8 N.m.

NOTE:

Hooking the operating lever in locks the lock. Incorrectly attaching the
Bowden cable later is thereby prevented (lock may move slightly).



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle
