Volkswagen New Beetle. Manual - part 467

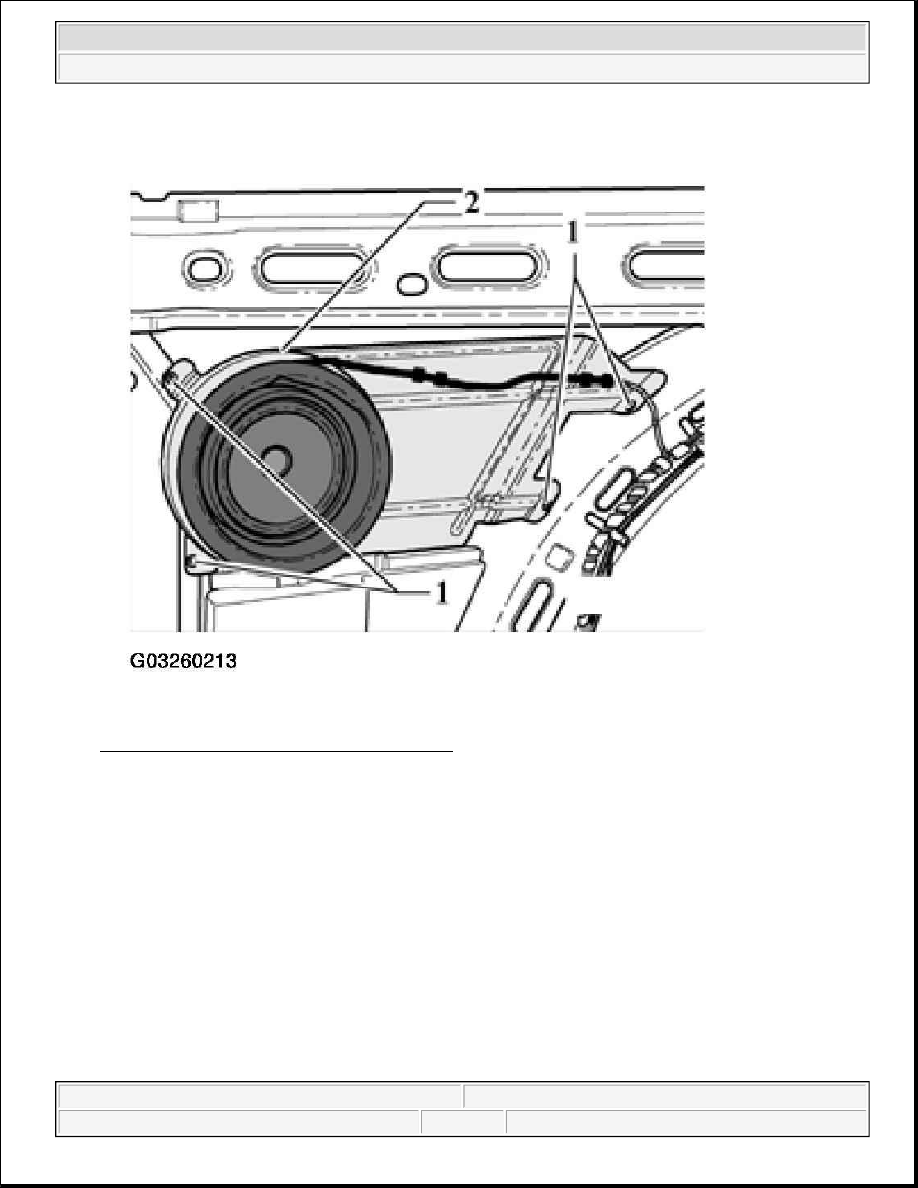

Fig. 88: Removing Speaker Retaining Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Pull out protective shield -1- inserted under speaker



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

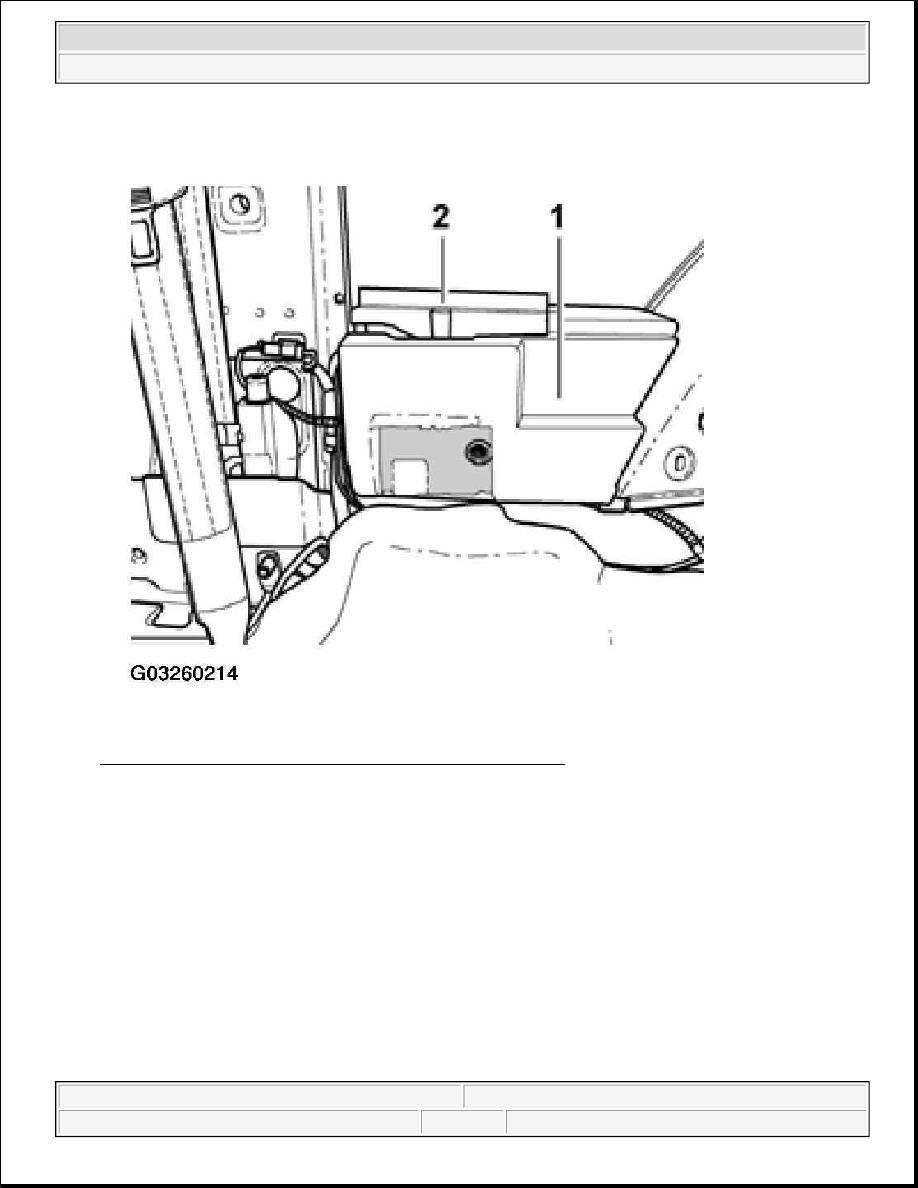

Fig. 89: Removing Protective Shield Inserted Under Speaker
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Pull out lid -2- from protective shield

z

First disconnect 42-pin connection -2- from control module, as follows:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

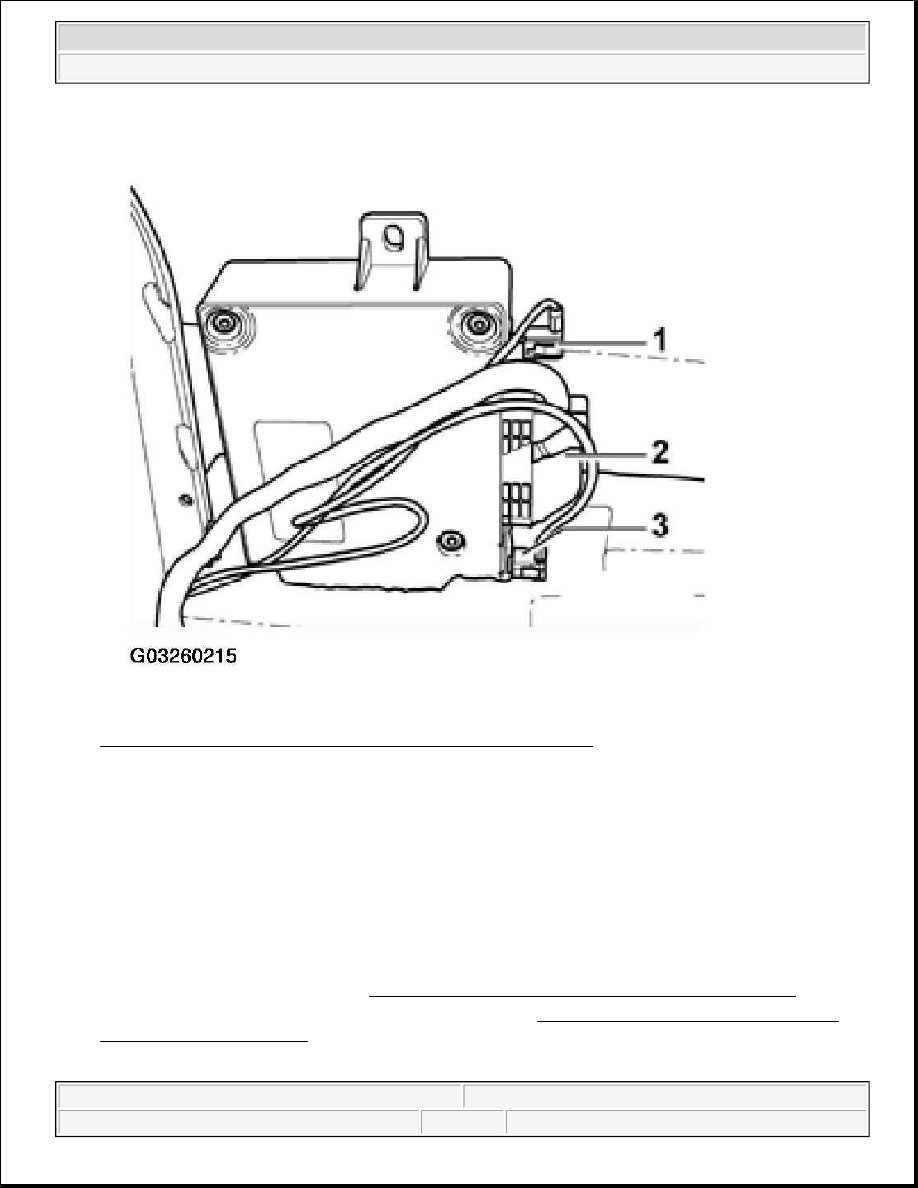

Fig. 90: Disconnecting 42-Pin Connection From Control Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Depress clip and slide locking lever

z

Then disconnect antenna cable connections -1- and -3- from control module.

Installing

Install in reverse order of removal, noting the following:

If telematics control module was replaced:

z

Code telematics control module, See TELEMATIC CONTROL MODULE -J499-, CODING .

z

Reconfigure telematics system for OnStar(R) functions, See TELEMATIC CONTROL MODULE -
J499-, RECONFIGURING
 .

TELEMATIC CONTROL MODULE -J499- MULTI-PIN CONNECTOR ASSIGNMENTS



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



42 pin multi-connector -T42-

1. Signal activation - Dual Horn Auxiliary Relay

2. Signal activation - "lock vehicle"

3. Cellular telephone connection -Audio in (not used)

4. Cellular telephone connection - Battery Feedback(not used)

5. Cellular telephone connection - Ground (GND)

6. Cellular telephone connection - TXD-transfer (not used)

7. Cellular telephone connection - RTS (not used)

8. Cellular telephone connection - shielding Ground (GND) (not used)

9. not used

10. Line (+) Output to radio

11. Auxiliary speaker (+) (not used)

12. Telephone microphone (+)

13. K-wire, Data Link Connector (DLC)

14. Power supply - Terminal 15

15. Telematic indicator LED "red" (in Telematic Control Head)

16. Telematic indicator LED "green" (in Telematic Control Head)

17. not used

18. Ground (GND) (Terminal 31)

19. Ground (GND) (Terminal 31)

20. not used

21. not used

22. Signal activation - Auxiliary Emergency Flasher Relay

23. Signal activation - "unlock vehicle"

24. Cellular telephone connection - Audio out (not used)

25. Cellular telephone connection - Audio Ground (GND) (not used)

26. Cellular telephone connection - power supply (not used)

27. Cellular telephone connection - RXD (not used)

28. Cellular telephone connection - RTS (not used)

29. Signal status - Telephone (not used)

30. not used

31. Line (-) Output to radio

32. Auxiliary speaker (-) (not used)

33. Telephone microphone (-)

34. Mute - Radio

NOTE:

The following list refers to items in Fig. 91 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
