35. Input "SOS" from telematic control head

36. Input "Power" from telematic control head

37. not used

38. Crash-Signal from airbag control module

39. Terminal 30 (B+)

40. Terminal 30 (B+)

41. Emergency (backup) battery (+) (not used)

42. Emergency (backup) battery (-) (not used)

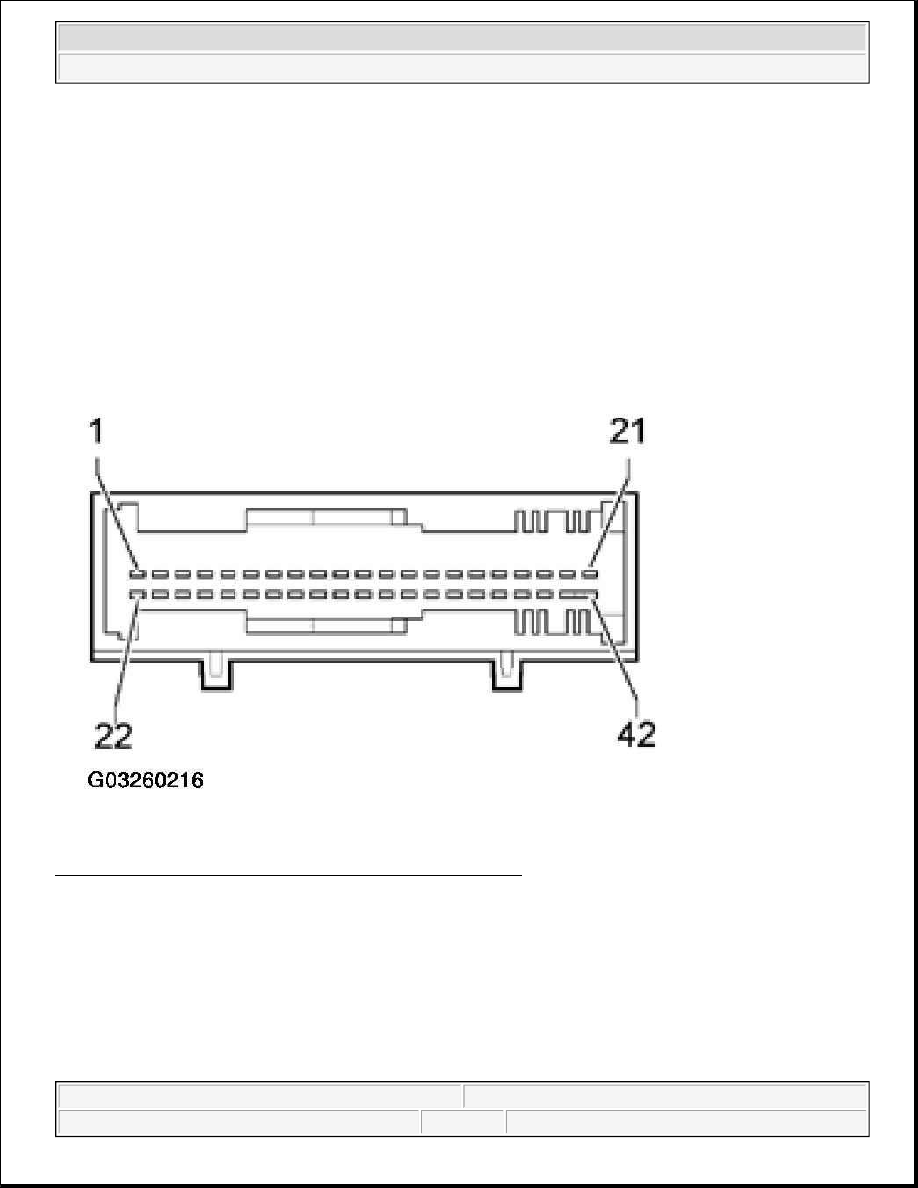

Fig. 91: Identifying 42-Pin Multi-Connector -T42- Terminals
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TELEMATIC CONTROL MODULE -J499-, CODING

After replacing the Telematic Control Module, the control module must be coded and OnStar(R) system needs
to be reconfigured.

Special tools, testers and auxiliary items needed

z

VAS 5051 Vehicle Diagnostic Testing and Information System



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Cable adapter VAS 5051/5a or VAS 5051/6a

Telematic Control Module -J499-, coding

z

Connect VAS 5051 with adapter cable to Data Link Connector (DLC) and select mode "Guided Fault
Finding"

z

Enter appropriate model, equipment and model year information and press ">" to confirm.

NOTE:

z

DO NOT exchange Telephone/Telematic Control Modules between
vehicles! Each module contains specific Station Identification (STID) and
Electronic Serial Number (ESN) data unique to the VIN. This data is used
by OnStar(R) and National Cellular Telephone Network to identify the
vehicle and administer the customer's account.

z

Using the VAS 5051 Vehicle Diagnostic Testing and Information system in
operating mode "Guided Fault Finding, and function" -J499- Telematic
control module, replacing" it is possible to read the telematic control
module coding from the existing module before removal. Note code prior
to removal in order input code into replacement control module.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

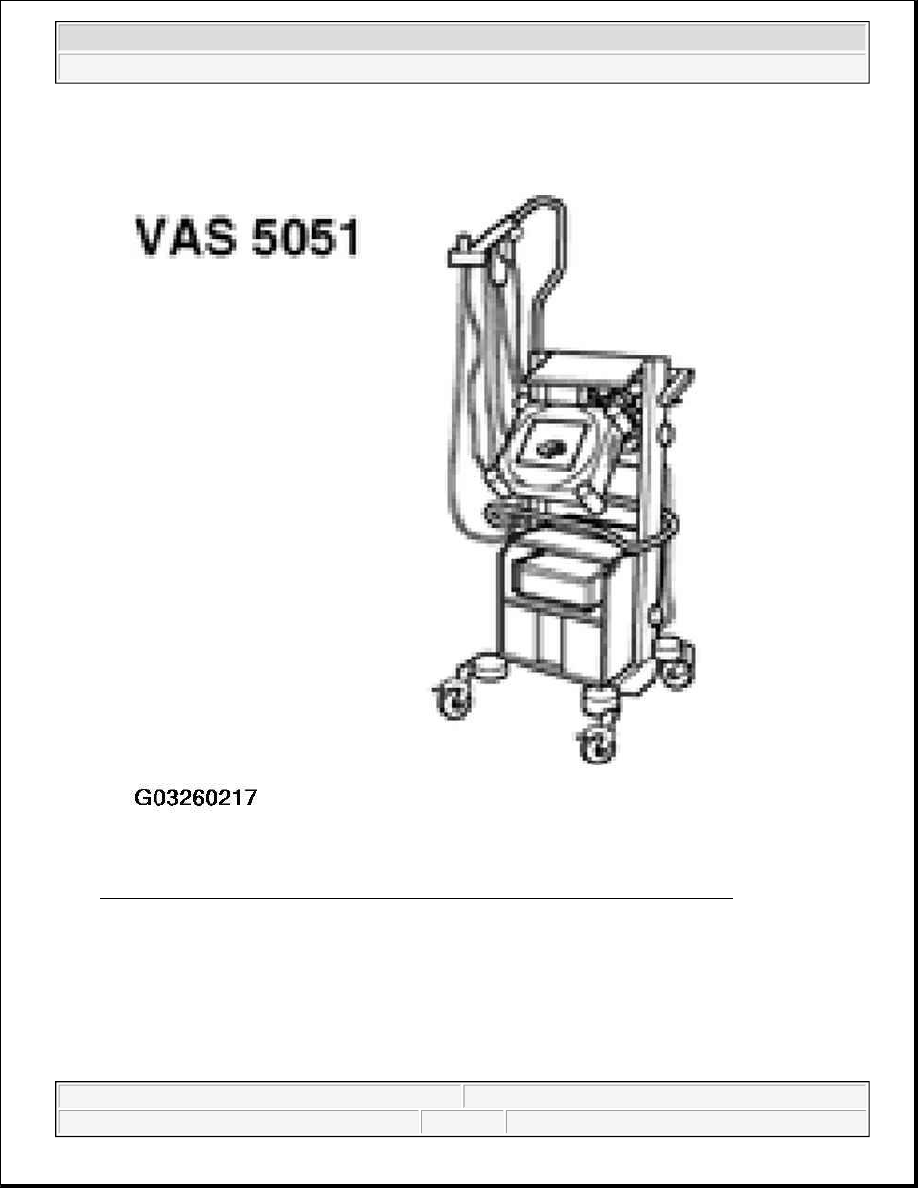

Fig. 92: Identifying VAS 5051 Vehicle Diagnostic Testing And Information System
Courtesy of VOLKSWAGEN UNITED STATES, INC.

After all Control Modules have been registered and DTC memories checked:

z

Select "Go to"

z

Select "Function / Component Selection"

z

Select "Body"

z

Select "Electrical System



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Select "01 -Systems capable of self-diagnosis"

z

Select "Telematics NAR"

z

Select "Functions - Telematics NAR" and press ">" to confirm.

z

Select "Telematics control module, coding"

z

Follow testers prompts.

TELEMATIC CONTROL MODULE -J499-, RECONFIGURING

After replacing the Telematic Control Module, the control module must be coded and OnStar(R) system needs
to be reconfigured as described below. Have the VIN and customer details on hand.

Special tools, testers and auxiliary items needed

z

VAS 5051 Vehicle Diagnostic Testing and Information System

z

Cable adapter VAS 5051/5a or VAS 5051/6a

Prerequisite

z

Telematics control module is coded, See TELEMATIC CONTROL MODULE -J499-, CODING .

Reconfiguration

NOTE:

z

DO NOT exchange Telephone/Telematic Control Modules between
vehicles! Each module contains specific Station Identification (STID) and
Electronic Serial Number (ESN) data unique to the VIN. This data is used
by OnStar(R) and National Cellular Telephone Network to identify the
vehicle and administer the customer's account.

z

Failure to reconfigure the control module after replacement will prevent
OnStar(R) services and features from functioning, and will result in a
customer return for repair.
