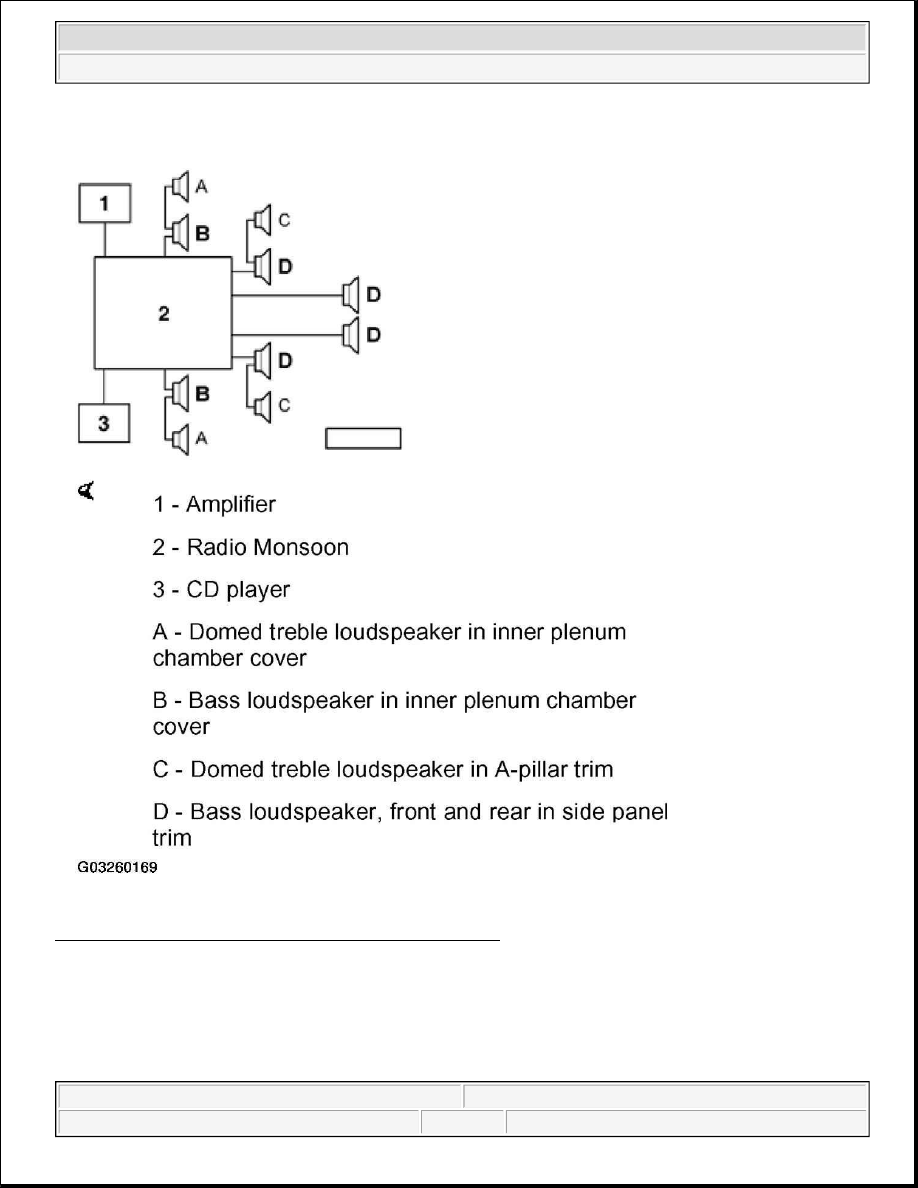

Fig. 44: Identifying Radio Premium V - Monsoon Position
Courtesy of VOLKSWAGEN UNITED STATES, INC.

The radio system consists of the receiver/tape unit supplemented by a separate high power amplifier mounted in
the luggage compartment.

High power handling speakers specifically designed for the "Monsoon" system are located in the front and rear
doors as with "Premium V".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



A CD changer is available as optional equipment.

CD Changer Locations:

z

through 07.02 production: in luggage compartment, left.

z

from 08.02 production: in center console under armrest.

The system uses an amplified roof mounted antenna, See ROOF MOUNTED ANTENNA, ASSEMBLY .

Radio system, On Board Diagnostic (OBD)

The optional "Premium V- Monsoon" radio systems have On Board Diagnostic (OBD) capabilities, See Radio
system "Premium V" and "Premium V - Monsoon", On Board Diagnostic (OBD) .

CD Changer

The optional CD changer wiring and mounting is pre-installed in production. Applications:

z

m.y. 1999 through 07.02 production, See CD CHANGER - M.Y. 1999 THROUGH 07.02
PRODUCTION, INSTALLING .

z

from 08.02 production:, See CD CHANGER - FROM 08.02 PRODUCTION, INSTALLING AND
REMOVING .

RADIO MULTI-PIN CONNECTOR ASSIGNMENTS, "PREMIUM V" (INCL. MONSOON)

Terminal assignment of multi-pin connectors I, II, III at rear of radio

Multi-pin connector I, -T20-, consists of 3 separate connector parts

1. Line out left rear

2. Line out right rear

3. Ground (GND)

4. Line out left front

5. Line out right front

6. Switched positive (B+ out) for amplifier

Multi-pin connector I, -T20- part 2, green (Where applicable)

7. Open

8. CLOCK

9. DATA

10. ENA

NOTE:

The following list refers to items in Fig. 45 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



11. Remote control (serial input)

12. Open

Multi-pin connector I, -T20- part 3, blue

13. CD changer- DATA IN

14. CD changer - DATA OUT

15. CD changer- CLOCK

16. CD changer - Positive (B+) supply

17. CD changer - Control signal

18. CD changer - Ground (GND) supply

19. CD changer - Line out, left

20. CD changer - Line out, right



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

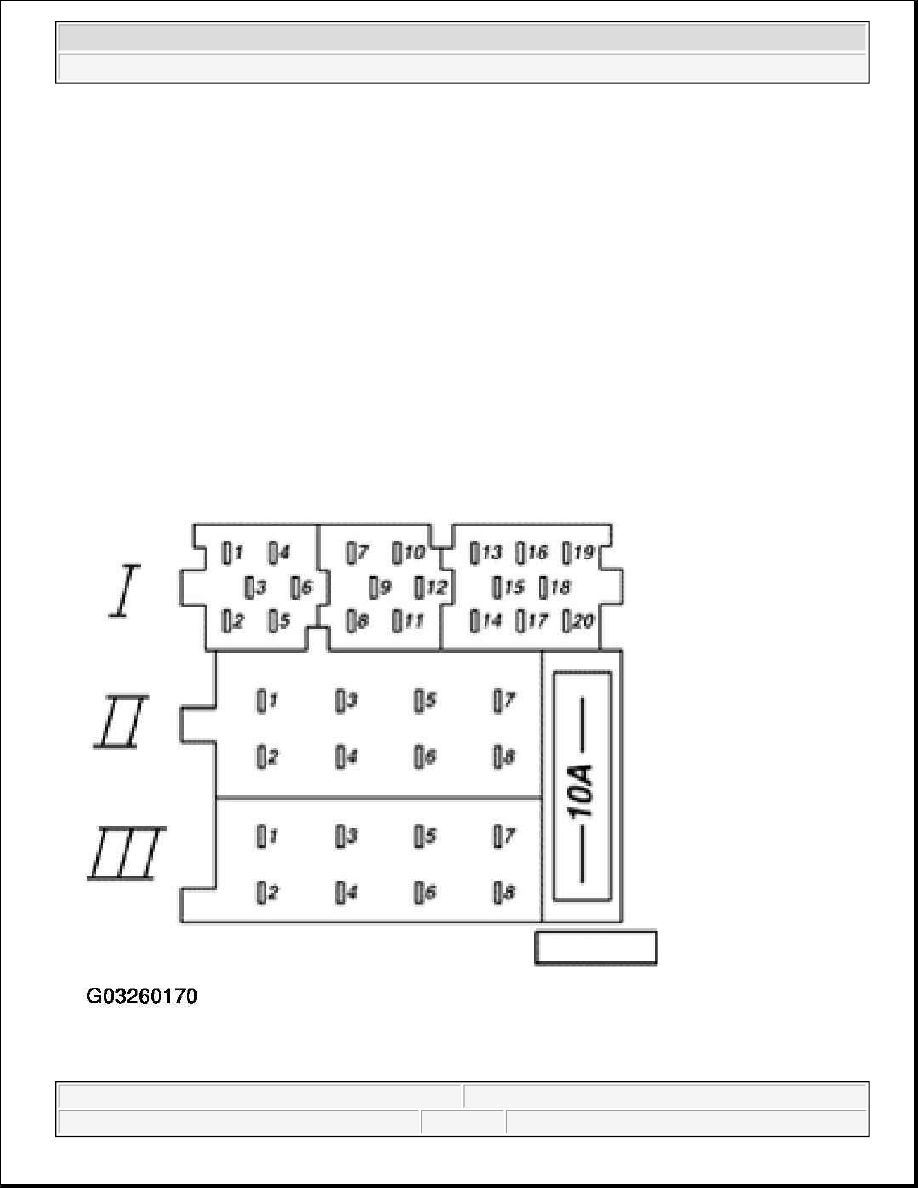

Fig. 45: Identifying Multi-Pin Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.

"Premium V" Multi-pin connector II, -T8a-, 8-pin, brown

1. Right rear loudspeaker +

2. Right rear loudspeaker -

3. Right front loudspeaker +

4. Right front loudspeaker -

5. Left front loudspeaker +

6. Left front loudspeaker -

7. Left rear loudspeaker +

8. Left rear loudspeaker -

"Premium V - Monsoon" Multi-pin connector II, -T8a-, 8-pin, brown

1. Amplifier + right rear speaker signal

2. Amplifier - right rear speaker signal

3. Amplifier + right front speaker signal

4. Amplifier - right front speaker signal

5. Amplifier + left front speaker signal

6. Amplifier - left front speaker signal

7. Amplifier + left rear speaker signal

8. Amplifier - left rear speaker signal

Multi-pin connector III, -T8-, 8-pin, black

1. Signal for anti-theft alarm system

2. Open

3. Data Link Connector (DLC) K wire

4. Ignition switch -S- contact

5. Positive (B+) supply, terminal 30 (control input for "SAFE" display/anti-theft)

6. Illumination, terminal 58b

7. Battery positive (B+) supply (terminal 30)

NOTE:

The following list refers to items in Fig. 45 .

NOTE:

The following list refers to items in Fig. 45 .

NOTE:

The following list refers to items in Fig. 45 .
