Press -Q- button to confirm input.

Indicated on display

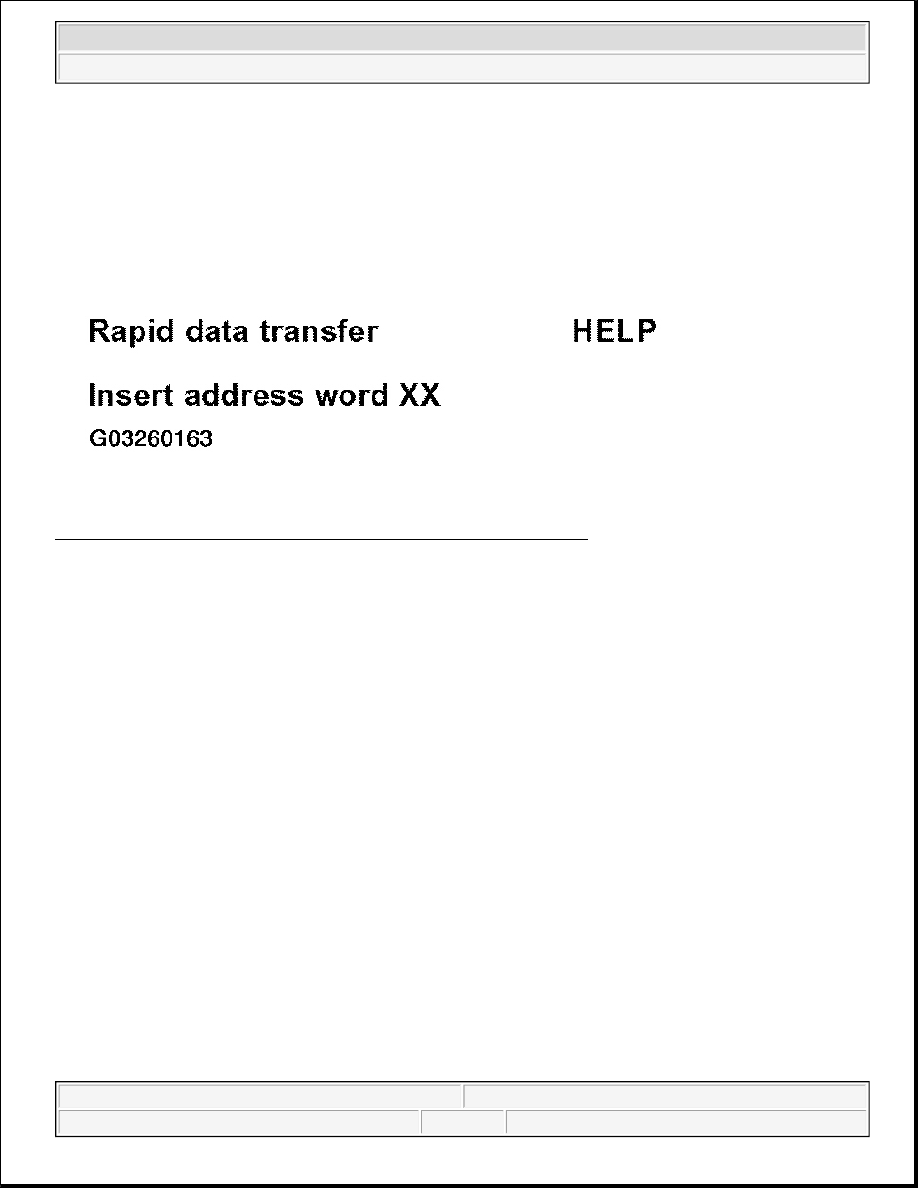

Fig. 36: VAG 1551 Scan Tool Display - Code Control Module (5 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Continuation for all radios

End function:

z

Press buttons -0- and -6- to select function 06 "End Output".

z

End coding by pressing --> button.

Indicated on display

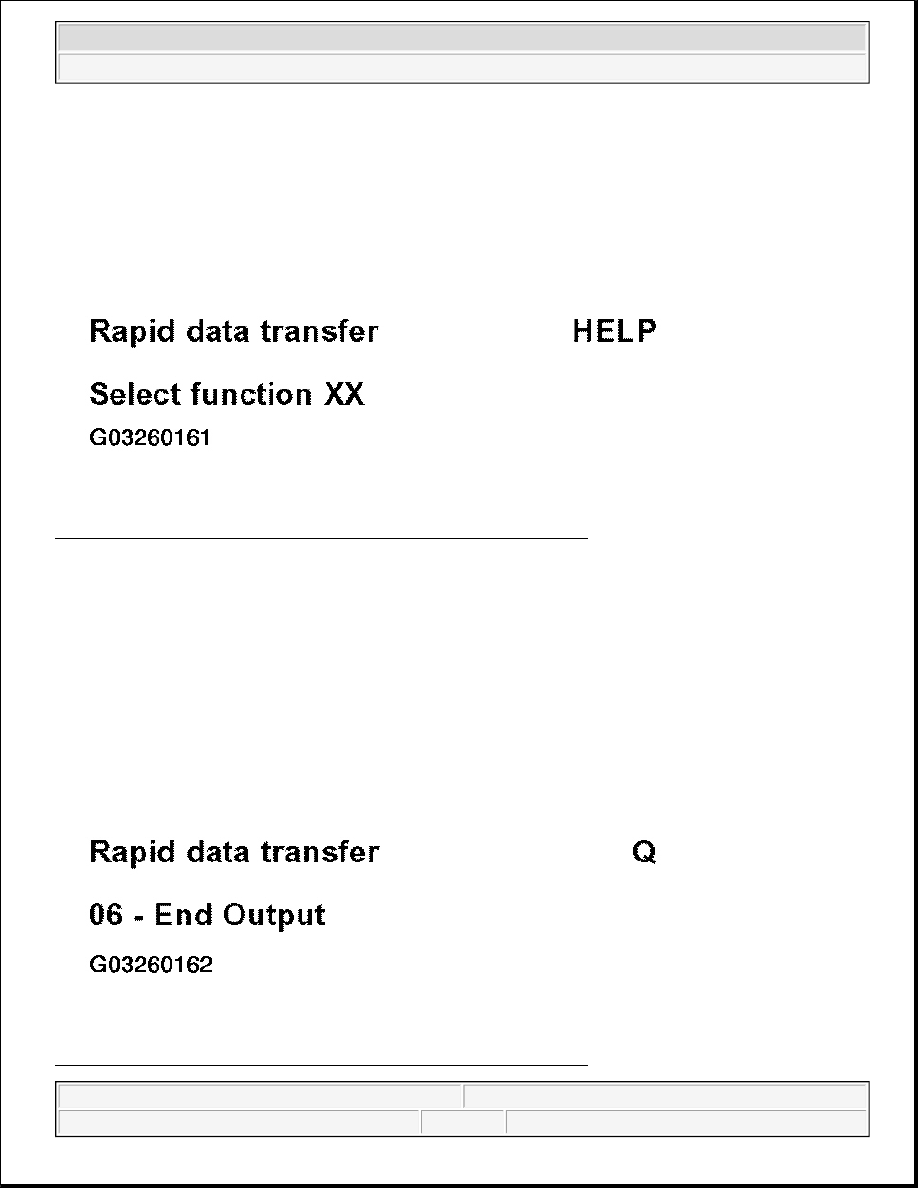

Fig. 37: VAG 1551 Scan Tool Display - Code Control Module (6 Of 7)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display

Fig. 38: VAG 1551 Scan Tool Display - Code Control Module (7 Of 7)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Scan tool returns to start of program sequence.

READ MEASURING VALUE BLOCK (FUNCTION 08)

6 display groups, with up to 4 display fields, can be displayed.

Requirement

z

Connect VAG1551 scan tool, input address word 56 "Radio" and press --> button, until "Select function
XX" appears on display.

Read Measuring Value Block

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

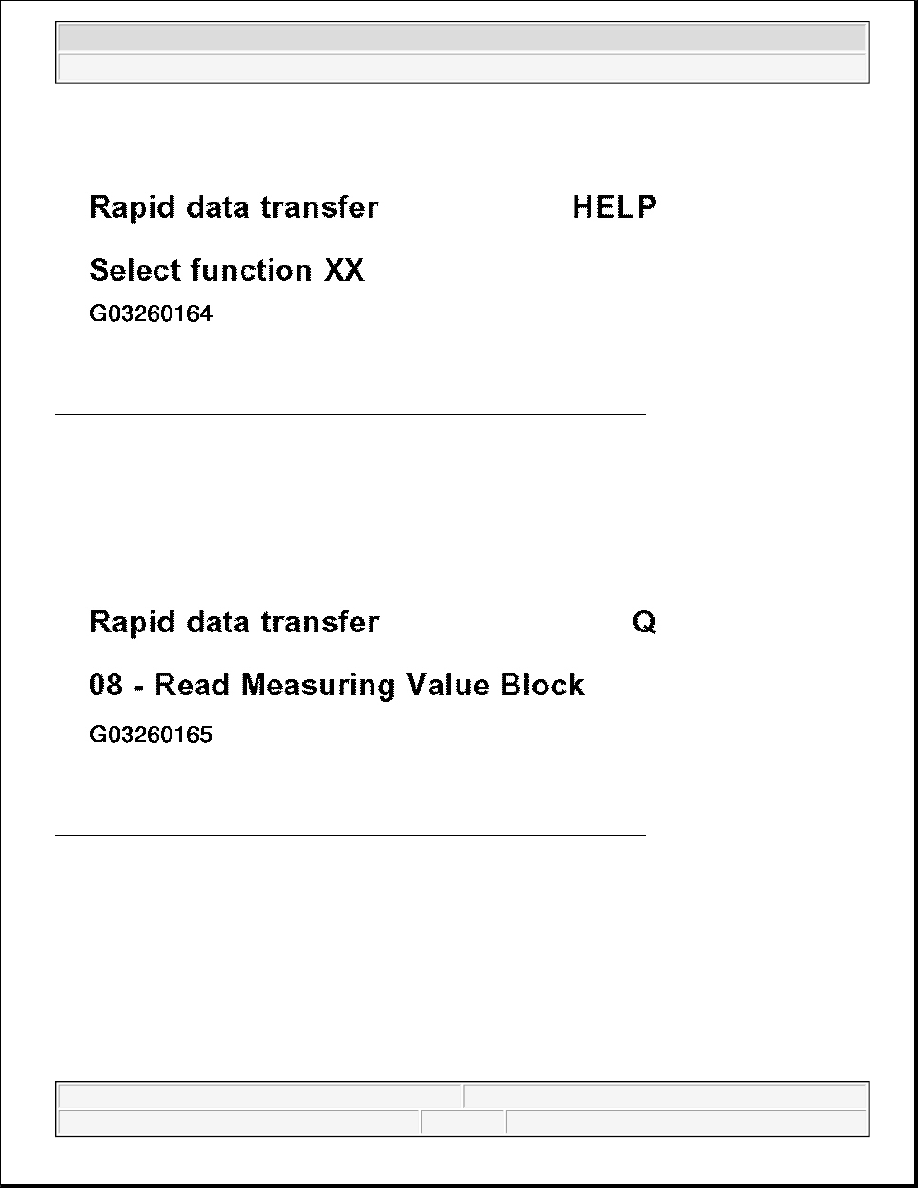

Fig. 39: VAG 1551 Scan Tool Display - Read Measuring Value Block (1 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press buttons -0- and -8- to select function 08 "Read Measuring Value Block".

Indicated on display

Fig. 40: VAG 1551 Scan Tool Display - Read Measuring Value Block (2 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -Q- button to confirm input.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

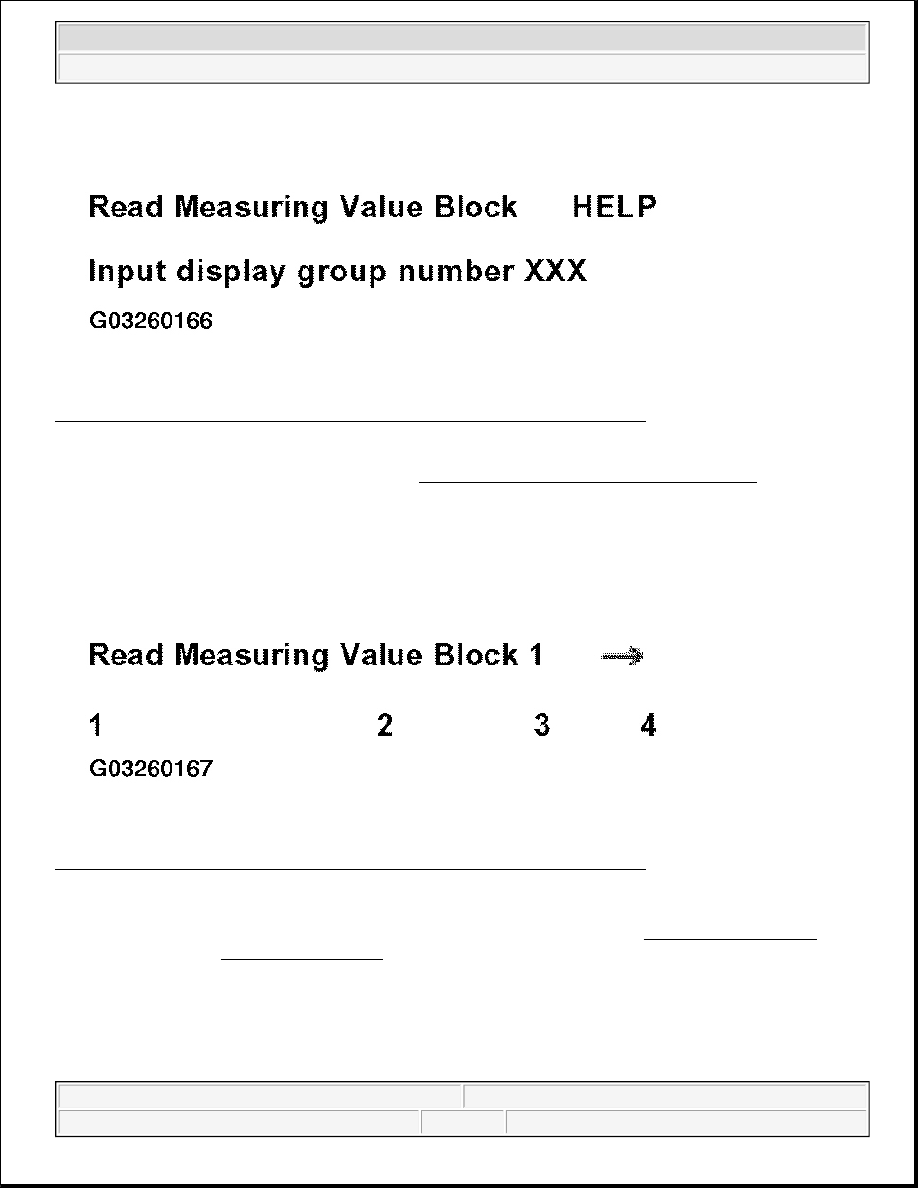

Fig. 41: VAG 1551 Scan Tool Display - Read Measuring Value Block (3 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Input display group number from table, See TABLE OF DISPLAY GROUP NUMBERS

z

Press -Q- button to confirm input.

Indicated on display

Fig. 42: VAG 1551 Scan Tool Display - Read Measuring Value Block (4 Of 4)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press --> button.

NOTE:

z

Decoding figures in individual display fields, See TABLE OF DISPLAY
GROUP NUMBERS .

z

With printer switched on, display information will be printed-out.

z

If specifications are attained in all display fields:
