Volkswagen New Beetle. Manual - part 450





Table of display group numbers

DISPLAY GROUP NUMBERS

RADIO SYSTEMS

GENERAL INFORMATION

Display group

Display field in display

001

1 Open

2 Power Supply voltage in V

3 Illumination in %

4 S-contact status (on or off)

(Radio does not turn off)

002

1 Front speakers

2 OK, short circuit or open circuit

3 Rear speakers

4 OK, short circuit or open circuit

003

1 Passive or active

2 Antenna

3 OK, short circuit or open circuit

4 Open

004

1 Active amplifier output:

0 - OK

1 - Short circuit to ground

2 Open
3 Open
4 Open

005

1 CD-changer connection

(even if CD-changer code is not set)

2 OK or not OK

3 Open
4 Open

006

1 External Display

2 not OK

3 Open
4 Open

NOTE:

After ending function "Read Measuring Value Block" check DTC memory
(function 02), See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING
(FUNCTION 02) .

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Radio system Premium V" is installed from start of production, See RADIO, "PREMIUM V" .

Radio system "Premium V - Monsoon" is installed as optional equipment from 10.00, See RADIO,
"PREMIUM V - MONSOON"
 .

Before troubleshooting or servicing, technicians must be familiar with the functions and operation specifics of
the applicable standard or optional radio system. Always read the radio owner's manual and review all radio,
tape player and CD changer functions.

All radios are protected with anti-theft security coding (fixed code). See ANTI-THEFT SECURITY CODE .
Also, See Radio owner's manual.

RADIO, "PREMIUM V"

Installed from start of production.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

NOTE:

z

Only factory approved accessory radios and radio equipment (available
from Volkswagen of America, Inc.) should be installed. This ensures
proper installation and optimum function.

z

When retrofitting components, carrying out diagnostics or repairs.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

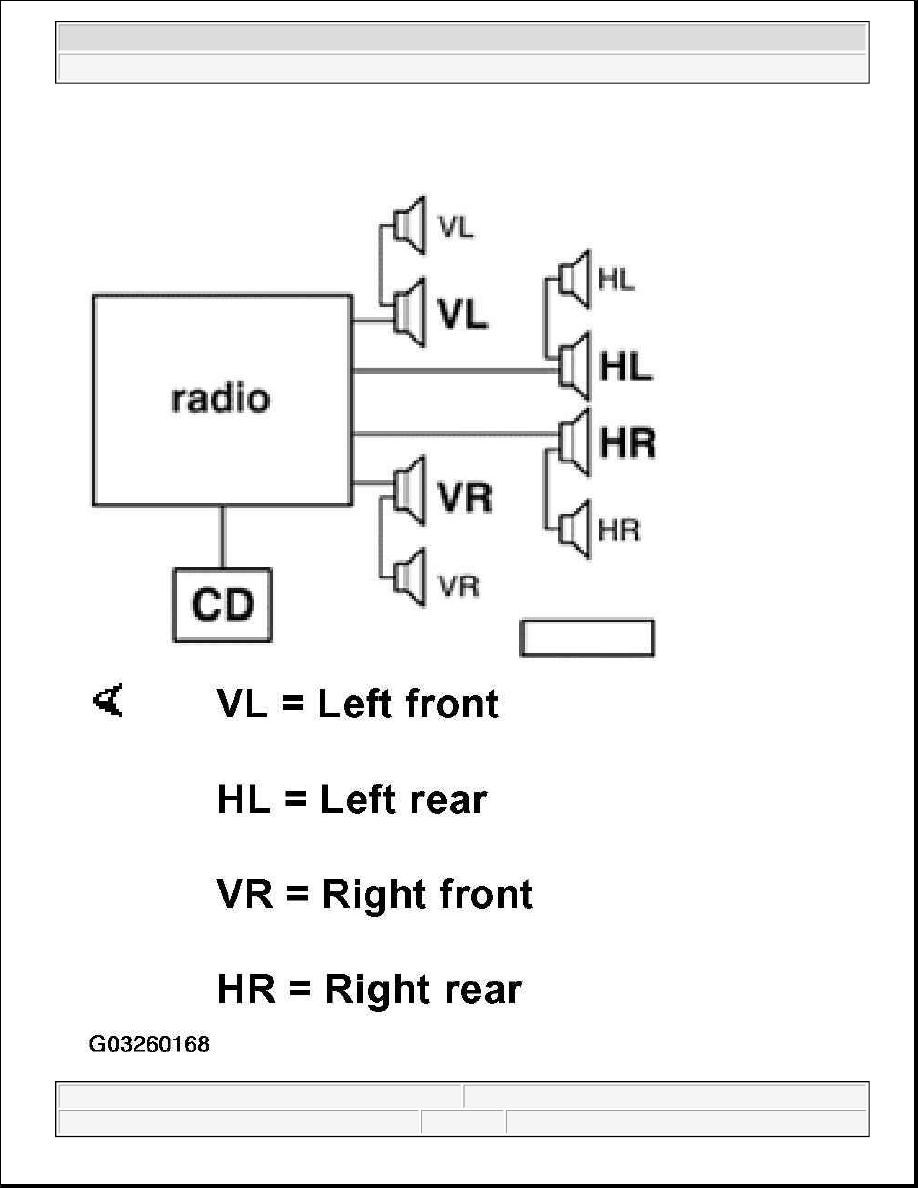

Fig. 43: Identifying Radio Speakers Position
Courtesy of VOLKSWAGEN UNITED STATES, INC.


The radio system consists of the receiver/tape unit and speakers located in the front doors and rear side panels.

A 168 mm low-range/bass speaker is located in the lower portion of each front door and rear side panel.

High range/treble speakers (domed tweeters) are installed in each A-pillar.

A CD changer is available as optional equipment.

CD Changer Locations:

z

through 07.02 production: in luggage compartment, left.

z

from 08.02 production: in center console under armrest.

The system uses an amplified roof mounted antenna, See ROOF MOUNTED ANTENNA, ASSEMBLY .

Radio system, On Board Diagnostic (OBD)

"Premium V" radio systems have On Board Diagnostic (OBD) capabilities, See Radio system "Premium V"
and "Premium V - Monsoon", On Board Diagnostic (OBD)
 .

CD Changer

The optional CD changer wiring and mounting is pre-installed in production. Applications:

z

m.y. 1998:, See CD CHANGER - M.Y. 1988, INSTALLING .

z

m.y. 1999 through 07.02 production:, See CD CHANGER - M.Y. 1999 THROUGH 07.02
PRODUCTION, INSTALLING
 .

z

from 08.02 production:, See CD CHANGER - FROM 08.02 PRODUCTION, INSTALLING AND
REMOVING
 .

RADIO, "PREMIUM V - MONSOON"

Installed as optional equipment from 10.00 production.

Component overview:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
