Volkswagen New Beetle. Manual - part 452





8. Ground (GND) supply

RADIO, REMOVING AND INSTALLING

GENERAL INFORMATION

RADIO "PREMIUM V" & "PREMIUM V -MONSOON", REMOVING AND INSTALLING

Special tools, testers and auxiliary items needed

Radio release tool T10057.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.

NOTE:

If radio is exchanged or replaced

z

Anti-theft security code for new radio must be entered before use, See
ANTI-THEFT SECURITY CODE . Be sure to advise customer of new
security code.

z

Confirm radio coding for sound system functions using On Board
Diagnostic program function 07: "Code Control Module". See Code
Control Module (function 07) .

z

Radio sound system coding must be performed to account for presence of
CD changer (if installed), Monsoon system (where applicable) and interior
sound field differences between models.

NOTE:

Before removing the radio obtain anti-theft security code from customer -
vehicle papers. If the radio has been replaced, always activate the anti-theft
coding, See ANTI-THEFT SECURITY CODE . Be sure to advise customer of new
security code.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



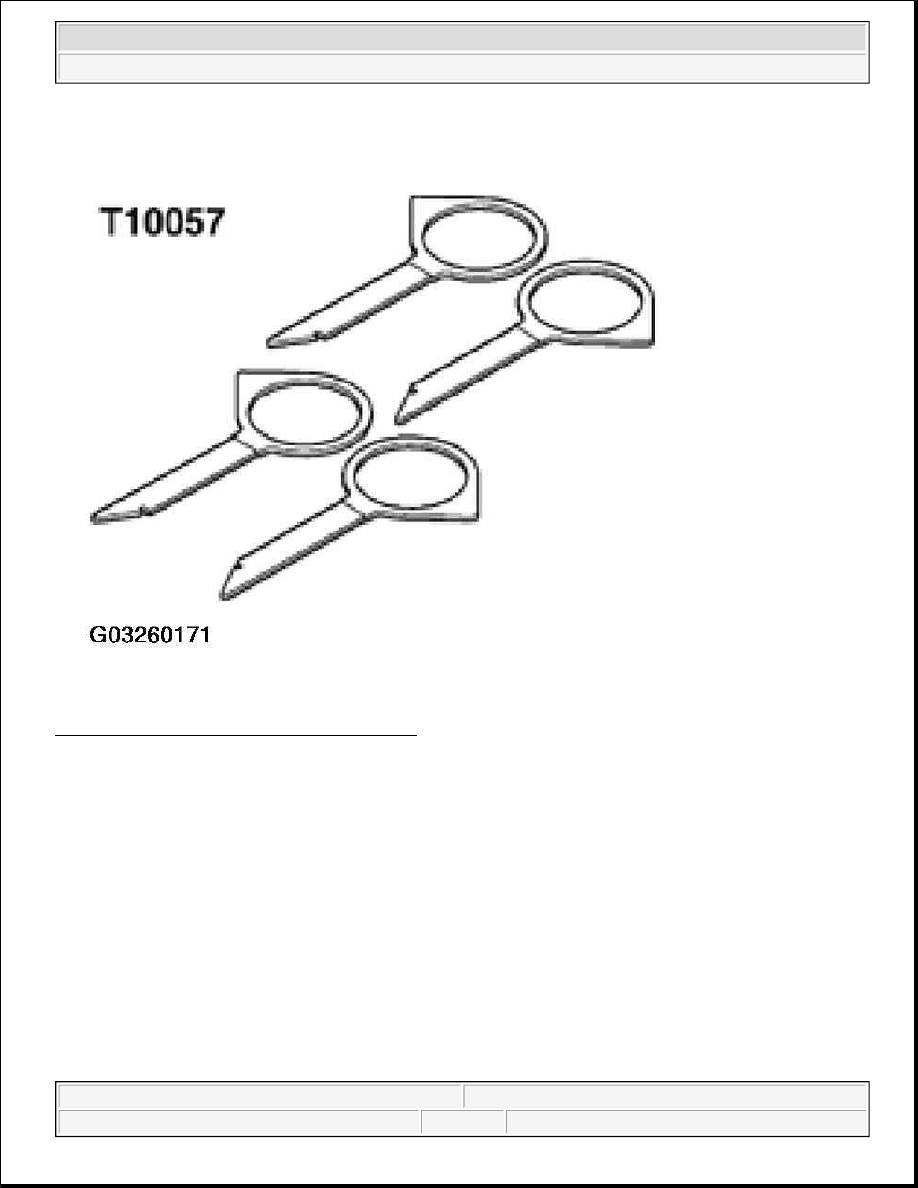

Fig. 46: Identifying Radio Release Tool T10057
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

z

Slide radio release tool T10057 into release slots -arrows- until they engage.

z

Pull radio out of instrument panel using grip rings of release tools.

NOTE:

z

The radio release tool T10057 must not be pushed to the side or tilted.

z

To remove the release tools from the radio the locating lugs on the side of
the radio must be pressed inward.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



z

Disconnect electrical connections and antenna cable from rear of radio.

Installing

z

Reconnect electrical connectors and antenna cable to radio.

z

Slide radio level into instrument panel until it engages properly in assembly frame.

z

Input anti-theft security code, See ANTI-THEFT SECURITY CODE .

z

Confirm radio coding for sound system functions using On Board Diagnostic program function 07, "Code
Control Module". See Code Control Module (function 07) .

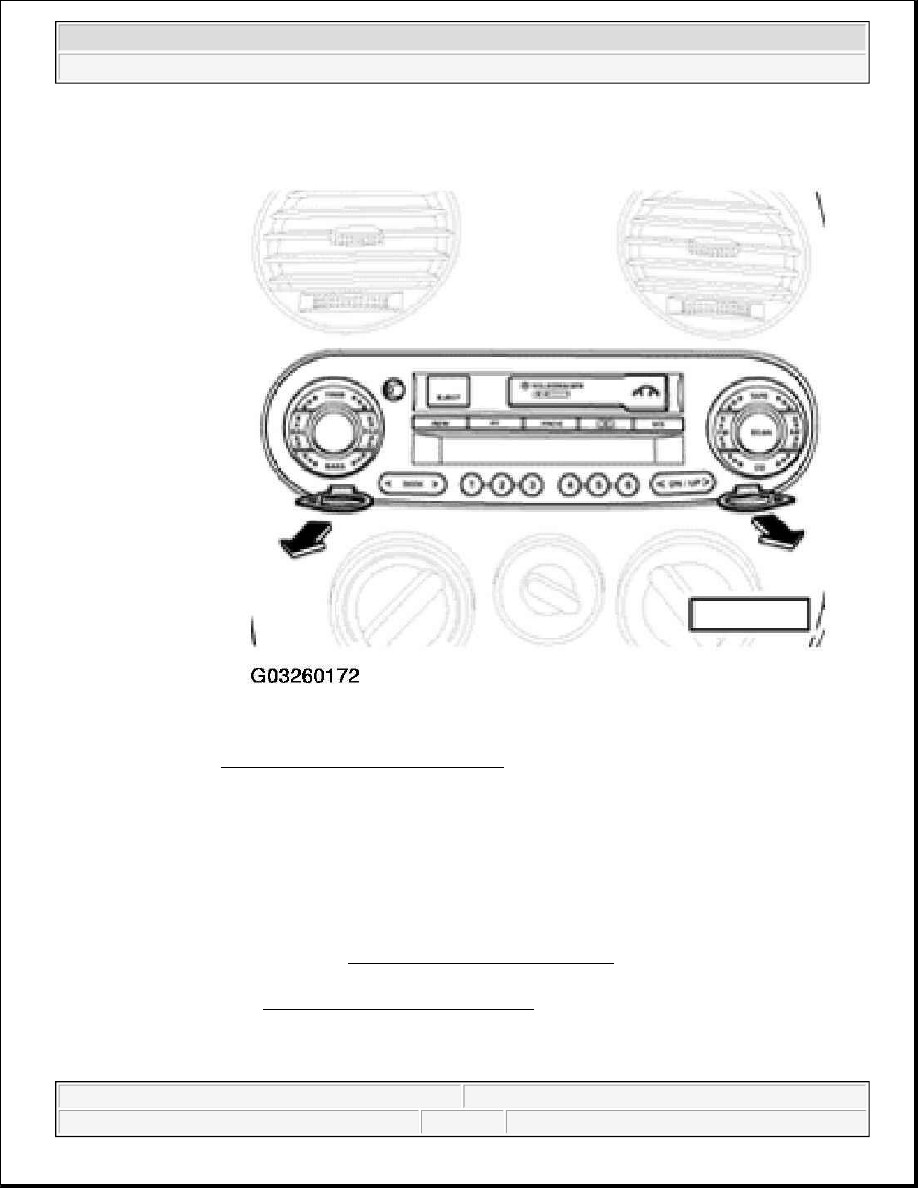

Fig. 47: Identifying Radio System
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Radio sound system coding must be performed to account for presence of CD
changer (if installed), Monsoon system (where applicable) and interior sound



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



AMPLIFIER SYSTEM (MONSOON)

GENERAL INFORMATION

The optional "Premium V - Monsoon" system consists of the "Premium" head unit supplemented by a separate
high power amplifier mounted in the rear of the luggage compartment.

High power handling speakers specifically designed for the "Monsoon" system are located in the front and rear
doors as with "Premium V".

Before troubleshooting or servicing, technicians must be familiar with the functions and operation specifics of
the applicable standard or optional radio system. Always read the radio owner's manual and review all radio,
tape player and CD changer functions.

Radio system, On Board Diagnostic (OBD)

The optional "Premium V- Monsoon" radio systems have On Board Diagnostic (OBD) capabilities, See Radio
system "Premium V" and "Premium V - Monsoon", On Board Diagnostic (OBD)
 .

AMPLIFIER (MONSOON), REMOVING AND INSTALLING

The amplifier is located behind the lock carrier trim (left) in the rear of the luggage compartment.

Removing

z

Remove lock carrier trim.

See INTERIOR TRIM .

z

Remove nuts -1-.

field differences between models.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
