Volkswagen New Beetle. Manual - part 429





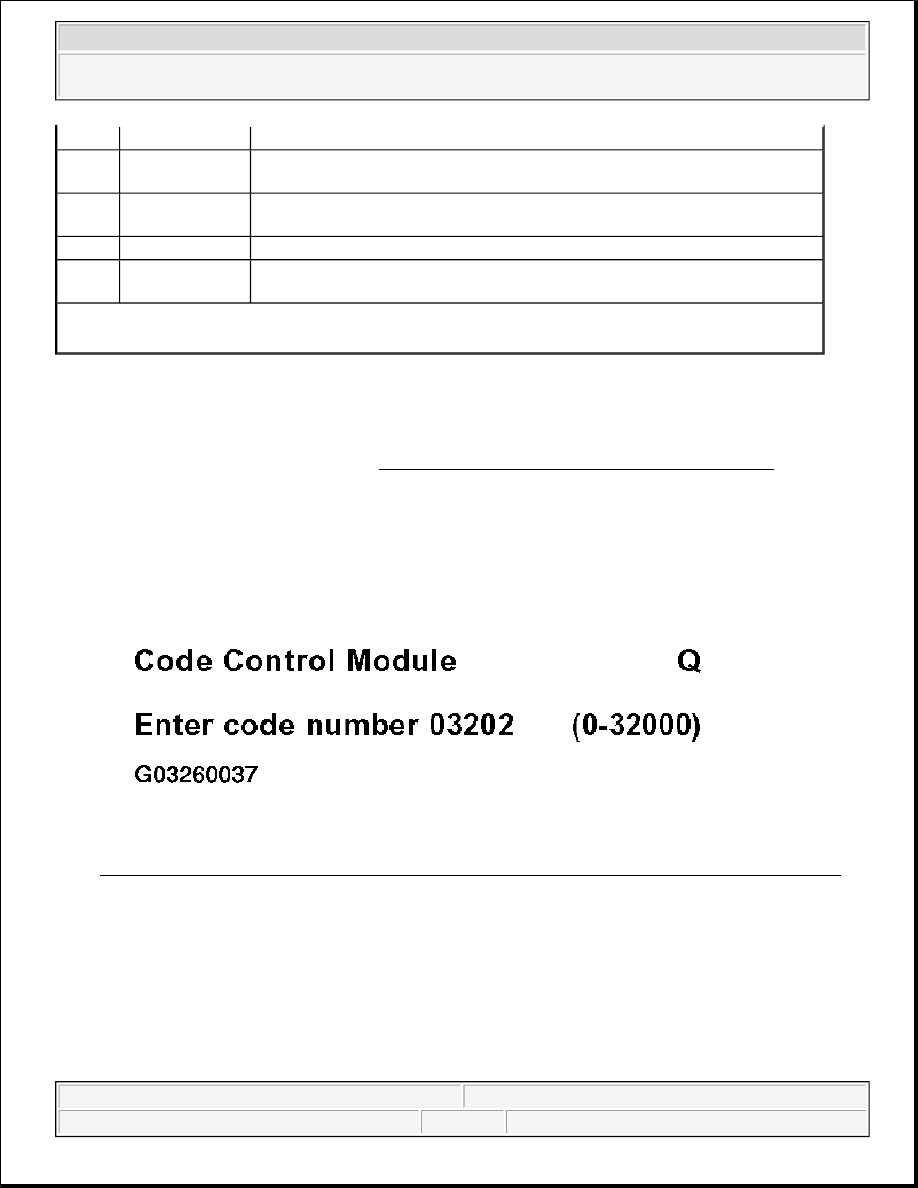

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 138: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (4 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (example only):

z

Press --> button.



4th Digit

Code number for service intervals

0

4th Digit

Fixed USA/CDN service intervals - without oil level thermal sensor -G266-

installed

2

4th Digit

Fixed USA/CDN service intervals - with oil level thermal sensor -G266-

installed

3

4th Digit

Vehicles without service interval display - USA/CDN)



5th Digit

Code number for trip impulse number (K-number)

3528

(1)

If more than one type of available equipment is to be entered, then the code numbers must be added
together. Example: Brake pad wear indicator & seat belt warning: 01 + 02 = 03.

NOTE:

z

The distance impulse number is a constant used to calculate speed and
distance travelled.

z

The distance impulse number (K number) can be read using function 10
"Adaptation", See Distance impulse number (K number), reading .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 139: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (5 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

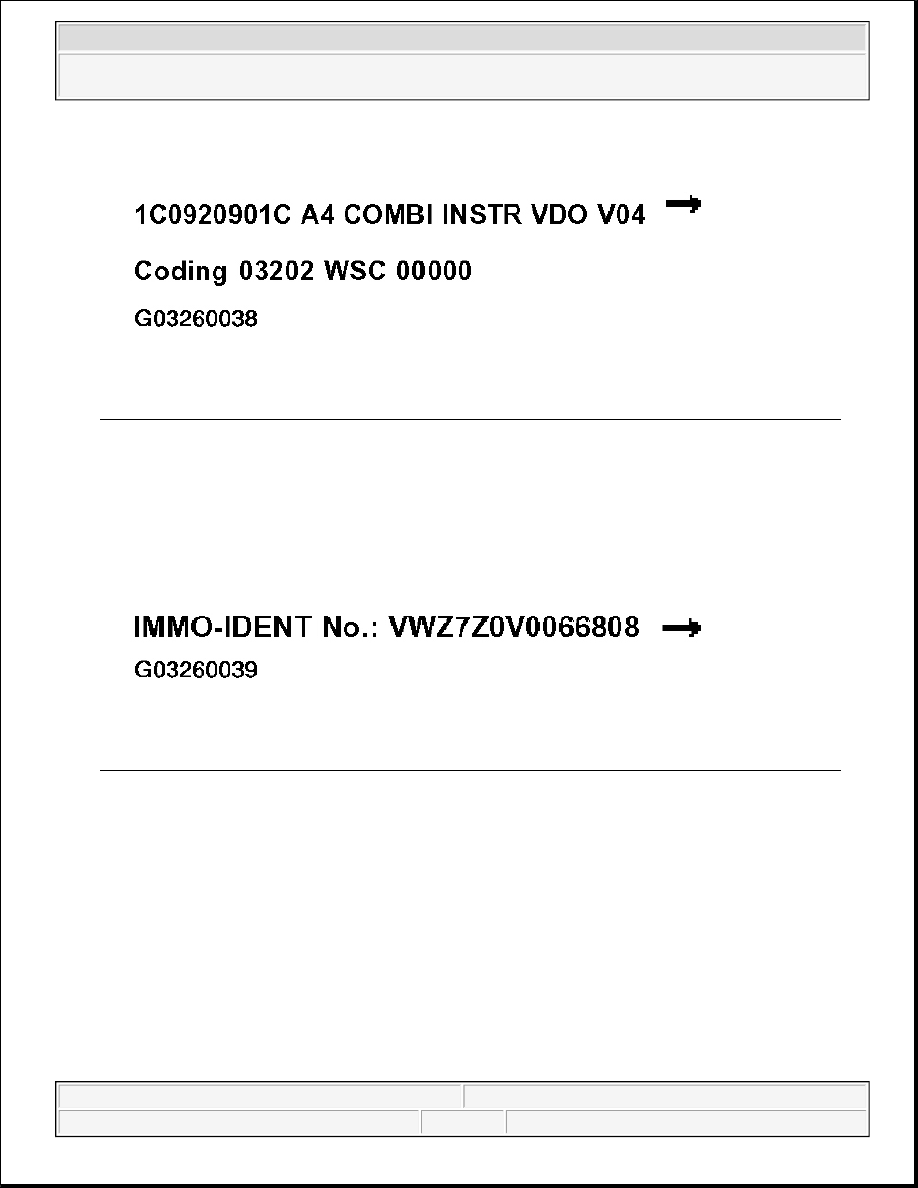

Indicated on display:

z

Press --> button.

Fig. 140: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (6 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

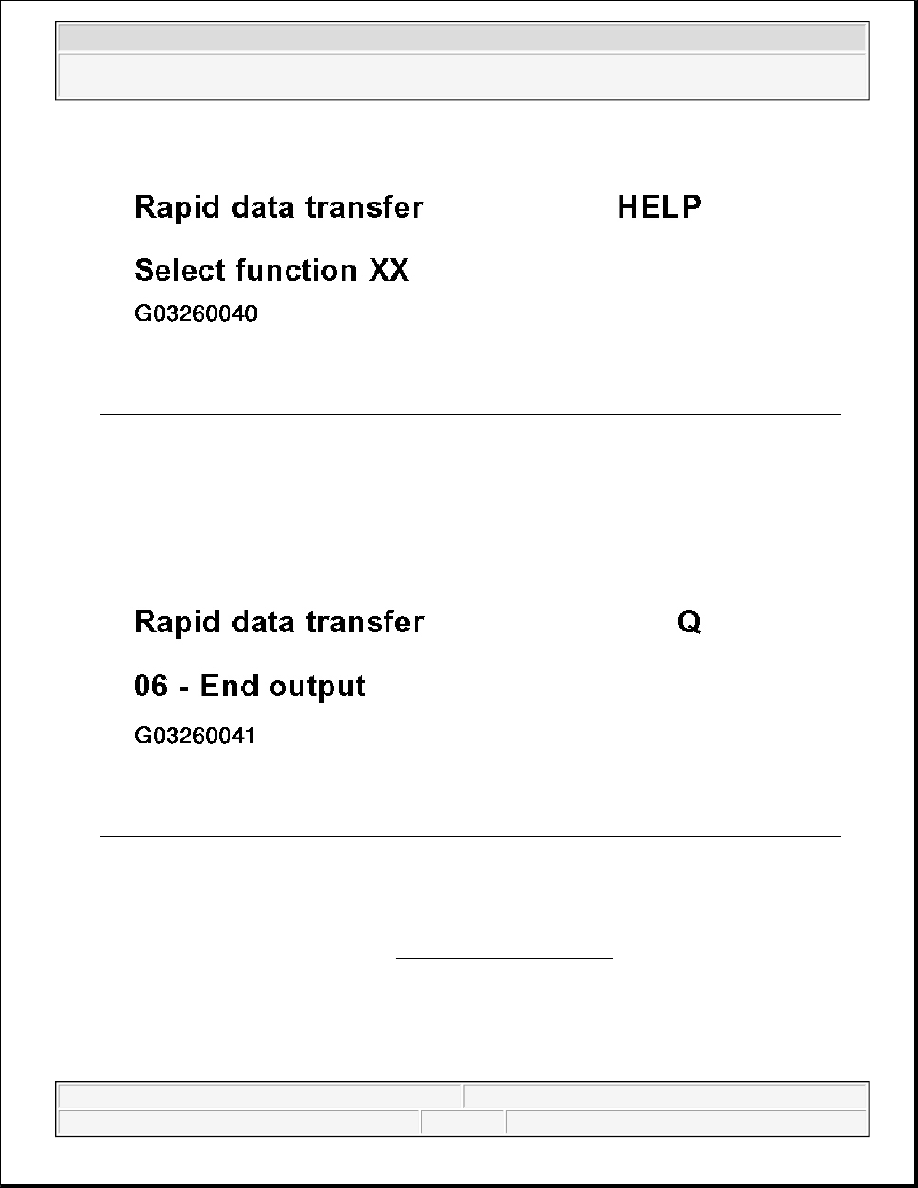

Indicated on display (select function)

Ending function:

z

Press buttons -0- and -6- to select function 06 "End output".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 141: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (7 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 142: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (8 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

READ MEASURING VALUE BLOCK (FUNCTION 08)

The measuring value block is divided into 4 display groups. The assignment of the individual display fields can
be taken from the display group overview. See Display groups, interpreting .

Use this function to observe various instrument cluster inputs.

z

Connect VAG 1551 Scan Tool (ST), select operating mode 1 "Rapid data transfer", switch on ignition
and input address word 17 "Instrument cluster".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



After control module identification and immobilizer identification number are displayed:

z

Press --> button.

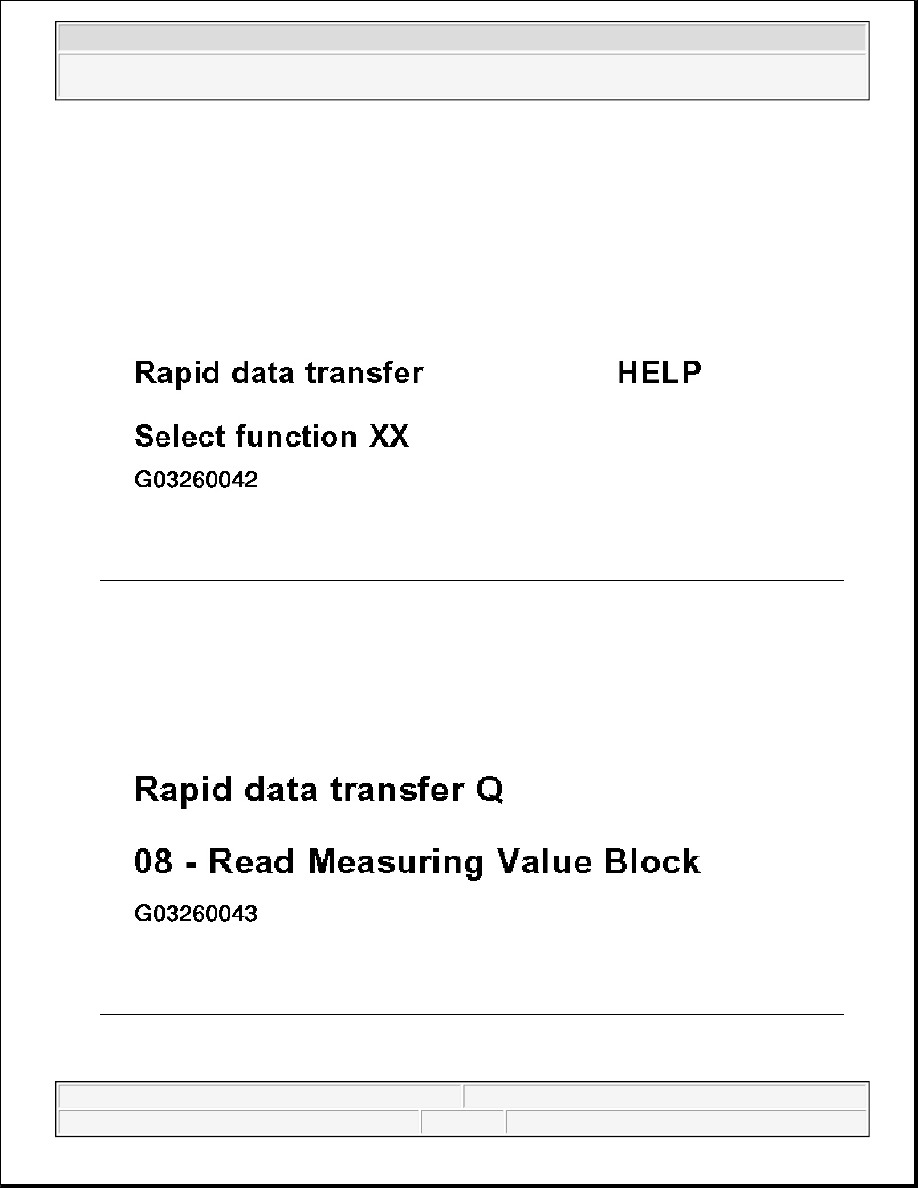

Indicated on display:

z

Press buttons -0- and -8- to select function 08 "Read measuring value block".

Fig. 143: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 144: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
