Using the Scan Tool (ST) button pad, enter required display group number (following example shows
display group 001). Press keys 0, 0 and 1 for "Display group number 1" and press -Q- button to confirm
input.

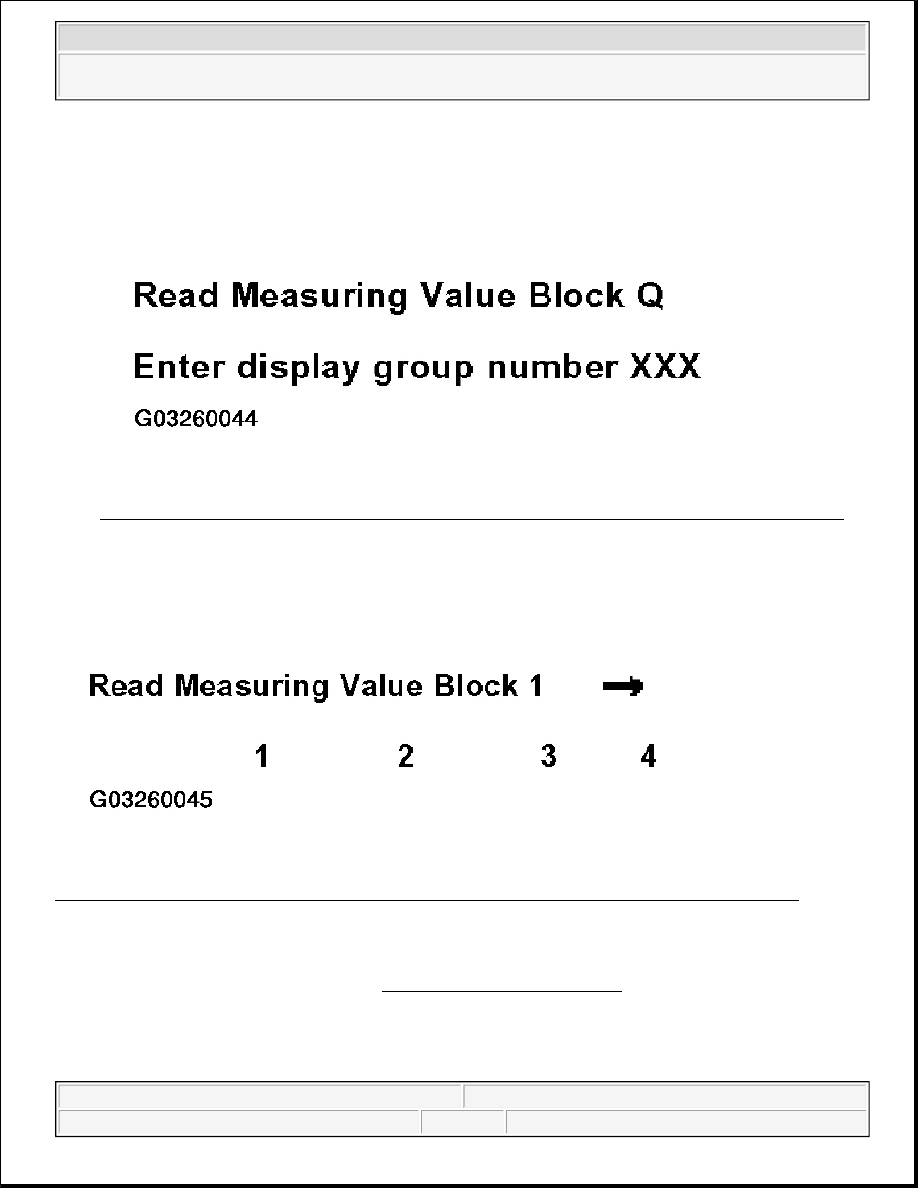

Fig. 145: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (1 ... 4 = Display zones)

Fig. 146: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

z

Interpreting display groups and evaluating measured values in individual
display fields. See Display groups, interpreting .

z

With printer switched on, information on display is printed out.

z

To easily change between display groups, proceed as follows:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



DISPLAY GROUPS VAG 1551 AND 1552

z

Displayed after pressing -C- button.

Indicated on display:

z

Enter display group number as needed tables beginning, See Display groups, interpreting .

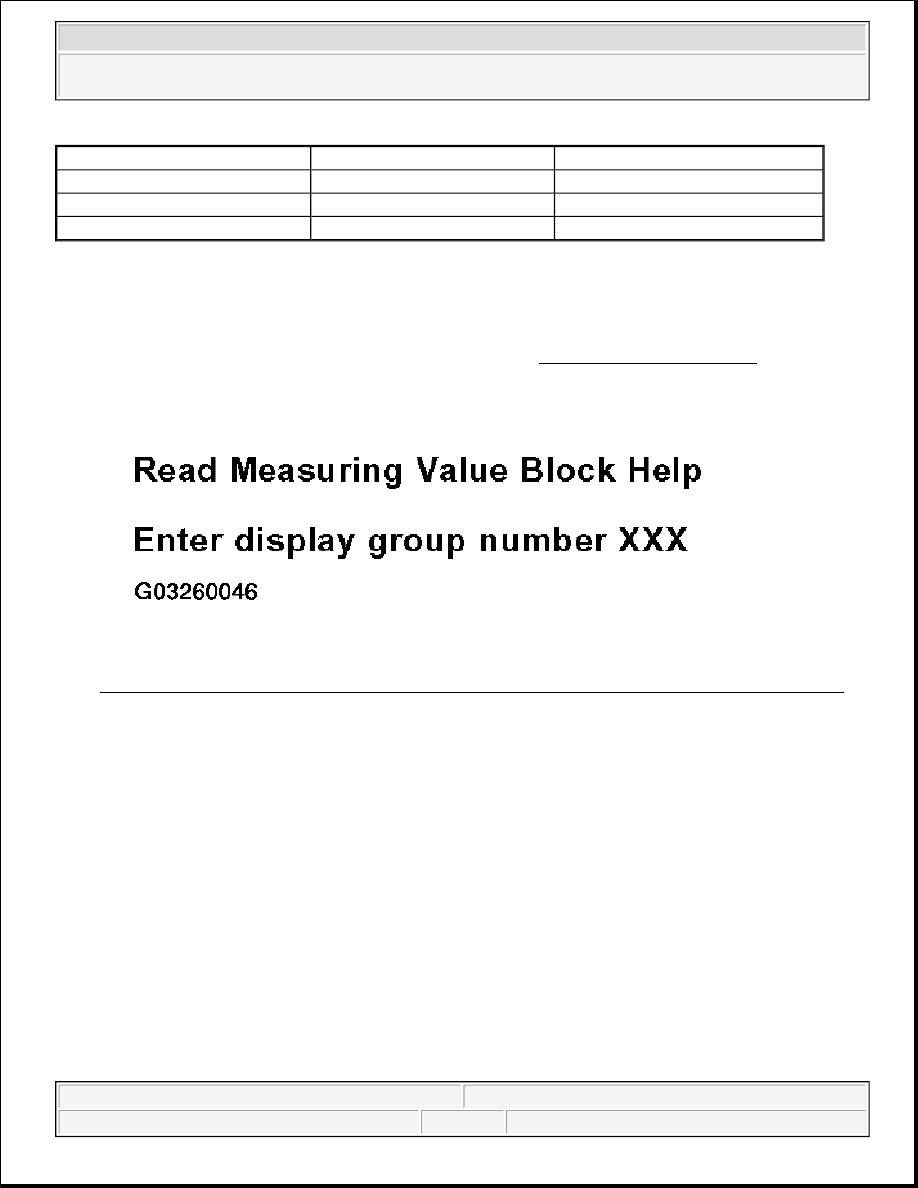

Fig. 147: VAG 1551 Scan Tool Display - Read Measuring Value Block, From 06.99 & Up (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUPS, INTERPRETING

Display group 001

Display group

VAG 1551

VAG 1552

Higher

Press button 3

Press --> button

Lower

Press button 1

Press --> button

Skip

Press button C

Press button C

NOTE:

z

Display fields always show actual values transmitted from senders and
sensors. However, instrument cluster display values can differ from those
in the display fields due to internal filtering.

z

Other display groups are possible, but are not required for On Board
Diagnostic program!



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



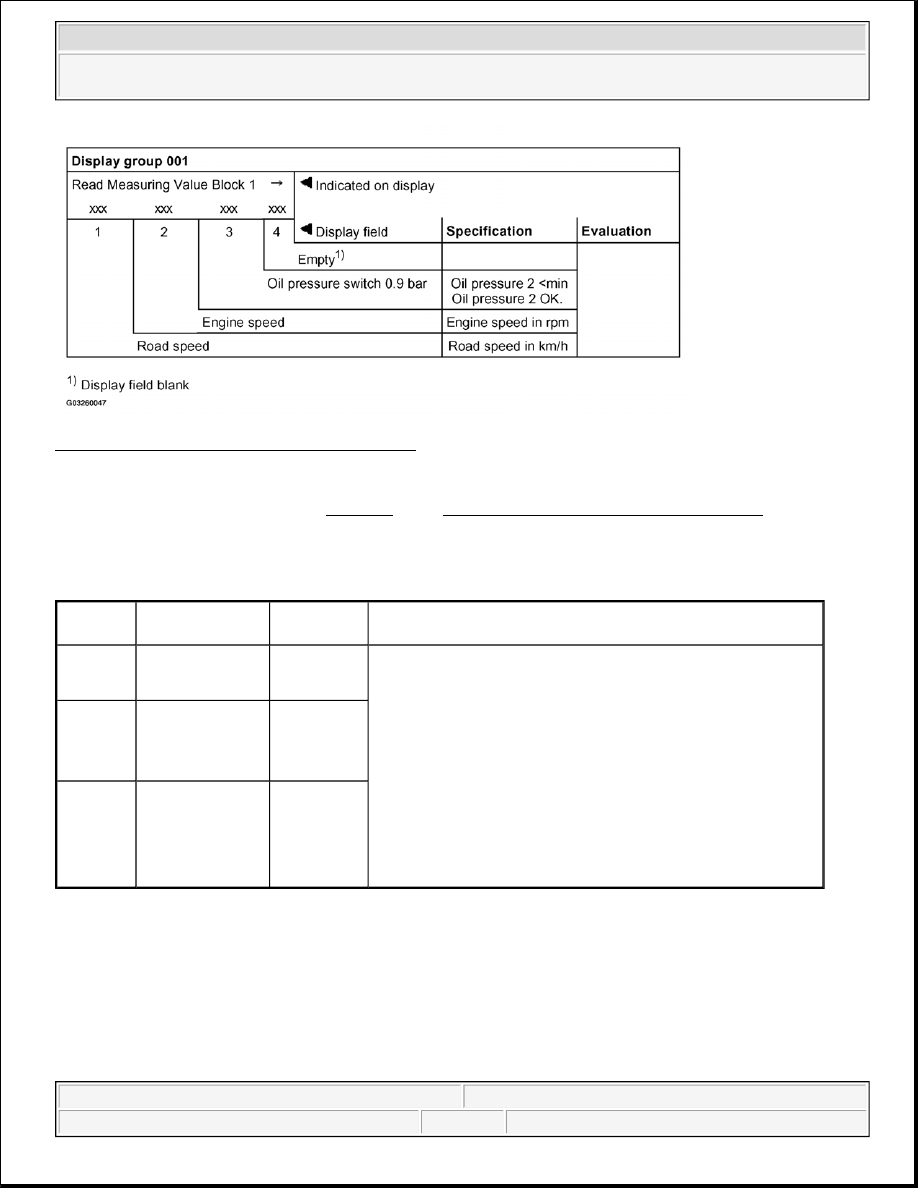

Fig. 148: Display Group 001, From 06.99 & Up
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 001

EVALUATING DISPLAY GROUP NUMBER 001 (FROM 06.99 & UP)

Display group 002

NOTE:

For evaluation of Fig. 148 , see Evaluating display group number 001 .

Display
field

Description

Display

Corrective Action

1

Speed signal

Speed in

km/h

z

Perform visual check of wiring and connections

z

Check wiring and connections of affected circuit for
correct connection and tight fit while simultaneously
observing display.

z

If display does not change after checking connections,
troubleshoot wiring using wiring diagram

z

Replace relevant component, if necessary.

z

Erase DTC memory.

z

Perform functional check

z

Check DTC memory again.

2

Engine speed

Engine

speed in

rpm

3

Oil pressure

switch 0.9 bar

Oil pressure

2< min.

Oil pressure

2 OK.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



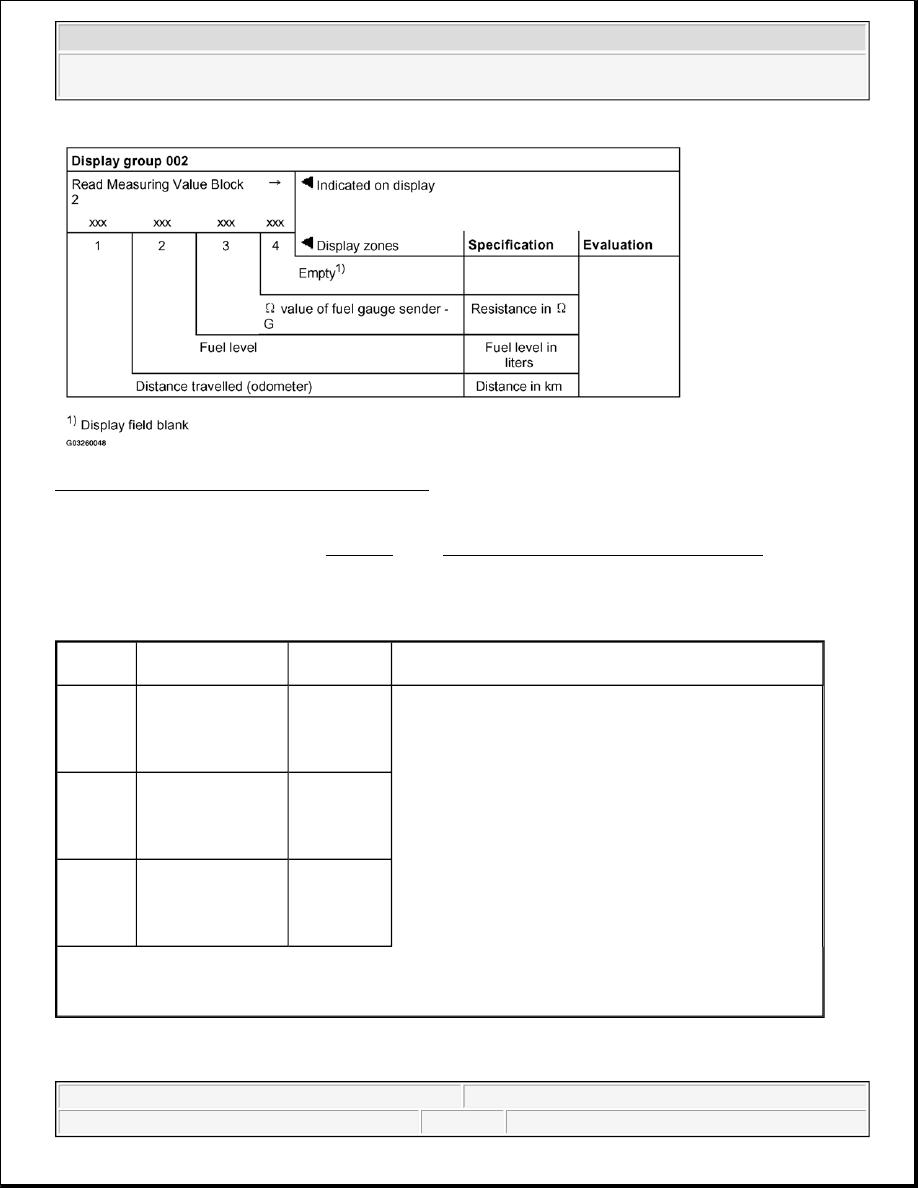

Fig. 149: Display Group 002, From 10.00 Models
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluating display group number 002

EVALUATING DISPLAY GROUP NUMBER 002 (FROM 10.00 MODELS)

Display group 003

NOTE:

For evaluation of Fig. 149 , see Evaluating display group number 002 .

Display
field

Description

Display

Corrective Action

1

Distance travelled

(odometer)

Distance in

km

z

Perform visual check of wiring and connections

z

Check wiring and connections of affected circuit for
correct connection and tight fit while
simultaneously observing display

z

If display does not change after checking
connections, troubleshoot wiring using wiring
diagram.

z

Replace relevant component, if necessary.

z

Erase DTC memory

z

Perform functional check

z

Check DTC memory again

2

Fuel level

(1)

Fuel level in

liters

3

ohm value of fuel

gauge sender -G

Resistance in

ohm

(1)

For an open circuit of the fuel level sender, "0L" is displayed in field 2 and 510 ohm is displayed in
field 3. For a short circuit of the fuel level sender, "0L" is displayed in field 2 and 0 ohm is displayed
in field 3.
