Fig. 130: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (4 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Indicated on display (example only):

z

Press --> button.

Fig. 131: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (5 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press --> button.

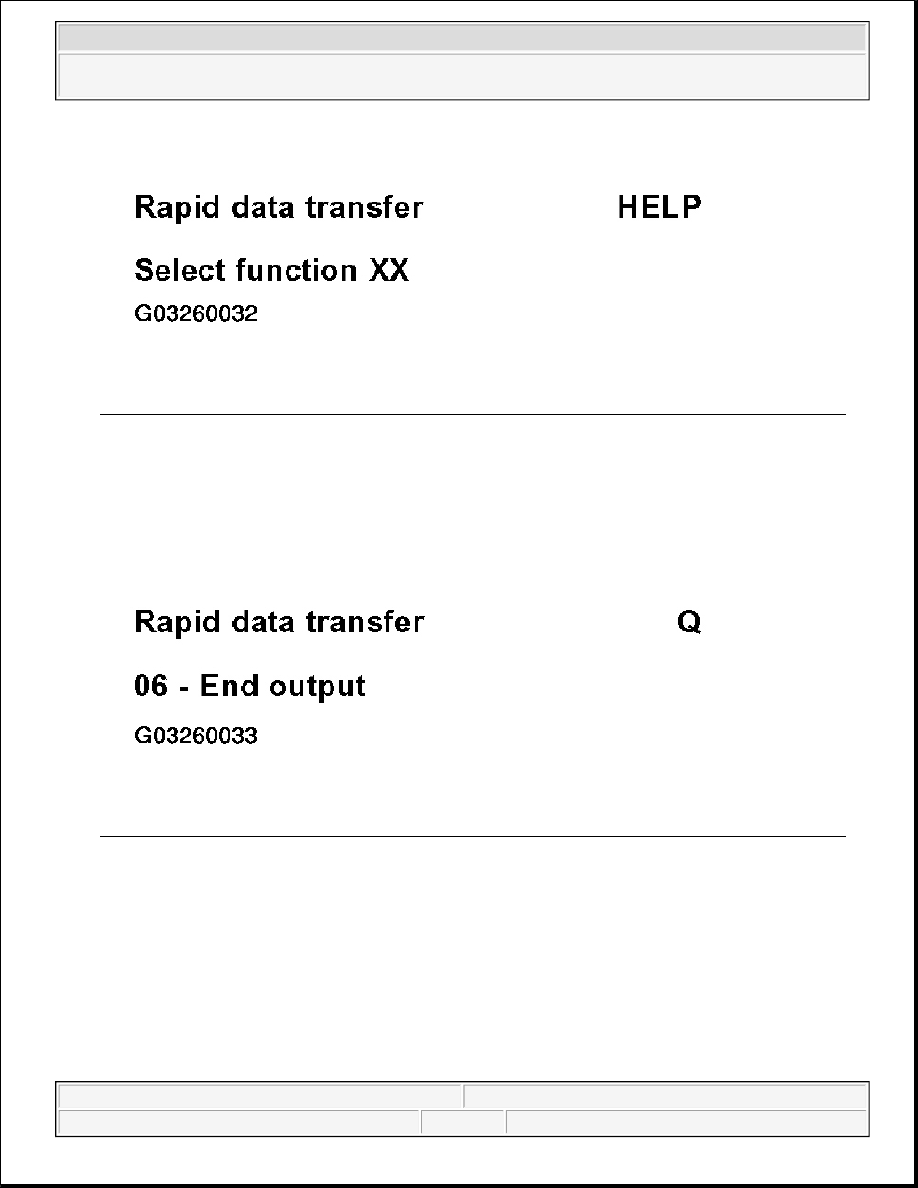

Fig. 132: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (6 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function)

Ending function:

z

Press buttons -0- and -6- to select function 06 "End output".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 133: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (7 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 134: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (8 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INSTRUMENT CLUSTER FROM 10.00 MODELS, CODING (FUNCTION 07)

Use this function to code the control module with indicator unit in instrument cluster -J285- with the following
information:

z

Available equipment

z

Market version

z

Code number for service intervals

z

Code number for distance impulse number ("K" number)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Coding

z

Connect VAG 1551 scan tool (ST), select operating mode 1 "Rapid data transfer", switch on ignition and
input address word 17 "Instrument cluster".

After control module identification and immobilizer identification number are displayed:

z

Press --> button.

Indicated on display:

z

Press buttons -0- and -7- to select function 07 "Code control module".

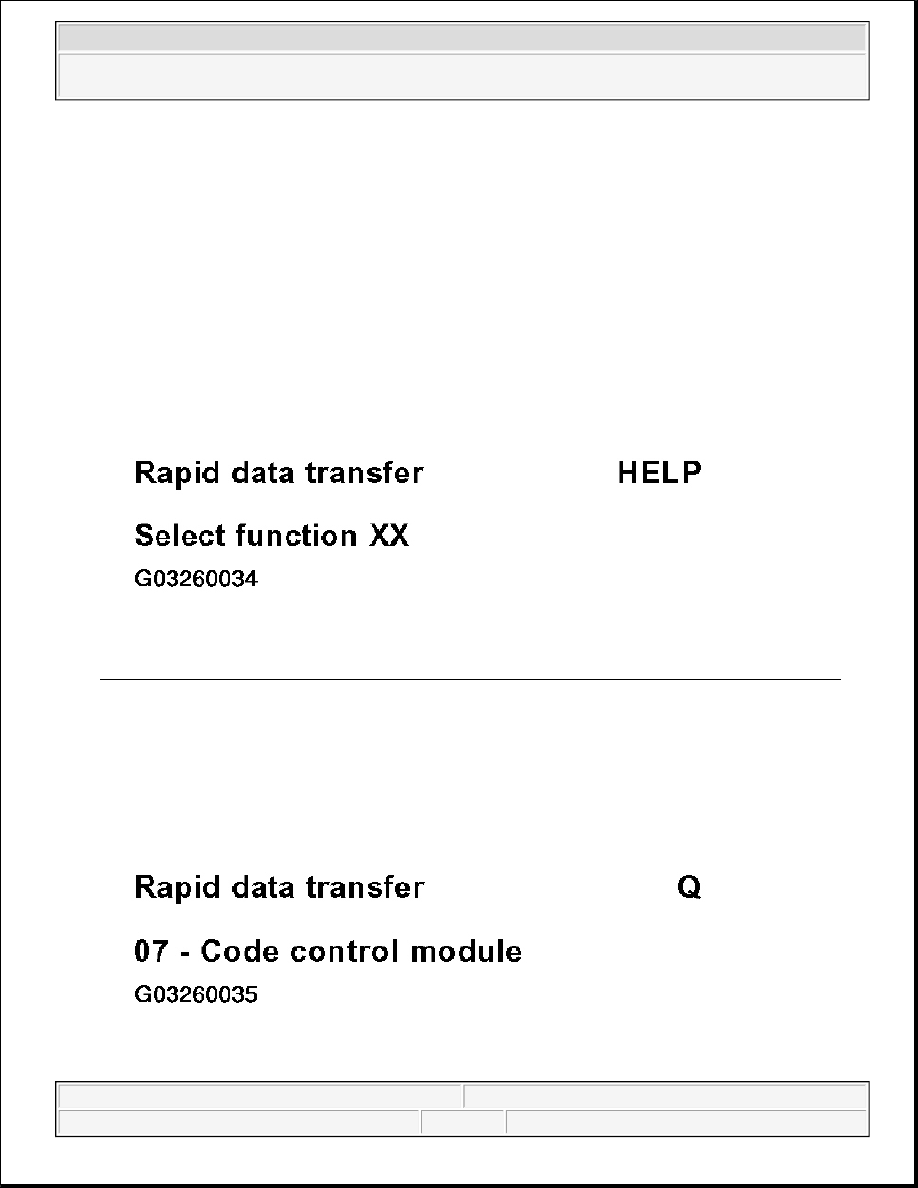

Fig. 135: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (1 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

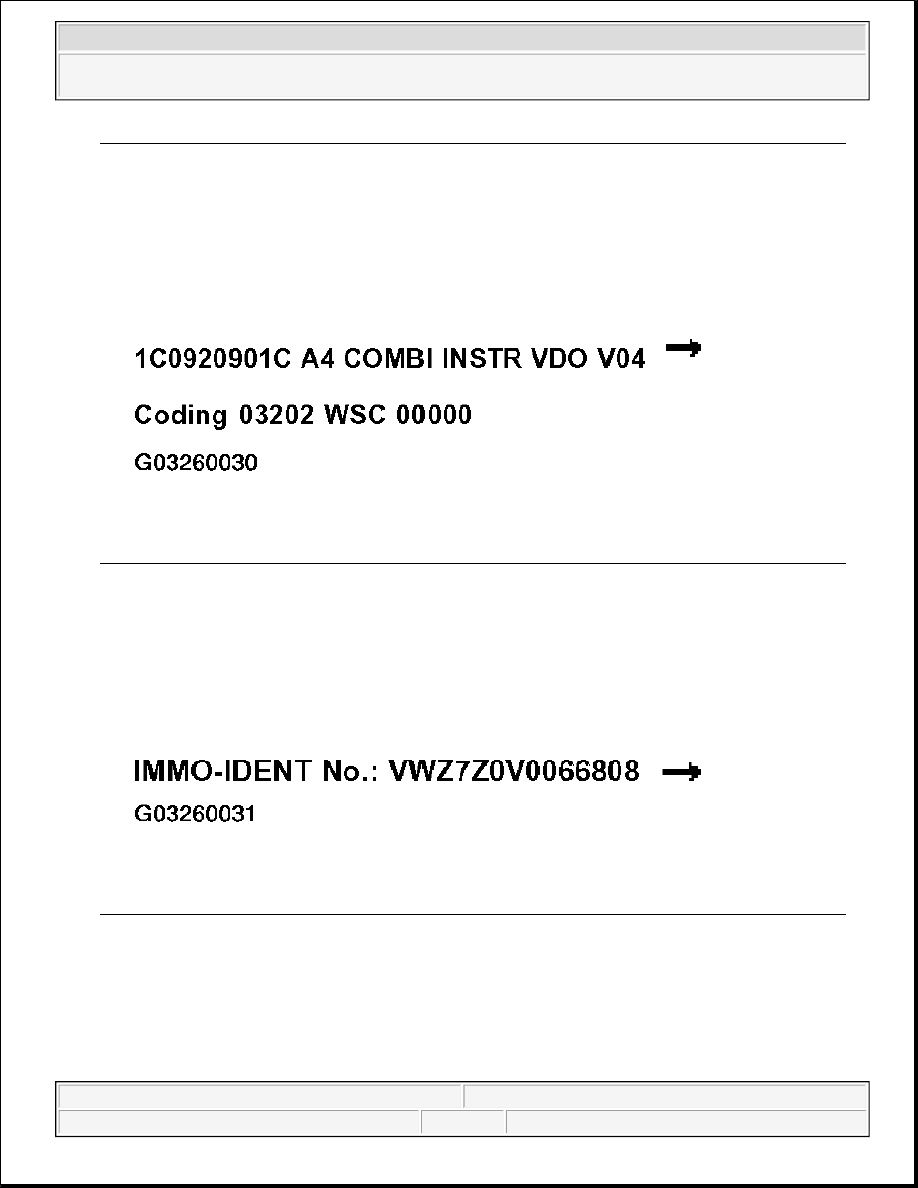

Fig. 136: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (2 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Indicated on display:

z

Confirm applicable available equipment, model and service interval particulars, determine and enter code
number from code table. See INSTRUMENT CLUSTER CODE TABLE (FROM 10.00 MODELS) .

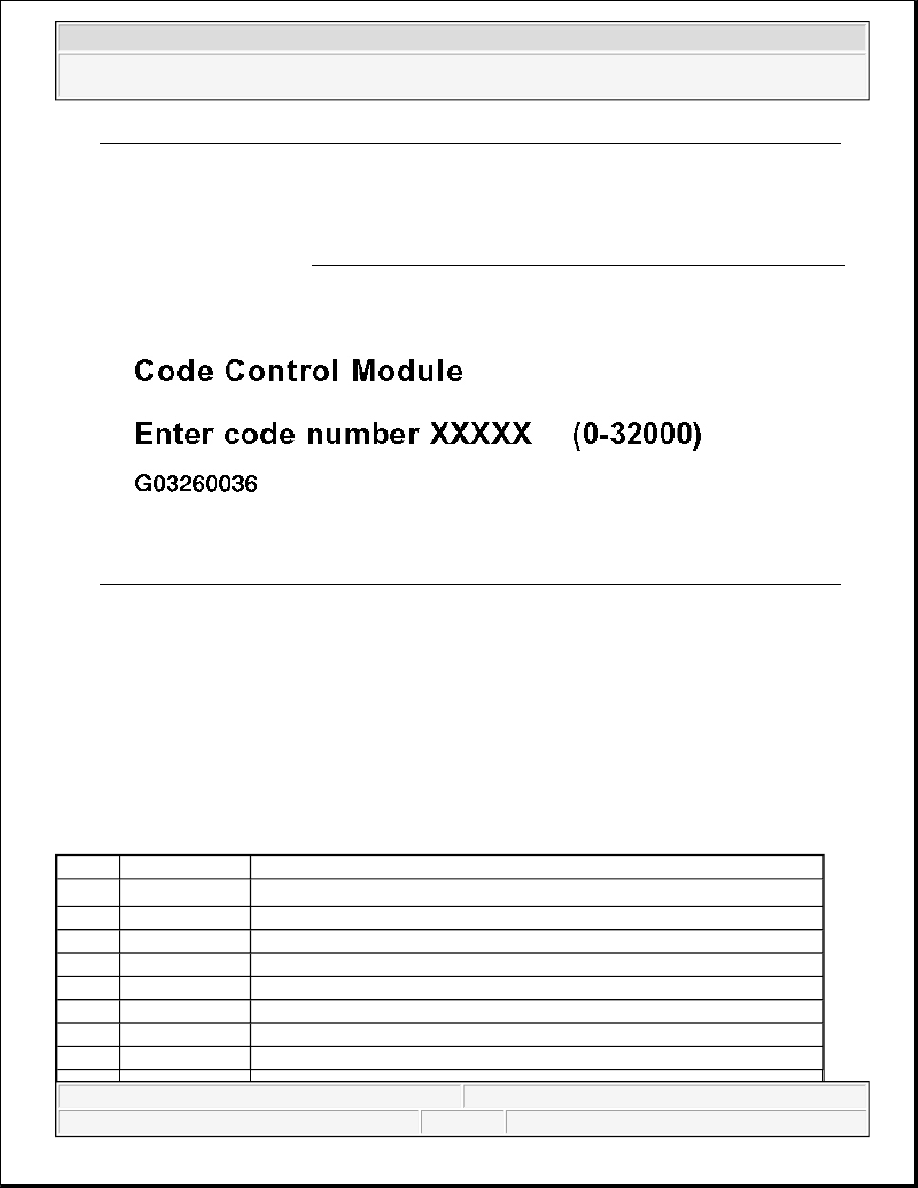

Fig. 137: VAG 1551 Scan Tool Display - Instrument Cluster Coding, From 10.00 Models (3 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Coding example:

03 Code number for vehicle options

2 Code number for country version

3 Code number for service intervals

2 Code number for distance impulse number (K-number)

INSTRUMENT CLUSTER CODE (FROM 10.00 MODELS)

Code

Place In Code

Designation



1st & 2nd Digits

Available equipment

(1)

00

1st & 2nd Digits

no optional equipment active

01

1st & 2nd Digits

Brake pad wear indicator active

02

1st & 2nd Digits

Seat belt warning active

04

1st & 2nd Digits

Rear spoiler



3rd Digit

Market version

2

3rd Digit

USA (US)

3

3rd Digit

Canada (CDN)
