Volkswagen New Beetle. Manual - part 426





Indicated on display:

z

Press -Q- button to confirm entry.

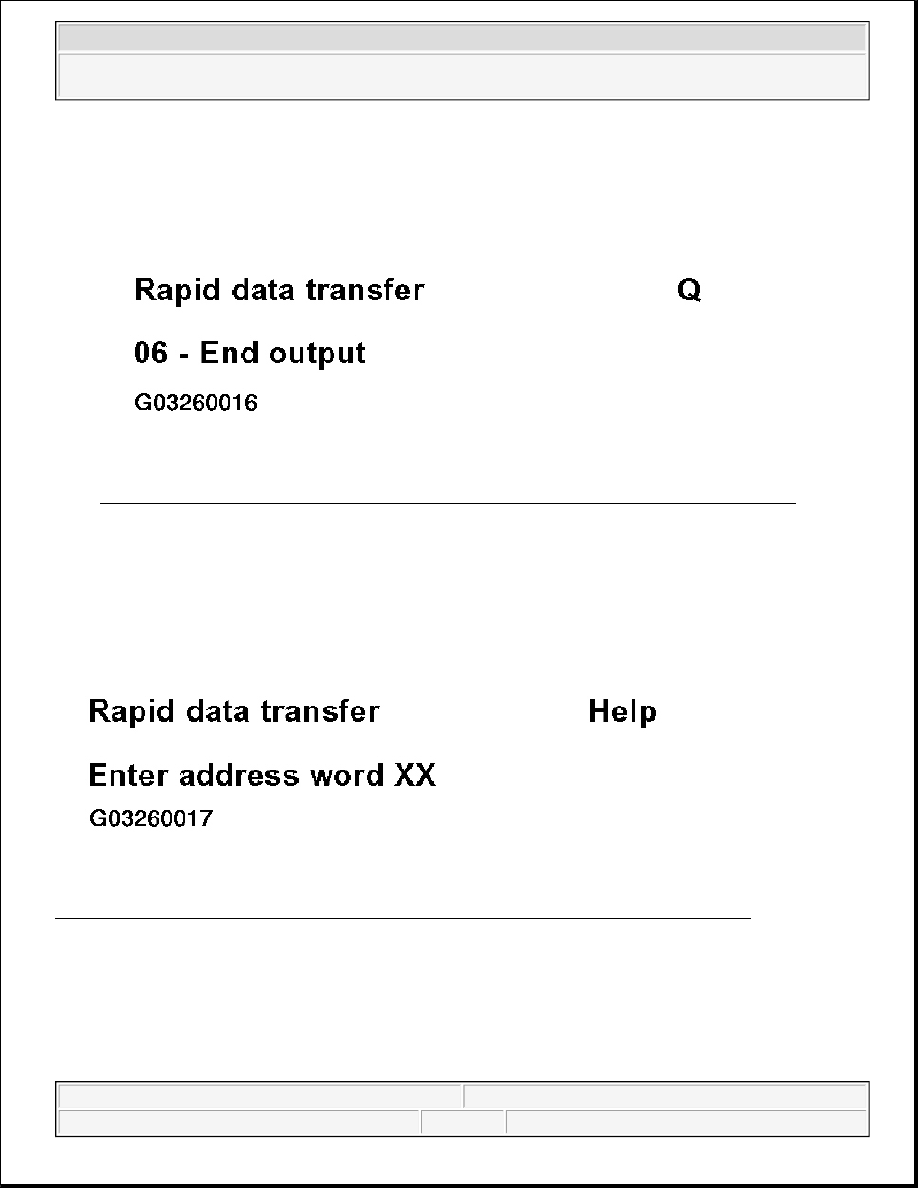

Fig. 117: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (12 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

Tester is again in basic function.

Fig. 118: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (13 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING (FUNCTION 05)

NOTE:

Erasing DTC memory (function 05) is only possible after checking DTC memory
(function 02). If DTC memory cannot be erased, check DTC memory again and
rectify indicated malfunctions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Prerequisites

z

Check DTC memory. See Diagnostic Trouble Code (DTC) memory, checking (function 02) .

z

All malfunctions repaired.

After checking DTC memory:

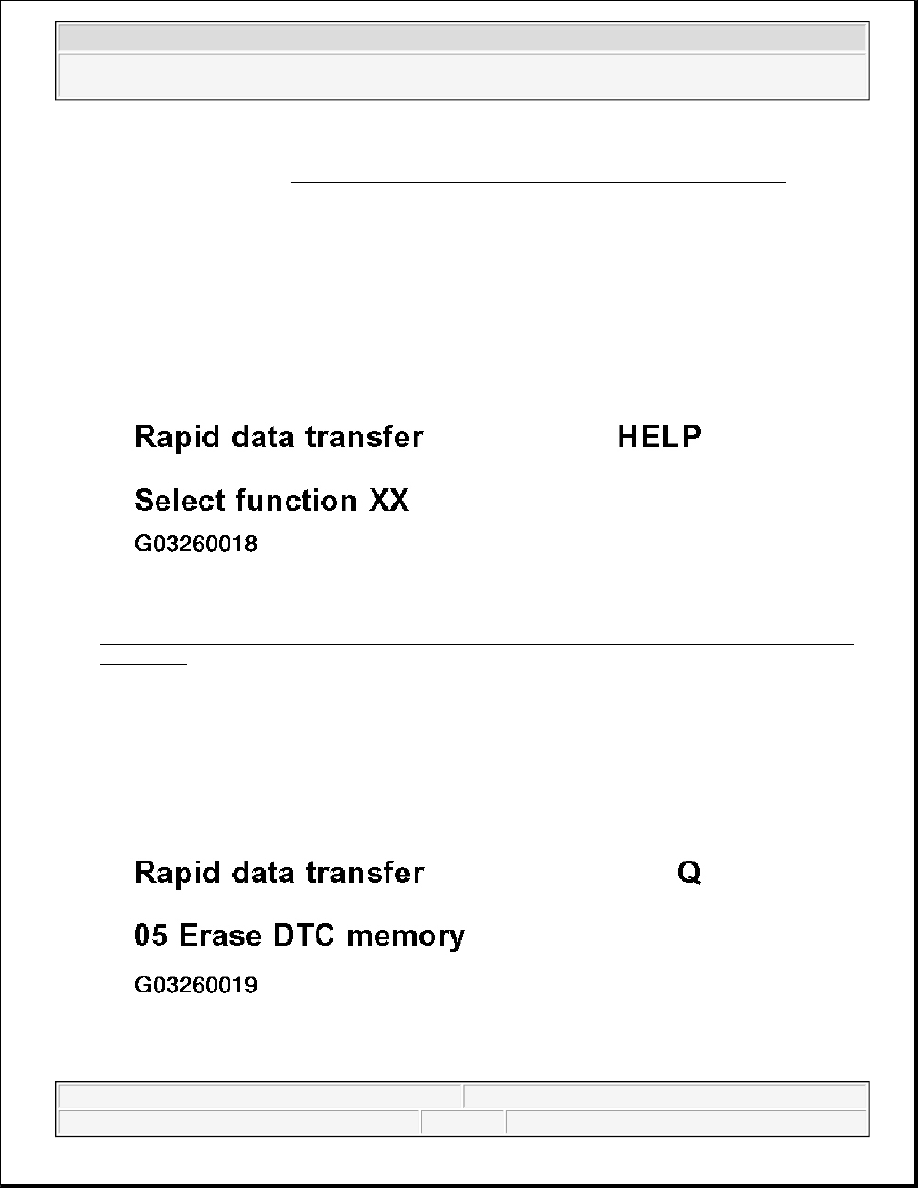

Indicated on display (select function):

z

Press buttons -0- and -5- to select function 05, "Erase DTC memory."

Fig. 119: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, From 06.99 &
Up (1 Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

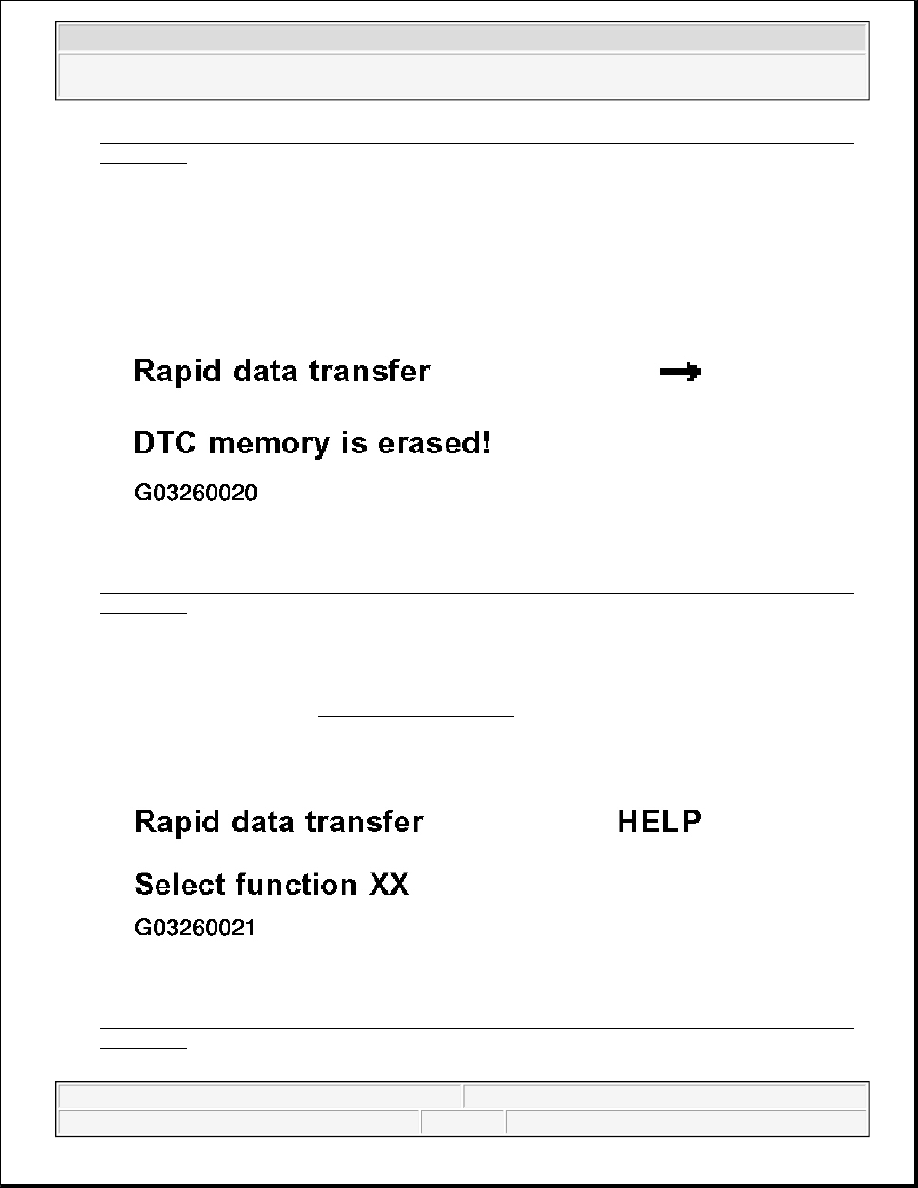

Fig. 120: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, From 06.99 &
Up (2 Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: (DTC memory is erased)

z

Press --> button.

Fig. 121: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, From 06.99 &
Up (3 Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

z

End output (function 06). See End Output (function 06) .

Fig. 122: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, From 06.99 &
Up (4 Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



END OUTPUT (FUNCTION 06)

z

Press buttons -0- and -6- to select function "End output."

Indicated on display:

NOTE:

z

If this appears in the display, test sequence is faulty.

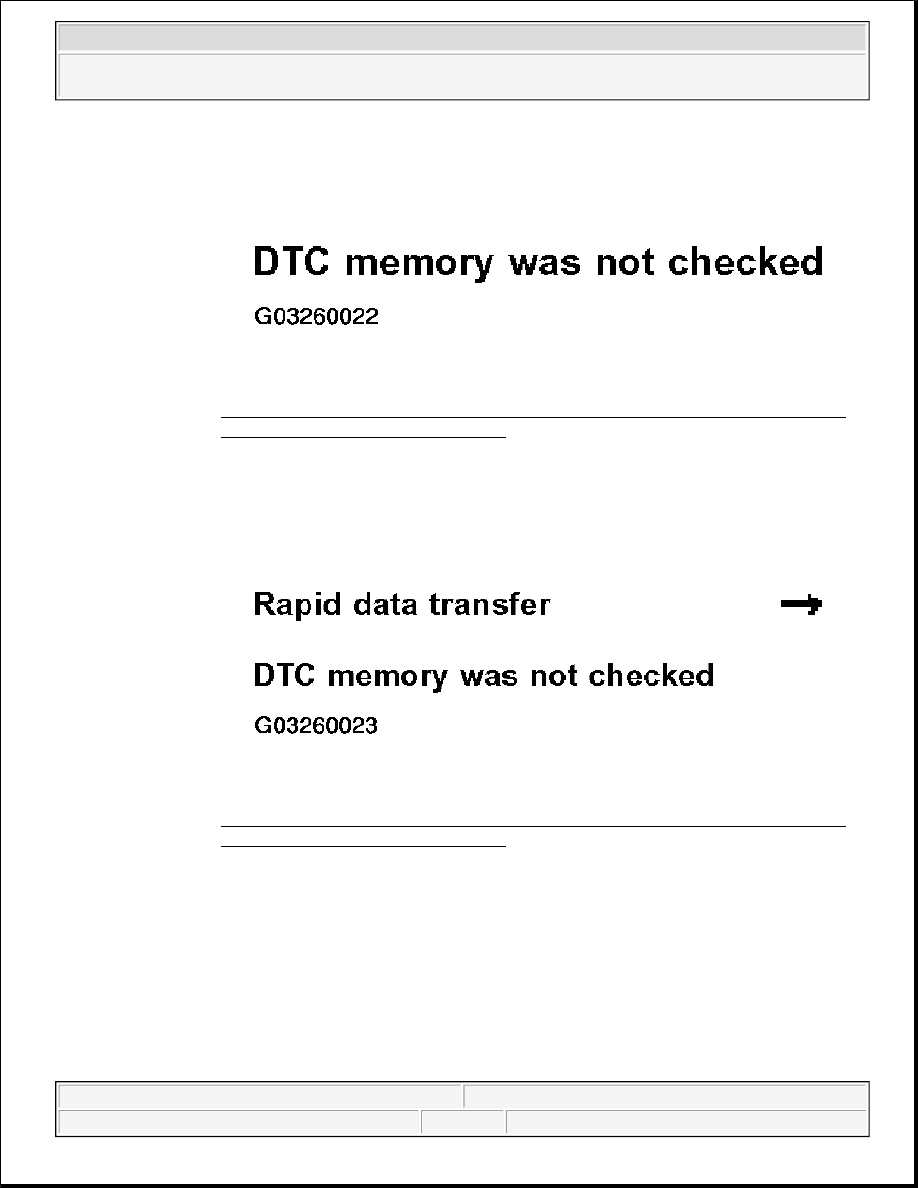

Fig. 123: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing, From 06.99 & Up (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If this appears in the display, test sequence is faulty.

Fig. 124: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory
Erasing, From 06.99 & Up (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adhere exactly to test sequence: First check DTC memory, repair
malfunctions if necessary, then erase.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
