Volkswagen New Beetle. Manual - part 424





z

Confirm correct

coding of all control

modules coding

connected to vehicle

CAN Data Bus.

z

Check CAN Data Bus

wiring using wiring

diagram

01314
Engine Control Module
(ECM) -J220-

z

No communication

No data transfer from

Engine Control Module

(ECM) over CAN Data

Bus network.

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Check DTC memory

of ECM, troubleshoot

and repair as

necessary.

z

Check CAN Data Bus

wiring to ECM using

wiring diagram.

01315
Transmission Control
Module (TCM)-J217-

z

No communication

No data transfer from

Transmission Control

Module (TCM) over CAN

Data Bus network.

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Check DTC memory

of TCM, troubleshoot

and repair as

necessary.

z

Check CAN Data Bus

to TCM using wiring

diagram.

01316
ABS Control Module
(w/EDL) -J204-

z

No communication

No data transfer from

ABS control module over

CAN Data Bus network.

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Check DTC memory

of ABS control

module, troubleshoot

and repair as necessary

z

Check CAN Data Bus

network to ABS

control module using

wiring diagram

01317
Control module with
indicator unit in
instrument cluster insert
-J285-

z

No communication

z

Malfunction in

CAN Data Bus

wiring

z

-J285-

malfunctioning

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Read measuring value

block of Data Bus On

Board Diagnostic

Interface -J533- in

instrument cluster. See

Read Measuring

Value Block (function

08)

z

Check DTC memory

of all control modules

which are connected to

vehicle CAN Data

Bus, troubleshoot and

repair as necessary



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



OUTPUT DIAGNOSTIC TEST MODE (DTM), (FUNCTION 03)

The Output Diagnostic Test Mode is part of the electrical check. The following components can be checked by
the Output Diagnostic Test Mode (DTM):

z

Speedometer

z

Tachometer

z

Coolant temperature gauge

z

Fuel gauge

z

Malfunction lamps

z

Seat belt warning lamp (when activated using code)

z

Buzzer/Gong

z

Displays (odometer, multi-function indicator or digital clock, selector lever position display for automatic
gearboxes)

{

If malfunction is determined when performing Output DTM, exchange instrument cluster.

{

If no malfunction is determined when performing Output DTM, check wiring and connections to
instrument cluster using wiring diagram.

Output Diagnostic Test Mode (DTM), initiating

z

Connect VAG 1551 Scan Tool (ST), input address word 17 "Instrument cluster".

z

Check CAN Data Bus

wiring using wiring

diagram

65535
Control Module

z

Malfunctioning



Instrument cluster

malfunctioning

z

Replace instrument

cluster.

Other DTCs

If other DTC's are displayed that are not shown in this DTC table, perform On
Board Diagnostic (OBD) of anti-theft immobilizer system using VAS 5051
Vehicle Diagnostic Testing and Information System.

(1)

DTC will load into memory only after malfunction is present continuously for a minimum of 20
seconds. During first 20 seconds "Sensor cannot be tested at this time" is displayed.

(2)

For vehicles with a multi-function indicator.

(3)

DTC display "Open circuit/short to B+" is loaded into memory when malfunction is present on
engine having run for a minimum of 30 minutes.

NOTE:

z

Output Diagnostic Test Mode (DTM) cannot be initiated or will be
interrupted if engine is running or vehicle is moving,

z

Use -C- button to exit test sequence at any time.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



After control module identification and immobilizer identification number is displayed:

z

Press --> button.

Indicated on display (select function):

z

Press buttons -0- and -3- to select function 03 "Output Diagnostic Test Mode (DTM)".

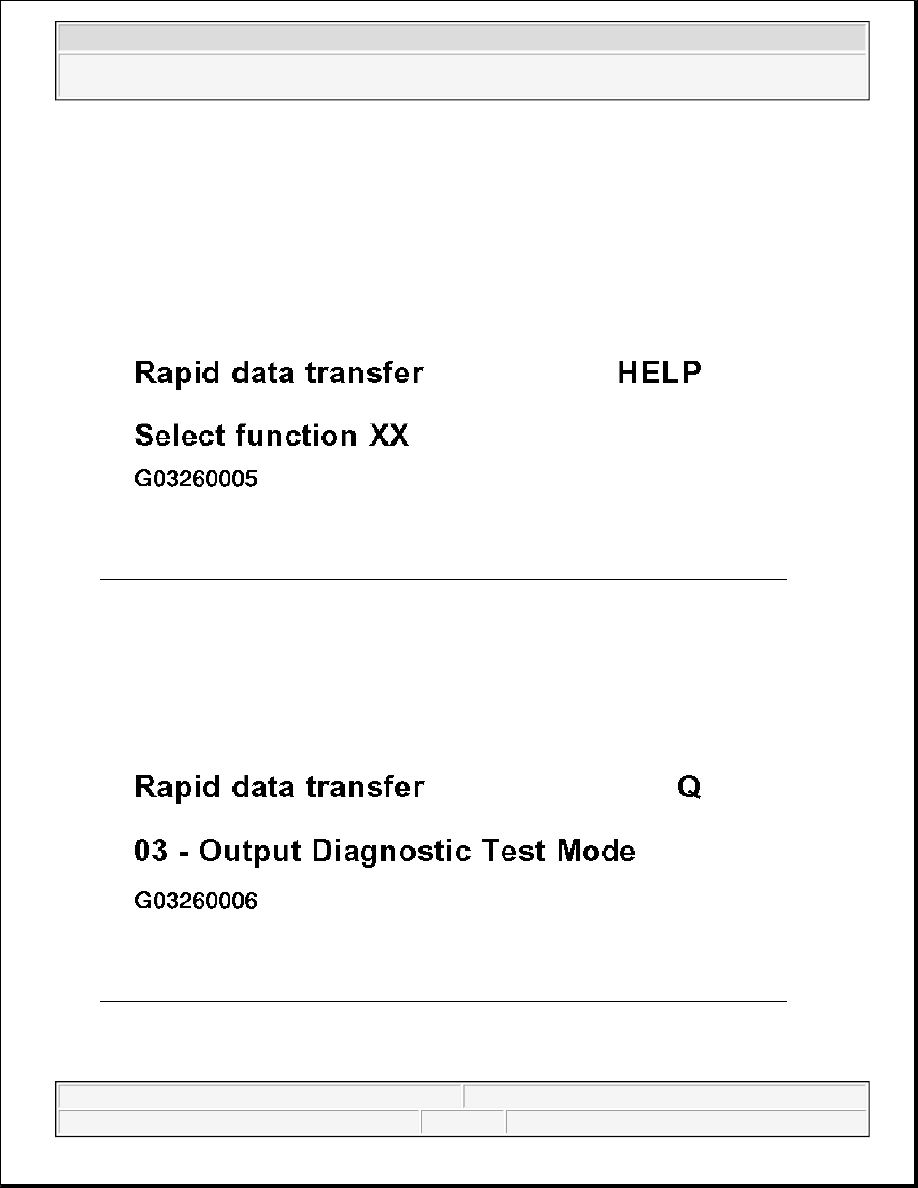

Fig. 106: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (1 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 107: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (2 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

No indication on all displays and all warning lights to be checked are unlit.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

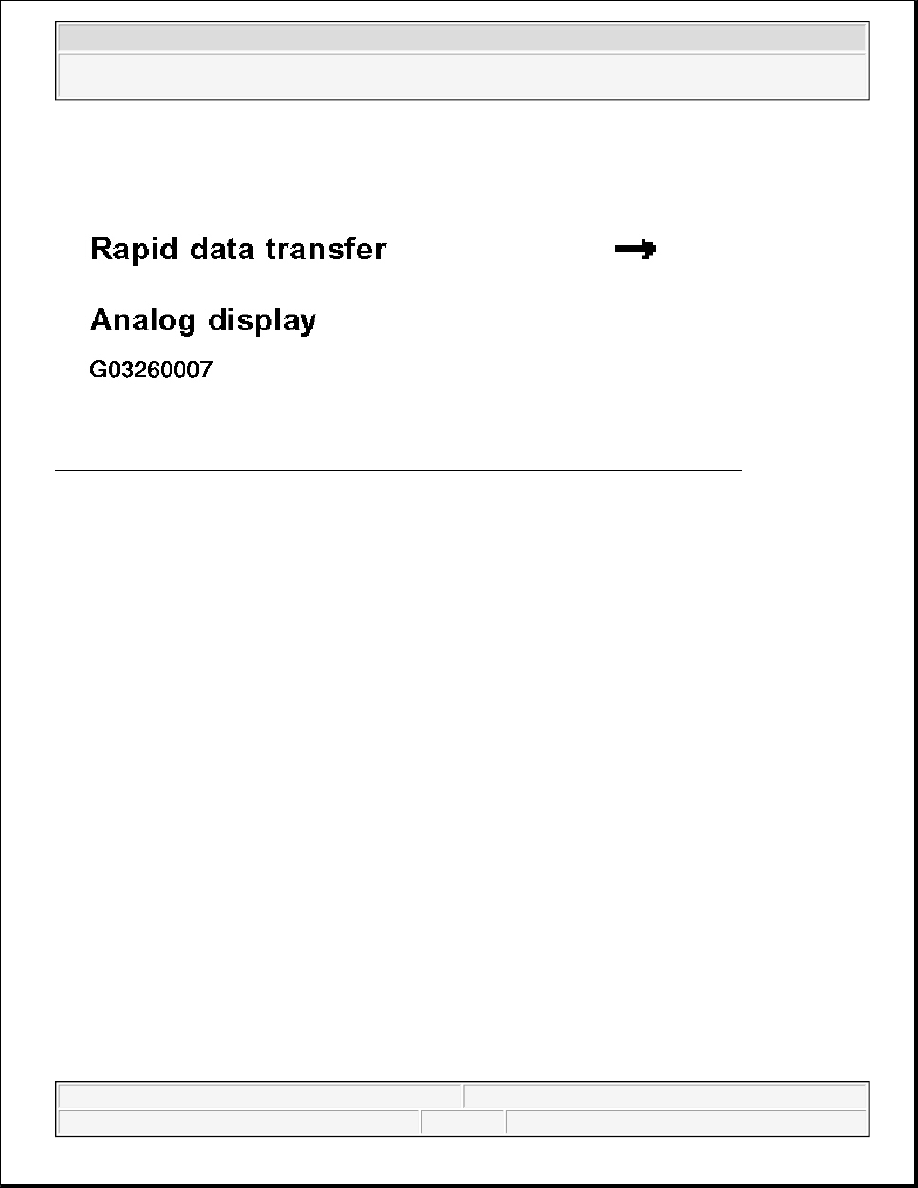

Indicated on display

Fig. 108: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode Initiating (3 Of 13)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After pressing -Q- button, the following instrument functional checks are carried out.

z

Tachometer needle moves over complete display range

z

Speedometer needle moves over complete display range

z

Coolant temperature needle moves over complete display range

z

Fuel gauge needle moves over complete display range

After all instrument display range checks, the following constant values are displayed:

Coolant temperature gauge: 90°C

Tachometer: 3000 rpm

Speedometer:100km/h (65 mph)

Fuel gauge:1/2

z

Press --> button.

Indicated on display:

The warning lamps are activated and light continuously (includes all warning lamps for vehicle equipment
having output DTM capability coded into the instrument cluster

NOTE:

z

On VDO instrument clusters, the instruments are activated simultaneously

z

On MMO instrument clusters, the instruments are activated sequentially



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
