Volkswagen New Beetle. Manual - part 423





z

Switch on printer with the Print button (indicator lamp in key lights up).

Indicated on display (select function):

z

Press buttons -0- and -2- to select function 02, check Diagnostic Trouble Code (DTC) memory.

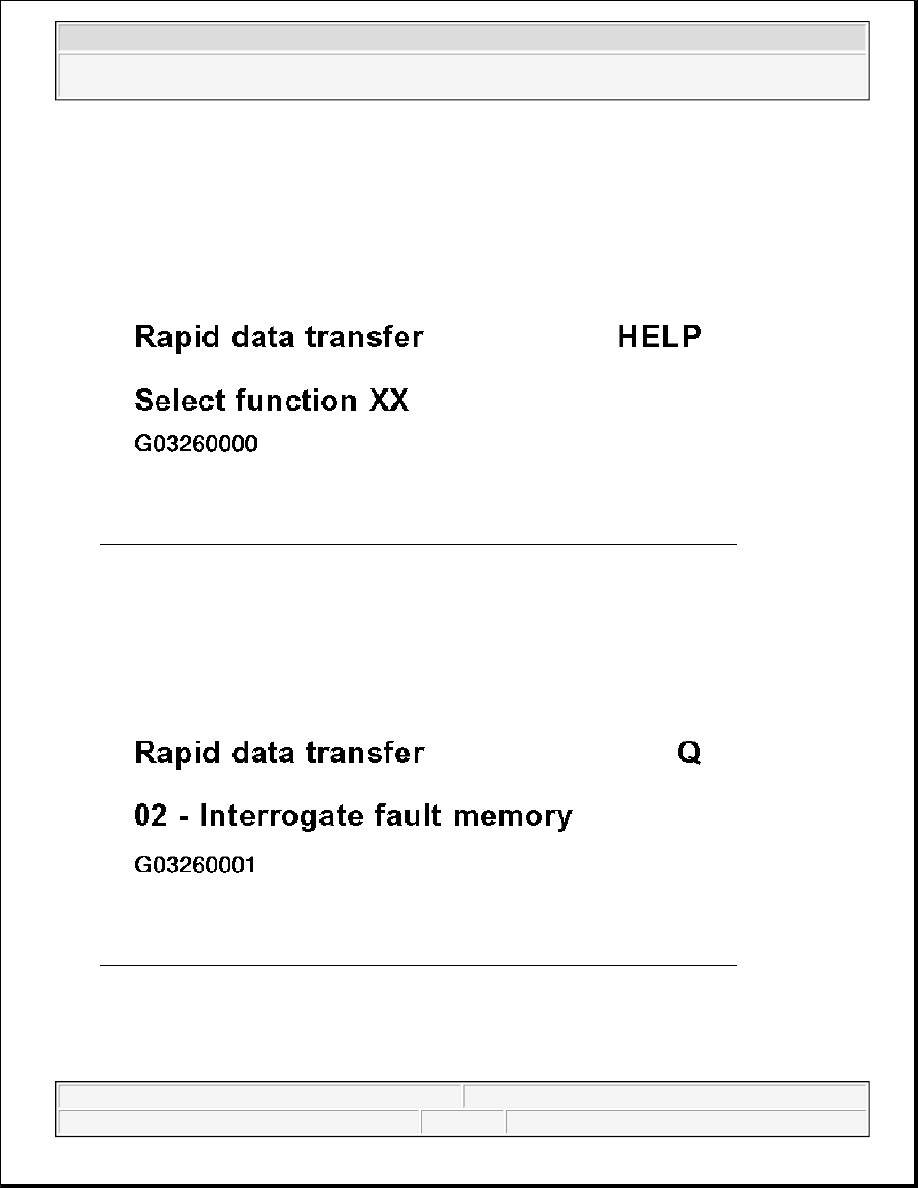

Fig. 101: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.

Fig. 102: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The number of stored malfunctions appears in the display.

The number of stored DTCs or "No DTC s recognized" appears in the display and are printed out one after



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



another.

z

When the last DTC has been displayed and printed out, rectify malfunctions as described in DTC table,
See Diagnostic Trouble Code (DTC) Table .

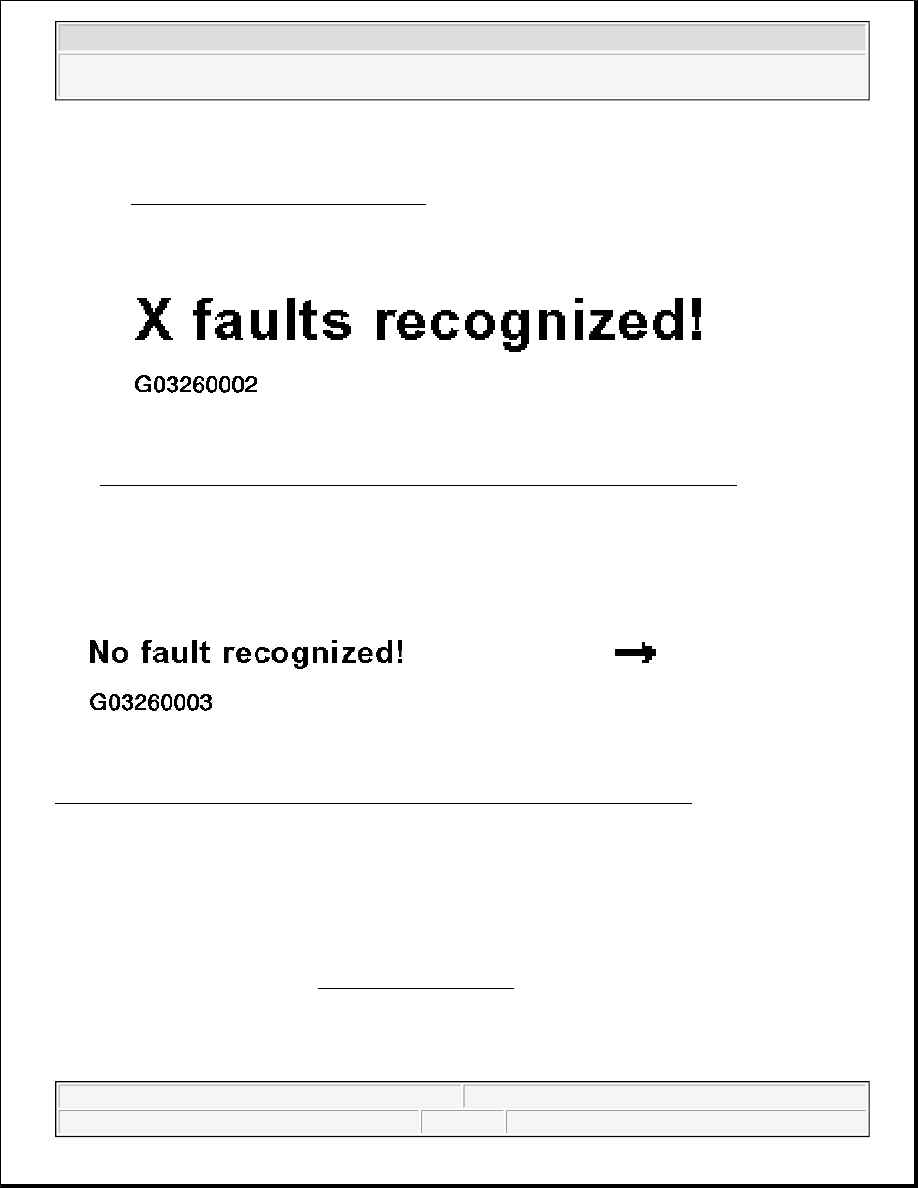

Fig. 103: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If "No DTC recognized" is displayed the program will return to the initial point after pressing --> button.

Fig. 104: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

If display not indicated as shown

See Scan tool operating instructions.

z

End output (function 06). See End Output (function 06) .

z

Switch off ignition and disconnect Data Link Connector (DLC).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



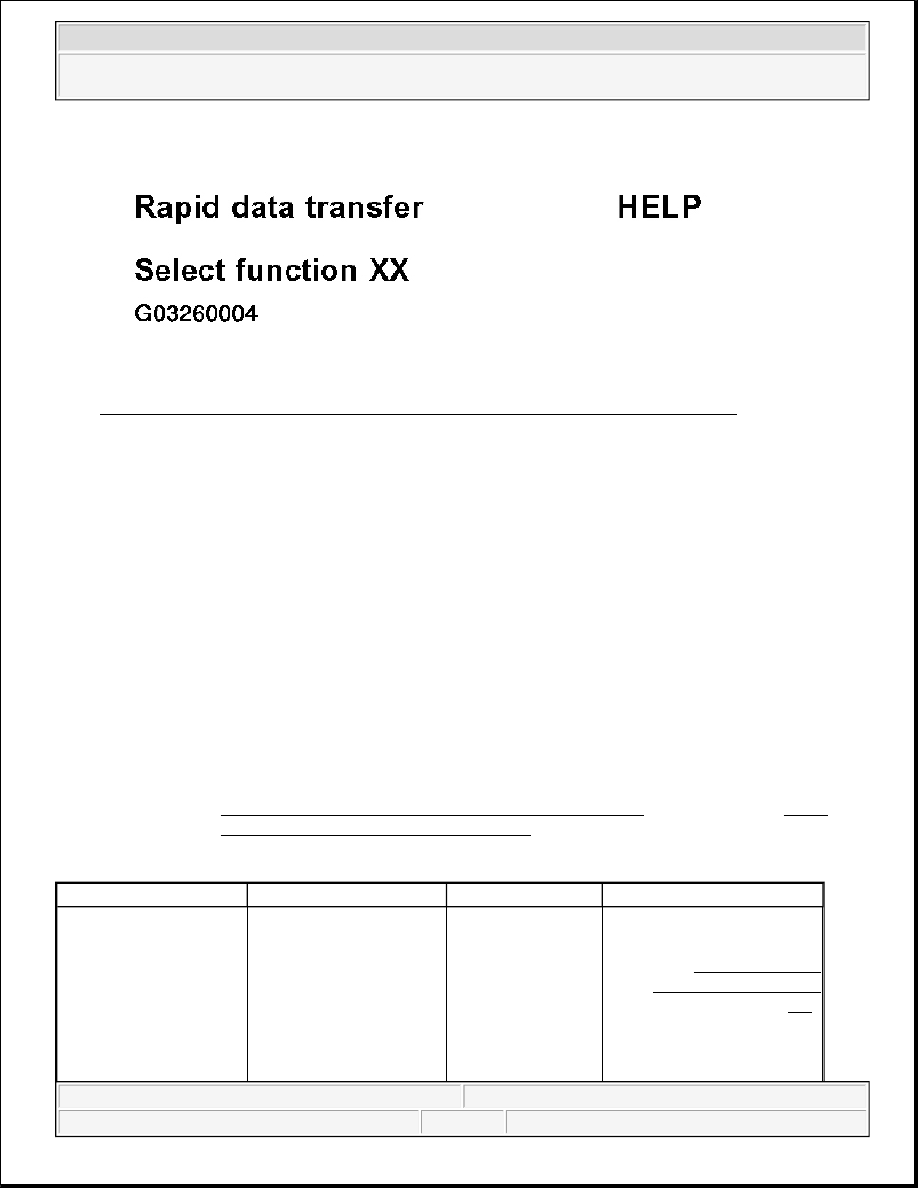

Fig. 105: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

DIAGNOSTIC TROUBLE CODES (DTC)TABLE (FROM 06.99 & UP)

NOTE:

z

The following table lists all malfunctions, with the corresponding 5 digit
code numbers, that can be recognized by control module with indicator
unit in instrument cluster insert -J285- and printed out by the VAG 1551
Scan Tool (ST).

z

If malfunctions do not occur regularly, these are displayed as occurring
sporadically ("SP").

z

DTC codes appear only on print-out.

z

Before replacing components, check the wiring and connections to these
components as well as ground connections, according to wiring diagram.

z

When repair has been carried out, Diagnostic Trouble Code (DTC) memory
must always be erased and checked again with VAG 1551 Scan Tool (ST).

z

If there is a specific complaint and no malfunctions are recognized after
checking Diagnostic Trouble Code (DTC) memory, carry out function 03
Output Diagnostic Test Mode (DTM), (function 03) , or function 08 Read
Measuring Value Block (function 08) .

VAG 1551 print out

Possible cause

Possible effects

Corrective Action

00771

(1)



Sender for fuel gauge -
G-

z

Open/short circuit
to B+

z

Short circuit to
ground

z

Open or short

circuit between -G-

and instrument

cluster

z

G- malfunctioning

Fuel gauge display

shows value 0

("empty")

z

Read measuring value

block, function 08. See

Read Measuring

Value Block (function

08)

z

Check for open or

short circuit using

wiring diagram



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Replace sender for fuel

gauge -G-

00779

(2)



Outside Air Temperature
sensor -G17-

z

Open/Short circuit
to B+

z

Short circuit to
ground

z

Open or short

circuit in wiring.

z

Outside air

temperature sensor -

G17-

malfunctioning

Display for outside

temperature display

shows three dashes

(-)

z

Check for open or

short circuit using

wiring diagram

z

Replace outside air

temperature sensor -

G17-

01039

(3)



Engine Coolant
Temperature (ECT)
sensor -G2-

z

Open/Short circuit
to B+

z

Short circuit to
ground

z

Wiring open circuit

or short between -

G2- and instrument

cluster

z

ECT sensor -G2-

malfunctioning

Coolant temperature

gauge needle on left

stop

z

Read measuring value

block, function OR,

see Read Measuring

Value Block (function

08)

z

Check for open or

short circuit in wiring

using wiring diagram

z

Replace ECT sensor -

G2-

01044
Control module
incorrectly coded

z

A control module

connected to vehicle

CAN Data Bus

network is

incorrectly coded

z

A control module

connected to vehicle

CAN Data Bus

network is

malfunctioning

Driveability

problems (shift

pressure, load shift

impact)

Dynamic driving

regulation

inoperative

z

Check DTC memory

of all control modules

connected to vehicle

CAN Data Bus,

troubleshoot and repair

as necessary.

z

Confirm correct

coding of all control

modules coding

connected to vehicle

CAN Data Bus.

z

Replace control

module.

01312
Data Bus Drive

z

Faulty

z

Fault in CAN Data

Bus wiring

z

Data Bus Drive in

Bus-Off condition

Driveability

problems (shift

pressure, load shift

impact) no driving

dynamic regulation

z

Read measuring value

block, function OR,

see Read Measuring

Value Block (function

08)

z

Check DTC memory

of all control modules

connected to vehicle

CAN Data Bus,

troubleshoot and repair

as necessary



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
