Coding XXXXX = Code number

z

WSC 00000 = Workshop code (On control modules not previously coded (e.g.: on new replacements),
the workshop code is automatically stored in the control module memory when accessing OBD functions
for the first time. An existing workshop code indicates location which last performed coding on the unit.)

CAUTION: Part numbers are for reference only. Always check with your Parts

Department for the latest parts information.

NOTE:

z

If this message appears in thay:

{

Press --> button.

MMO instrument clusters are identified by IMMO-IDENTNO: VWZ6

VDO instrument clusters are identified by IMMO-IDENTNO: VWZ7

M73 instrument clusters are identified by IMMO-IDENTNO: VWZ5

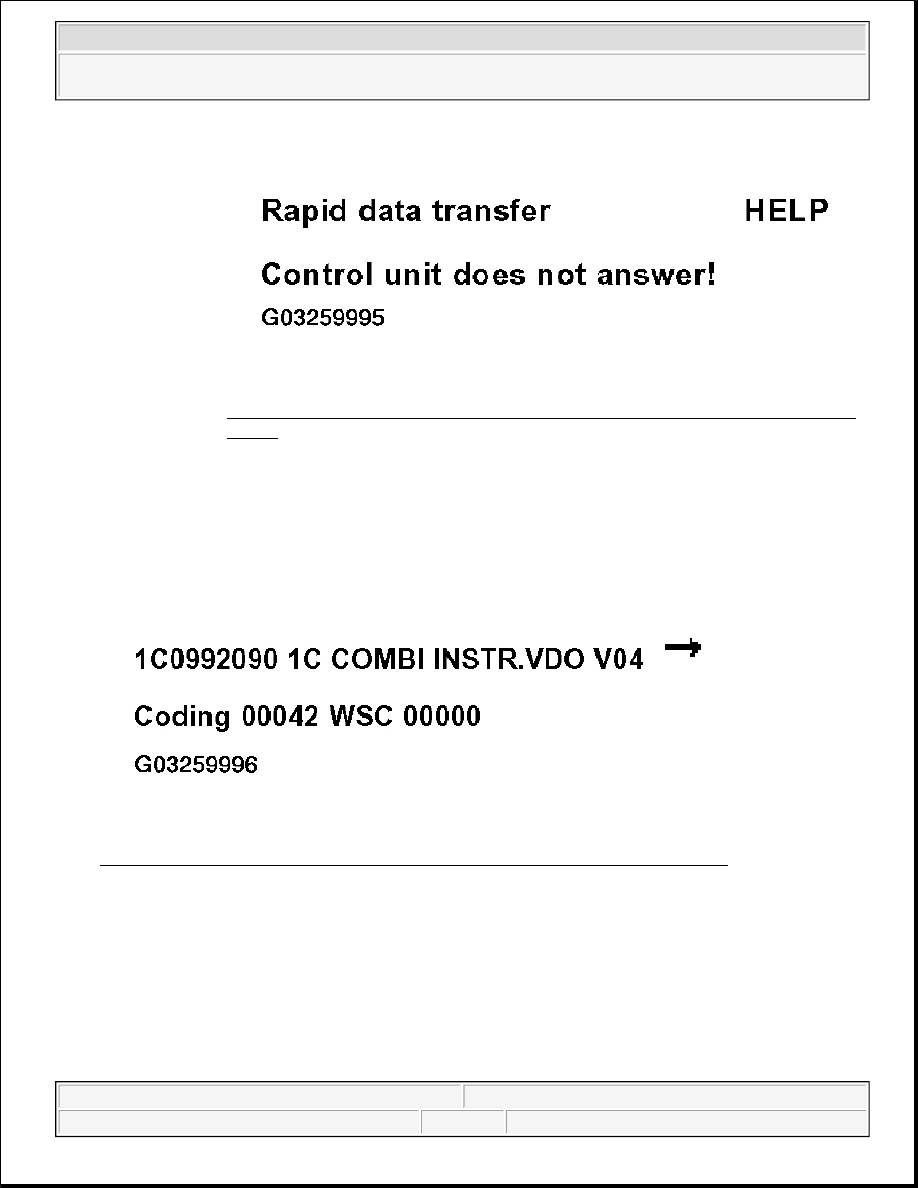

Fig. 95: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (6
Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If this message appears in the display:

Will be indicated on display:

{

Press "HELP" button to print out a list of possible malfunction causes.

{

After rectifying malfunction, re-enter address word 17 for instrument
cluster and press Q button to confirm.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display:

z

Press --> button.

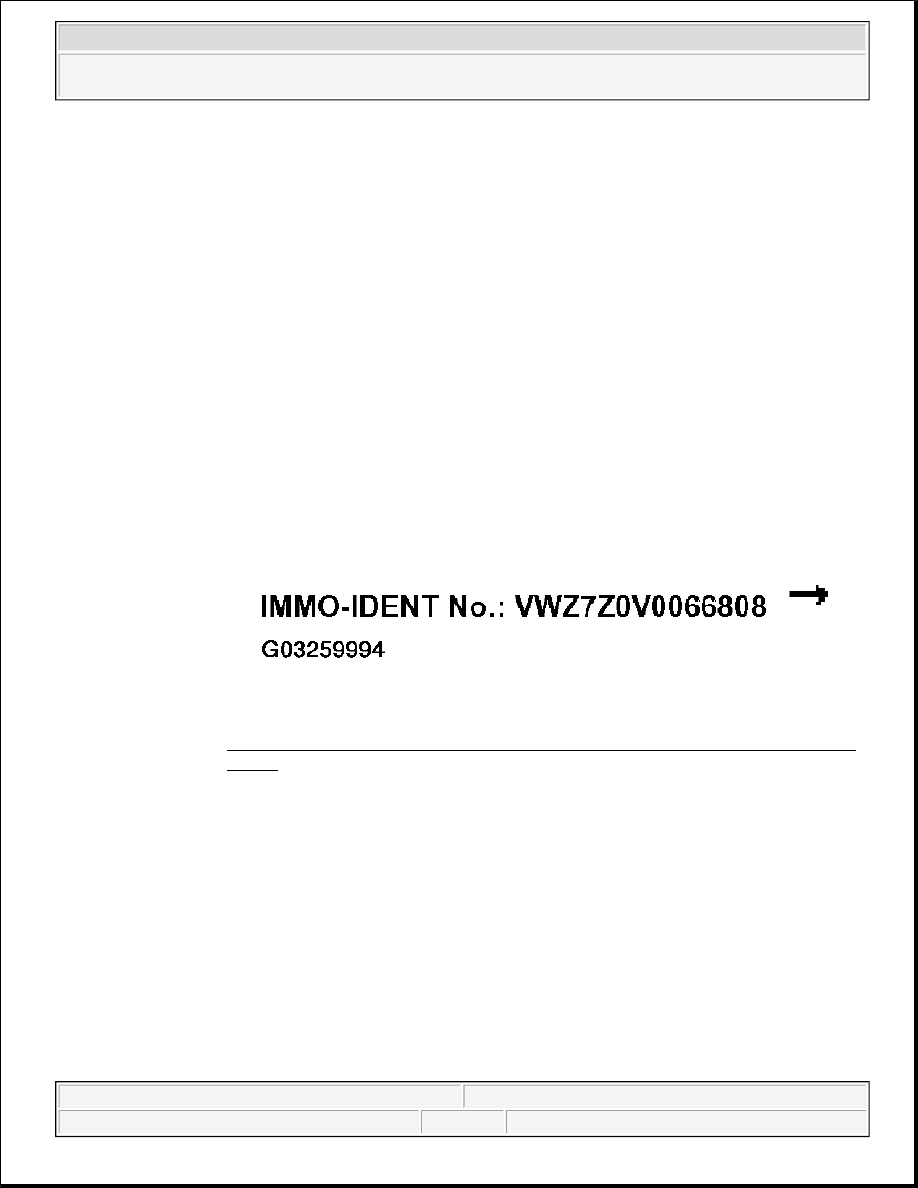

Fig. 97: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (8 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press --> button.

Fig. 96: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (7
Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 98: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (9 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

z

List of available functions

Fig. 99: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (10 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

List of available functions

LIST OF AVAILABLE FUNCTIONS (FROM 06.99 & UP)

Function
No.

Function Explanation

See

01 -

Check control module version

VAG 1551 Scan Tool (ST), connecting, selecting

functions & checking control module versions

02 -

Check Diagnostic Trouble

Code (DTC) memory

Diagnostic Trouble Code (DTC) memory, checking

(function 02)

03 -

Output Diagnostic Test Mode

(DTM)

Output Diagnostic Test Mode (DTM), (function 03)

05 -

Erase DTC memory

See Diagnostic Trouble Code (DTC) memory, erasing



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display (select function):

Fig. 100: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (11 Of 11)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING (FUNCTION 02)

z

Connect VAG 1551 Scan Tool (ST), input address word 17, "Instrument cluster", and press --> button
until "Select function XX" appears in display, See VAG 1551 Scan Tool (ST), connecting, selecting
functions & checking control module versions

(function 05)

06 -

End output

INSTRUMENT CLUSTER 10.00, CODING

(FUNCTION 07)

07 -

Code control module 10.00

INSTRUMENT CLUSTER 10.00, CODING

(FUNCTION 07)

07 -

Code control module 10.00

Instrument cluster 10.00, coding (function 07)

08 -

Read measuring value block

Read Measuring Value Block (function 08)

10 -

Adaptation

Adaptation (function 10)

NOTE:

z

Press HELP button to print out a complete list of available functions. This
list indicates function capability of VAG 1551 Scan Tool (ST) only, and
does not necessarily reflect function capability of vehicle systems
equipped with OBD. For instrument cluster address word 17, do not
attempt to select functions other than those listed above.

z

After function is completed and forwarded with --> button, VAG 1551 Scan
Tool (ST) returns to following start position:

NOTE:

DTCs stored in memory along with corresponding malfunction descriptions can
only be displayed by initiating the On Board Diagnostic program and checking
DTC memory (function 02).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
