Volkswagen New Beetle. Manual - part 420





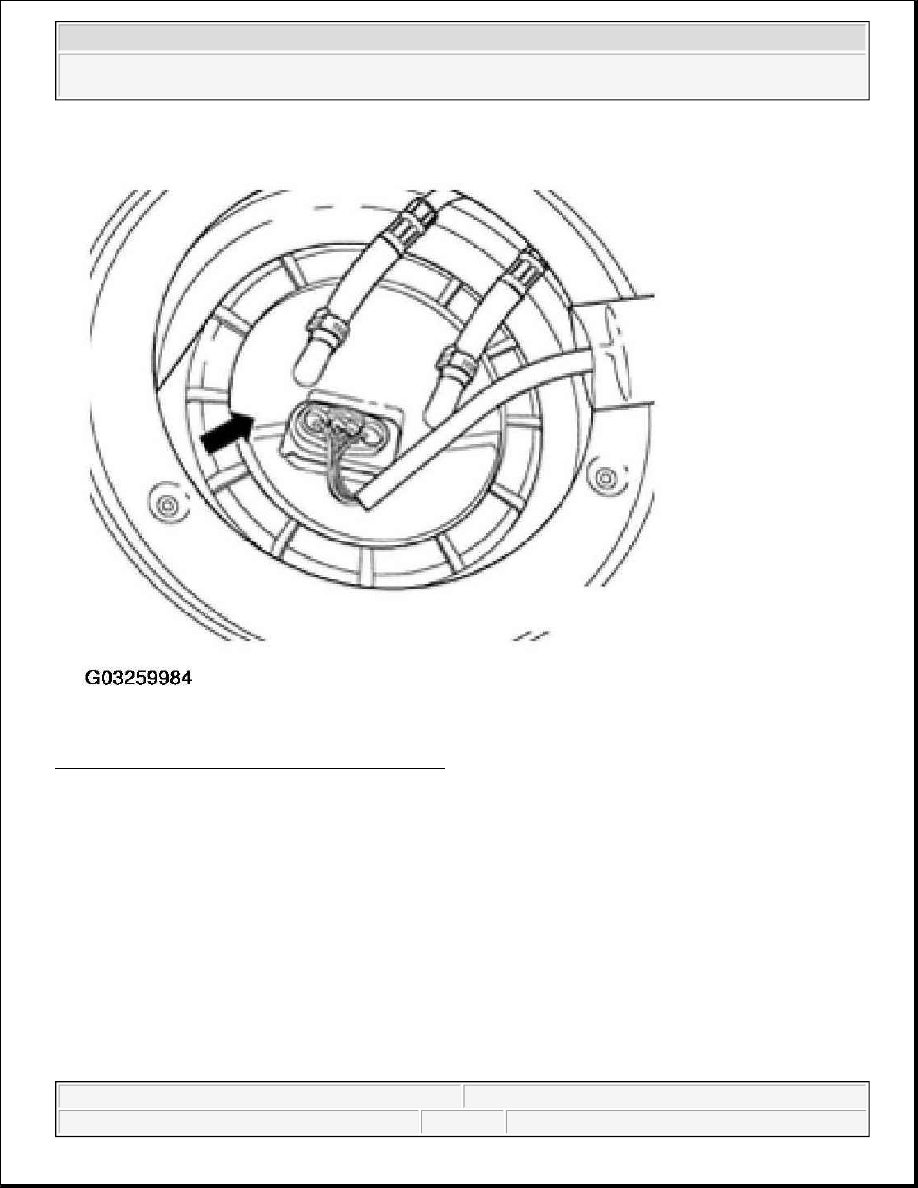

Fig. 85: Identifying Sender For Fuel Gauge Sender
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The sender for fuel gauge -G- is located in the fuel tank on the fuel delivery unit -arrow-.

To remove and install fuel delivery unit, see appropriate article in ENGINE/FUEL SYSTEM.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



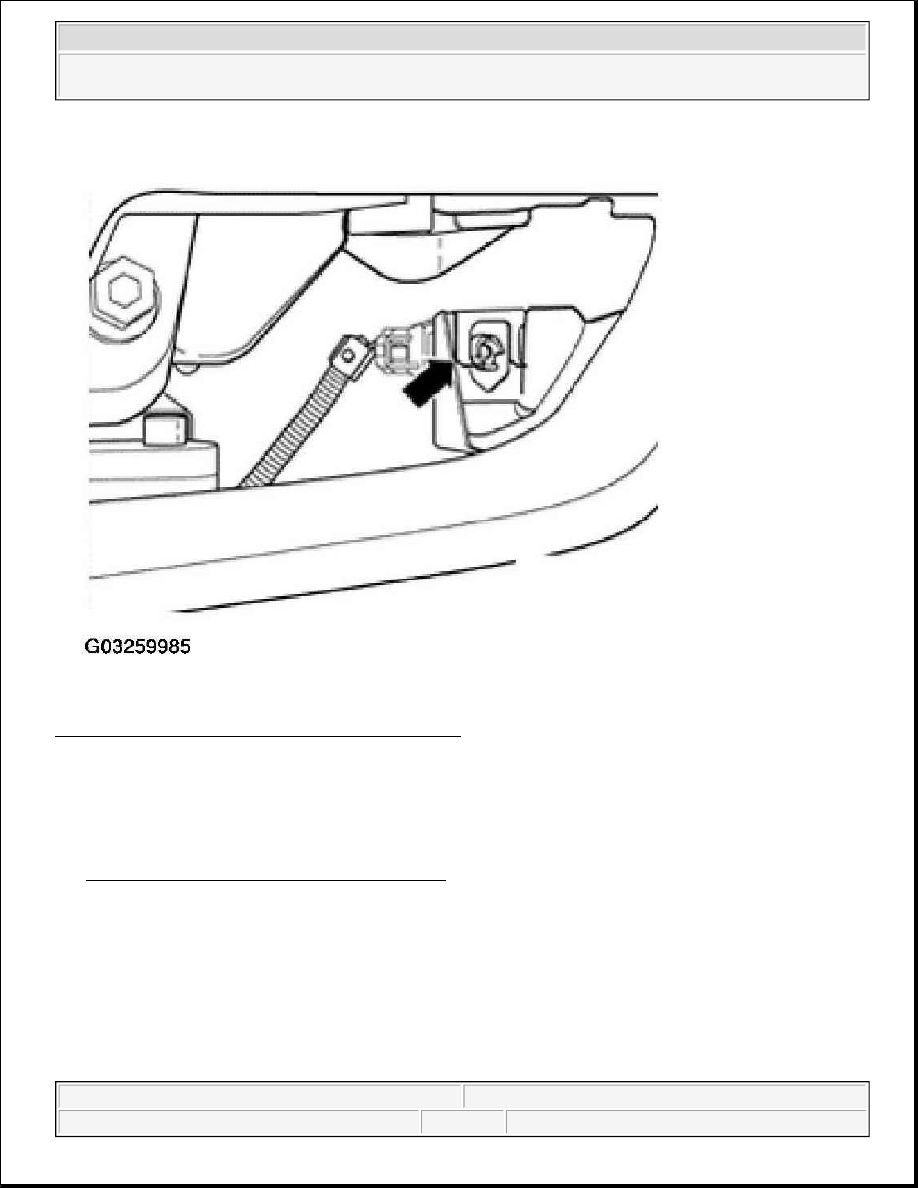

Fig. 86: Identifying Outside Air Temperature Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The outside air temperature sensor -G17- is located on left of front bumper behind the outer air grille.

Unclip air grille to remove sender.

See FRONT BUMPER, ASSEMBLY OVERVIEW .

VAG 1551 SCAN TOOL (ST), CONNECTING, SELECTING FUNCTIONS & CHECKING CONTROL
MODULE VERSIONS

Special tools, testers, and auxiliary items

z

VAG 1551 or VAG 1552 Scan Tool (ST)

z

Optional: VAS 5051 Vehicle Diagnostic Tester



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



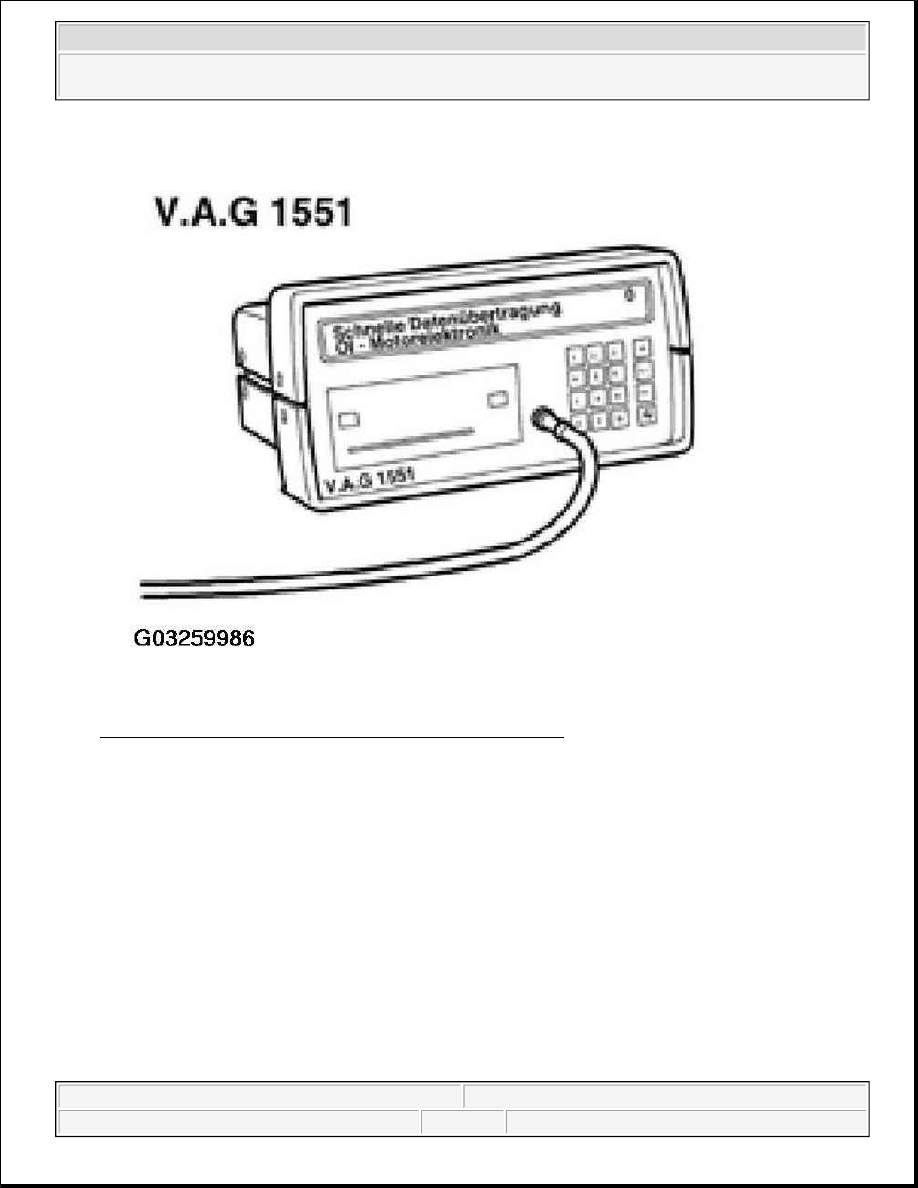

Fig. 87: Identifying VAG 1551 Or VAG 1552 Scan Tool (ST)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VAG 1551/3 or 1551/3B adapter cable



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



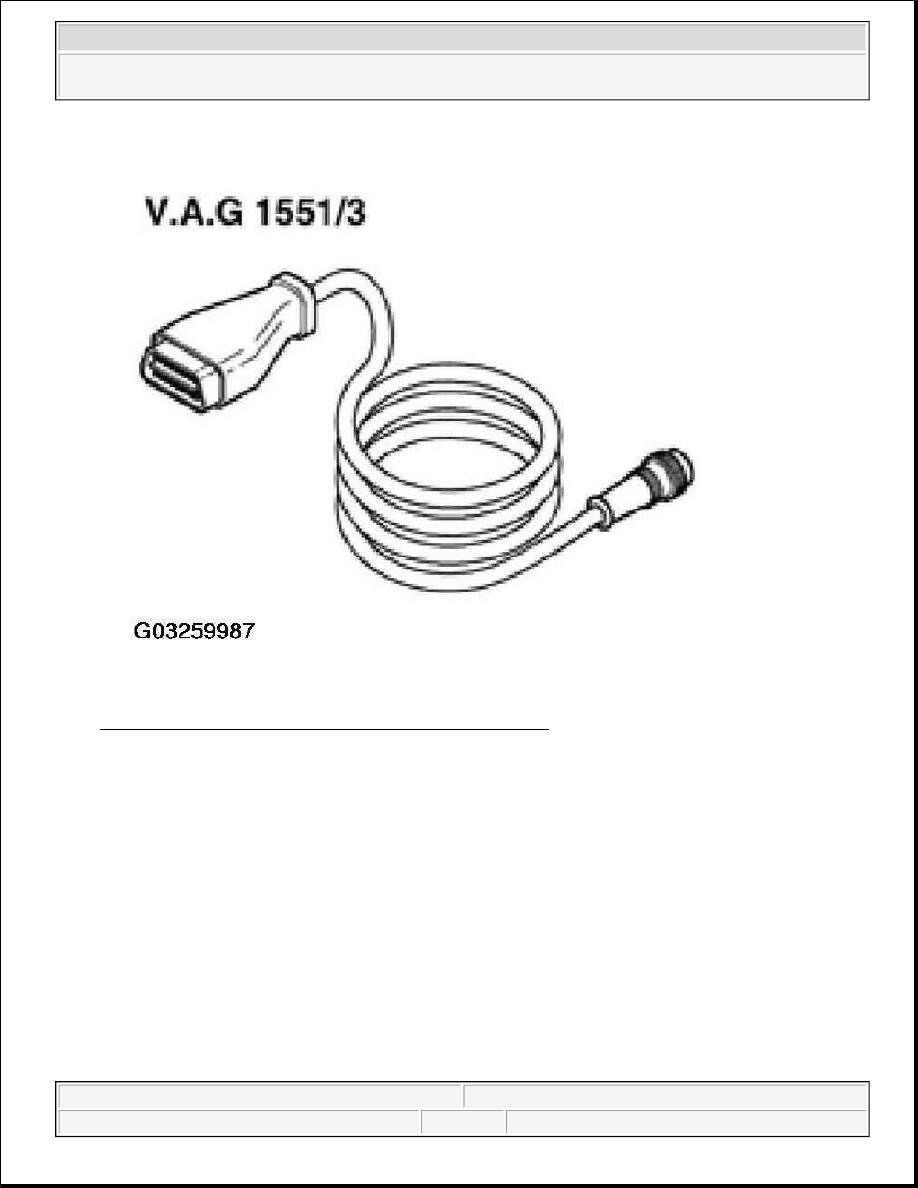

Fig. 88: Identifying VAG 1551/3 Or 1551/3B adapter cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Prerequisites:

z

All fuses OK according to wiring diagram.

z

Battery (B+) voltage at least 9 Volts.

Connecting

With ignition switched off, connect VAG 1551 Scan Tool (ST) with adapter cable 1551/3 to the Data Link
Connector (DLC) located above ashtray

NOTE:

z

VAG 1552 Scan Tool (ST) may be used instead of the VAG 1551 Scan Tool
(ST), however a print-out is not possible.

z

The following procedure and display references pertain only to VAG 1551
Scan Tool (ST).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
