Volkswagen New Beetle. Manual - part 418

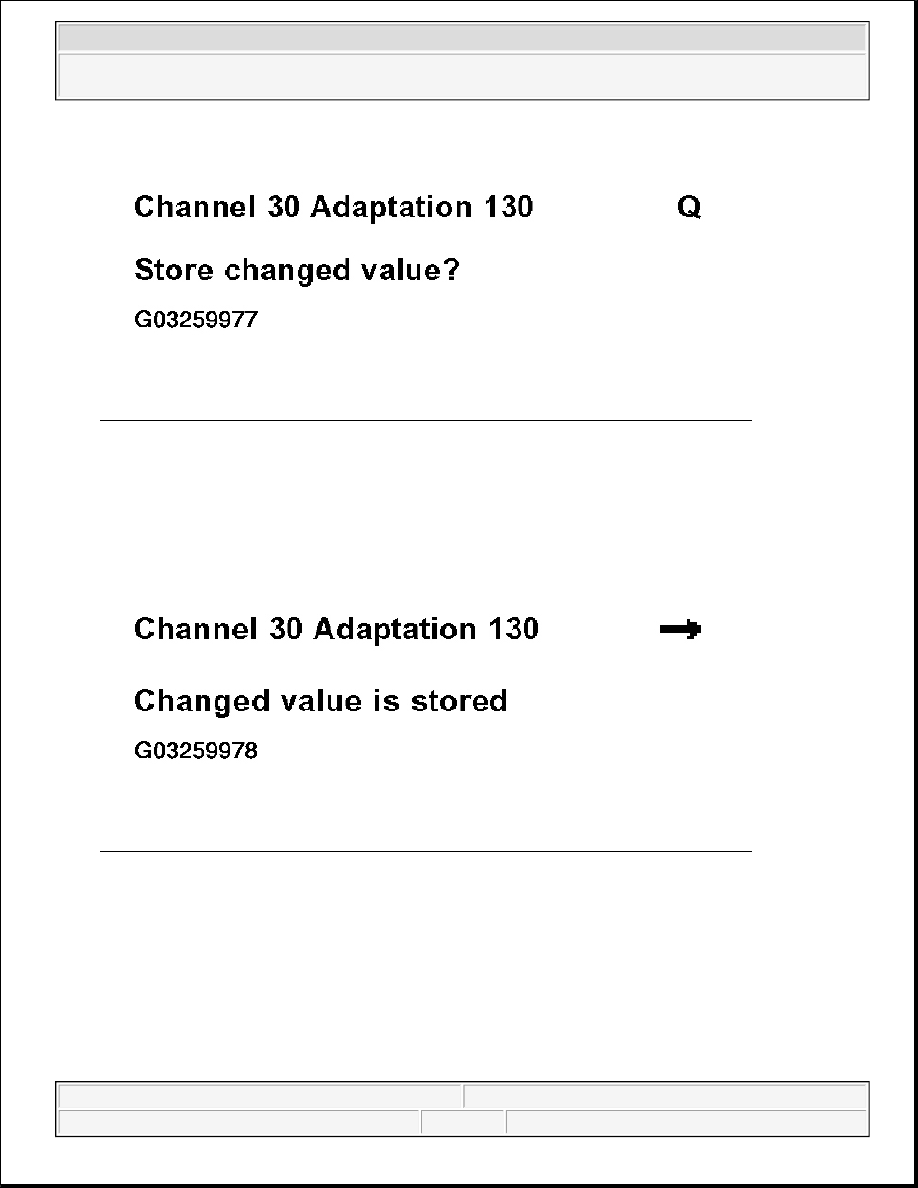

Fig. 77: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (9 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (example only):

z

Press -Q- button to confirm input .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 78: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (10 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press --> button to complete adaptation sequence.

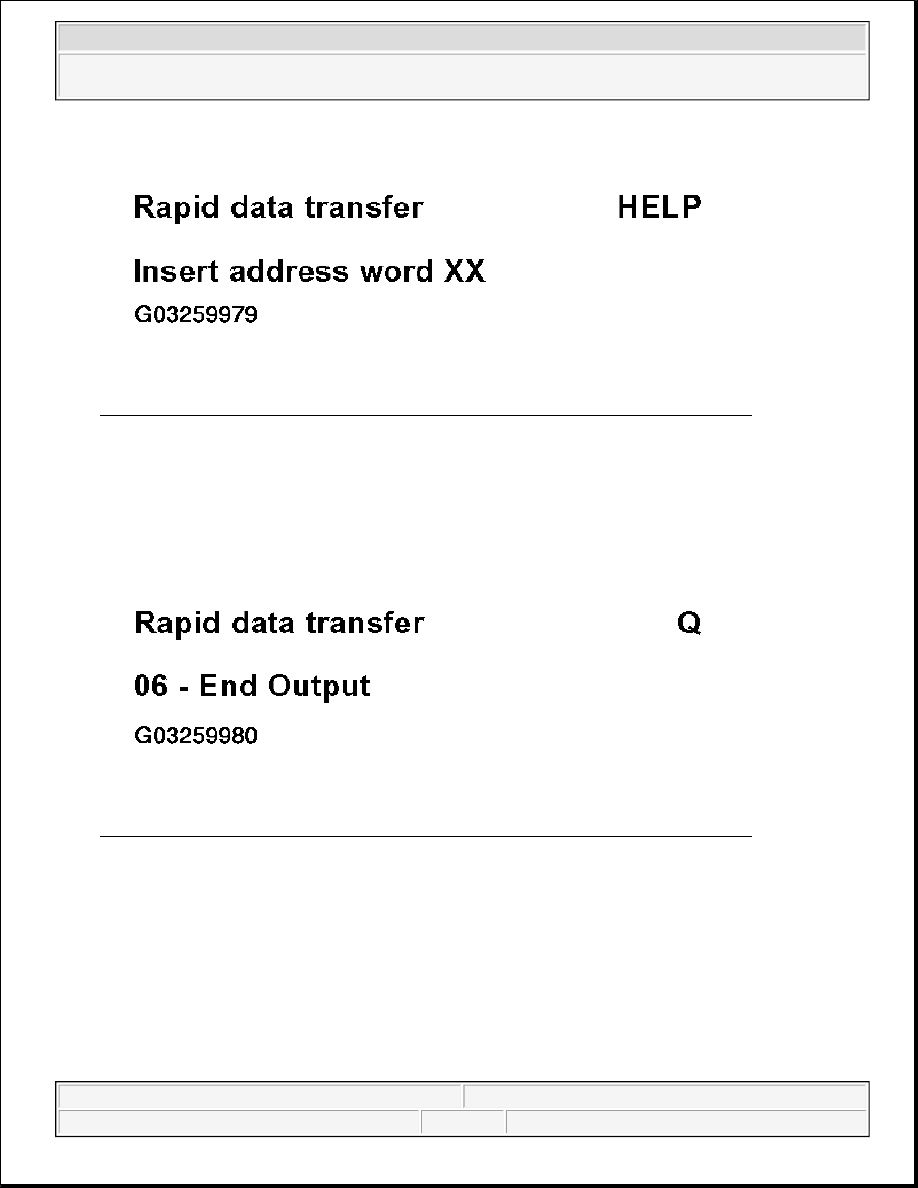

Fig. 79: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (11 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -0- and -6- to select function 06 "End Output".

NOTE:

If fuel gauge cannot be adapted correctly, replace fuel gauge sender.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 80: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (12 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

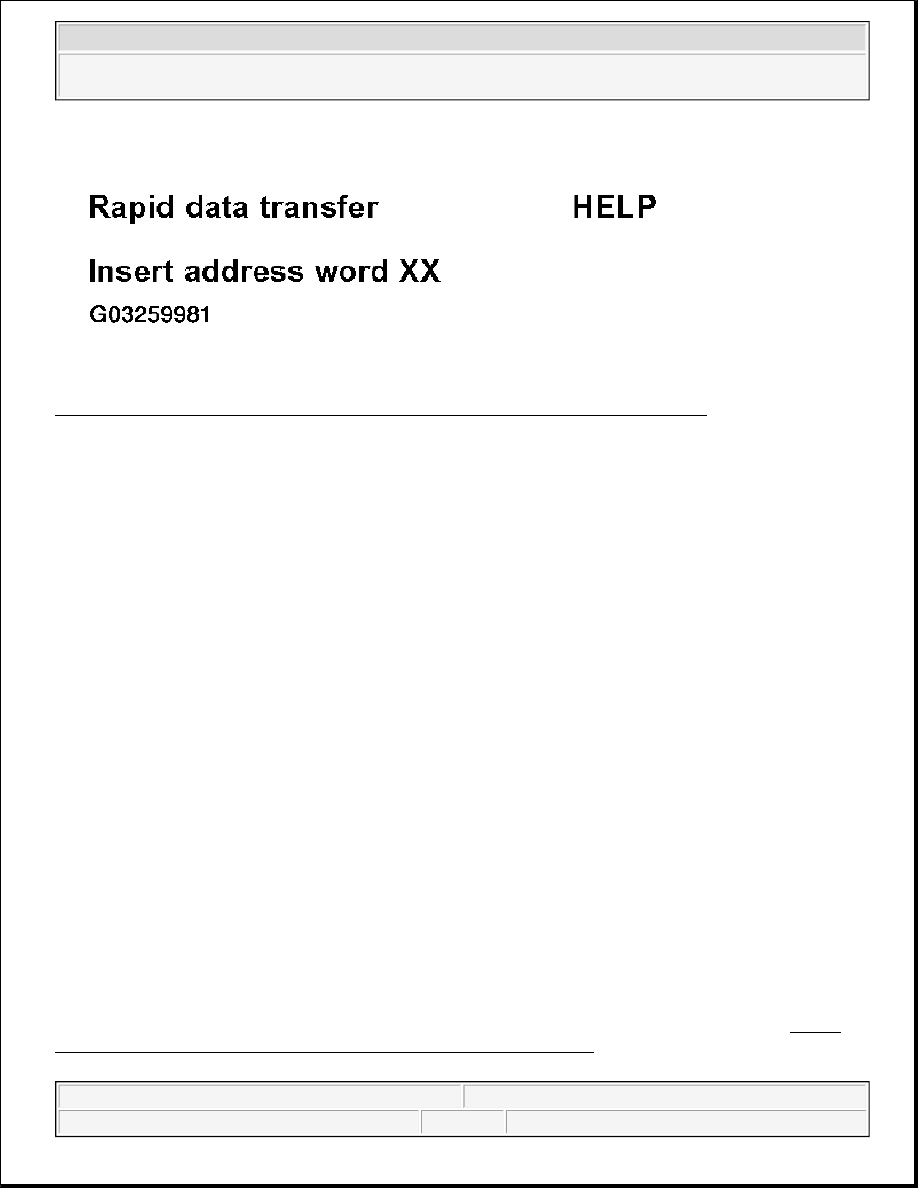

Fig. 81: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (13 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

The scan tool returns to the start of the program sequence.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 82: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (14 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INSTRUMENT CLUSTER FROM 06.99 & UP, ON BOARD DIAGNOSTIC (OBD)

GENERAL INFORMATION

The instrument cluster is controlled by an internal microprocessor with On Board Diagnostic (OBD) capability.
If malfunctions occur in monitored sensors and components, Diagnostic Trouble Codes (DTC) will be stored in
memory together with an indication of malfunction type. A maximum of 4 DTCs can be stored simultaneously.

Sporadic malfunctions (indicated in the readout by "SP") are automatically cancelled if not repeated in the next
50 engine start cycles.

For OBD purposes, the instrument cluster counts one start cycle whenever the ignition is switched on longer
than 5 min. and a minimum speed of 30 km/h (18.5 mp/h) is exceeded.

Before performing any troubleshooting or inspection, always begin by checking for DTCs using the OBD
program. DTCs stored in memory are retrieved/checked with either the VAG 1551/1552 Scan Tool (ST) or
VAS 5051 Vehicle Diagnostic Tester.

Instrument clusters from 06.99 are integrated into the vehicle CAN Data Bus network (may also be known as
"CAN-Bus" or "Data-Bus").

The Data Bus On Board Diagnostic Interface -J533- (which is integrated into the instrument cluster) enables
data to be exchanged between the vehicle CAN Data-Bus network and the Data Link Connector (DLC) "K-
wire".

The Data Bus On Board Diagnostic Interface -J533- has specific On Board Diagnostic (OBD) capabilities.

-J533- must be coded depending on the vehicle equipment when replacing the instrument cluster. See DATA
BUS ON BOARD DIAGNOSTIC INTERFACE -J533- "GATEWAY"
 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
