Indicated on display

z

Press -Q- button to confirm input.

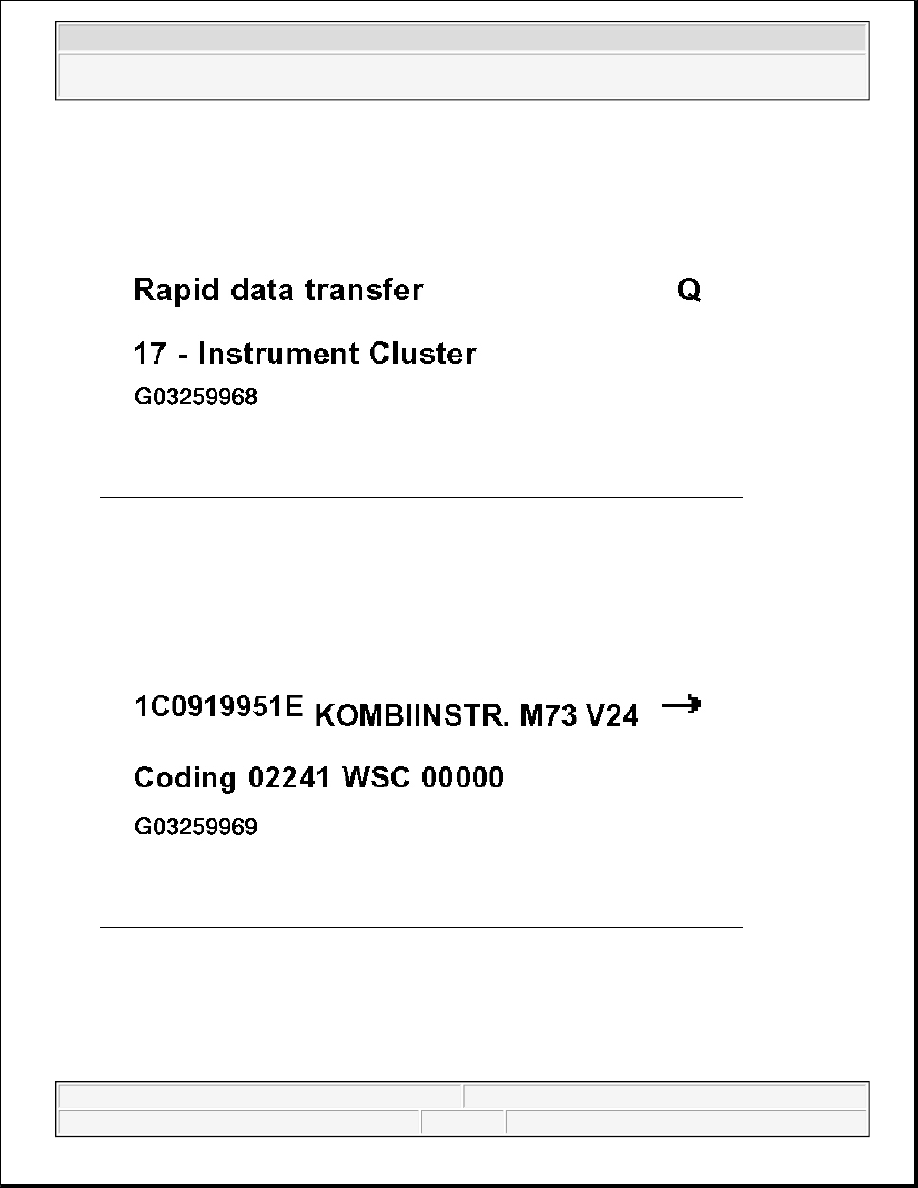

Fig. 69: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (1 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (example only)

z

Press --> button.

Fig. 70: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (2 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (select function):

z

Press buttons -1- and -0- to select function 10 "Adaptation".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

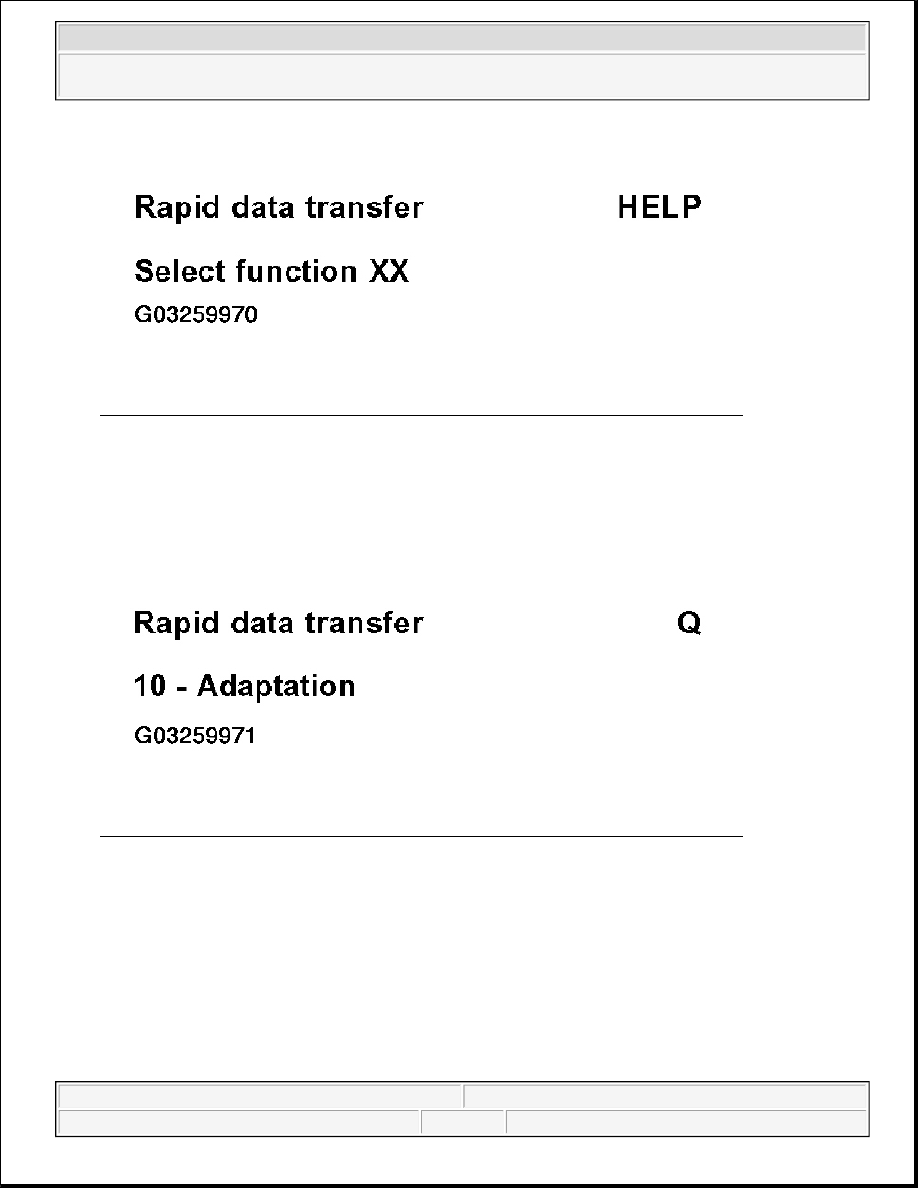

Fig. 71: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (3 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 72: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (4 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -3- and -0- to select channel 30.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

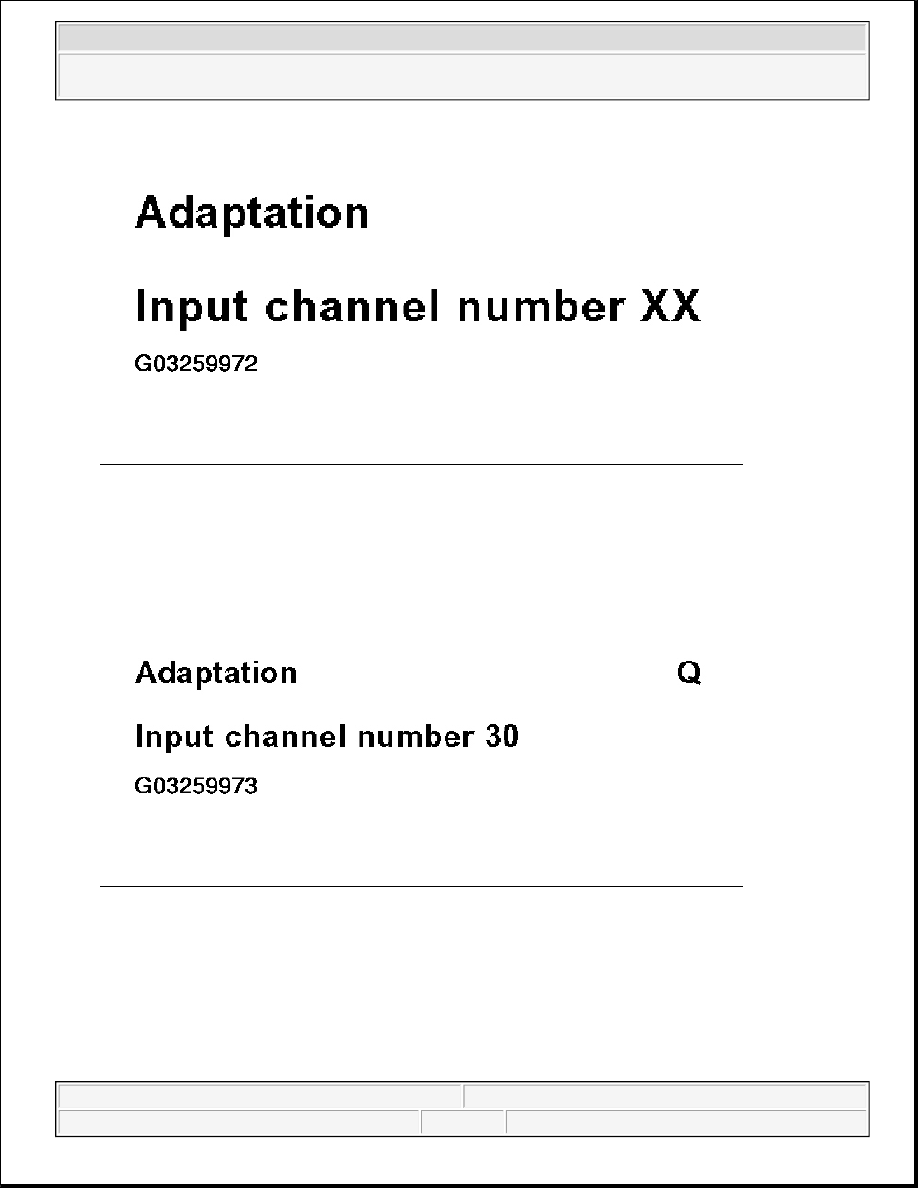

Fig. 73: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (5 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 74: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (6 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Use button -1- to decrease adaptation value down to 120.

z

Use button -3- to increase adaptation value up to 136, e.g.130.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

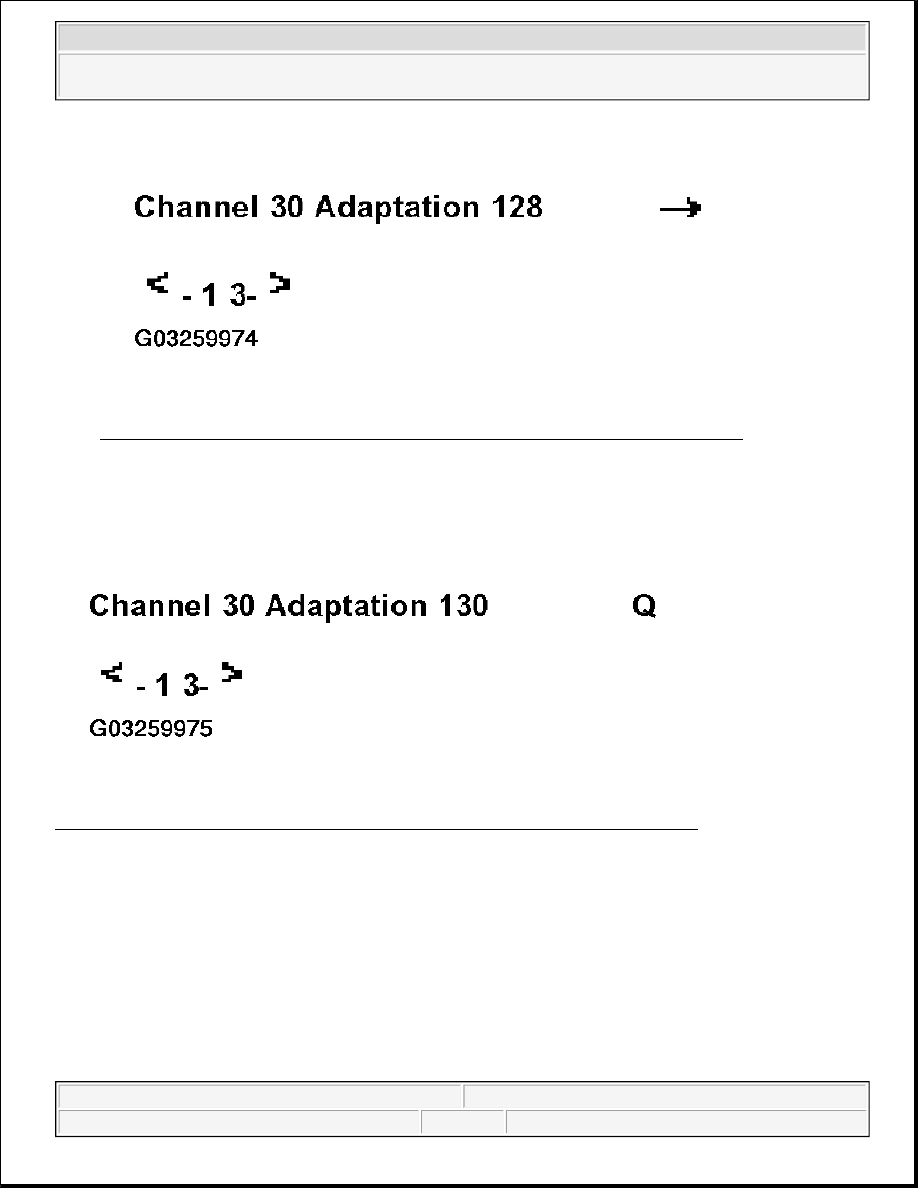

Fig. 75: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (7 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Fig. 76: VAG 1551 Scan Tool Display - Fuel Gauge Checking, Up To 06.99 (8 Of 14)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adaptation is correct when the fuel gauge needle is positioned on the right-hand red graduation (reserve), as
illustrated.

When needle position is OK:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
