Volkswagen New Beetle. Manual - part 415

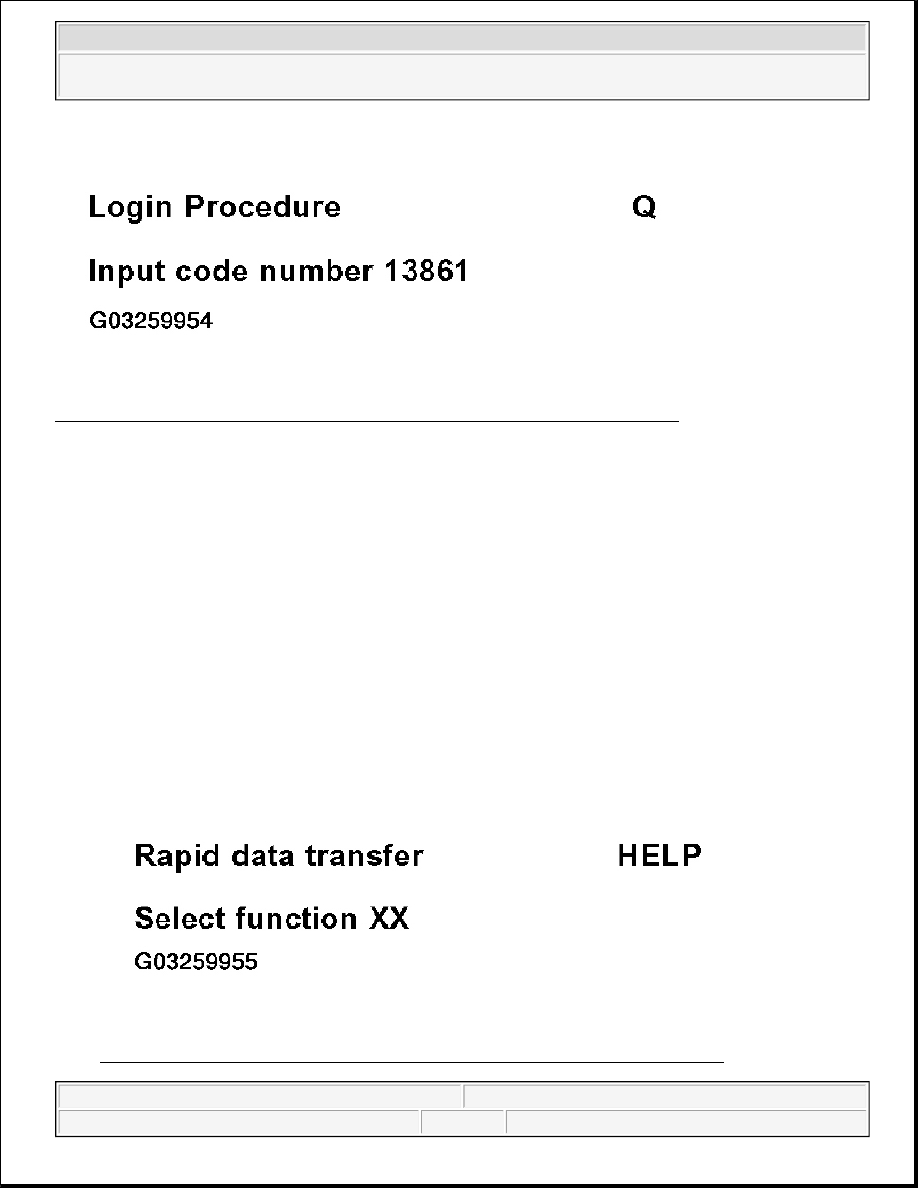

Fig. 55: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (4 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If a wrong code number is entered 3 times, "FAIL" appears in odometer display.

In this case the ignition must be switched off and on again, and the login procedure repeated using the correct
code number.

Electronic radio theft protection must disengage.

See

z

Press -Q- button to confirm input.

Indicated on display

z

Press buttons -1- and -0- to select function 10, "Adaptation".

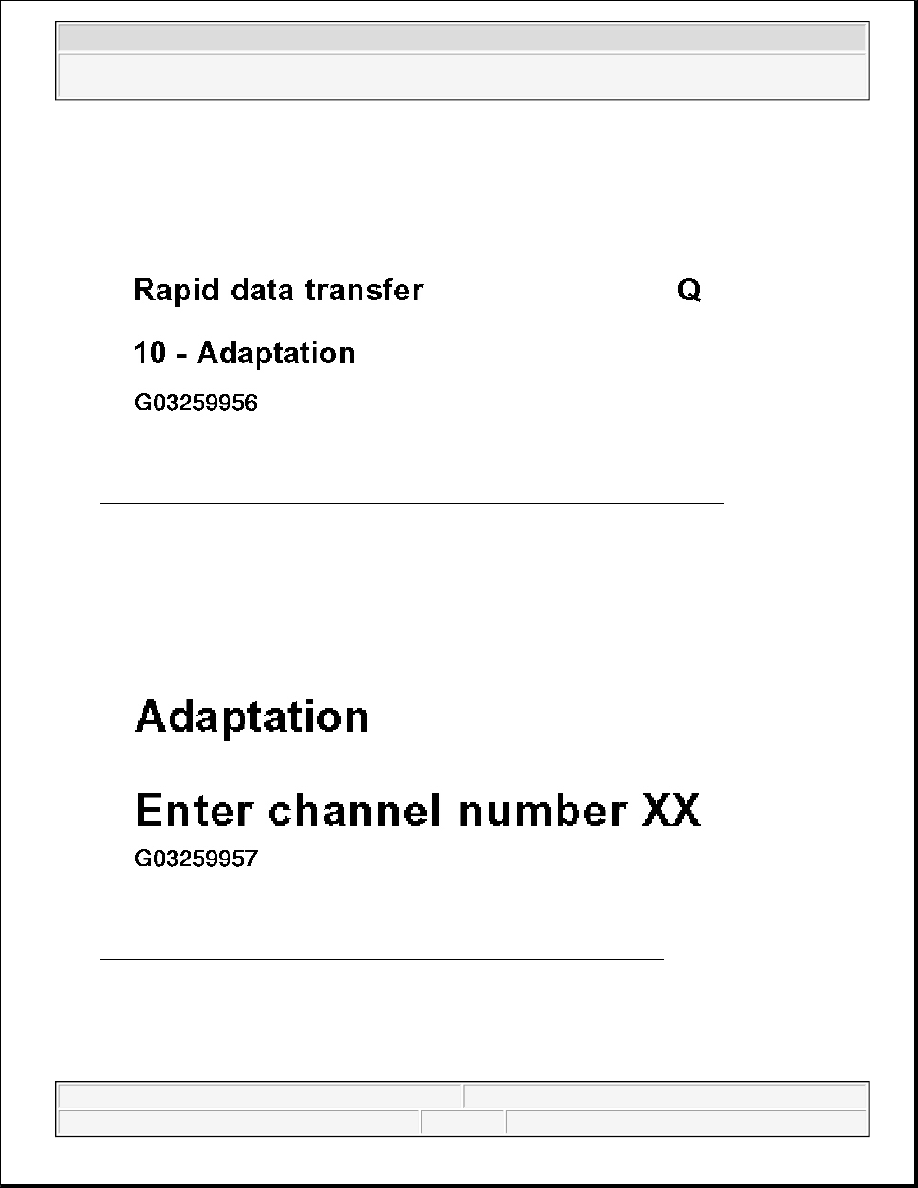

Fig. 56: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (5 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display

z

Press -Q- button to confirm input.

Fig. 57: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (6 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -0- and -9- to select channel 09.

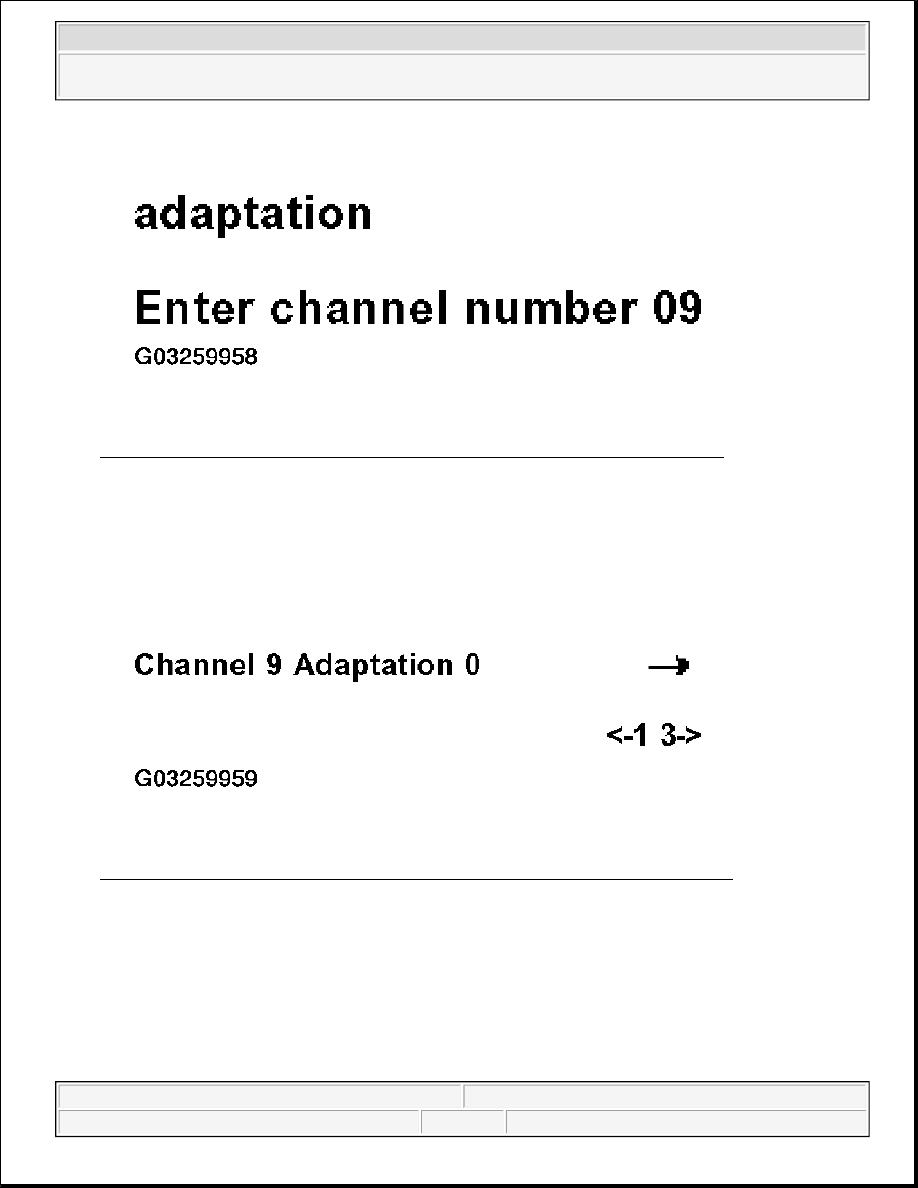

Fig. 58: VAG 1551 Scan Tool Display - Adaptation, Up To 06.99 (7 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 59: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (8 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Move forward in program by pressing --> button.

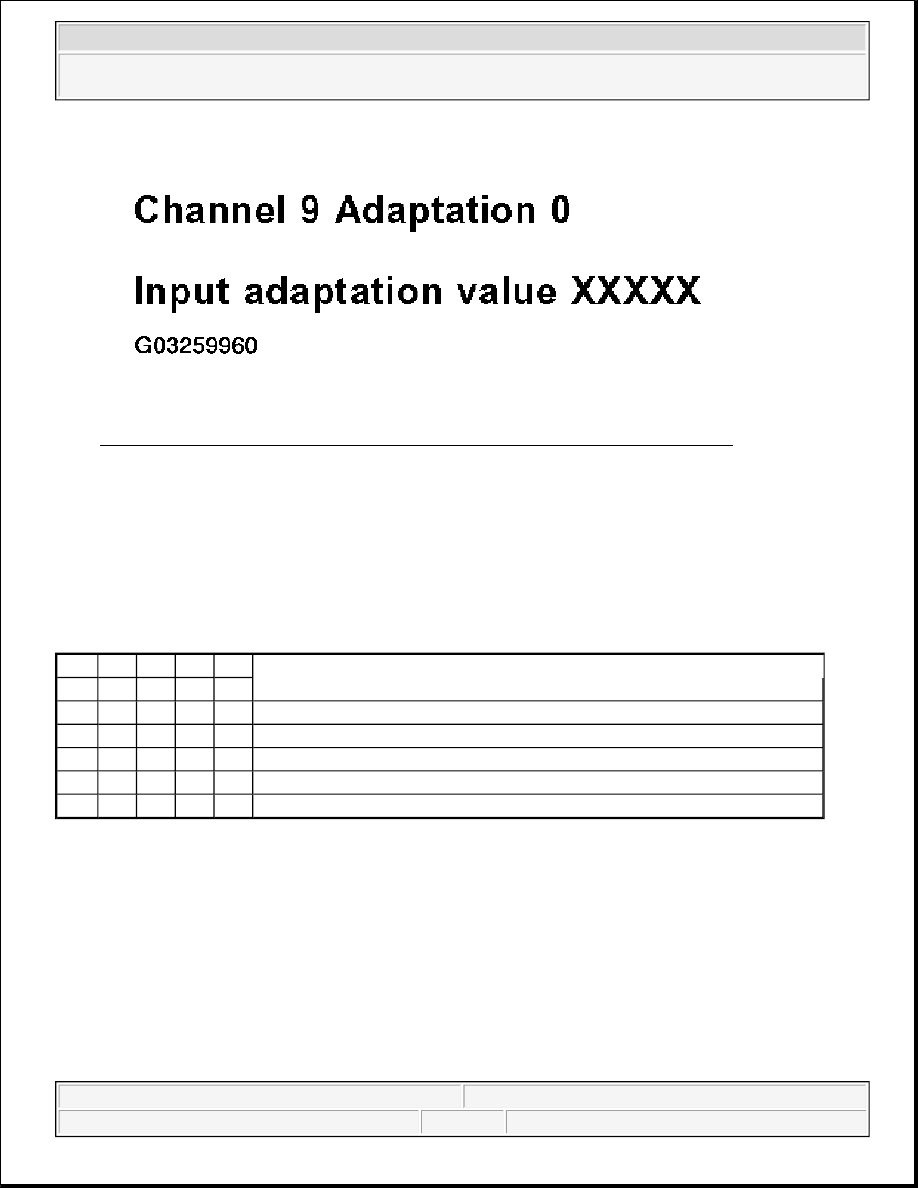

Fig. 60: VAG 1551 Scan Tool Display - Adaptation, Up To 006.98 Models (9 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Input adaptation value (odometer reading) using VAG 1551/1552 button pad.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 61: VAG 1551 Scan Tool Display - Adaptation, Up To 06.98 Models (10 Of 17)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The last position of the odometer reading must be rounded off to the nearest 10.

For US models with Magneti Marelli (M73) instrument clusters, enter odometer reading in miles.

An odometer reading of 89627 miles (US) or 89627 kilometers (Canada) produces an adaptation value of
08963:

EXAMPLE OF ODOMETER ADAPTION VALUE (UP TO 06.98 MODELS)

z

Input adaptation value using VAG 1551/1552 button pad.

Indicated on display

z

Press -Q- button to confirm input.

0

8

9

6

3

X









Hundred thousands: 100000 -655350



X







Ten thousands:10000 - 90000





X





Thousands: 1000 - 9000







X



Hundreds: 100 - 900









X

Tens: 10-90











Ones: round up to next ten
