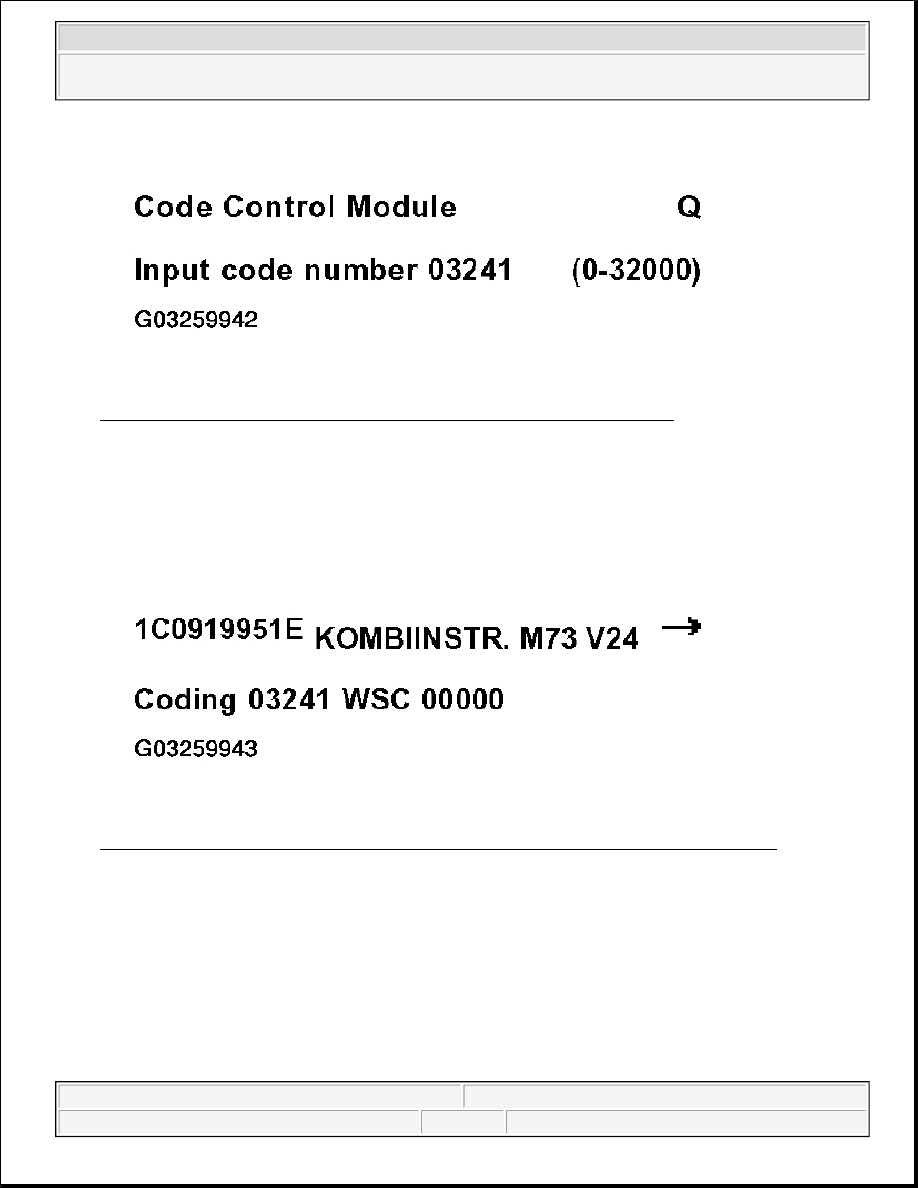

Fig. 43: VAG 1551 Scan Tool Display - Instrument Cluster Coding (2 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (example only)

z

Press --> button.

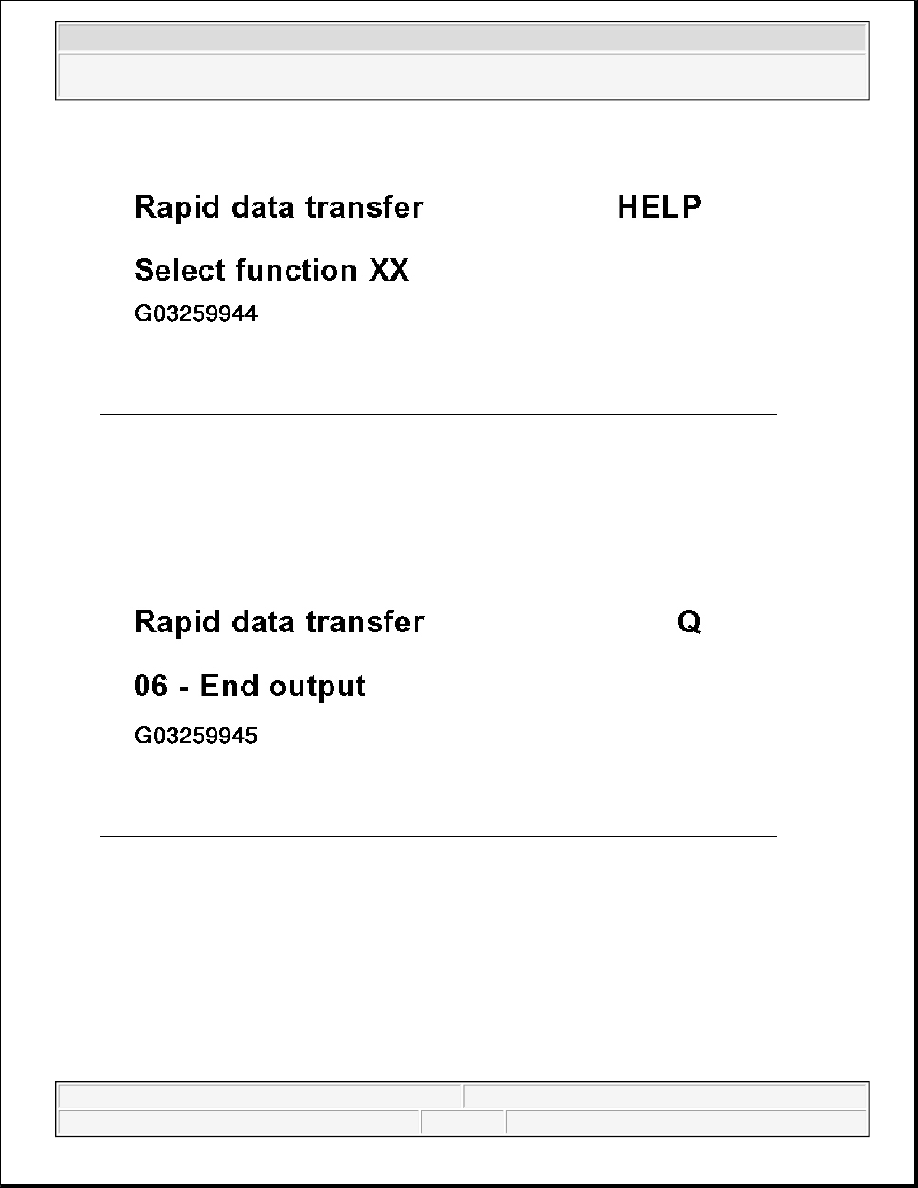

Fig. 44: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

End output:

z

Press buttons -0- and -6- to select "End Output" function 06.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 45: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 46: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

The scan tool returns to the start of the program sequence.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 47: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 06.99 (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

READ MEASURING VALUE BLOCK (FUNCTION 08)

Use this function to observe various instrument cluster inputs.

z

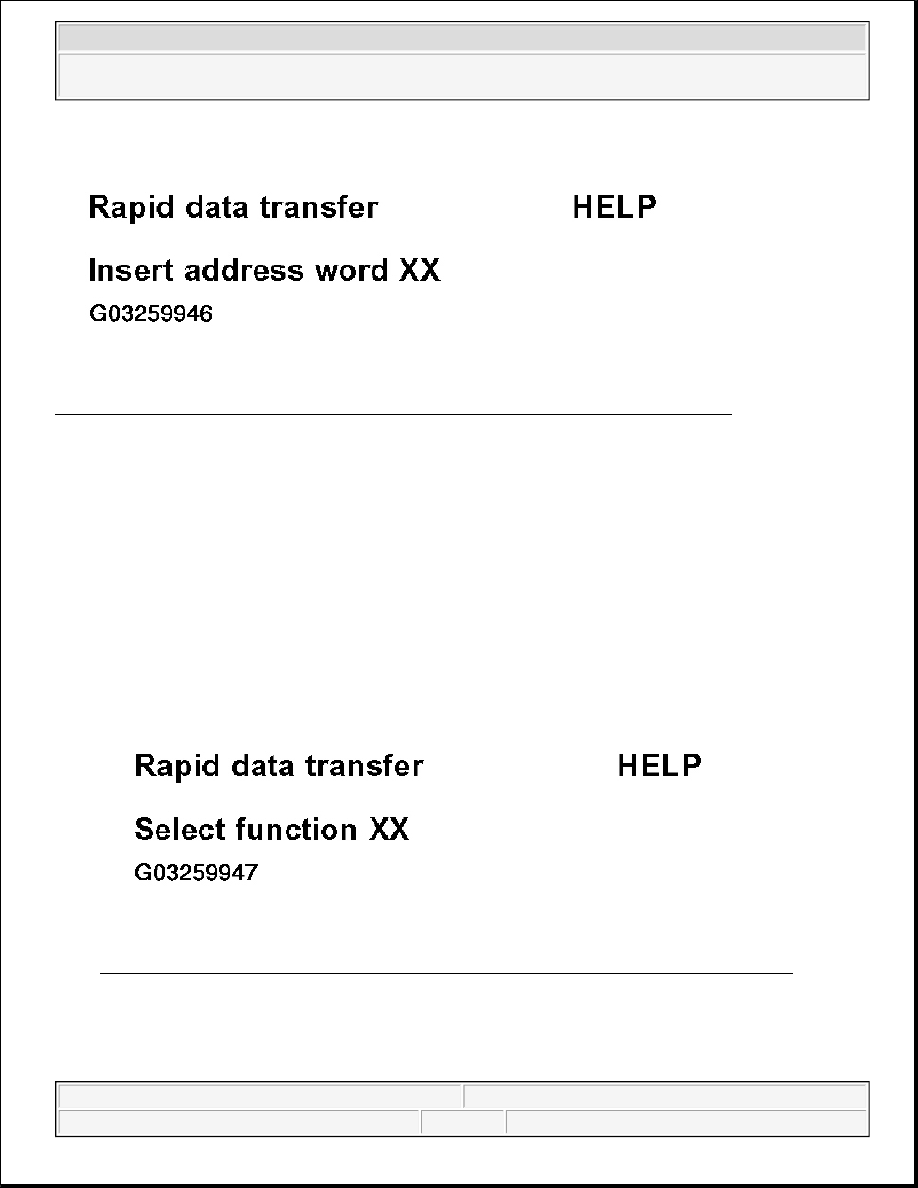

Connect VAG 1551 Scan Tool (ST), select operating mode 1 "Rapid data transfer", switch on ignition
and input address word 17 "Instrument cluster".

Indicated on display

z

Press buttons -0- and -8- to select function 08 "Read Measuring Value Block".

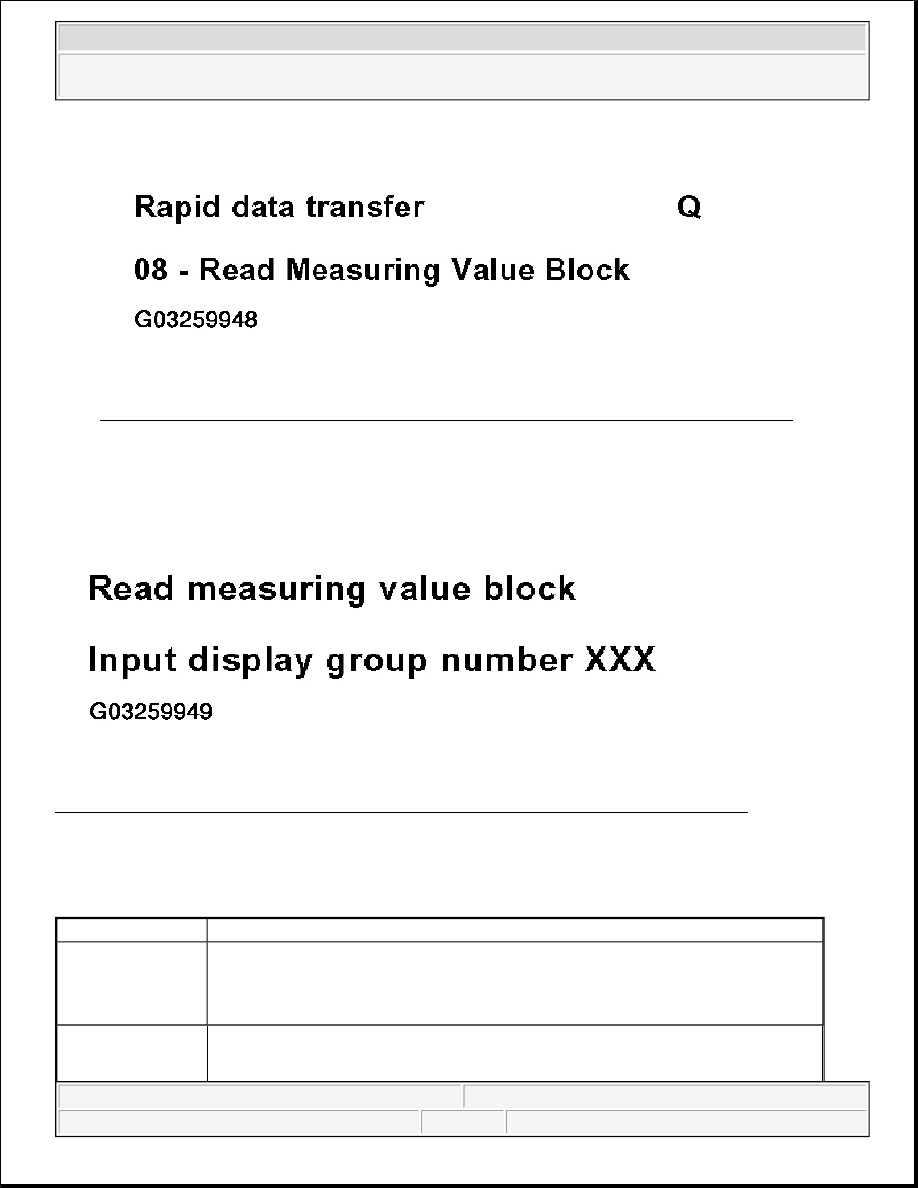

Fig. 48: VAG 1551 Scan Tool Display - Read Measuring Value Block, Up To 06.99 (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 49: VAG 1551 Scan Tool Display - Read Measuring Value Block, Up To 06.99 (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Fig. 50: VAG 1551 Scan Tool Display - Read Measuring Value Block, Up To 06.99 (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUPS, INTERPRETING

DISPLAY GROUPS (UP TO 06.99)

Display group

Indicated on display

001

1 Road speed (Km/h)

2 Engine speed (RPM)

3 Oil pressure switch 2 min.

4 Time (not for VDO)

002

1 Trip recorder (Km)

2 Fuel in liters



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
