z

Press --> button.

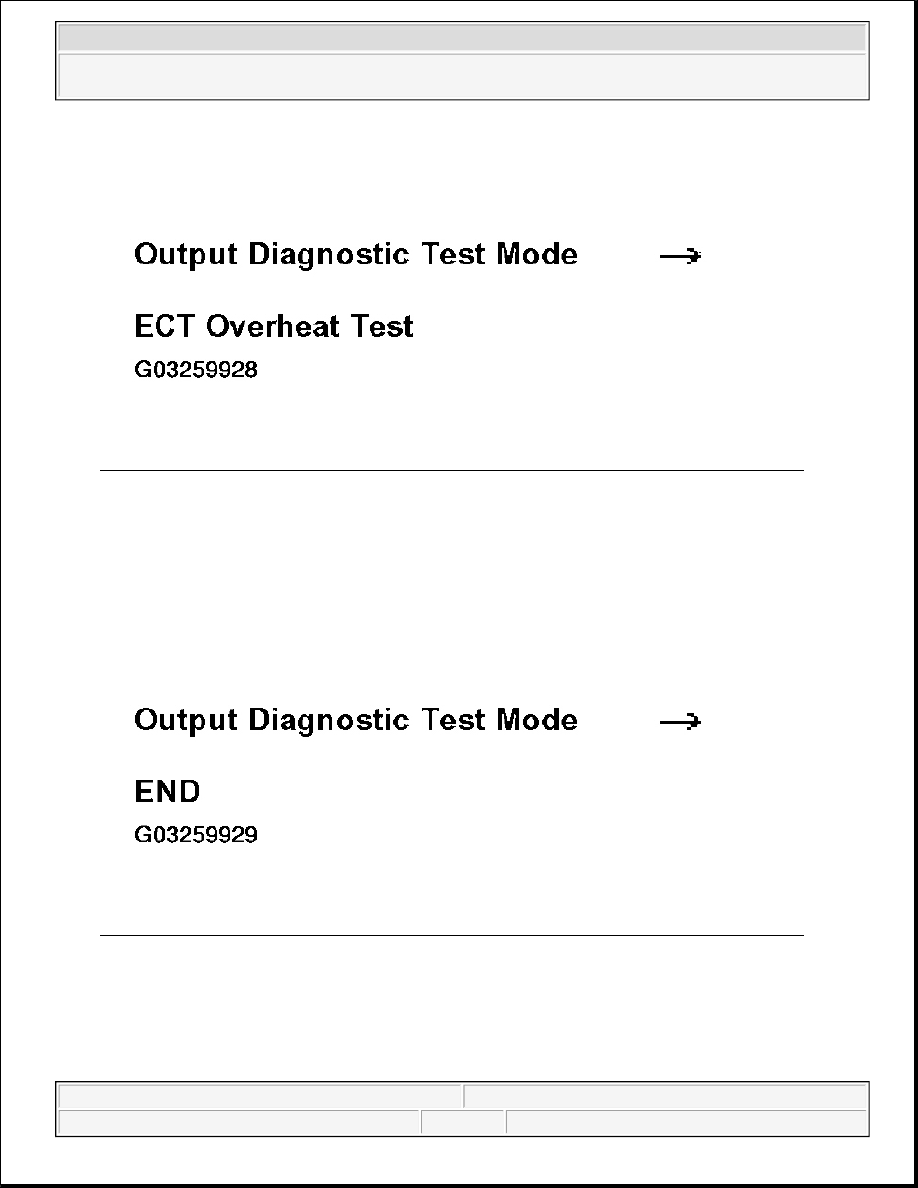

Fig. 29: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (8 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display for instrument clusters with manufacturer code M73:

z

Press --> button.

All actual values are displayed again.

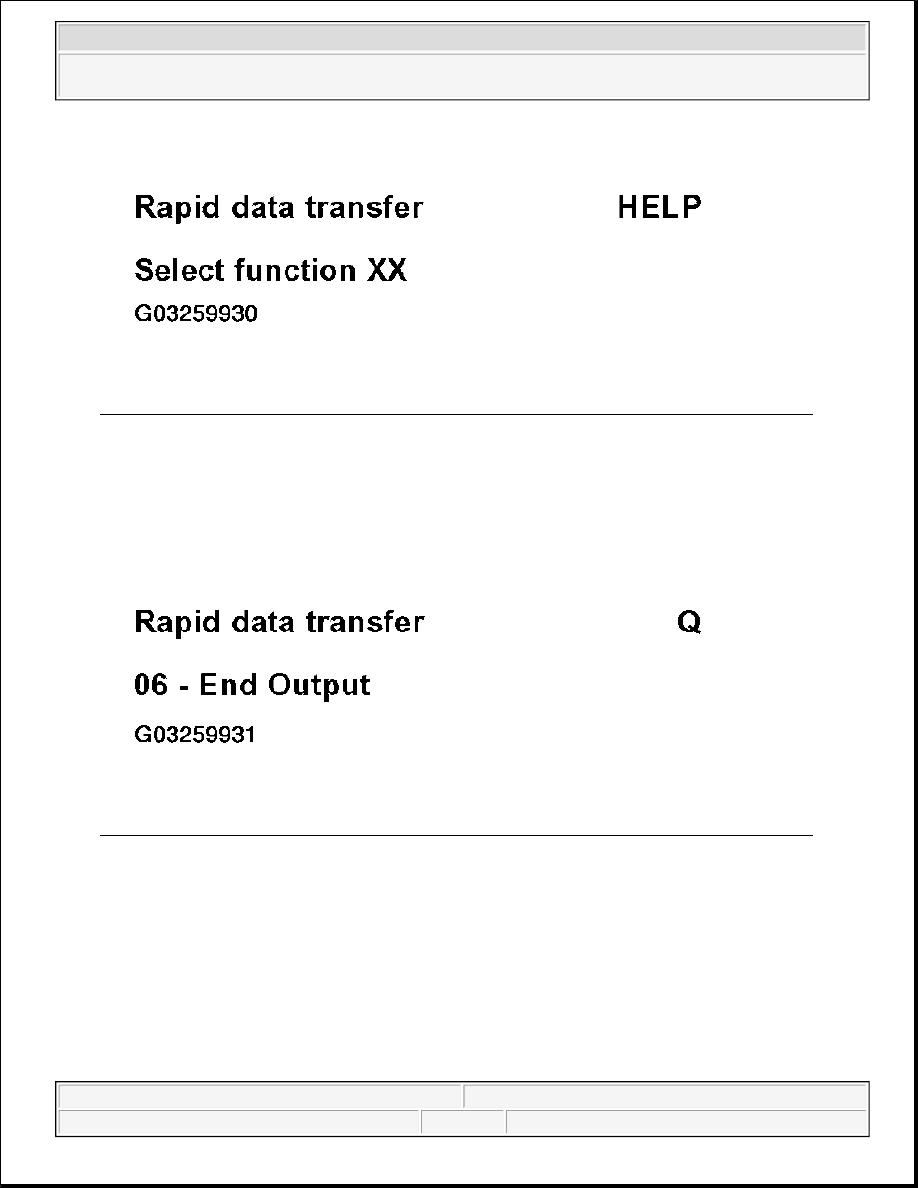

Fig. 30: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (9 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons -0- and -6- to select function "End Output" function 06.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 31: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (10 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

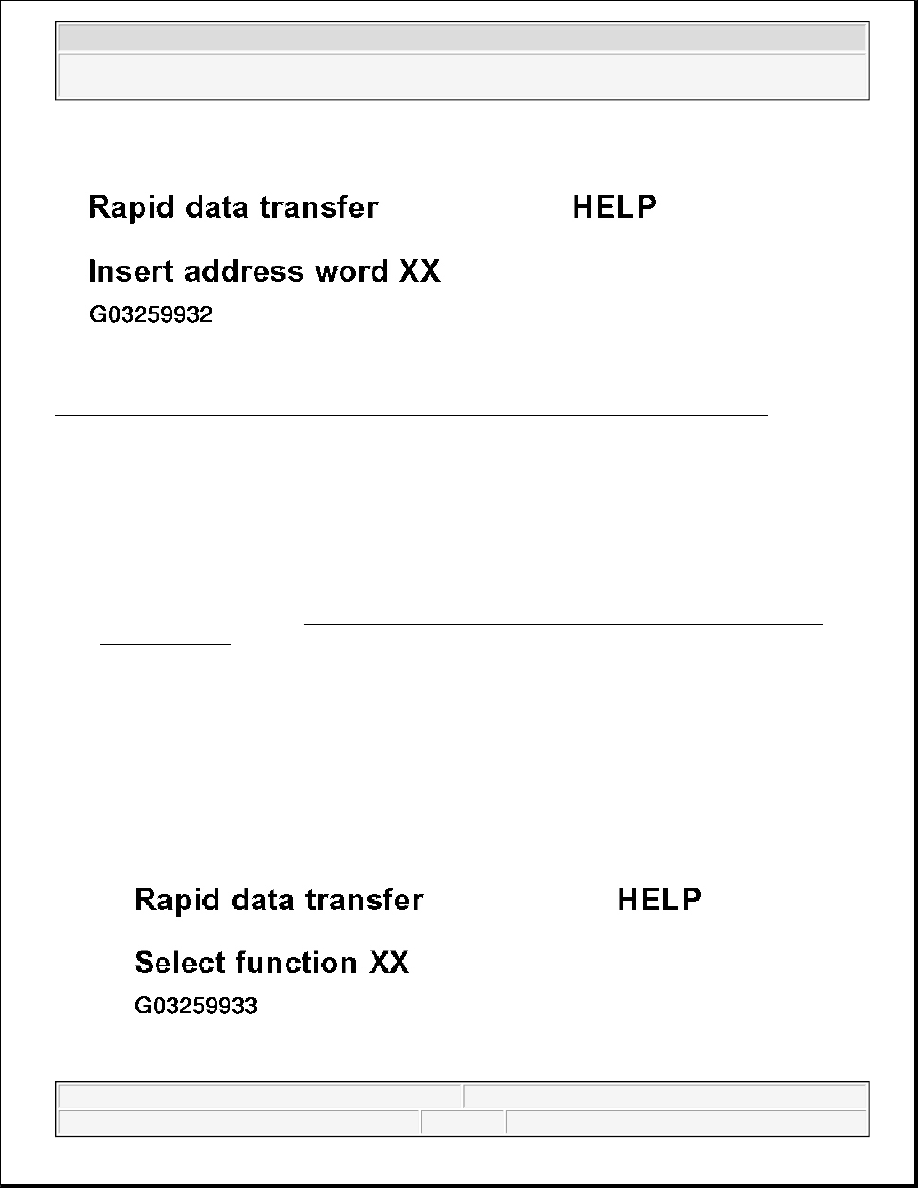

Fig. 32: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (11 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

The scan tool returns to the start of the program sequence.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Fig. 33: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (12 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING (FUNCTION 05)

Requirement

z

DTC memory checked, See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING
(FUNCTION 02)
 .

z

All malfunctions repaired

After DTC memory has been successfully checked.

Indicated on display

z

Press buttons -0- and -5- to select "Erase DTC Memory" function 05.

NOTE:

After erasing DTC memory its contents will automatically be indicated. If DTC
memory cannot be erased, check DTC memory again and repair malfunctions.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

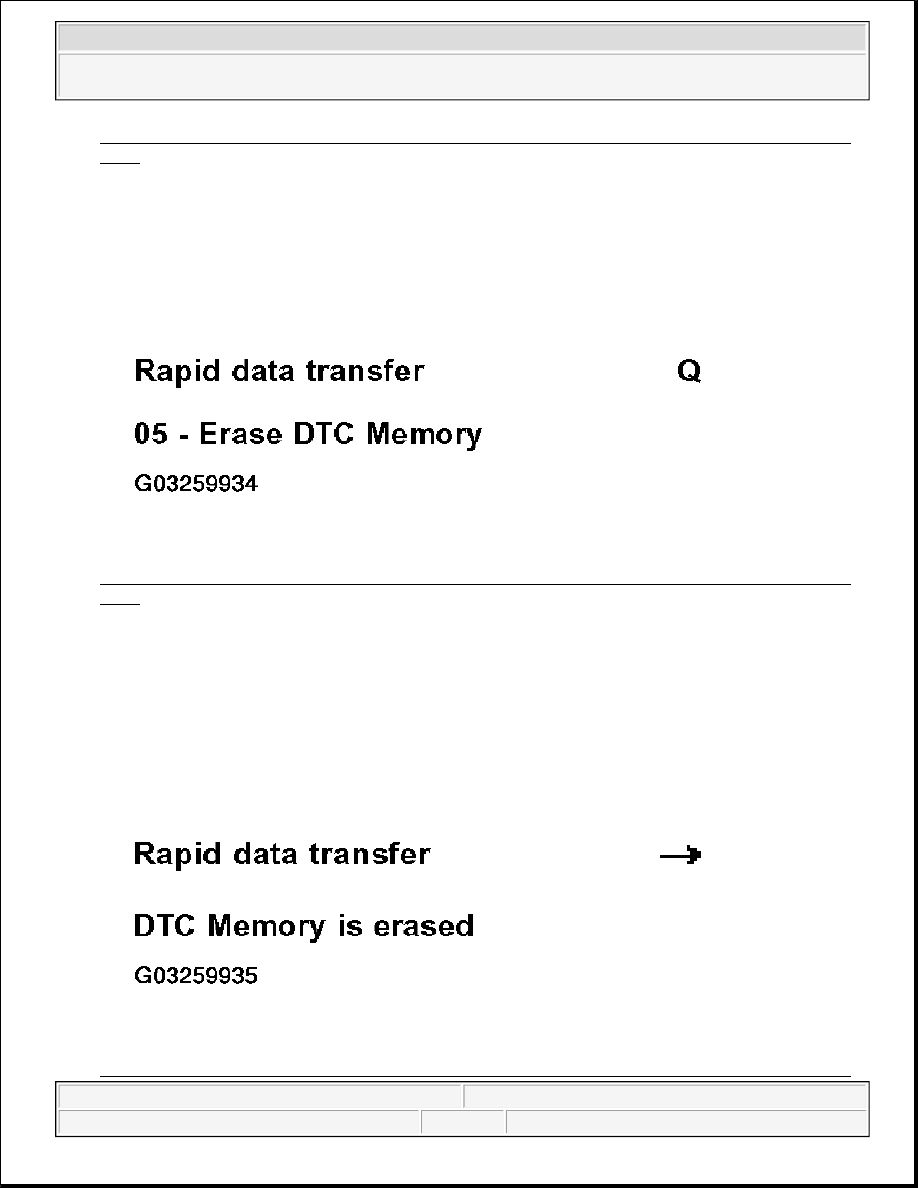

Fig. 34: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, Up To 06.99 (1
Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 35: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, Up To 06.99 (2
Of 6)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

DTC memory is now erased.

z

Press --> button.

Fig. 36: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory Erasing, Up To 06.99 (3



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
