Volkswagen New Beetle. Manual - part 409

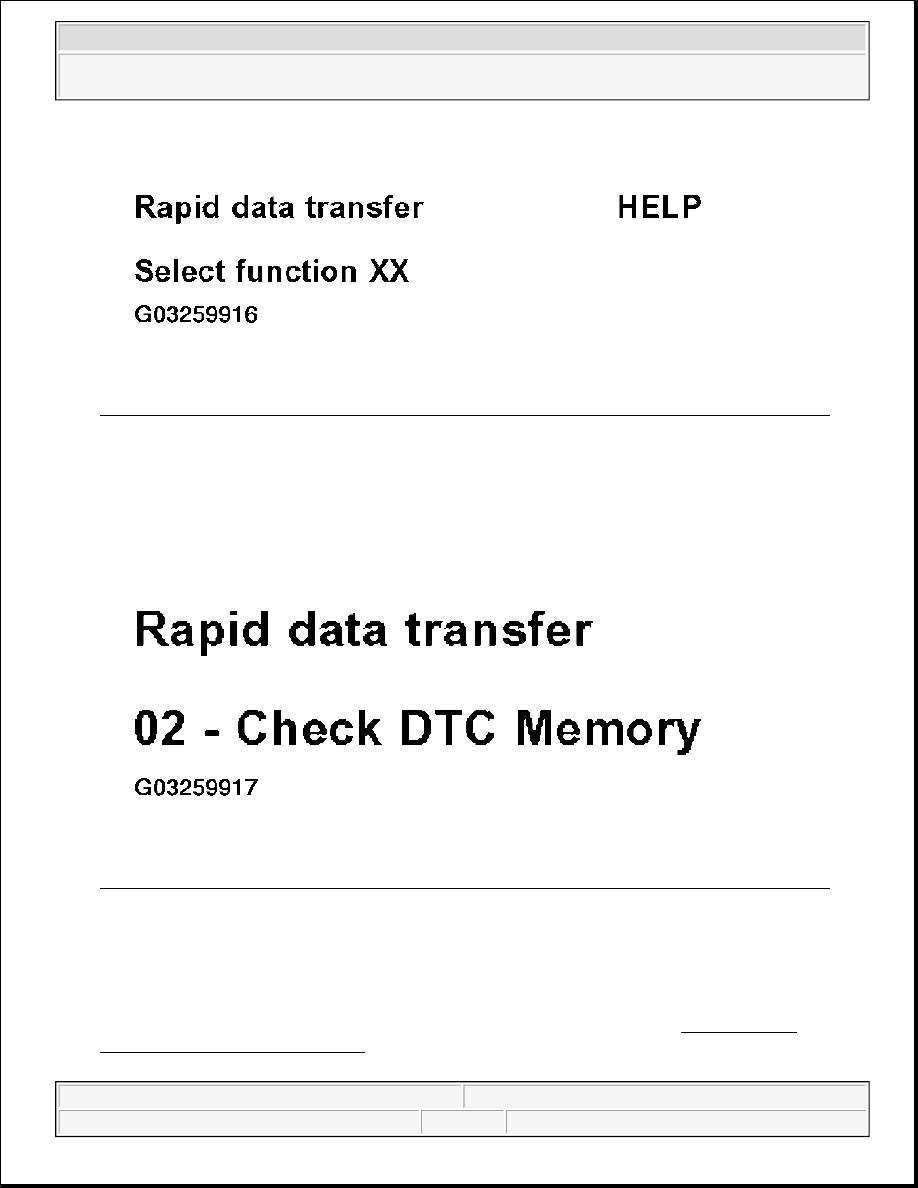

Fig. 17: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 18: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The number of stored DTCs appears on the display.

Stored DTCs are displayed and printed out one after another.

z

Check print-out against DTC table and repair all malfunctions as necessary. See DIAGNOSTIC
TROUBLE CODE (DTC) TABLE
 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

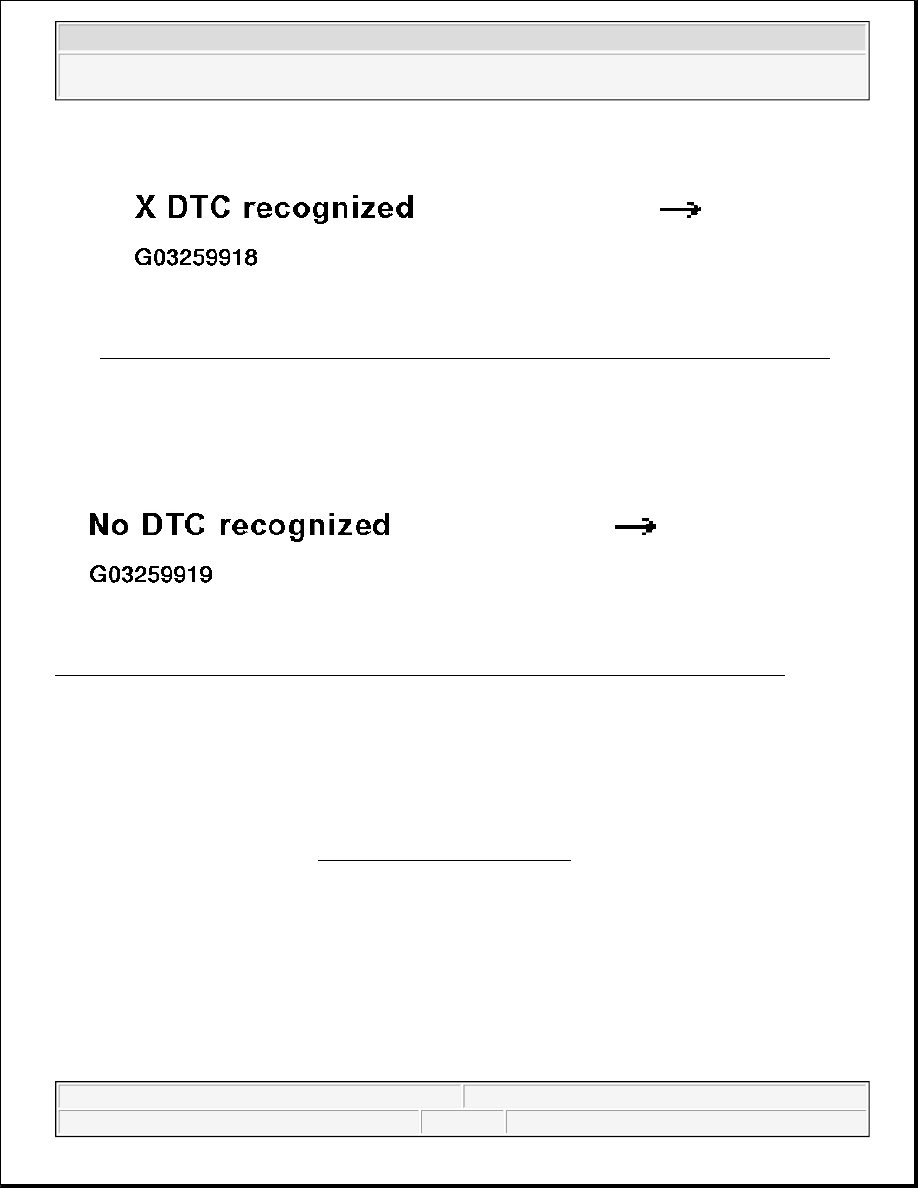

Fig. 19: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If "No DTC recognized" is displayed the program will return to the initial position after pressing --> button.

Fig. 20: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

If something else is displayed:

See Scan Tool operating instructions

z

End output (function 06). See END OUTPUT (FUNCTION 06) .

z

Switch ignition off.

z

Disconnect Data Link Connector (DLC).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



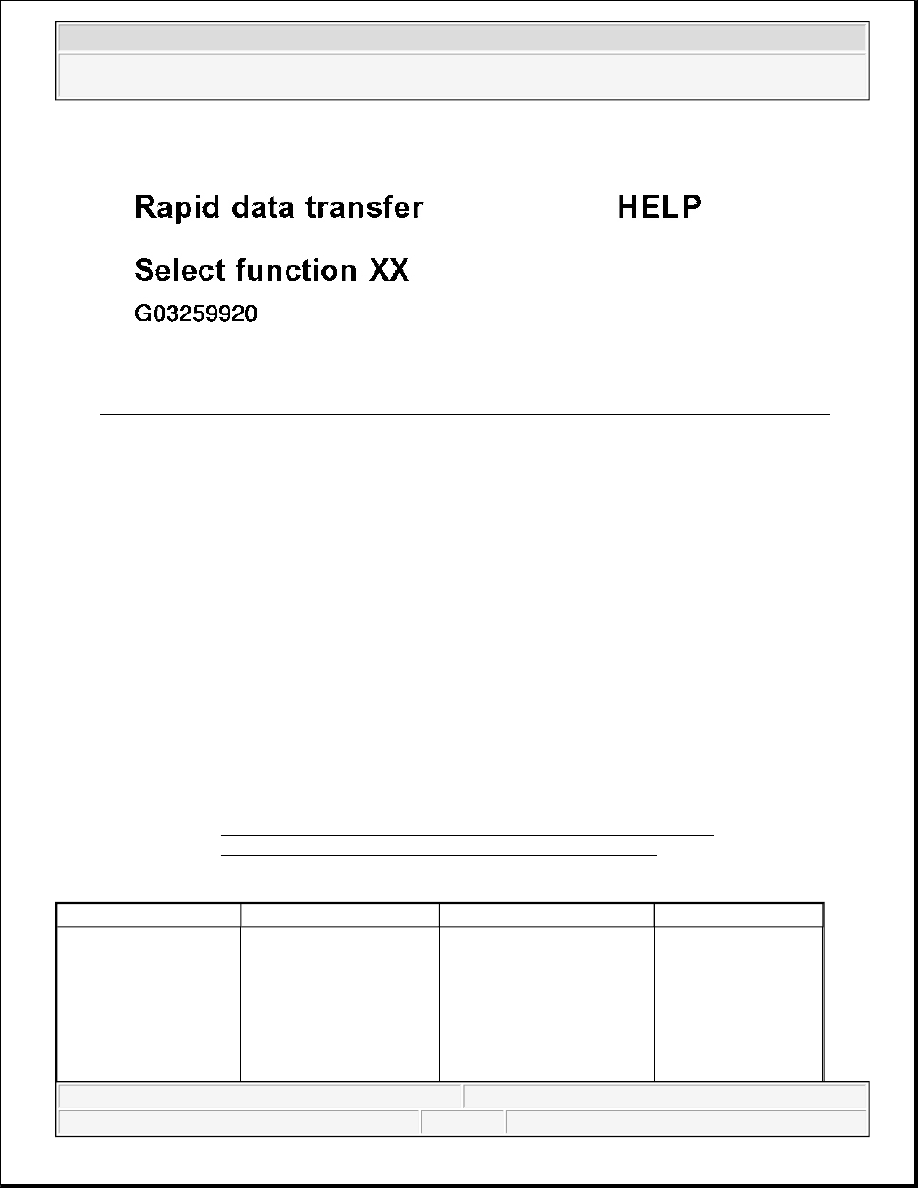

Fig. 21: VAG 1551 Scan Tool Display - Diagnostic Trouble Code Memory, Up To 06.99 (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) TABLE

DIAGNOSTIC TROUBLE CODES (UP TO 06.99)

NOTE:

z

The following table lists all malfunctions, with the corresponding 5 digit
code numbers, that can be recognized by control module with indicator
unit in instrument cluster insert -J285- and printed out by the VAG 1551
Scan Tool (ST).

z

If malfunctions do not occur regularly, these are displayed as occurring
sporadically ("SP").

z

DTC codes appear only on print-out.

z

Before replacing components, check the wiring and connections to these
components as well as ground connections, according to wiring diagram.

z

When repair has been carried out, the Diagnostic Trouble Code (DTC)
memory must always be erased and checked again with VAG 1551 Scan
Tool (ST).

z

If there is a specific complaint and no malfunctions are recognized after
checking Diagnostic Trouble Code (DTC) memory, carry out function 03
OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03) or function 08
READ MEASURING VALUE BLOCK (FUNCTION 08) .

VAG 1551 print out

Possible cause

Possible effects

Corrective action

00771*
Sender for fuel gauge -

z

Open/short circuit
to B+

z

Short circuit to

z

Open circuit or

short circuit

between -G- and

instrument cluster

z

G- malfunctioning

z

Fuel gauge display

shows reserve 0

("empty") and fuel

reserve warning lamp

lights up

z

Check for open

or short circuit

in wiring using

wiring diagram.

z

Replace sender

for fuel gauge -

G-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03)

The output Diagnostic Test Mode (DTM) is part of the electrical check. The following components can be
checked via the output diagnostic test mode:

z

Speedometer

z

Tachometer

z

Fuel gauge

z

Odometer display

z

Oil pressure warning buzzer

z

Fuel reserve warning light

z

Coolant temperature/engine coolant level indicator warning light

z

Oil pressure warning light

z

Dual brake circuit and parking brake system warning light

z

All warning lights for the vehicle optional equipment

z

If there is a malfunction during output DTM, replace instrument cluster.

z

If no malfunction is identified during output DTM, check wiring and connections to instrument cluster.

Output Diagnostic Test Mode (DTM), initiating

Ground

01039
Engine Coolant
Temperature (ECT_
Sensor -G2

z

Short circuit to
Ground

z

Open circuit or

short circuit

between -G2- and
instrument cluster

z

ECT sensor-G2-

malfunctioning

z

Coolant temperature

gauge needle on left

stop

z

Check for short

circuit in wiring

using wiring

diagram.

z

Replace ECT

sensor -G2-.

01086
Speedometer Vehicle
Speed Sensor (VSS) -
G22

z

Signal too large

z

G22-

malfunctioning

z

Incorrect speedometer

display

z

Replace VSS

sensor -G22-

65535
Control Module

z

Malfunctioning



z

Instrument cluster

malfunctioning

z

Replace

instrument

cluster.

NOTE:

z

Output Diagnostic Test Mode (DTM) cannot be initiated or will be
interrupted if engine is running or vehicle is moving,

z

Use -C- button to exit test sequence at any time.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
