Fig. 11: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (4 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Control module version, checking

Indicated on display (example only): Readout, top line

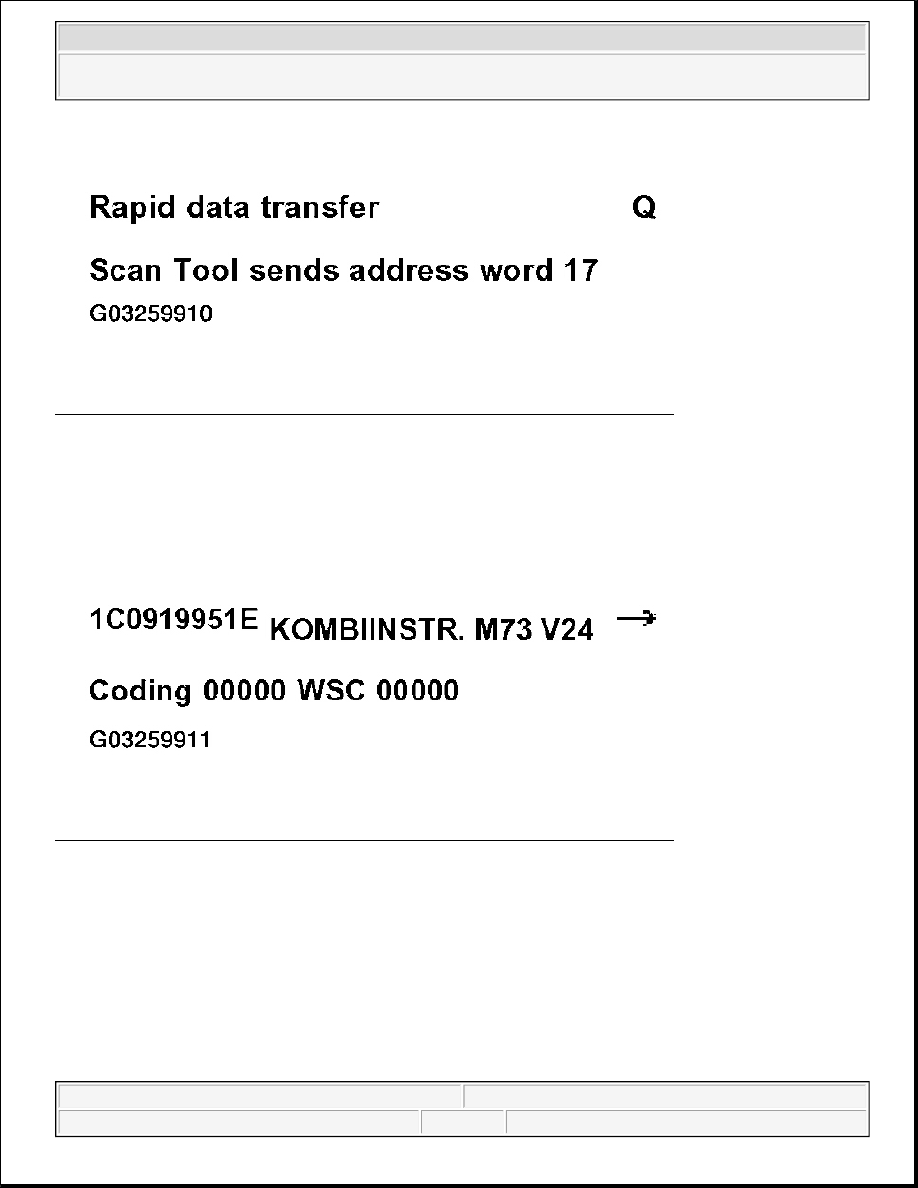

Fig. 12: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (5 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

C0 919 951 E: Part No. of control module

z

KOMBIINSTR: Component designation

z

M73: Manufacturer's code (example: Magneti Marelli)

z

V24: Software version installed in instrument cluster

Readout, bottom line

z

Coding 00000 (Depends on engine, transmission and brake system.): Coding of instrument cluster



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

WSC 00000 (Will be automatically stored in the control module when entering the system.): Dealership
number

z

Press --> button.

Indicated on display

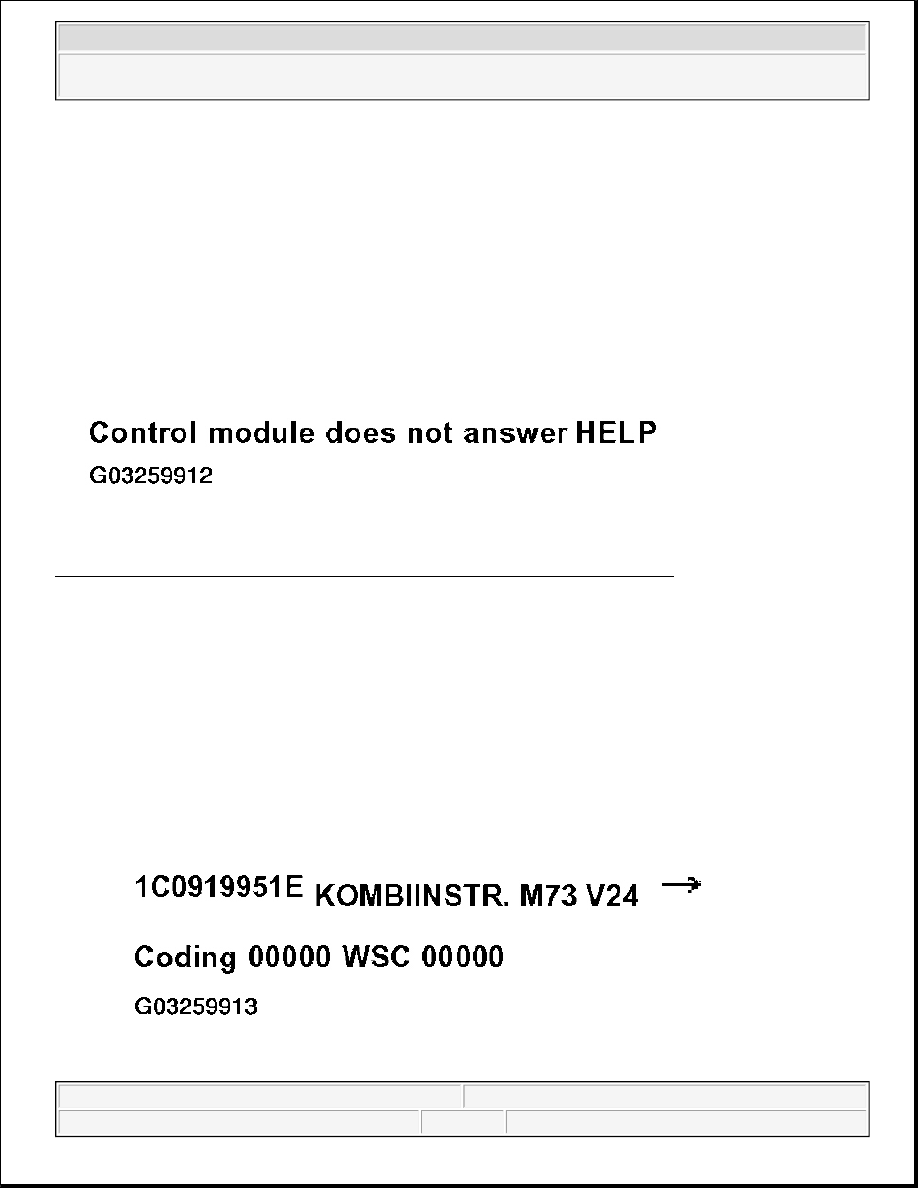

Fig. 13: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (6 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

By pressing the HELP button, a list of possible malfunction causes is printed out.

z

After repairing malfunctions, re-enter address word 17 for instrument cluster and confirm with -Q-
button.

Indicated on display (example only)

z

Press --> button.

CAUTION: Part numbers are for reference only. Always check with your Parts

Department for the latest parts information.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



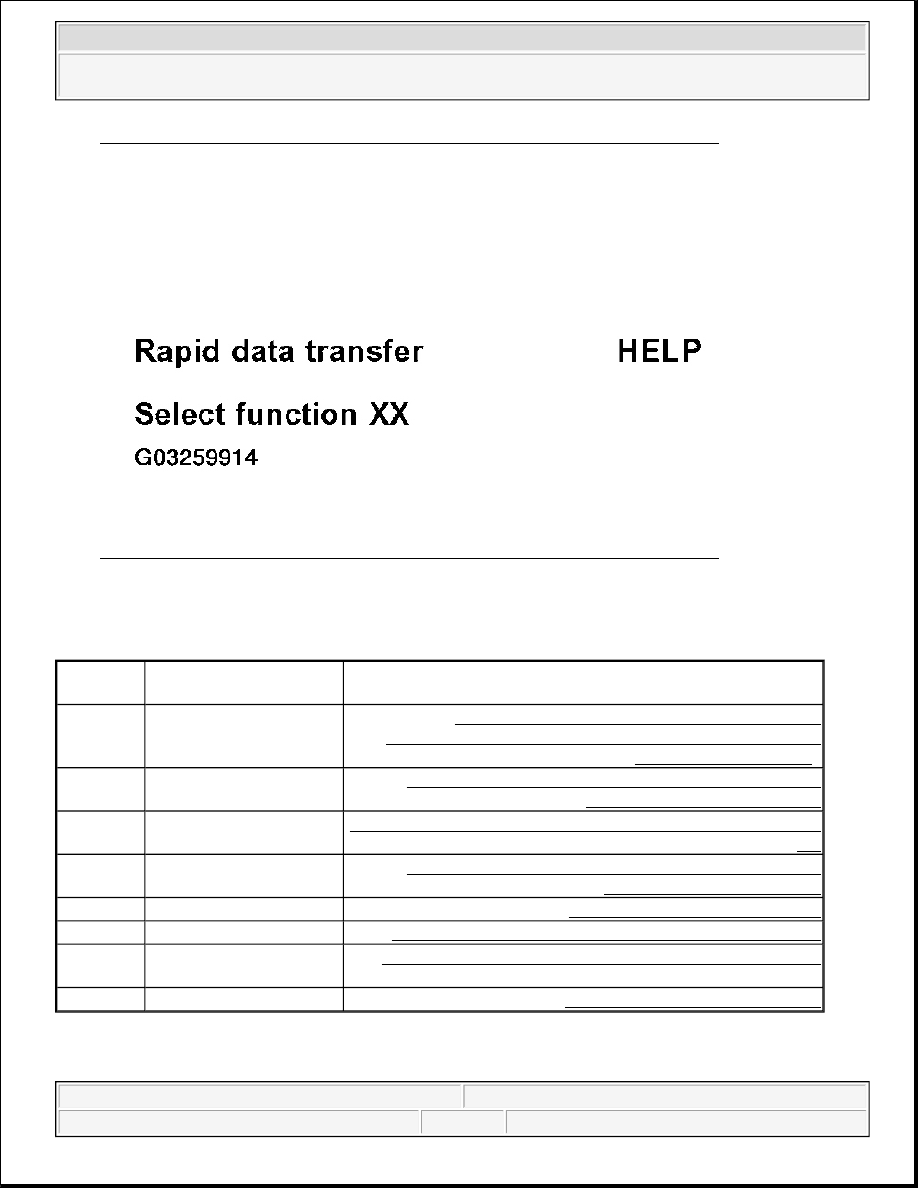

Fig. 14: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (7 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press "HELP" button to print out a list of possible malfunction causes.

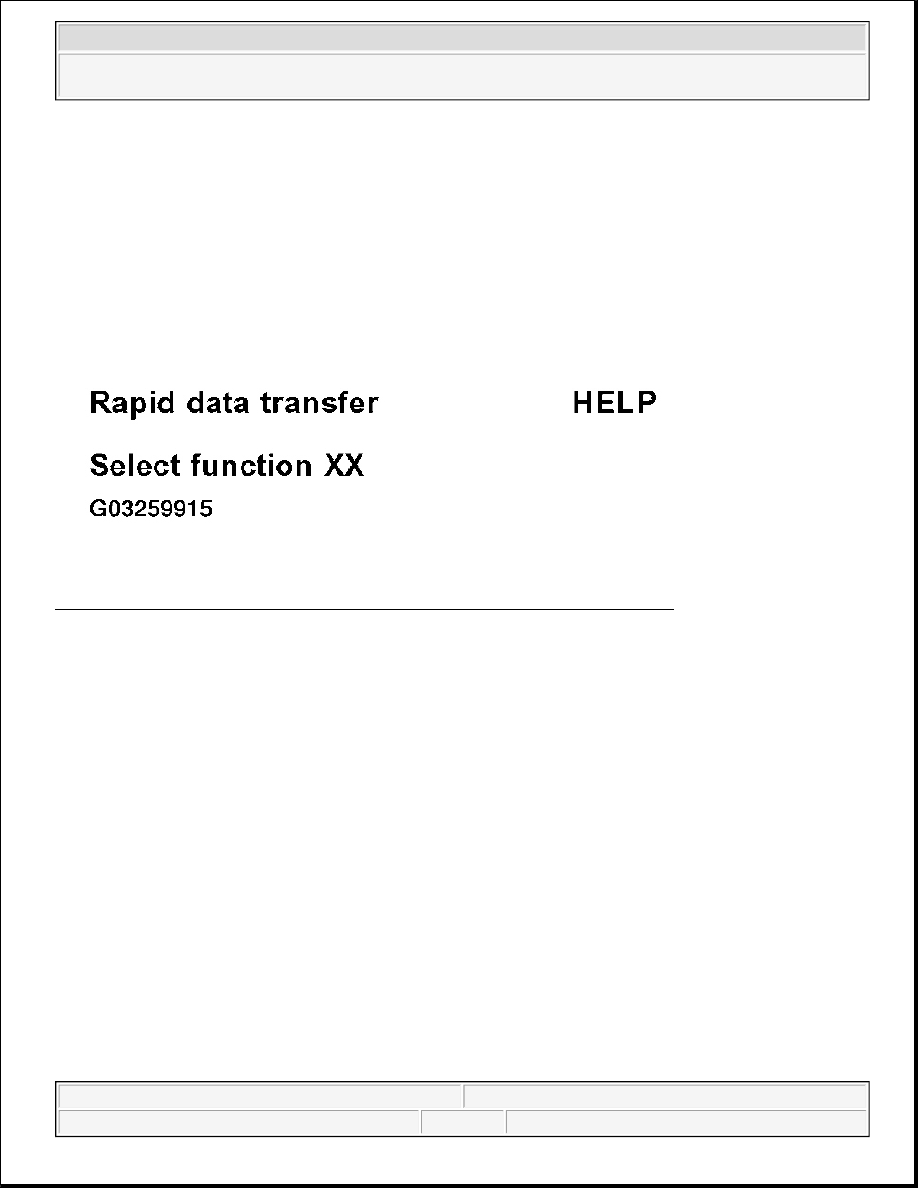

Fig. 15: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (8 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

List of available functions

LIST OF AVAILABLE FUNCTIONS (UP TO 06.99)

Function
No.

Function Description

See

01 -

Check control module

version

VAG 1551 SCAN TOOL (ST), CONNECTING,

SELECTING FUNCTIONS & CHECKING CONTROL

MODULE VERSIONS .

02 -

Check Diagnostic Trouble

Code (DTC) memory

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY,

CHECKING (FUNCTION 02)

03 -

Output Diagnostic Test

Mode (DTM)

OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION

03)

05 -

Erase DTC memory

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY,

ERASING (FUNCTION 05)

06 -

End output

END OUTPUT (FUNCTION 06)

07 -

Code control module

INSTRUMENT CLUSTER, CODING (FUNCTION 07)

08 -

Read measuring value

block

READ MEASURING VALUE BLOCK (FUNCTION 08)

10 -

Adaptation

ADAPTATION (FUNCTION 10)

NOTE:

z

Press HELP button to print out a complete list of available functions. This



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display (select function):

Fig. 16: VAG 1551 Scan Tool Display - Connecting VAG 1551 Scan Tool (9 Of 9)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING (FUNCTION 02)

z

Switch printer on by pressing PRINT button (indicator lamp in button lights up).

Indicated on display

z

Press buttons -0- and -2- to select "Check DTC Memory" function 02.

list indicates function capability of VAG 1551 Scan Tool (ST) only, and
does not necessarily reflect function capability of vehicle systems
equipped with OBD. For instrument cluster address word 17, do not
attempt to select functions other than those listed above.

z

After function is completed and forwarded with --> button, VAG 1551 Scan
Tool (ST) returns to following start position:

NOTE:

The displayed DTC information is updated only when initiating OBD or with
"Erase DTC Memory" function 05.
