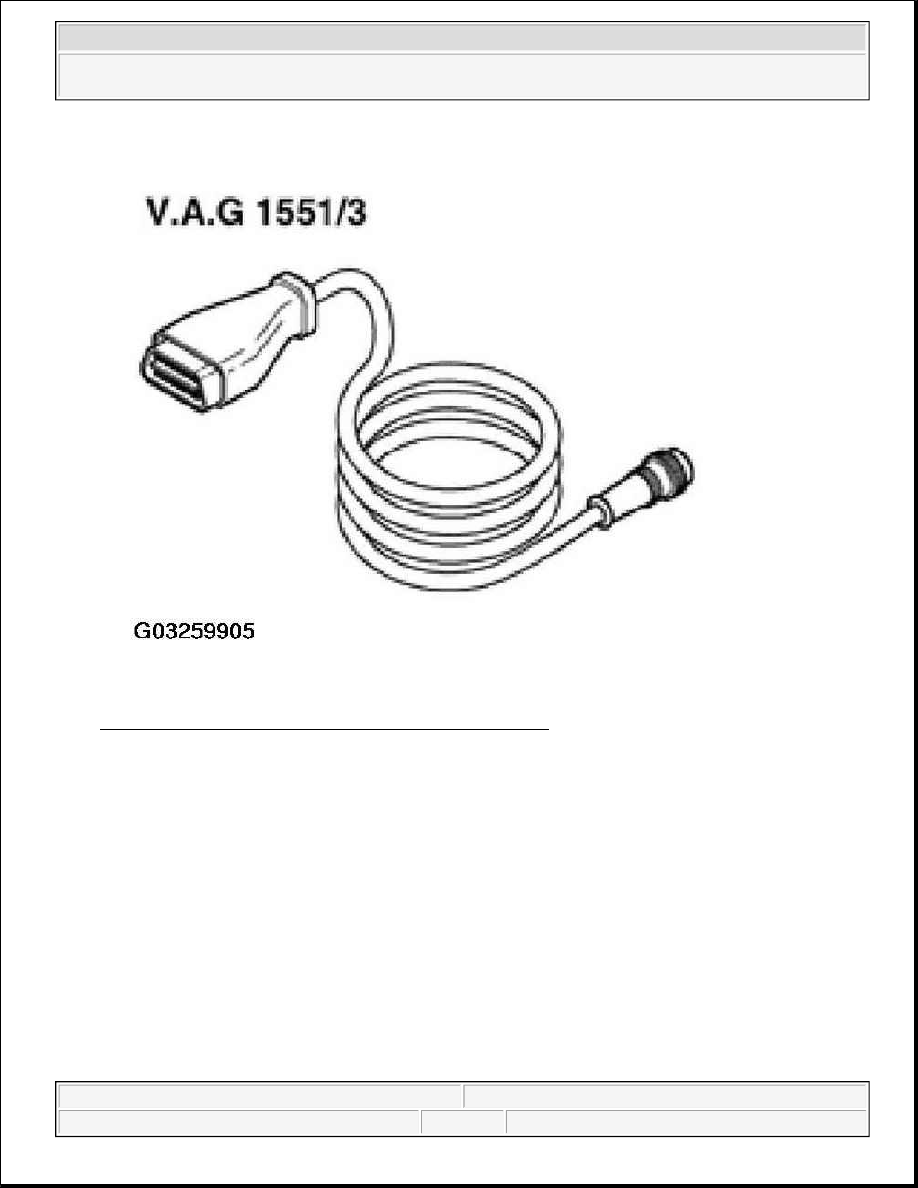

Fig. 6: Identifying VAG 1551/3 Or 1551/3B Adapter Cable Prerequisites: z All fuses OK according to wiring diagram. z Battery (B+) voltage at least 9 Volts. Connecting With ignition switched off, connect VAG 1551 Scan Tool (ST) with adapter cable 1551/3 to the Data Link NOTE: z VAG 1552 Scan Tool (ST) may be used instead of the VAG 1551 Scan Tool z The following procedure and display references pertain only to VAG 1551
2003 Volkswagen New Beetle GLS 1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus & Anti-theft Immobilizer)
|
