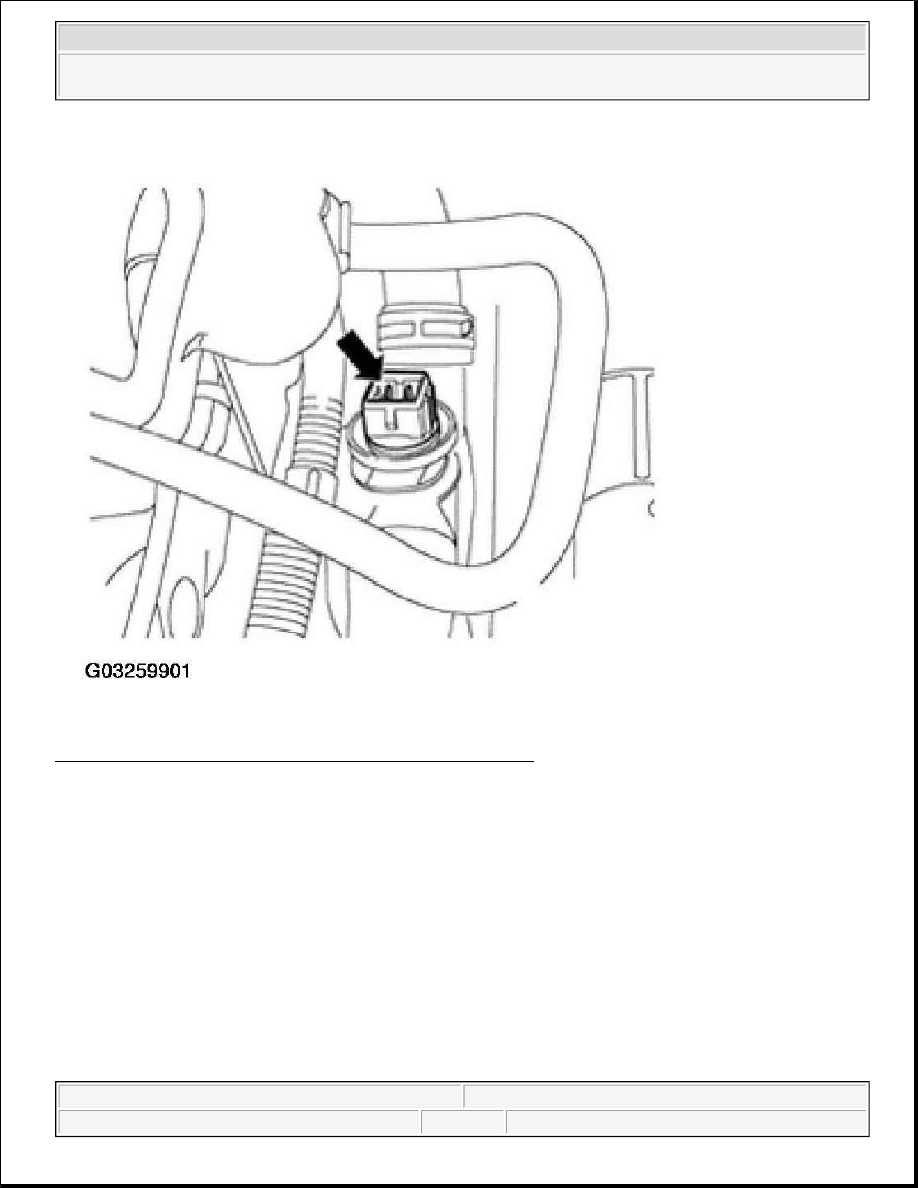

Fig. 2: Identifying Engine Coolant Temperature (ECT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The engine coolant temperature sensor is installed in the coolant return (arrow), located between the cylinder
head and the radiator.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



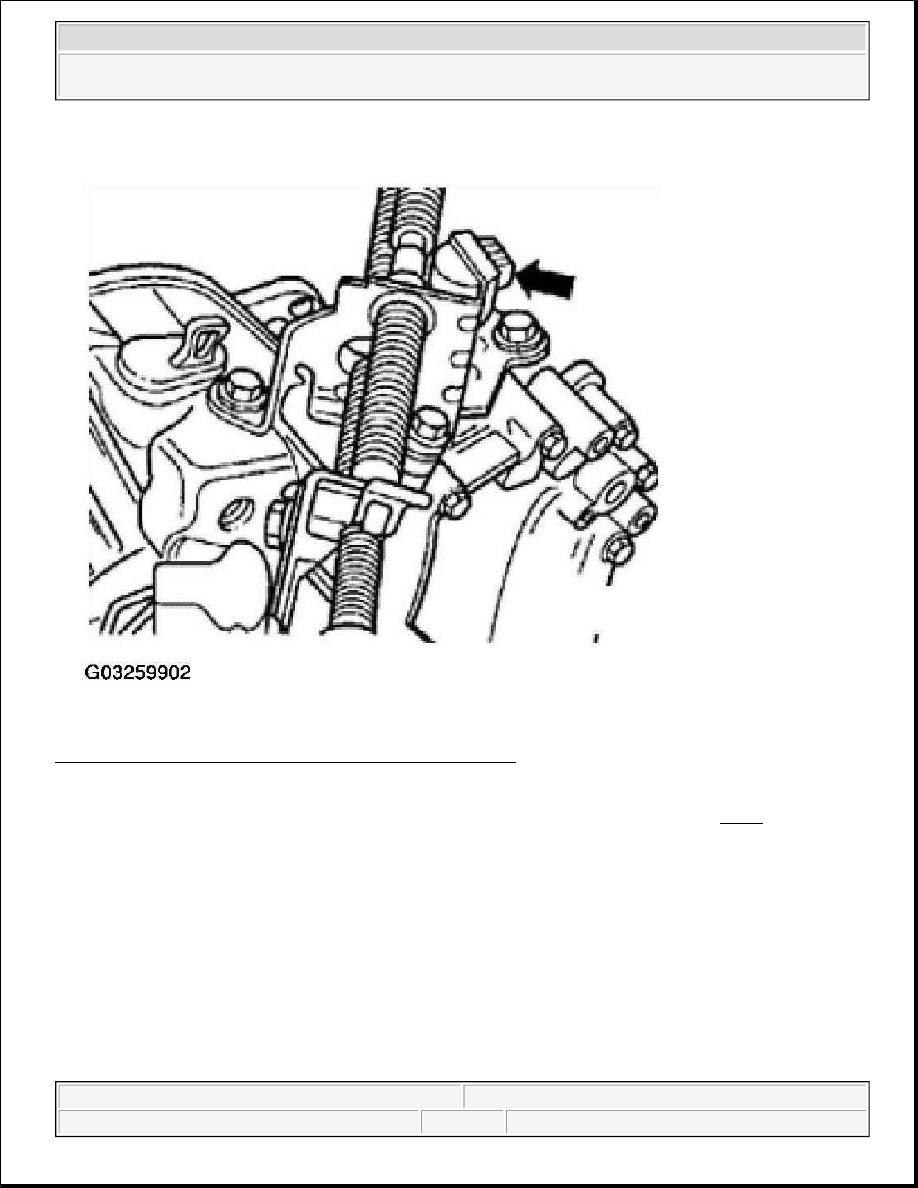

Fig. 3: Identifying Speedometer Vehicle Speed Sensor (VSS)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The speedometer vehicle speed sensor (arrow) is located at the rear of the transmission. See Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



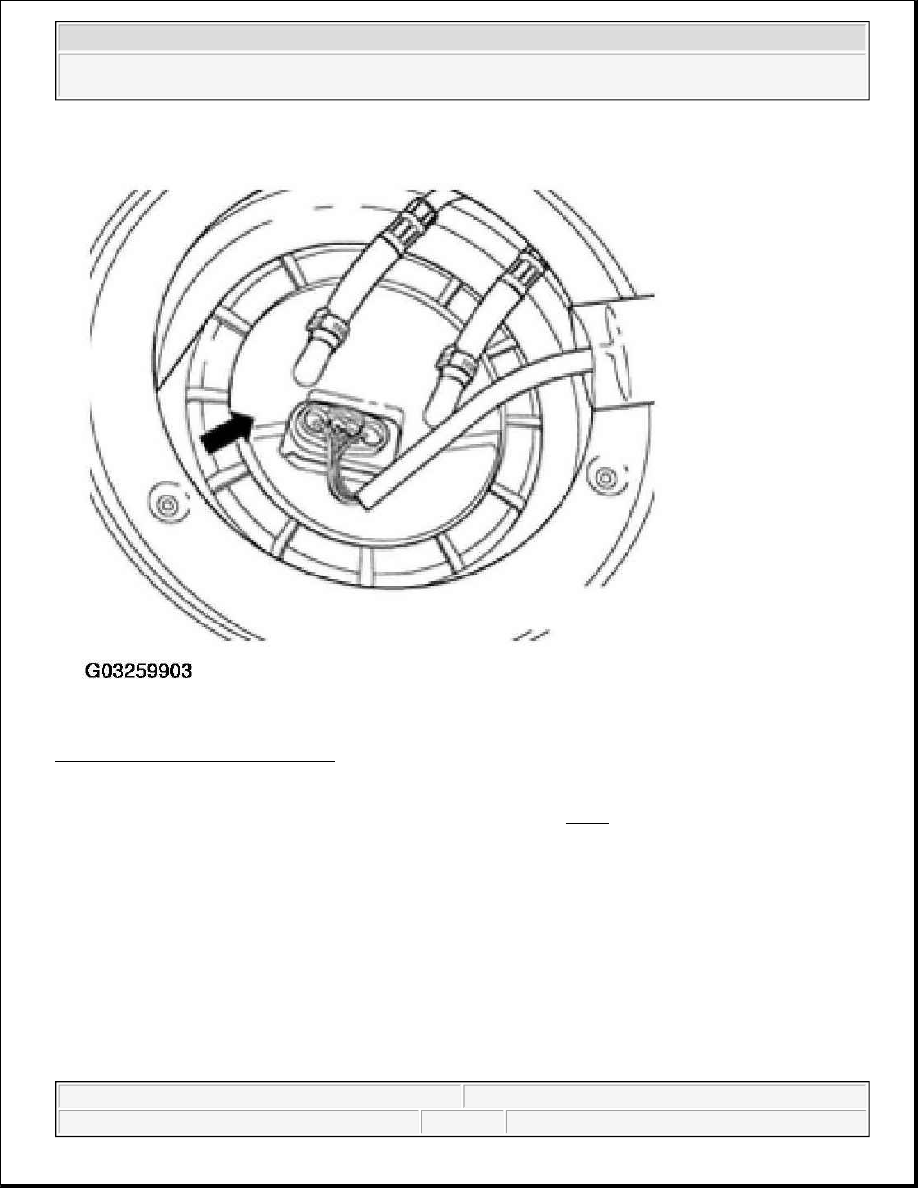

Fig. 4: Identifying Fuel Level Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

The fuel level sensor is integrated into fuel pump module (arrow). See Fig. 4 .

Both components are located in the fuel tank and are accessible under the rear seat on the right side.

VAG 1551 SCAN TOOL (ST), CONNECTING, SELECTING FUNCTIONS & CHECKING CONTROL
MODULE VERSIONS

Special tools, testers, and auxiliary items

z

VAG 1551 or VAG 1552 Scan Tool (ST)

z

Optional: VAS 5051 Vehicle Diagnostic Tester



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



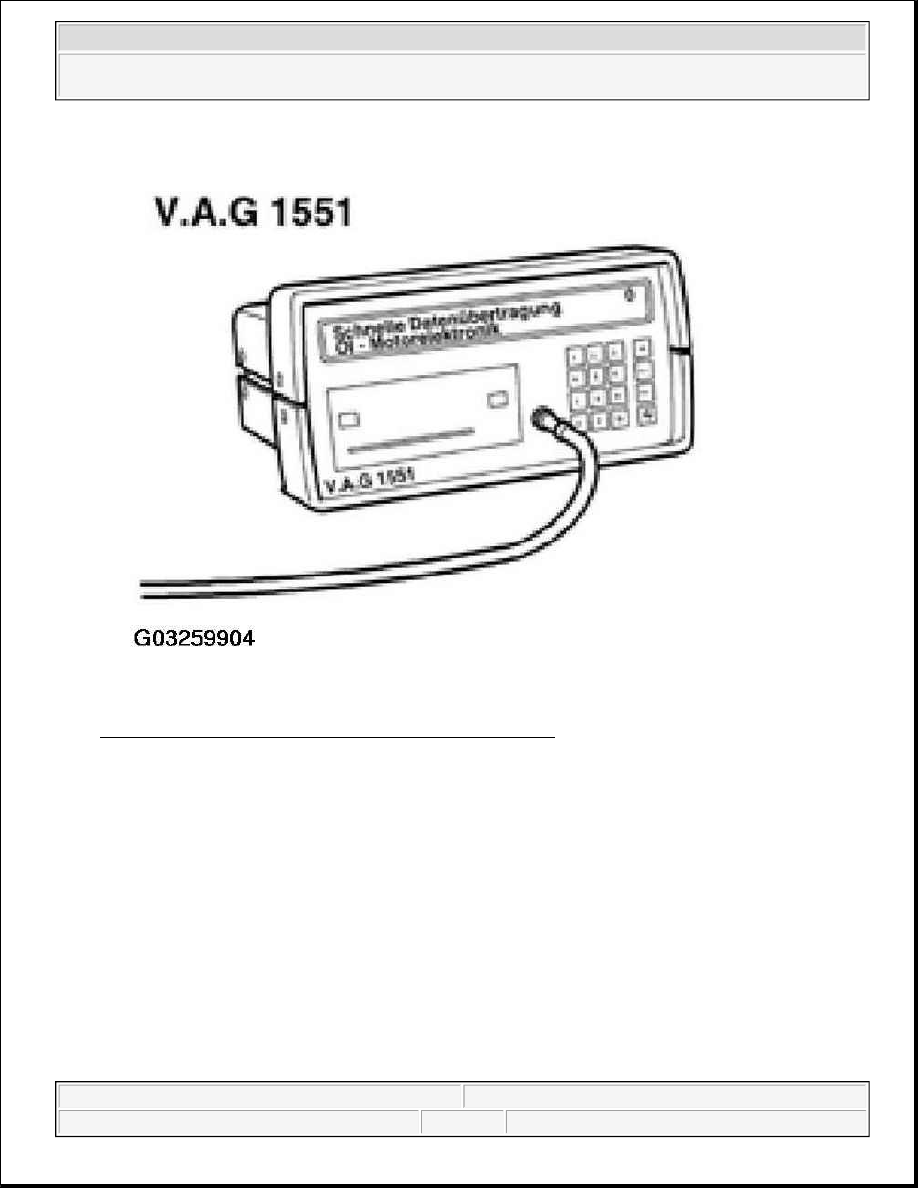

Fig. 5: Identifying VAG 1551 Or VAG 1552 Scan Tool (ST)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

VAG 1551/3 or 1551/3B adapter cable



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
