z

Connect VAG1551 scan tool, select "Rapid data transfer" operating mode 1, switch ignition on, and input
"Instrument Cluster" address word 17.

Indicated on display

z

Press buttons -0- and -3- to select function 03 "Output Diagnostic Test Mode".

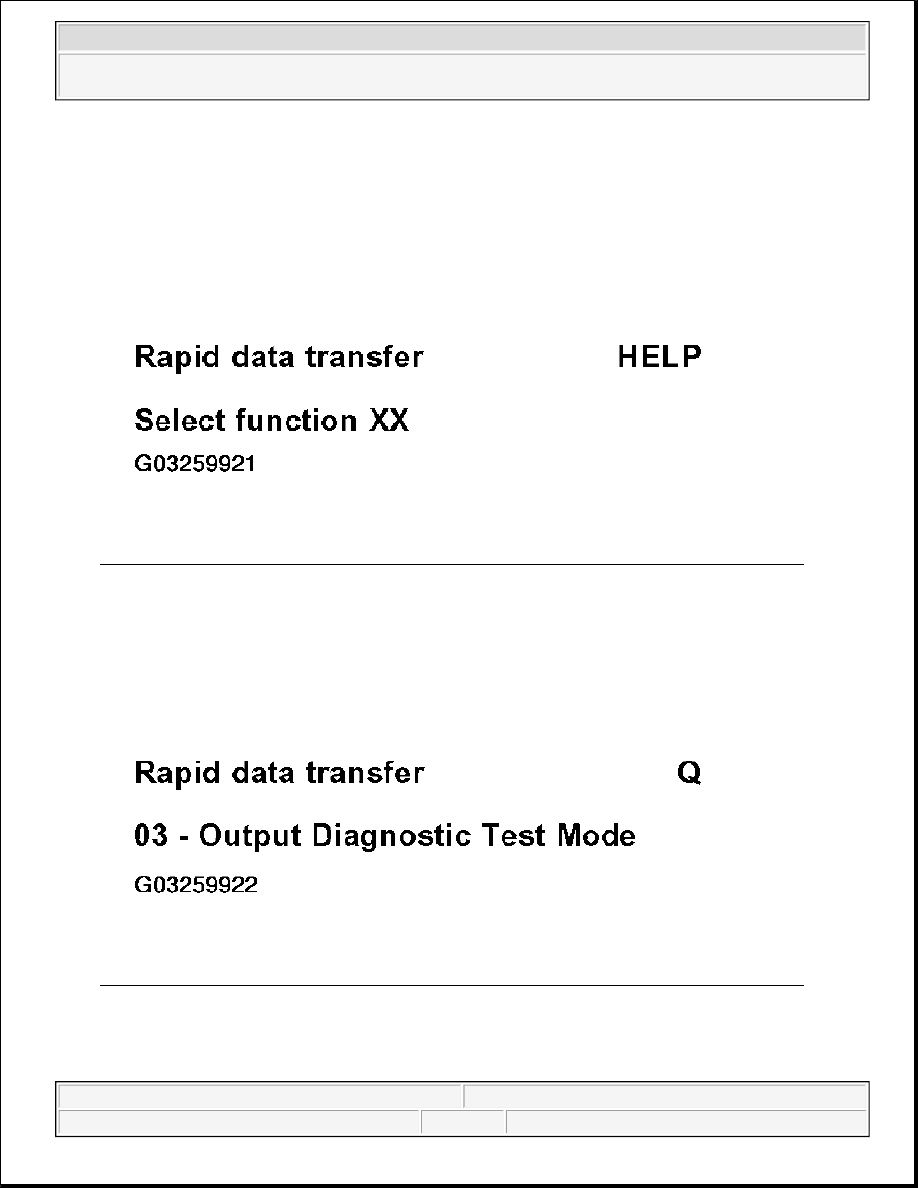

Fig. 22: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (1 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press -Q- button to confirm input.

Fig. 23: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (2 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

No indication on all displays and all warning lights to be checked are unlit.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



Indicated on display

After pressing --> button, the following instrumental functional checks will occur simultaneously:

z

Tachometer needle moves over complete display range

z

Speedometer needle moves over complete display range

z

Fuel gauge needle moves over complete display range

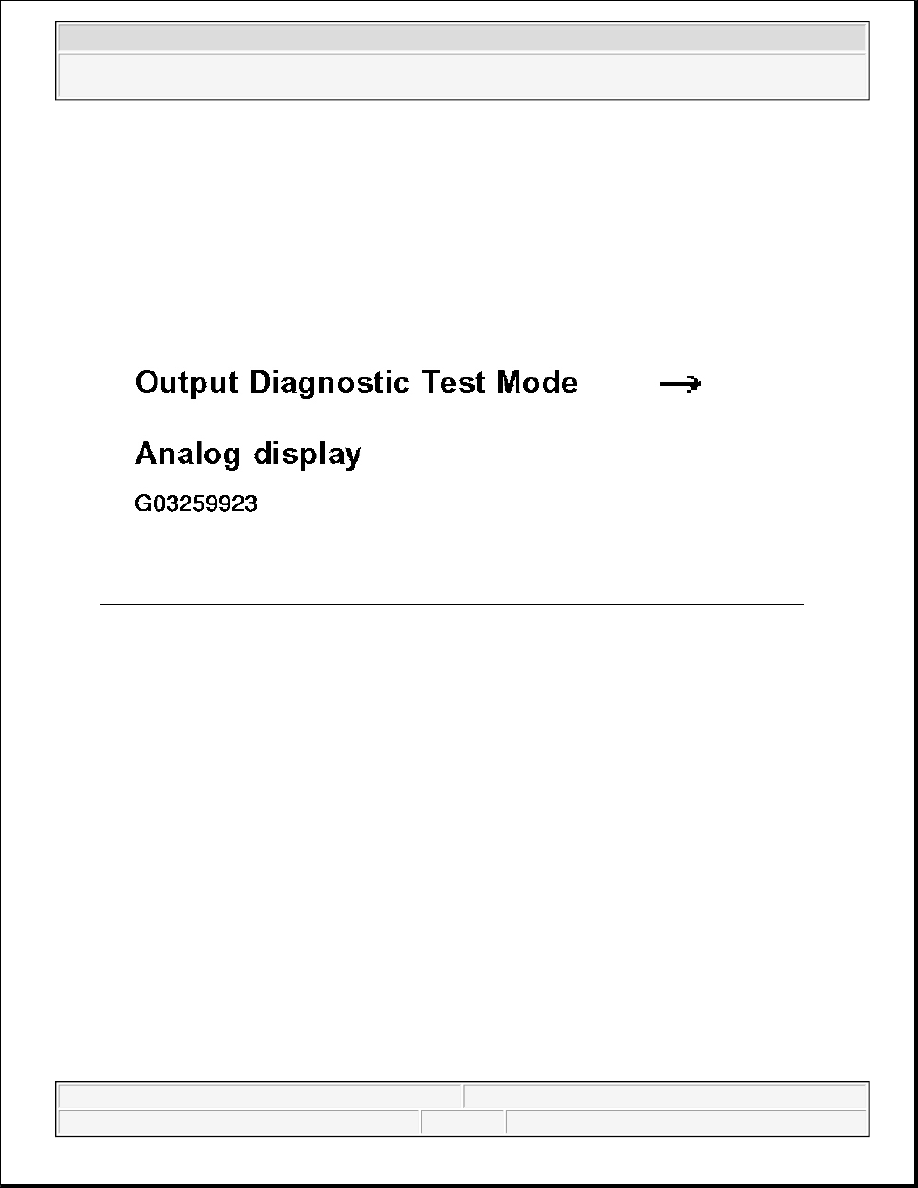

Fig. 24: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (3 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After checking movement over display ranges, the following constant values are displayed:

z

Tachometer: 3000 RPM

z

Speedometer: 100 km/h (65 mph)

z

Fuel gauge: 1/2

{

Press --> button.

The analog displays again indicating all actual values.

Indicated on display

The following warning lights light up continuously:

z

Coolant temperature/engine coolant level indicator

z

Dual brake circuit and parking brake system

z

Oil pressure

z

Fuel reserve

{

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

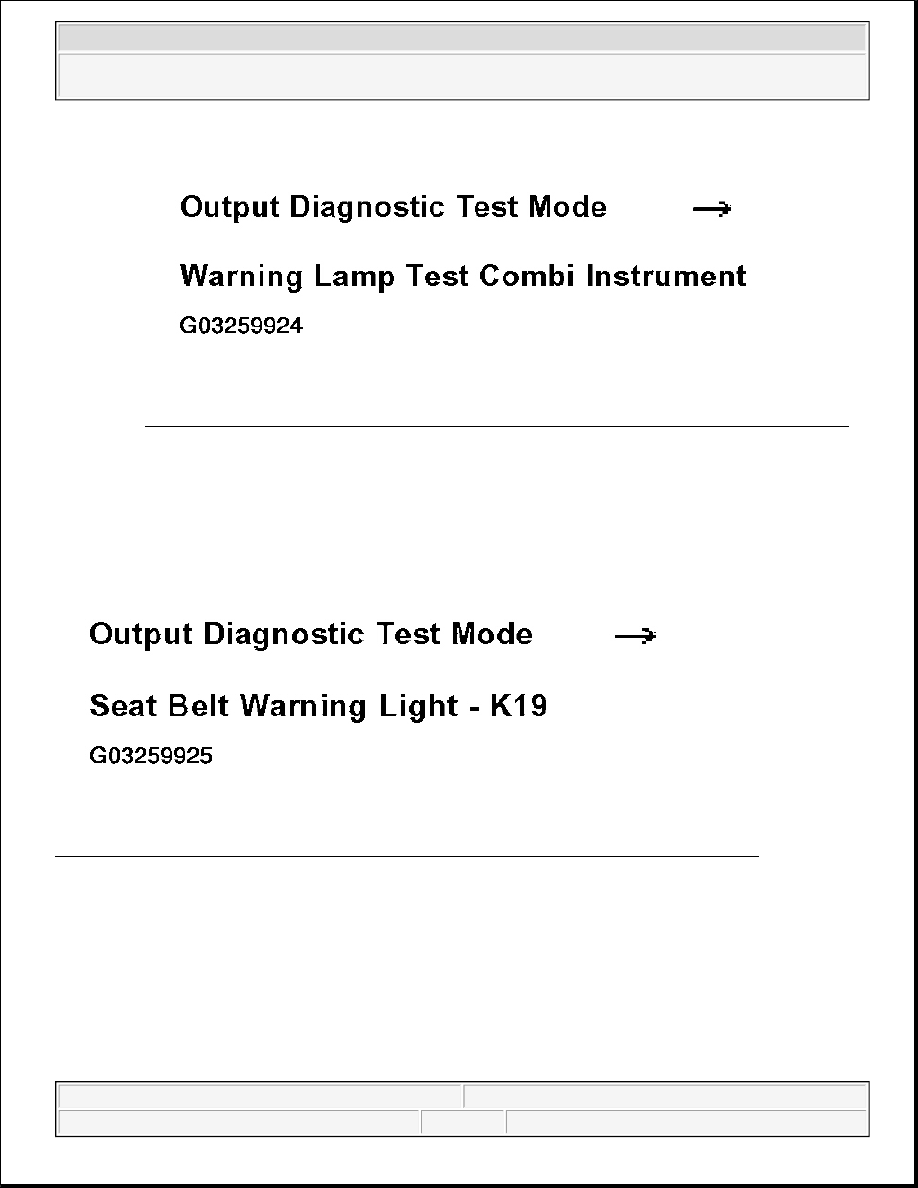

Fig. 25: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (4 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Seat belt warning light -K19- lights

Fig. 26: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (5 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Oil pressure warning buzzer is activated intermittently

z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

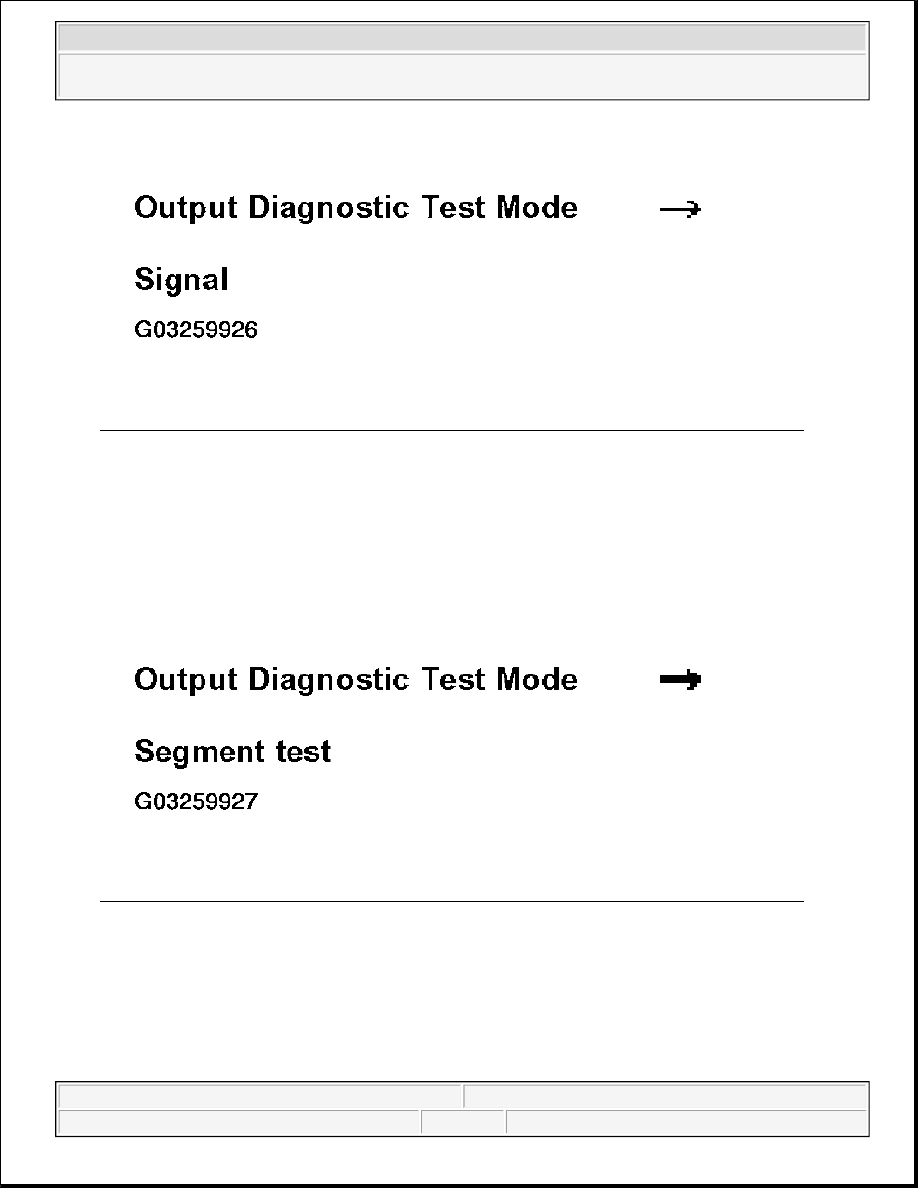

Fig. 27: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (6 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

All liquid crystal segments in speedometer display are activated and become visible.

z

Press --> button.

Fig. 28: VAG 1551 Scan Tool Display - Output Diagnostic Test Mode, Up To 06.99 (7 Of 12)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Coolant temperature/engine coolant level indicator warning light is activated.

Safety function (high coolant temperature cut-out for the A/C clutch) is activated approx. 5 seconds later.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)
