Press -Q- button to confirm input.

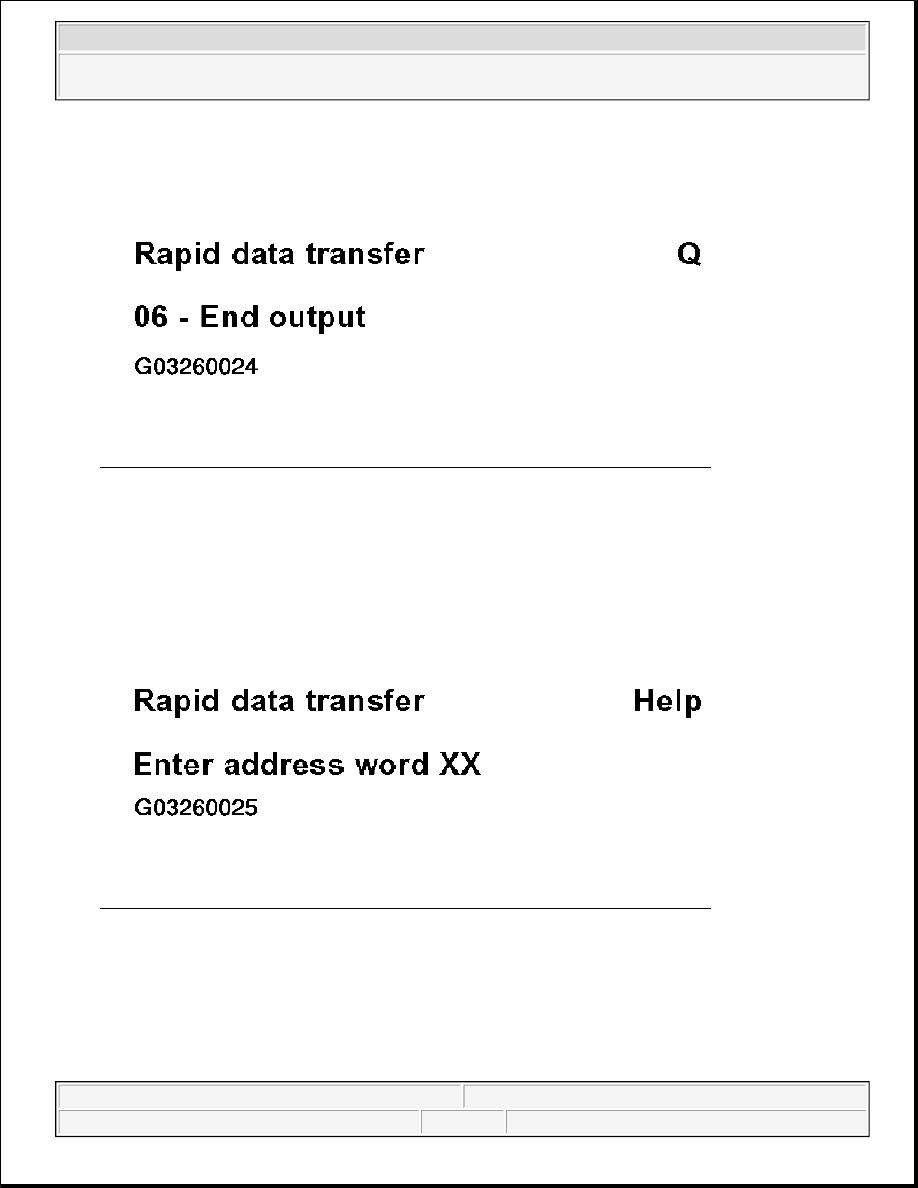

Fig. 125: VAG 1551 Scan Tool Display - End Output, From 06.99 & Up (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Switch off ignition.

z

Disconnect VAG 1551 Scan Tool (ST) from Data Link Connector (DLC).

Fig. 126: VAG 1551 Scan Tool Display - End Output, From 06.99 & Up (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

INSTRUMENT CLUSTER UP TO 10.00 MODELS, CODING (FUNCTION 07)

Use this function to code the control module with indicator unit in instrument cluster -J285- with the following
information:

z

Available equipment



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



z

Market version

z

Code number for service intervals

z

Code number for distance impulse number ("K" number)

Coding

z

Connect VAG 1551 scan tool (ST), select operating mode 1 "Rapid data transfer", switch on ignition and
input address word 17 "Instrument cluster".

After control module identification and immobilizer identification number are displayed:

z

Press --> button.

Indicated on display:

z

Press buttons -0- and -7- to select function 07 "Code control module".

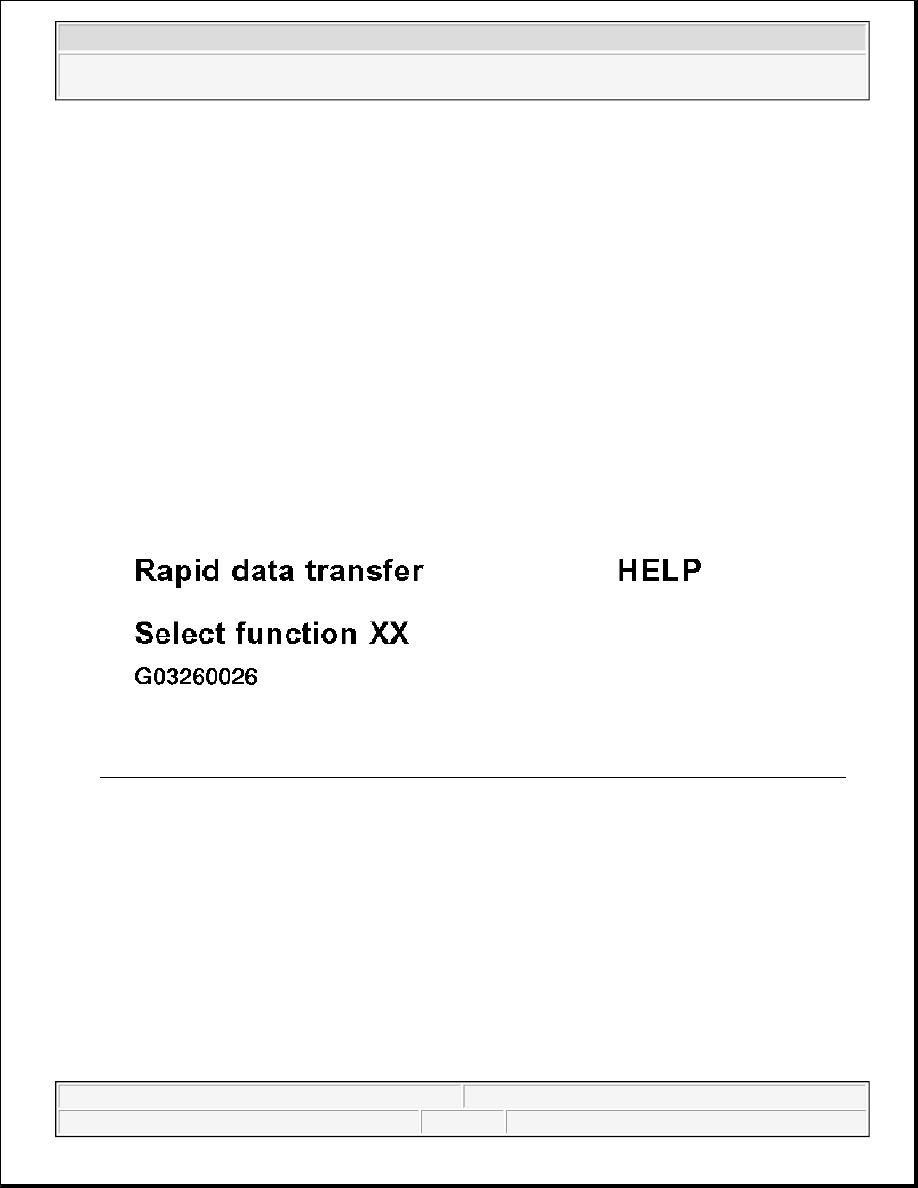

Fig. 127: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (1 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press -Q- button to confirm input.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)

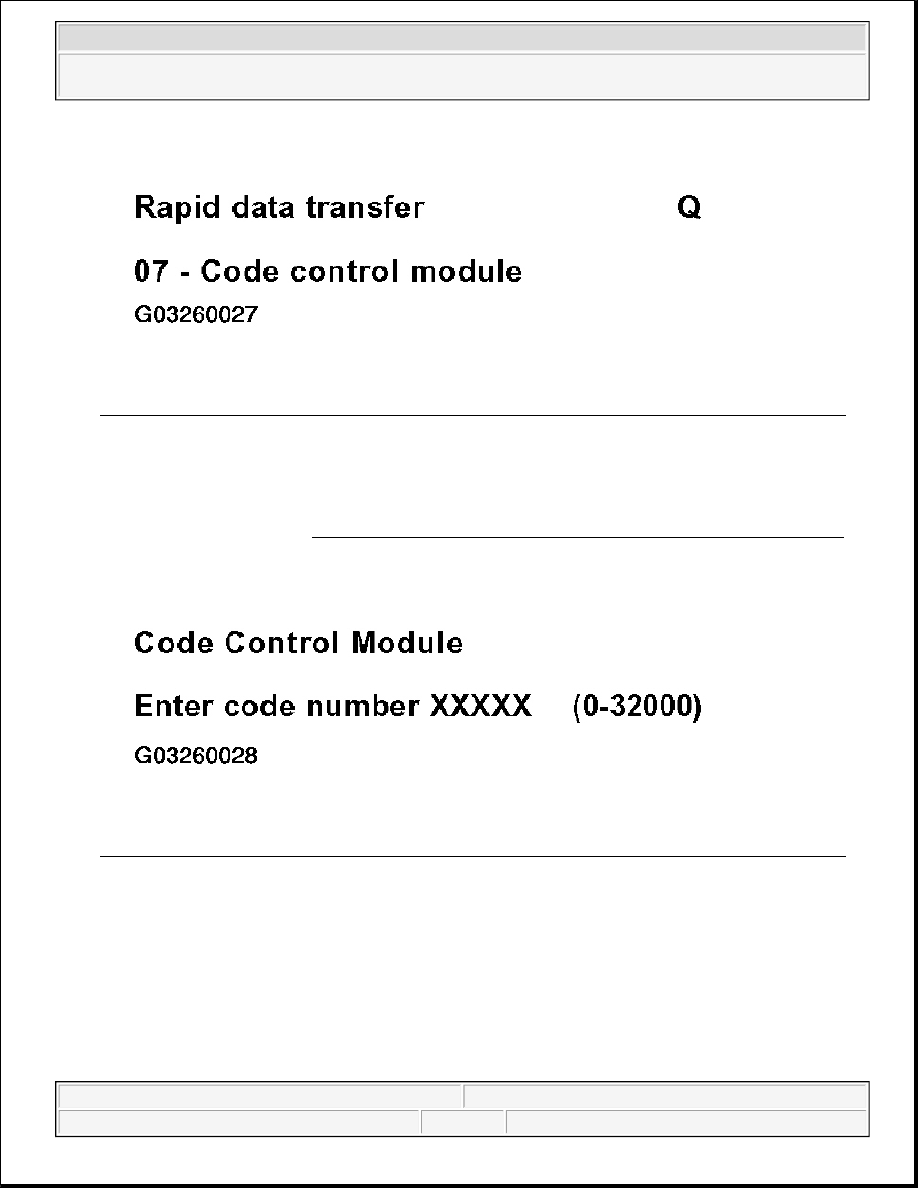

Fig. 128: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (2 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm applicable available equipment, model and service interval particulars, determine and enter code
number from code table. See INSTRUMENT CLUSTER CODE TABLE (UP TO 10.00 MODELS) .

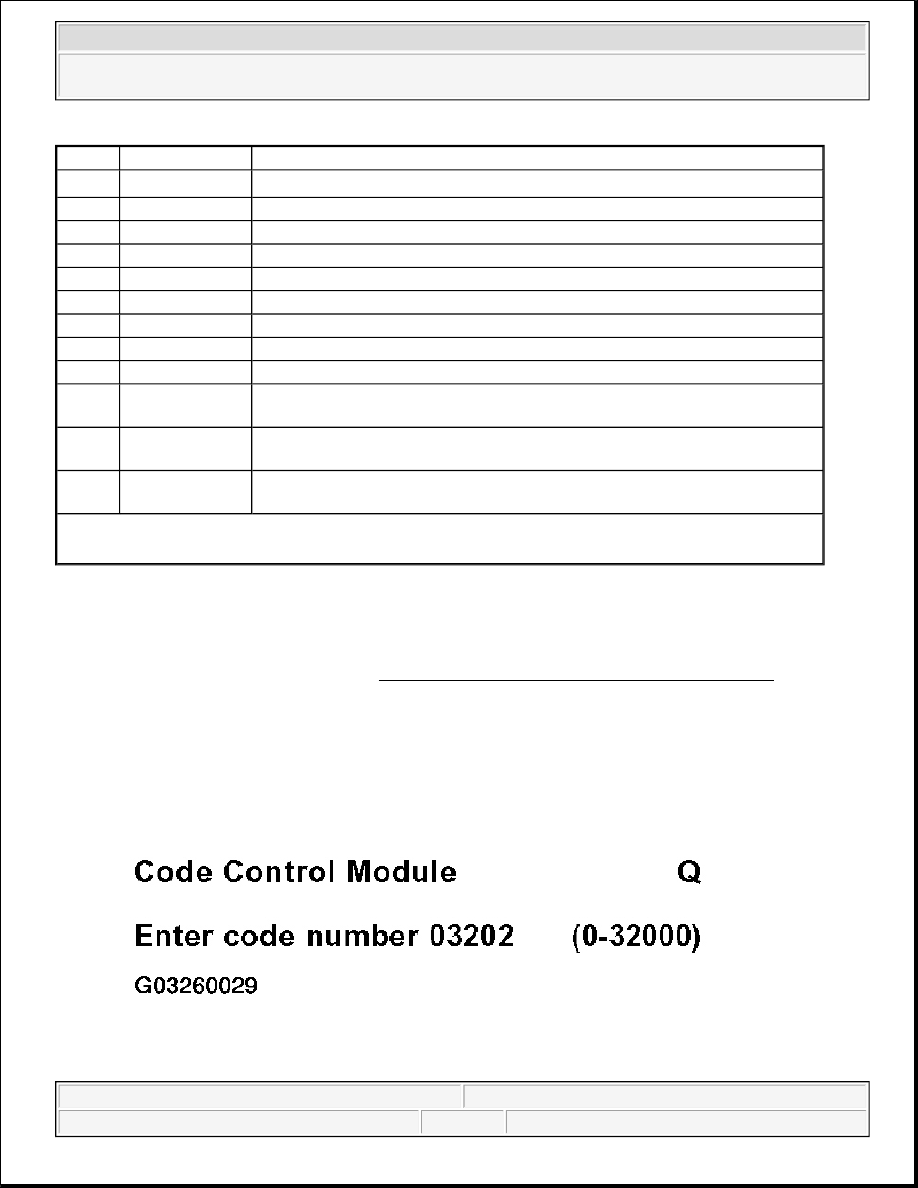

Fig. 129: VAG 1551 Scan Tool Display - Instrument Cluster Coding, Up To 10.00 Models (3 Of 8)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Coding example:

03 Code number for vehicle options

2 Code number for country version

0 Code number for service intervals

2 Code number for distance impulse number (K-number)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT On Board Diagnostic (OBD) - New Beetle (Instrument Cluster, Data Bus &

Anti-theft Immobilizer)



INSTRUMENT CLUSTER CODE

Indicated on display:

z

Press -Q- button to confirm input.

Code

Place In Code

Designation



1st & 2nd Digits

Available equipment

(1)

00

1st & 2nd Digits

No optional equipment active

01

1st & 2nd Digits

Brake pad wear indicator active

02

1st & 2nd Digits

Seat belt warning active

04

1st & 2nd Digits

Rear spoiler



3rd Digit

Market version

2

3rd Digit

USA (US)

3

3rd Digit

Canada (CDN)



4th Digit

Code number for service intervals



0

Fixed USA/CDN service intervals - without oil level thermal sensor -G266-

installed



2

Fixed USA/CDN service intervals - with oil level thermal sensor -G266-

installed



5th Digit

Code number for trip impulse number (K-number)

3528

(1)

If more than one type of available equipment is to be entered, then the code numbers must be added
together. Example: Brake pad wear indicator & seat belt warning: 01 + 02 = 03.

NOTE:

z

The distance impulse number is a constant used to calculate speed and
distance travelled.

z

The distance impulse number (K number) can be read using function 10
"Adaptation". See Distance impulse number (K number), reading .
