z

Exit operating mode "Guided Fault Finding".

z

Disconnect VAS 5051 from DLC.

z

Drive vehicle outside to area away from tall buildings, and with no overhead obstructions (trees, bridges,
etc.).

z

Press the blue OnStar(R) ("On*") button. A recorded introduction will be heard.

z

Press the "On*" button again at any time during the recording (it is not necessary to wait for the recording
to finish).

z

When an OnStar(R) call center advisor answers, identify yourself as a Volkswagen Technician, and that
you have replaced the "Vehicle Communications Interface Unit (VCIM)".

z

Supply advisor with STID number and ESN from new module. Supply the VIN and customer details if
necessary.

z

The advisor will guide you through the system reconfiguration and update of the customer's account.

z

When reconfiguration is complete, end call by pressing the Communications ("DOT") button.

z

Wait ten minutes and press the "On*" button again to verify system operation. Inform call center advisor
you are a Volkswagen Technician performing a quality check after VCIM replacement/system
reconfiguration.

z

End call by pressing the Communications ("DOT") button.

GPS/TELEMATICS ANTENNA

Models with Telematics are equipped with "triplex" type antennas mounted to the rear portion of the roof.

These antennas process signals for the radio as well as telematics/GPS functions.

GPS/TELEMATICS ANTENNA, OVERVIEW

NOTE:

z

Normal connection time is 10 - 15 seconds. However, depending on local
cellular/GPS conditions, making a connection could take up to three
minutes. Be patient.

z

If the message: "unable to contact OnStar" is heard, try relocating vehicle
to a more elevated or open area and repeat connection attempts.
Depending on the local cellular/GPS traffic conditions, several connection
attempts may be necessary (and are normal).

z

If the message: "OnStar request ended" is heard, the cellular connection
was interrupted before the connection was completed. Wait for a short
period of time before repeating connection attempt.

z

If you are still unable to connect, call OnStar(R) Customer Care at 1-888-
390-4050. The advisor will verify the customer's OnStar(R) account is
active.

NOTE:

The following list refers to items in Fig. 94 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



1. Antenna base

2. Antenna mast

3. Gasket

4. Antenna connection - Navigation (GPS)

z

Threaded

5. Hex nut

6. Antenna connection - Radio

z

Plug

z

Black

7. Antenna connection - Telematics

z

Plug

z

Grey



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle

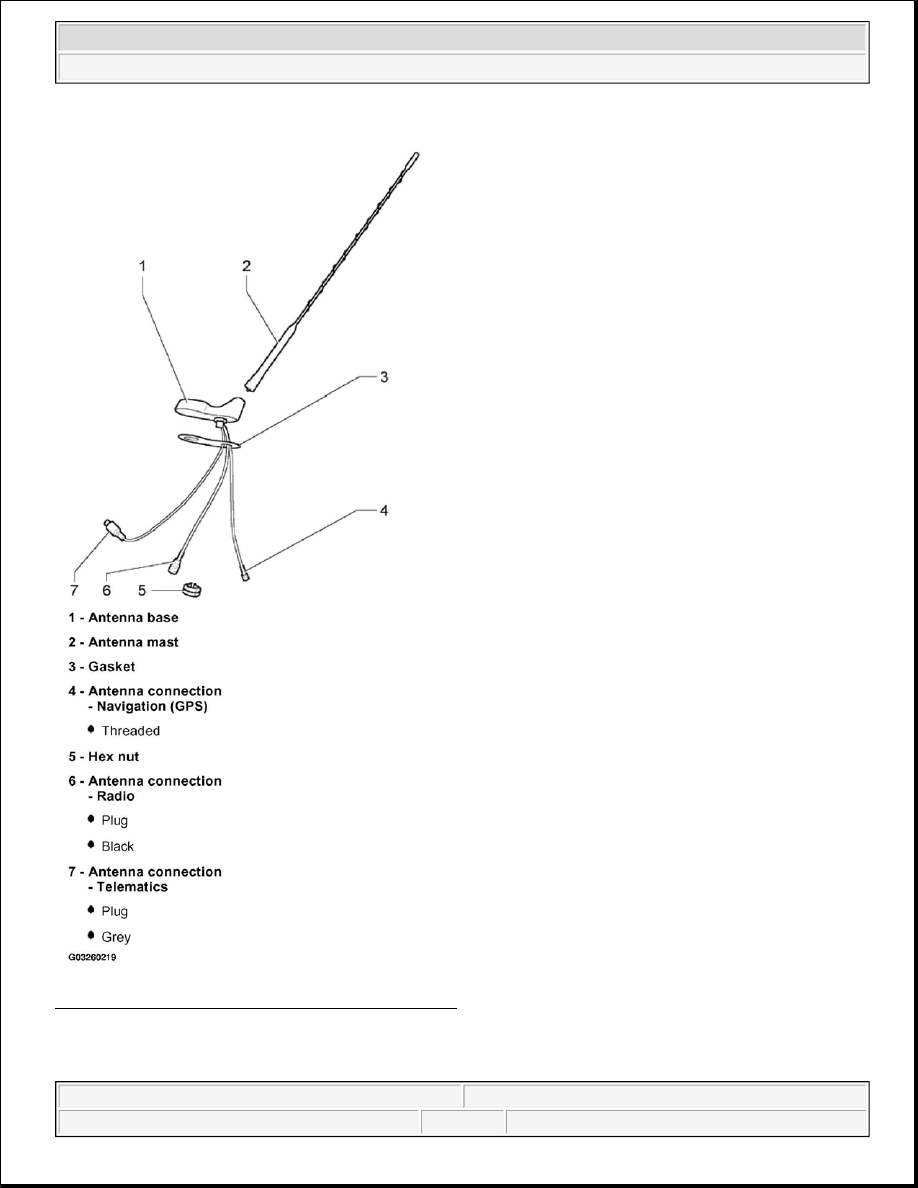

Fig. 94: Exploded View Of GPS/Telematics Antenna
Courtesy of VOLKSWAGEN UNITED STATES, INC.

GPS/TELEMATICS ANTENNA, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle



Removing

z

Unclip rear headliner trim and left/right C-pillar trim

See PILLARS AND SIDE TRIMS and PILLARS AND SIDE TRIMS (CONVERTIBLE) .

z

Carefully lower headliner at rear slight in order to access antenna cables etc.

z

Unclip cable connections -arrows- from roof and separate connections.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Radio, Telephone, Navigation, Trip Computer - New Beetle
